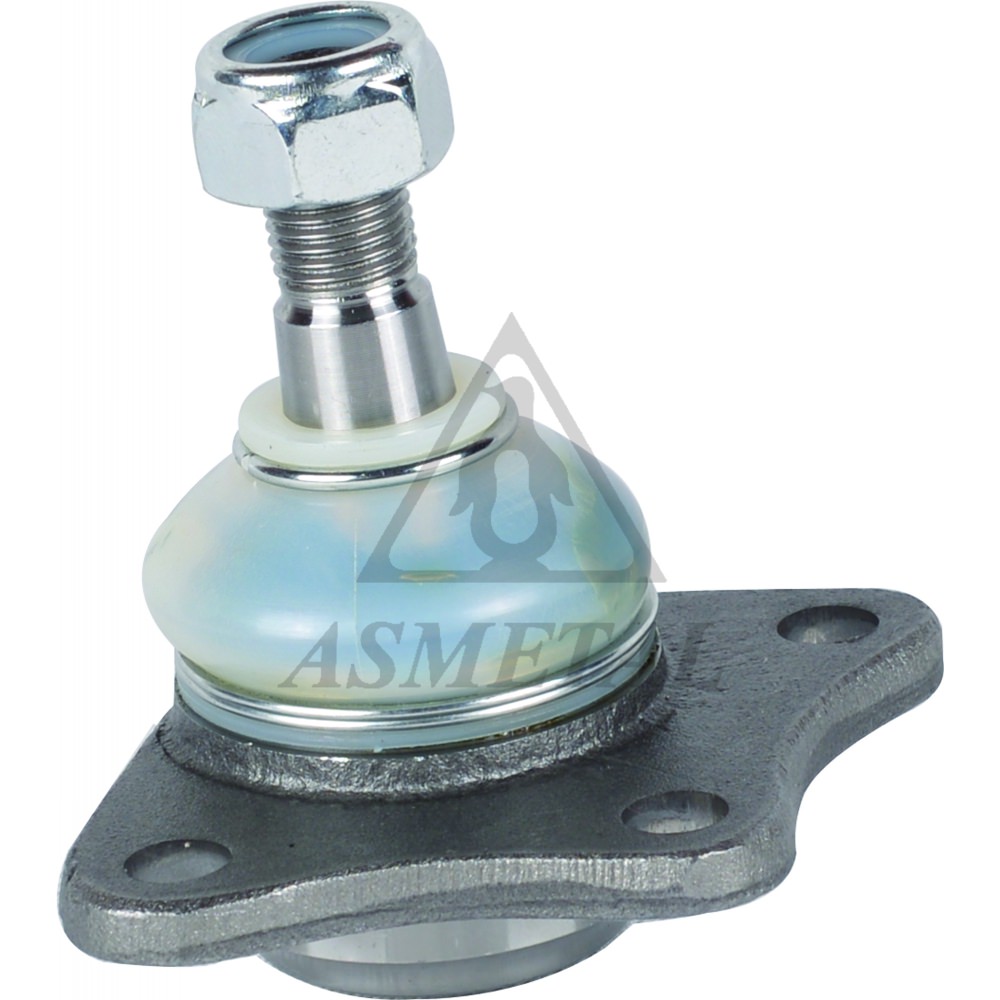

10AR1500
|
Ball Joint Lower |
th:M12x1.25 RHT cp:1/8 cs:Ø13 / 0,4 kg |
824 46 499, 605 10 360 (4) OEM |
 |
10FI1000
|
Ball Joint Upper |
th:M14x1.5 RHT cp:1/8 cs:Ø14,75 / 0,53 kg |
5 880 794, 5 880 298 (2) OEM |
 |
10FI1010
|
Ball Joint Lower |
th:M14x1.5 RHT cp:1/9 cs:Ø14,9 / 0,51 kg |
5 880 795, 5 676 985 (1) OEM |
 |
10FI2400
|
Ball Joint |
th:M14x1.5 RHT cp:1/8 cs:Ø14,75 / 0,51 kg |
4 104 863, 5 882 118 (6) OEM |
 |
10FI2700
|
Ball Joint |
c:Ø19 / 0,76 kg |
520 11 614*, 520 26 562 (2) OEM |
 |
10FI3000
|
Ball Joint |
th:M14x1.5 RHT cp:1/8 cs:Ø15,79 / 0,72 kg |
3640 18, 3640 17 (1) OEM |
 |
10FI3001
|
Ball Joint |
th:M16x1.5 RHT cp:1/8 cs:Ø17 / 0,77 kg |
3640 26, 3640 46 (2) OEM |
 |
10FI3002
|
Ball Joint |
th:M16x1.5 RHT cp:1/8 cs:Ø17 / 0,96 kg |
3640 32, 13 023 680 80 (1) OEM |
 |
10FI3003
|
Ball Joint |
th:M18x1.5 RHT cp:1/10 cs:Ø19,5 / 1,05 kg |
3640 33, 13 004 730 80 |
 |
10FI3004
|
Ball Joint |
th:M16x1.5 RHT cp:1/6 cs:Ø17 / 0,96 kg |
3640 55, 13 305 150 80 (2) OEM |
 |
10FI3005
|
Ball Joint |
th:M18x1.5 RHT cp:1/6 cs:Ø19,8 / 1,14 kg |
3640 54, 13 316 410 80 |
 |
10FI3100
|
Ball Joint |
th:M14x1.5 RHT cp:1/8 cs:Ø15,79 / 0,4 kg |
4 469 175, 4 468 519 (3) OEM |
 |
10FI3210
|
Ball Joint Lower |
th:M16x1.5 RHT cp:1/6 cs:Ø20,5 / 0,89 kg |
16 357 716 80, 16 355 075 80 (6) OEM |
 |
10FI3505
|
Ball Joint Lower |
c:Ø16 / 0,52 kg |
518 95 367, 518 95 366 (16) OEM |
 |
10FI4000
|
Ball Joint Lower |
th:M10x1.25 RHT cp:1/10 cs:Ø12,25 do:Ø37 / 0,21 kg |
SE 141 140 104 A, 4 402 644 (2) OEM |
 |
10FI41
|
Ball Joint Lower |
th:M10x1.25 RHT cp:1/10 cs:Ø12 do:Ø37,3 / 0,25 kg |
4 402 649, 4 402 644 (2) OEM |
 |
10FI4200
|
Ball Joint |
cs:Ø17 / 0,46 kg |
518 27 737, 518 27 736 (5) OEM |
 |
10FI4300
IN PREPARATION
|
Ball Joint |
|
519 28 527*, 519 28 536* (2) OEM |
 |
10FI5000
|
Ball Joint Lower |
th:M12x1.25 RHT cp:1/8 cs:Ø13 / 0,36 kg |
4 643 7951, 4 643 7959 (1) OEM |
 |
10FI5010
NEW
|
Ball Joint Lower |
0,38 kg |
464 37 959, 464 54 599 |
 |
10FI5500
|
Ball Joint Lower |
th:M12x1.25 RHT cp:1/5 cs:Ø13,6 / 0,42 kg |
467 79 293, 468 42 581 (1) OEM |
 |
10FI5501
|
Ball Joint Lower |
th:M12x1.25 RHT cp:1/5 cs:Ø13,65 / 0,42 kg |
7 081 835, 465 43 045 |
 |
10FI5600
|
Ball Joint Lower |
c:Ø18 / 0,5 kg |
51 220 504 90, 518 10 664 (3) OEM |
 |
10FI7010
IN PREPARATION
|
Ball Joint Lower |
0 kg |
5 085 914AD, K0 5 090 033AB (2) OEM |
 |
10JP2700
IN PREPARATION
|
Ball Joint |
|
519 45 321 |
 |
10PE1300
IN PREPARATION
|
Ball Joint Lower |
0 kg |
98 310 885 80, 98 073 060 99 (3) OEM |
 |
10RN0520
|
Ball Joint Lower |
c:Ø17.2 th:MM16x1.5 RHT cp:1/5 / 0,76 kg |
60 00 618 836*, 60 00 618 835* (6) OEM |
 |
11OP2500
|
Silentblock Bushing |
di:Ø14 do:Ø47,3 / 0,32 kg |
517 83 009*, 517 48 740* (10) OEM |
 |

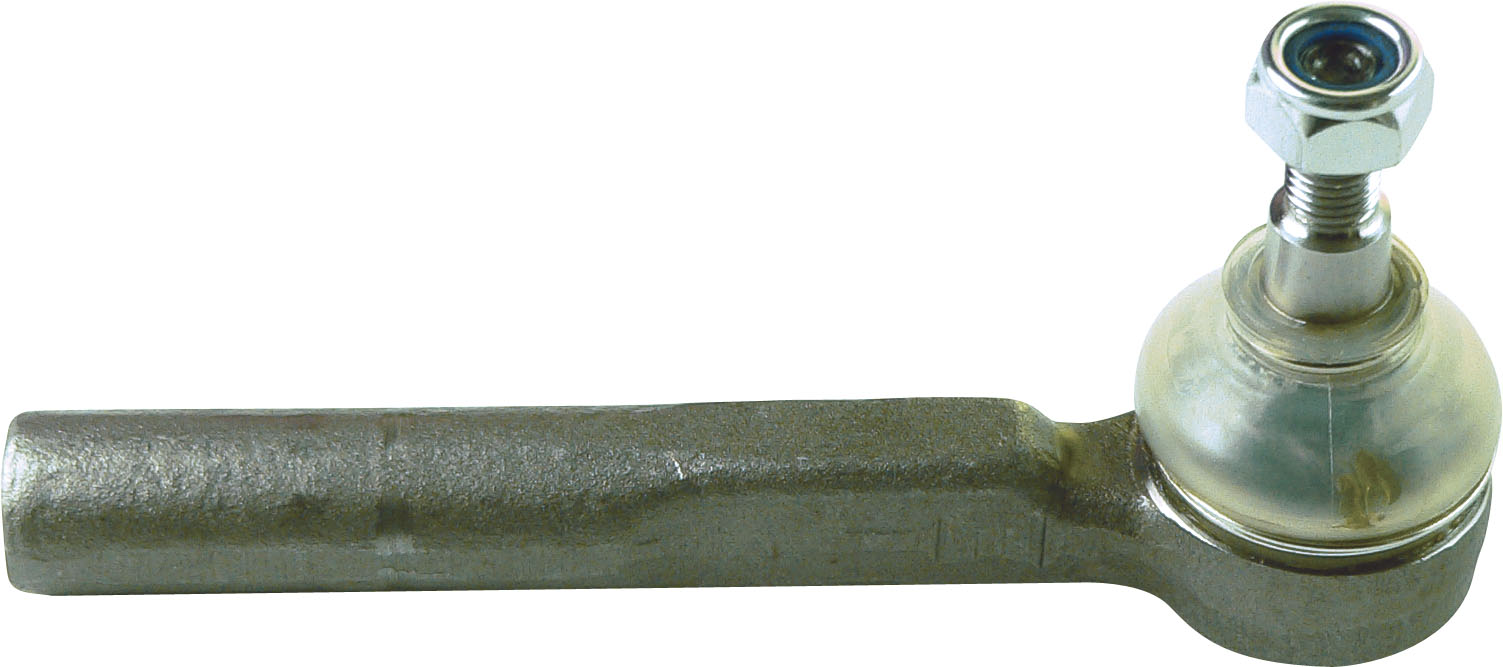

17AR1500
|
Tie Rod End |
c:Ø12.45 th:FM14x1,5 RHT / 0,5 kg |
00 605 07 918, 605 07 918 (3) OEM |
 |
17CT1000
|
Tie Rod End |
L: 80 cr: 1:5 c: Ø14.4 tp: M12x1.5 th: FM14x1.5 / 0,38 kg |
3817 A5, 3817 73 (3) OEM |
 |
17FI0100
|
Tie Rod End |
c:Ø11,9 th:FM14x1 RHT / 0,5 kg |
4 361 667, 4 254 520 (2) OEM |
 |

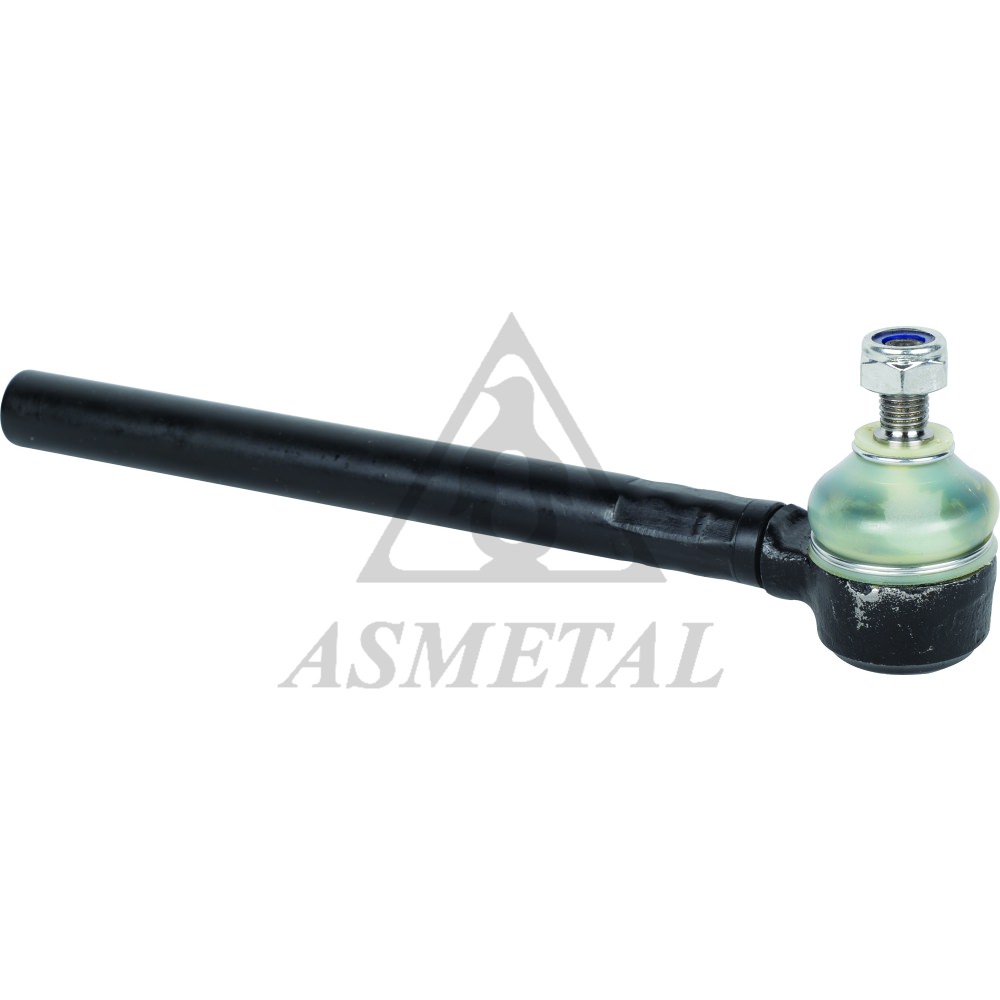

17FI0500
OUT OF SERVICE
|
Tie Rod End |
c:Ø11,9 th:FM14x1 RHT / 0 kg |
4 254 278, 4 217 302 (2) OEM |
 |
17FI1000
|
Tie Rod End |
c:Ø14,7 th:MM16x1 LHT / 0,58 kg |
4 109 626 |
 |
17FI1500
OUT OF SERVICE
|
Tie Rod End |
c:Ø12 th:FM12x1,5 RHT / 0,36 kg |
5960834, 5960835 (2) OEM |
 |
17FI1600
|
Tie Rod End Left |
L:145 / 0,54 kg |
773 62 507, 773 67 001 (6) OEM |
 |
17FI1601
|
Tie Rod End Right |
L:145 / 0,54 kg |
773 67 002, 773 62 508 (6) OEM |
 |
17FI2000
OUT OF SERVICE
|
Tie Rod End |
c:Ø12 th:FM12x1,5 RHT / 0,39 kg |
766 97 56, 596 00 36 (2) OEM |
 |
17FI2430
|
Tie Rod End Right |
c:Ø11,9 th:FM14x1 RHT / 0,29 kg |
4 218 233 |
 |
17FI2450
|
Tie Rod End Left |
c:Ø11,9 th:FM14x1 LHT / 0,29 kg |
4 104 085, 4 102 138 |
 |
17FI2500
OUT OF SERVICE
|
Tie Rod End |
c:Ø12 th:FM14x1,5 RHT / 0,38 kg |
4 410 415 |
 |
17FI2600
|
Tie Rod End |
c:Ø12 th:FM12x1,5 RHT / 0,4 kg |
9 946 949, 7 752 285 |
 |
17FI2700
|
Tie Rod End |
c:Ø 11,3 th:FM14x1,5 RHT / 0,44 kg |
00 773 67 379 001, 773 67 379 |
 |
17FI3000
|
Tie Rod End |
c:Ø14,5 th:FM16x1,5 RHT / 0,43 kg |
3817 11, 97 50 079 980 |
 |
17FI3100
|
Tie Rod End |
c:Ø12,5 th:FM14x1,5 RHT / 0,35 kg |
4 322 906, 4 322 905 |
 |
17FI3101
|
Tie Rod End |
c:Ø12,5 th:FM12x1,5 RHT / 0,33 kg |
5 962 773, 5 962 772 |
 |
17FI3200
|
Tie Rod End |
c:Ø14,4 th:FM16x1,5 RHT / 0,56 kg |
4018 H4, 4018 A3 (1) OEM |
 |
17FI3205
|
Tie Rod End |
c:Ø16,6 th:FM16x1,5 RHT / 0,62 kg |
4018 E0, 773 62 278 |
 |
17FI3210
|
Tie Rod End Left |
c:Ø16,7 th:FM16x1,5 RHT / 0,92 kg |
13 763 460 80, 16 109 397 80 (3) OEM |
 |
17FI3211
|
Tie Rod End Right |
c:Ø16,7 th:FM16x1,5 RHT / 0,92 kg |
3817 70, 16 109 763 80 (4) OEM |
 |
17FI3500
OUT OF SERVICE
|
Tie Rod End |
c:Ø11,8 th:FM12x1,5 RHT / 0,56 kg |
758 46 28, 754 30 28 |
 |
17FI3505
|
Tie Rod End Left |
c:Ø11,7 th:FM14x1,5 RHT / 0,39 kg |
773 63 829, 3817 86 (5) OEM |
 |
17FI3506
|
Tie Rod End Right |
c:Ø11,7 th:FM14x1,5 RHT / 0,39 kg |
773 63 830, 3817 87 (5) OEM |
 |
17FI4000
|
Tie Rod End |
c:Ø12,15 th:FM12x1,5 RHT / 0,41 kg |
5 983 404, 5 983 406 (2) OEM |
 |
17FI4200
|
Tie Rod End |
L: 95 / cr: 1:6 / c: Ø11.6 / tp: M10x1.25 / th: FM14x1.5 / 0,36 kg |
9 949 218, 51 809 106 (1) OEM |
 |
17FI4300
IN PREPARATION
|
Tie Rod End |
0 kg |
773 65 815, 68111 382AA (1) OEM |
 |
17FI4530
|
Tie Rod End Right |
c:Ø12 th:FM12x1,5 RHT / 0,4 kg |
759 12 15, 994 74 38 (4) OEM |
 |
17FI4550
|
Tie Rod End Left |
c:Ø12 th:FM12x1,5 RHT / 0,4 kg |
995 06 71, 994 74 37 (7) OEM |
 |
17FI5000
OUT OF SERVICE
|
Tie Rod End Right |
c:Ø12 th:FM14x1,5 RHT / 0 kg |
46745364, 46456660 |
 |
17FI5001
OUT OF SERVICE
|
Tie Rod End Left |
c:Ø12 th:FM14x1,5 RHT / 0 kg |
46745365, 46456189 |
 |
17FI5100
|
Tie Rod End |
c:Ø12,6 th:FM14x1,5 RHT / 0,35 kg |
4059 09, 13 060 030 80 (2) OEM |
 |
17FI5500
|
Tie Rod End Right |
c:Ø12,15 th:FM14x1,5 RHT / 0,51 kg |
988 45 031, 464 56 660 (1) OEM |
 |
17FI5501
|
Tie Rod End Left |
c:Ø12,15 th:FM14x1,5 RHT / 0,51 kg |
988 45 032, 464 56 189 (1) OEM |
 |
17FI5600
|
Tie Rod End Left |
c:Ø11,6 th:FM14x1,5 RHT / 0,52 kg |
773 65 223, 16 09 193 (1) OEM |
 |
17FI5601
|
Tie Rod End Right |
c:Ø11,6 th:FM14x1,5 RHT / 0,52 kg |
773 65 224, 16 09 192 (1) OEM |
 |
17FI5670
NEW
|
Tie Rod End Left |
L: 136 C: Ø11,7 CR: 1/6 TH: FM14x1,5 TP: M10X1,5 / 0,42 kg |
773 66 165 |
 |
17FI5671
NEW
|
Tie Rod End Right |
L: 136 C: Ø11,7 CR: 1/6 TH: FM14x1,5 TP: M10X1,5 / 0,42 kg |
773 66 166 |
 |
17FI6000
|
Tie Rod End |
c:Ø12 th:FM14x1,5 RHT / 0,36 kg |
994 77 19, 988 45 030 (2) OEM |
 |
17FI6010
IN PREPARATION
|
Tie Rod End |
0 kg |
994 79 26 |
 |
17LD0500
|
Tie Rod End |
c:Ø14,65 th:MM16x1 RHT / 0,35 kg |
4 343 762, 4 327 143 (6) OEM |
 |
17MT2002
IN PREPARATION
|
Tie Rod End Left |
|
6000 605 949, 4422A009 (2) OEM |
 |
17MT2003
IN PREPARATION
|
Tie Rod End Right |
|
60 006 059 50, 4422A010 (1) OEM |
 |
17OP2500
|
Tie Rod End Left |
c:Ø12,2 th:FM14x1,5 RHT / 0,44 kg |
77 363 713, 16 03 227 (6) OEM |
 |
17OP2501
|
Tie Rod End Right |
c:Ø12,2 th:FM14x1,5 RHT / 0,44 kg |
77 363 712, 16 03 228 (6) OEM |
 |
17PE1200
|
Tie Rod End Left |
th1: FM14x1.5RHT th2: MM12X1.5R cs: Ø14.5 cp: 1/5 L: 215mm / 0,8 kg |
16 108 177 80, 39 176 184* (2) OEM |
 |
17PE1201
|
Tie Rod End Right |
th1: FM14X1.5R th2: MM12X1.5R cs: Ø14.5 cp:1/5 L:215 / 0,8 kg |
16 108 178 80, 39 176 184* (2) OEM |
 |
17PE2100
IN PREPARATION
|
Tie Rod End |
0 kg |
4059 12, 16 073 152 80 (1) OEM |
 |
17RN0510
|
Tie Rod End Left |
c:Ø11,9 th:FM14x1,5 RHT / 0,64 kg |
6000 617 476, 48520 00QAK (9) OEM |
 |
17RN0511
|
Tie Rod End Right |
c:Ø11,9 th:FM14x1,5 RHT / 0,64 kg |
60 006 174 75, 48520 00Q0K (8) OEM |
 |
17SZ1000
IN PREPARATION
|
Tie Rod End |
0 kg |
48810 65J00 |
 |
20AR0100
|
Axial Joint |
th:FM18x1.5 RHT L:327mm / 0,75 kg |
3812 27, 97 50 001 180 (4) OEM |
 |
20CT1000
|
Axial Joint |
tp: MM16x1.5 tp: MM14x1.5 L: 306 / 0,65 kg |
3812 F0, 16 10 942 380 (7) OEM |
 |
20FI0350
IN PREPARATION
|
Axial Joint |
0 kg |
773 62 502 |
 |
20FI1600
|
Axial Joint |
th1: M14X1.5 th2: M12X1.5 L:228 / 0,48 kg |
773 62 506 |
 |
20FI1700
IN PREPARATION
|
Axial Joint |
0 kg |
517 86 814*, 517 86 815* (8) OEM |
 |
20FI2010
|
Axial Joint |
th:FM14x1.5 RHT L:258mm / 0,49 kg |
850 03 262* |
 |
20FI2600
|
Axial Joint |
th:MM16x1,5 RHT L:267mm / 0,51 kg |
994 55 62 |
 |
20FI2610
IN PREPARATION
|
Axial Joint |
0 kg |
770 14 91, 994 69 48 (1) OEM |
 |
20FI2650
IN PREPARATION
|
Axial Joint |
0 kg |
994 83 43, 770 14 91 (1) OEM |
 |

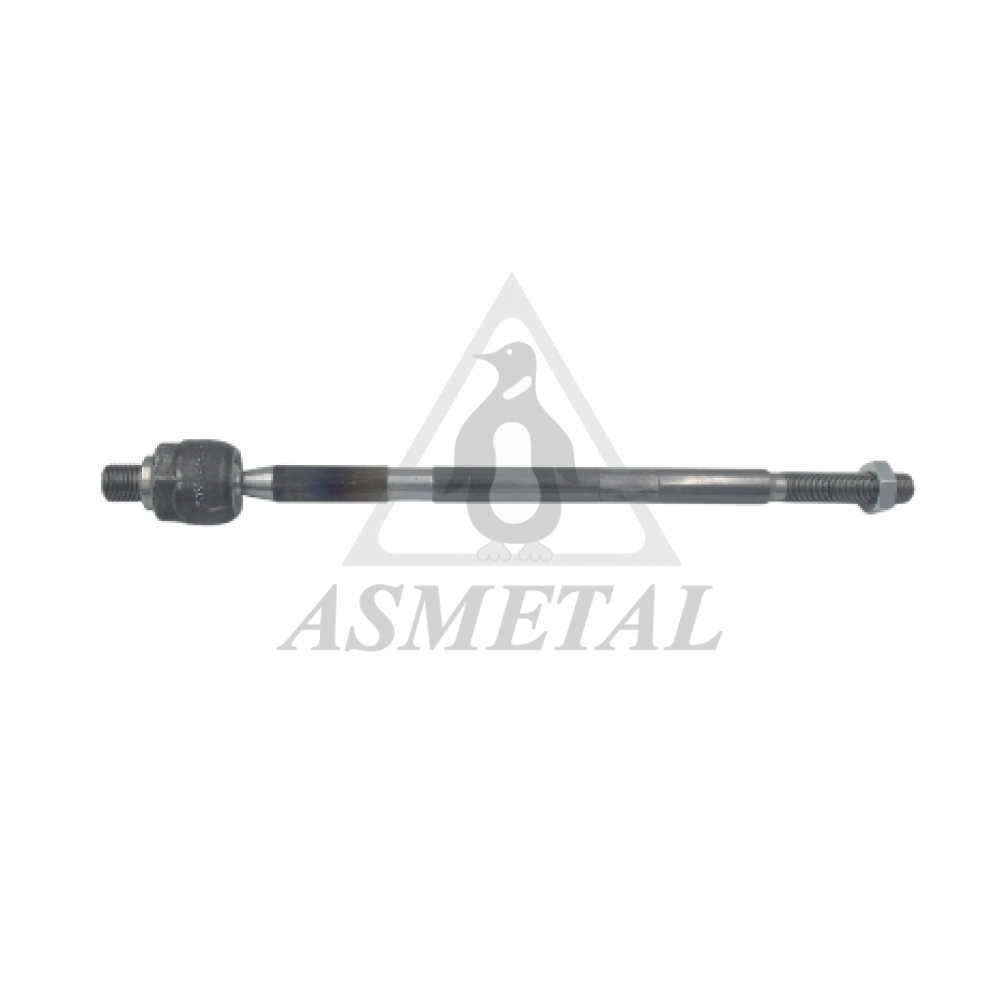

20FI2700
|
Axial Joint |
th1: MM16x1.5 RHT th2:MM14x1.5 RHT L : 325 mm / 0,7 kg |
520 14 014*, 773 67 378* |
 |
20FI2750
IN PREPARATION
|
Axial Joint |
|
520 05 180*, 519 67 456* |
 |
20FI3110
|
Axial Joint |
th:FM14x1.5 RHT L:266,5mm / 0,53 kg |
4 322 913, 4 379 269 (1) OEM |
 |
20FI3111
|
Axial Joint |
th:FM14x1.5 RHT L:270mm / 0,52 kg |
850 03 266 |
 |
20FI3115
|
Axial Joint |
th:MM14x1.5 RHT L:268mm / 0,54 kg |
150 00 099 |
 |
20FI3200
|
Axial Joint |
th:MM16x1,5 RHT L:315mm / 0,75 kg |
4018 A4, 994 45 94 (3) OEM |
 |

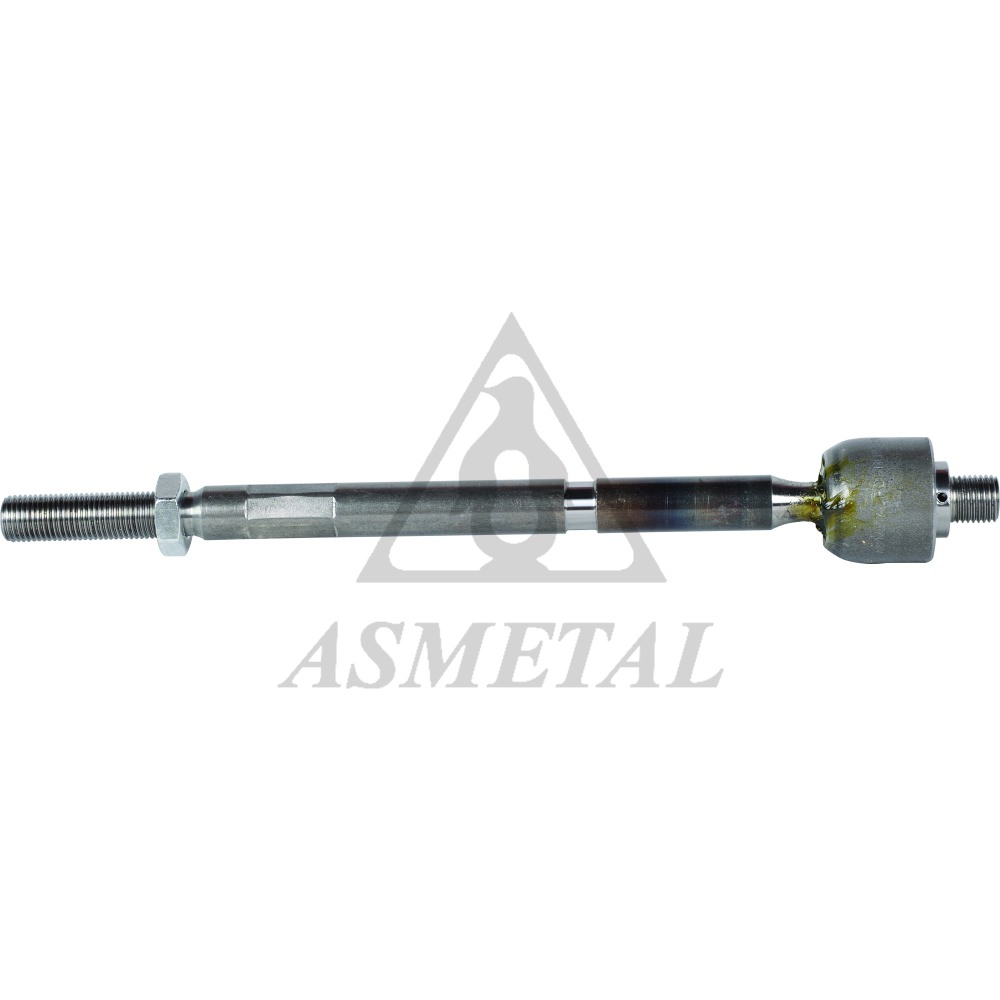

20FI3505
|
Axial Joint |
th:MM14x1.5 RHT L:274mm / 0,55 kg |
4001 77*, 4001 CW* (5) OEM |
 |
20FI4200
|
Axial Joint |
th1: FM14x1.5RHT th2: MM14X1.5RHT L: 317.5mm / 0,72 kg |
994 92 17 |
 |
20FI4501
|
Axial Joint |
th:MM14x1.5 RHT L:266,5mm / 0,47 kg |
995 04 52, 994 44 52 (5) OEM |
 |
20FI4502
|
Axial Joint |
th:FM14x1.5 RHT L:272mm / 0,47 kg |
441 01 45, 595 82 44 (2) OEM |
 |
20FI5000
|
Axial Joint |
th:MM14x1.5 RHT L:285,6mm / 0,53 kg |
707 93 82 |
 |
20FI5005
|
Axial Joint |
th:MM16x1,5 RHT L:267mm / 0,5 kg |
7 081 851, 2 170 345 |
 |
20FI5100
|
Axial Joint |
th:MM14x1.5 RHT L:306mm / 0,59 kg |
3812 A4, 9 947 713 (1) OEM |
 |
20FI5500
|
Axial Joint |
th:MM16x1,5 RHT L:333,5mm / 0,64 kg |
988 45 024 |
 |
20FI5501
|
Axial Joint |
th:MM14x1.5 RHT L:297,1mm / 0,6 kg |
467 94 038, 988 45 025 |
 |
20FI5502
|
Axial Joint |
th:MM16x1,5 RHT L:298mm / 0,61 kg |
988 45 026 |
 |
20FI5600
|
Axial Joint |
th:MM18x1.5 RHT L:297,5mm / 0,68 kg |
26 144 989* |
 |
20FI7000
IN PREPARATION
|
Axial Joint |
|
68 040 223 AE |
 |
20OP1505
|
Axial Joint |
th:MM14x1,5 RHT L:292,5mm / 0,56 kg |
518 61 102, 519 09 749 (8) OEM |
 |

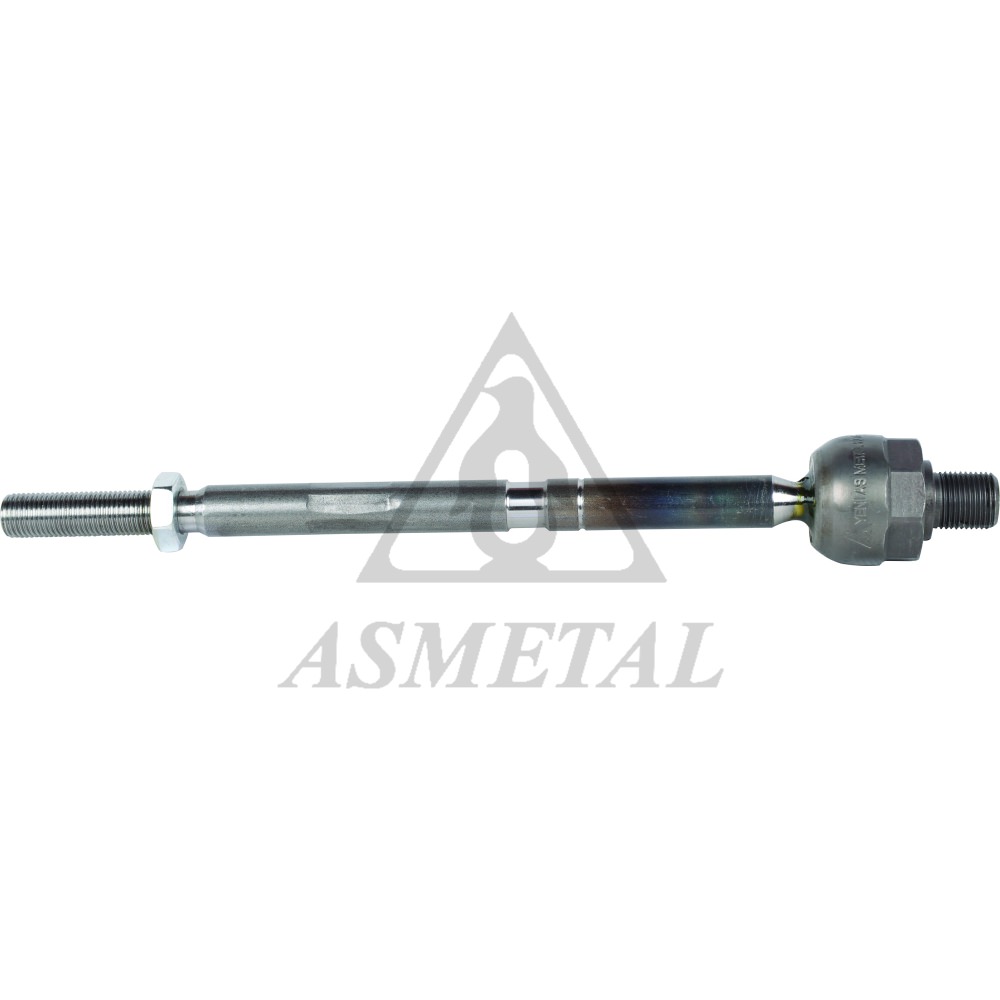

20OP2500
|
Axial Joint |
th:MM18x1,5 RHT L:283mm / 0,59 kg |
16 09 034, 16 03 415 (6) OEM |
 |
20OP2505
IN PREPARATION
|
Axial Joint |
0 kg |
16 03 244, 93 191 672 (6) OEM |
 |
20PE0700
|
Axial Joint |
th:MM16x1,5 RHT L:260mm / 0,66 kg |
16 077 445 80, 16 110 750 80 (17) OEM |
 |
20PE1200
|
Axial Joint |
th1: MM14X1.5R th2: MM14X1.5R L:207mm / 0,46 kg |
16 112 423 80 |
 |
20PE2100
|
Axial Joint |
L: 312,5 TP: M14x1,5 TP: M14X1,5 / 0,68 kg |
3812 E2, 773 62 280 |
 |
20RN0520
|
Axial Joint |
th1:MM12x1.0RHT th2:MM14x1.5 L:261,5mm / 0,49 kg |
60 00 617 147, 48520 00QAM (3) OEM |
 |
22FI2470
|
Rod Assembly |
th1:M10x1.25 RHT / 1,02 kg |
4 134 516 |
 |
23FI3180
|
Track Control Arm |
c:1:8 th:M14x1.5 RHT L:288mm / 2,45 kg |
4 331 252, 4 468 519 (1) OEM |
 |
26CT1000
|
Stabiliser Link |
L: 263 tp: MM12x1.75 / 0,48 kg |
5087 56, 14 000 996 80 (1) OEM |
 |
26FI0500
|
Stabiliser Link |
L: 101.5 di: Ø12.1 / 0,26 kg |
760 16 47, 608 07 583 (2) OEM |
 |
26FI1600
|
Stabiliser Link |
th:MM10x1.5RHT L: 315mm / 0,4 kg |
507 03 296, 518 56 872 |
 |
26FI1620
IN PREPARATION
|
Stabiliser Link Rear |
0 kg |
507 04 671, 518 56 959 |
 |
26FI2700
OUT OF SERVICE
|
Stabiliser Link |
L:280mm Plastic / 0,36 kg |
519 39 949, 534 72 294 (5) OEM |
 |
26FI2710
|
Stabiliser Link |
th:MM12x1.5 RHT L: 280mm / 0,48 kg |
534 72 294, 519 39 949 (8) OEM |
 |
26FI3210
|
Stabiliser Link Rear |
0,3 kg |
5170 F5, 5170 F6 (4) OEM |
 |
26FI3505
|
Stabiliser Link |
th:M10x1,25mm L:290mm / 0,4 kg |
5087 70, 5087 79 (4) OEM |
 |
26FI4200
|
Stabiliser Link |
th1:MM10x1.5 RHT L:290mm / 0,38 kg |
518 01 136, 68 073 033 AB (9) OEM |
 |
26FI5100
|
Stabiliser Link |
0,49 kg |
5087 35, 13 174 250 80 (1) OEM |
 |
26FI5500
|
Stabiliser Link Rear |
L:117,5mm / 0,27 kg |
517 17 000, 467 67 267 |
 |
26FI5501
|
Stabiliser Link Rear |
L:132mm / 0,29 kg |
517 17 001, 467 99 278 |
 |
26FI5600
|
Stabiliser Link |
L:296mm / 0,42 kg |
518 98 527, 520 42 281 (7) OEM |
 |
26FI5610
IN PREPARATION
|
Stabiliser Link Rear |
0 kg |
518 10 124*, 520 04 273* (3) OEM |
 |
26FI6000
|
Stabiliser Link |
L:275,5mm / 0,38 kg |
517 01 045, 464 13 122 (2) OEM |
 |
26FI7000
IN PREPARATION
|
Stabiliser Link |
0 kg |
4766 962AA, K04766 962AA |
 |
26MR1400
|
Stabiliser Link |
th:MM12x1.5 RHT L: 333mm / 0,42 kg |
54618 HG00A, 54616 5DA0A (5) OEM |
 |
26OP1505
|
Stabiliser Link |
L:300mm / 0,4 kg |
518 05 870, 505 15 276 (5) OEM |
 |
26OP2500
|
Stabiliser Link |
L:355mm / 0,46 kg |
51 741 130, 51 803 183 (6) OEM |
 |
26OP2505
|
Stabiliser Link Rear |
L:86,2mm Plastic / 0,17 kg |
71 740 112, 4 44 275 (1) OEM |
 |
26PE2100
|
Stabiliser Link |
th:MM10x1.5 RHT L: 262mm / 0,36 kg |
5087 51, 16 073 253 80 (2) OEM |
 |
26RN0510
|
Stabiliser Link |
L:280mm / 0,34 kg |
60 00 618 859, 54616 00QAC (11) OEM |
 |
26SZ4000
NEW
|
Stabiliser Link |
0,24 kg |
717 42 688, BCKE 34 170 (5) OEM |
 |
29FI3200
IN PREPARATION
|
Tie Rod |
|
130 67 16 080, 4018 A3 (6) OEM |
 |
30CT1000
|
Track Control Arm Left |
cs:Ø19 / 4,7 kg |
3520 R8, 16 109 406 80 (3) OEM |
 |
30CT1001
|
Track Control Arm Right |
cs:Ø19 / 4,7 kg |
16 109 405 80, 3521 N9 (3) OEM |
 |
30CT1010
|
Track Control Arm Left |
c: Ø17 / 4,6 kg |
3520 P8, 3521 85 (6) OEM |
 |
30CT1011
|
Track Control Arm Right |
c: Ø17 / 4,6 kg |
3521 C9, 3521 K4 (6) OEM |
 |
30FI1600
IN PREPARATION
|
Track Control Arm Left |
0 kg |
507 03 128, 518 57 133 |
 |
30FI1601
IN PREPARATION
|
Track Control Arm Right |
0 kg |
507 03 129, 518 57 134 |
 |
30FI1650
IN PREPARATION
|
Track Control Arm Left |
0 kg |
507 09 579, 507 10 621 (7) OEM |
 |
30FI1651
IN PREPARATION
|
Track Control Arm Right |
0 kg |
507 09 580, 507 10 620 (7) OEM |
 |
30FI2700
|
Track Control Arm Left |
c: Ø19 / 3,65 kg |
520 56 674, 520 828 96 (1) OEM |
 |
30FI2701
|
Track Control Arm Right |
c: Ø19 / 3,65 kg |
520 11 612, 520 56 673 (1) OEM |
 |
30FI3002
IN PREPARATION
|
Track Control Arm Left |
0 kg |
3520 N4, 3520 L1 (3) OEM |
 |
30FI3003
IN PREPARATION
|
Track Control Arm Right |
0 kg |
3521 H3, 16 073 013 80 (2) OEM |
 |
30FI3012
IN PREPARATION
|
Track Control Arm Left |
0 kg |
3520 96, 130 87 59 080 (2) OEM |
 |
30FI3013
IN PREPARATION
|
Track Control Arm Right |
0 kg |
3521 66, 132 07 56 080 (2) OEM |
 |
30FI3210
|
Track Control Arm Left |
cr: 1:6 / c: Ø19.8 / 8,4 kg |
3520 S0, 3520 S1 (3) OEM |
 |
30FI3211
|
Track Control Arm Right |
cr: 1:6 / c: Ø19.8 / 8,4 kg |
3521.P1, 3521 P2 (5) OEM |
 |
30FI3505
|
Track Control Arm Left |
c: Ø16 / 2,75 kg |
518 92 272, 518 74 462 (8) OEM |
 |
30FI3506
|
Track Control Arm Right |
c: Ø16 / 2,75 kg |
505 11 650, 557 03 627 (9) OEM |
 |
30FI4200
IN PREPARATION
|
Track Control Arm Left |
0 kg |
507 00 797, 93501485 |
 |
30FI4201
IN PREPARATION
|
Track Control Arm Right |
0 kg |
507 00 779, 93501486 |
 |
30FI4500
IN PREPARATION
|
Track Control Arm Left |
0 kg |
824 61 081, 777 72 39 (2) OEM |
 |
30FI4501
IN PREPARATION
|
Track Control Arm Right |
0 kg |
464 23 823, 777 72 40 (3) OEM |
 |
30FI5500
|
Track Control Arm Left |
tp: M12x1.25 cr: 1:5 c: Ø13.6 / 3,9 kg |
517 72 992, 517 72 993 |
 |
30FI5501
|
Track Control Arm Right |
tp: M12x1.25 cr: 1:5 c: Ø13.6 / 3,9 kg |
517 72 988, 517 72 989 |
 |
30FI5510
|
Track Control Arm Left |
tp: M12x1.25 cr: 1:5 c: Ø13.6 / 3,9 kg |
465 39 001, 467 77 742 (7) OEM |
 |
30FI5511
|
Track Control Arm Right |
tp: M12x1.25 cr: 1:5 c: Ø13.6 / 3,9 kg |
518 66 700, 517 69 073 (7) OEM |
 |
30FI5600
|
Track Control Arm Left |
c: Ø18 / 3,4 kg |
518 10 665, 519 32 035 (2) OEM |
 |
30FI5601
|
Track Control Arm Right |
c: Ø18 / 3,4 kg |
518 10 664, 519 32 036 (2) OEM |
 |
30FI6000
IN PREPARATION
|
Track Control Arm Left |
0 kg |
605 64 478, 605 93 623 (13) OEM |
 |
30FI6001
IN PREPARATION
|
Track Control Arm Right |
0 kg |
608 12 797, 608 11 770 (20) OEM |
 |
30FI6800
IN PREPARATION
|
Track Control Arm Left |
0 kg |
507 03 232, 518 39 219 |
 |
30FI6801
IN PREPARATION
|
Track Control Arm Right |
0 kg |
507 03 231 |
 |
30OP2500
|
Track Control Arm Left |
cs:Ø20 / 2,99 kg |
51748653, 24413015 (3) OEM |
 |
30OP2501
|
Track Control Arm Right |
cs:Ø20 / 2,99 kg |
51748652, 24413016 (3) OEM |
 |
30PE2100
|
Track Control Arm Left |
cs: Ø17 / 4,7 kg |
3520 X0, 3520 S5 (4) OEM |
 |
30PE2101
|
Track Control Arm Right |
cs: Ø17 / 4,7 kg |
3521 P6, 3521 S7 (4) OEM |
 |
30RN0520
|
Track Control Arm Left |
th:MM16x1.5 RHT cs:Ø17.2 cp: 1/5 / 7,38 kg |
6000 618 836, 54501 00Q1M (4) OEM |
 |
30RN0521
|
Track Control Arm Right |
th:MM16x1.5 RHT cs:Ø17.2 cp: 1/5 / 7,38 kg |
6000 618 835, 54500 00Q2B (4) OEM |
 |
30RN0522
|
Track Control Arm Left (Without Ball Joint) |
6,7 kg |
6000 618 836, 54501 00Q1M (4) OEM |
 |
30RN0523
|
Track Control Arm Right (Without Ball Joint) |
6,7 kg |
6000 618 835, 54500 00Q2B (4) OEM |
 |
38CT1000
|
Silentblock for TCA |
di:Ø19,7 do:Ø74,4 / 0,41 kg |
3520 S0*, 3520 S1* (7) OEM |
 |
38CT1001
|
Silentblock for TCA |
di:Ø18.5 do:Ø56.5 L:64.7mm / 0,2 kg |
3520 S1*, 3520 S0* (8) OEM |
 |
38CT1002
|
Silentblock for TCA Left |
di:Ø22.85 / L: 72 / 1,26 kg |
134 63 84 080*, 3521 H0* (4) OEM |
 |
38CT1003
|
Silentblock for TCA Right |
di:Ø22.85 / L: 72 / 1,24 kg |
3521 K6*, 149 74 07 080* (3) OEM |
 |
38CT1004
|
Silentblock for TCA |
di: Ø22.8 / L: 85 / 0,83 kg |
3521 P7*, 3521 N9* (10) OEM |
 |
38CT1010
|
Silentblock for TCA Left |
di: Ø22.8 / L: 63 / 1,24 kg |
3520 S6*, 3520 G9* (6) OEM |
 |
38CT1011
|
Silentblock for TCA Right |
di: Ø22.8 / L: 63 / 1,21 kg |
3521 C9*, 3520 S6* (5) OEM |
 |
38CT1012
|
Silentblock for TCA |
di: Ø22.8 / L: 50 / 0,77 kg |
3521 C9*, 3521 83* (9) OEM |
 |
38FI1601
|
Silentblock for TCA |
di: Ø12,2 / do:Ø38 / L: 52,5 / 0,12 kg |
465 45 661*, 465 45 660* (3) OEM |
 |
38FI1680
|
Mounting Axle Body |
di:Ø12 do:Ø54 L:52mm / 0,14 kg |
467 61 280, 467 61 279 (2) OEM |
 |
38FI2600
|
Silentblock for TCA |
di: Ø14,5 / do:Ø61,5 / L: 52 / 0,17 kg |
465 51 790, 465 45 661* (2) OEM |
 |
38FI2700
|
Silentblock for TCA |
di:Ø14,5 do:Ø42,4 / 0,14 kg |
520 11 614*, 520 11 612* (1) OEM |
 |
38FI2701
|
Silentblock for TCA |
di:Ø14,2 do:Ø70,3 / 0,23 kg |
519 83 600, 520 11 614* (2) OEM |
 |
38FI4200
|
Silentblock for TCA |
di:Ø12.4 do:60 L:64.7 / 0,15 kg |
507 00 778 |
 |
38FI4201
|
Silentblock for TCA |
di: Ø14.1 / do: Ø52 / L: 67.5 / 0,2525 kg |
507 04 262, 507 05 083* (3) OEM |
 |
38FI4205
|
Mounting Axle Body |
0,76 kg |
507 02 649, 518 12 443 (3) OEM |
 |
38FI5100
|
Mounting Axle Body |
di:Ø12 do:Ø46.1 L:60mm / 0,25 kg |
5152 61, 147 97 59 080 |
 |
38FI5500
|
Silentblock for TCA Right |
di:Ø19,8 / 0,64 kg |
517 12 407*, 467 94 065* (2) OEM |
 |
38FI5501
|
Silentblock for TCA Left |
di:Ø19,8 / 0,64 kg |
467 94 066*, 464 54 078 (2) OEM |
 |
38FI5505
|
Silentblock for TCA |
di:Ø12 do:Ø30,3 / 0,16 kg |
464 21 522, 464 54 595* (14) OEM |
 |
38FI5506
|
Silentblock for TCA |
di:Ø12,2 do:Ø41,3 / 0,3 kg |
3520 W3*, 3521 S6* (28) OEM |
 |
38FI5507
|
Silentblock for TCA |
do:Ø71,5 / 0,2 kg |
517 83 056, 517 83 057 (10) OEM |
 |
38FI5508
|
Silentblock for TCA |
di:Ø12,2 do:Ø71 / 0,22 kg |
520 08 283, 520 26 316 (13) OEM |
 |
38FI5526
|
Stabiliser Mounting |
di:Ø9 L:60.3mm / 0,12 kg |
467 43 788, 467 43 786 (1) OEM |
 |
38FI5527
|
Stabiliser Mounting |
di:Ø12.5 L:60.5mm / 0,11 kg |
517 44 226, 517 13 088 (2) OEM |
 |
38OP2050
|
Silentblock for TCA |
di:Ø12,2 do:Ø35,7 / 0,15 kg |
517 48 653*, 517 48 652* (9) OEM |
 |
38OP2075
|
Silentblock for TCA |
di:Ø12.2 do: Ø45.5 L:51.7mm / 0,13 kg |
517 56 777*, 517 56 773* (3) OEM |
 |
38OP2076
|
Silentblock for TCA |
di:Ø12.4 do:Ø70.5 L:65.2mm / 0,28 kg |
51 748 737*, 51 748 736* (7) OEM |
 |
38OP4030
|
Silentblock for TCA |
di:Ø19,4 / 0,98 kg |
717 40 107, 3 52 319 (3) OEM |
 |
38OP4032
|
Stabiliser Mounting |
di:Ø24 / 0,05 kg |
717 40 109, 717 46 346 (4) OEM |
 |
38OP7000
|
Stabiliser Mounting |
di:Ø23 / 0,07 kg |
6000 620 074*, 93 456 353 (13) OEM |
 |
38PE1200
|
Silentblock for TCA |
di: Ø14.1 / do: Ø50.3 / L: 65 / 0,26 kg |
98 163 803 80, 3 644 790 (1) OEM |
 |
38PE1201
|
Silentblock for TCA |
di: Ø14,1 / do:Ø43,2 / L: 59,5 / 0,23 kg |
96 760 321 80, 3 637 432 |
 |
38PE1205
NEW
|
Mounting Axle Body |
0,4 kg |
5131 H1, 96 810 170 80 |
 |
38PE3000
|
Silentblock for TCA |
di:Ø18 do:Ø45 L:65 / 0,32 kg |
3523 93, 3525 05 (4) OEM |
 |
38PE3001
|
Silentblock for TCA |
di:Ø34 do:Ø77 L:66.9 / 0,84 kg |
3523 AP, 3523 94 (7) OEM |
 |

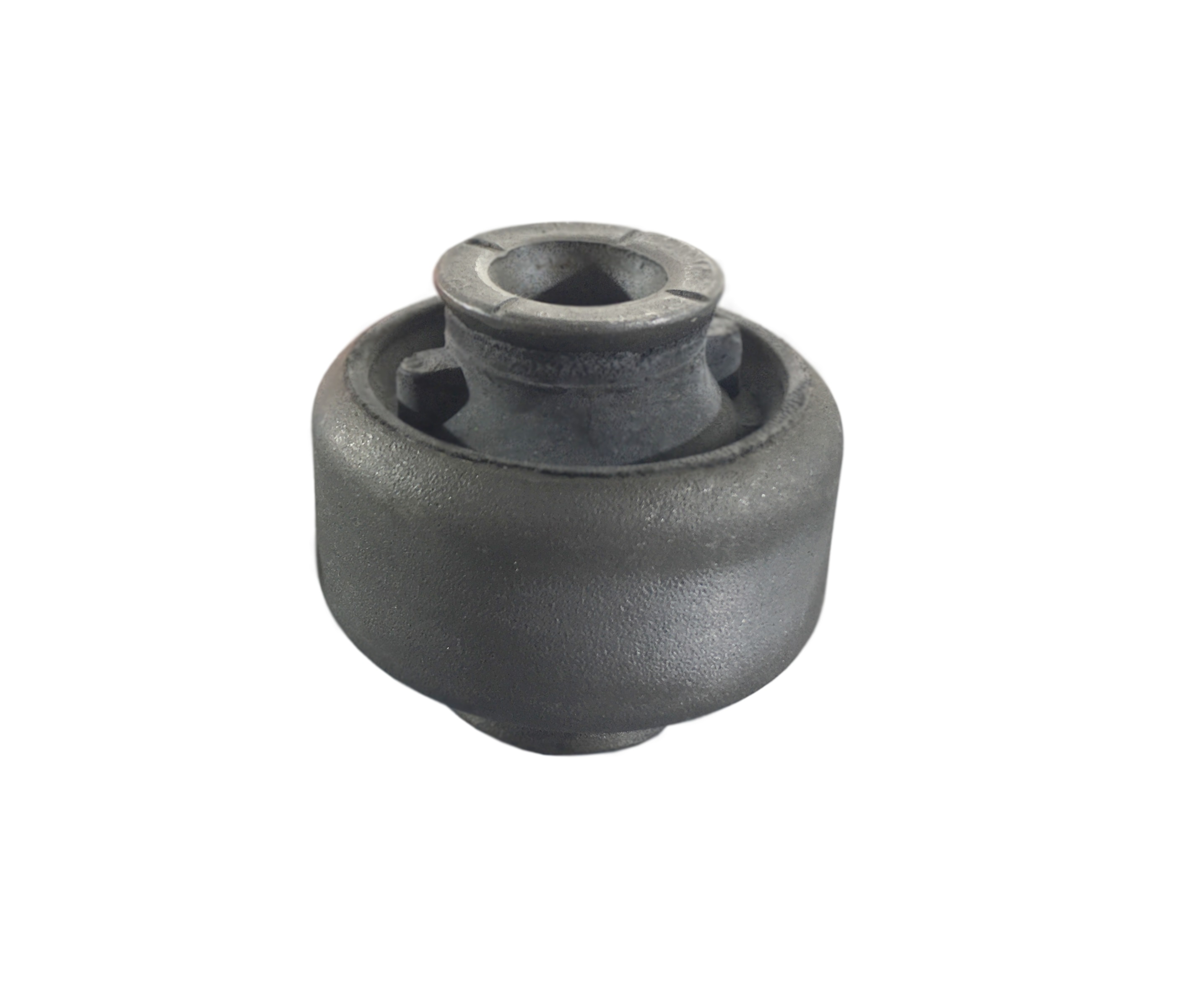

38RN0511
|
Silentblock for TCA |
di:Ø15.2 do:Ø58 L:54mm / 0,31 kg |
6000 618 836*, 6000 618 835* (7) OEM |
 |

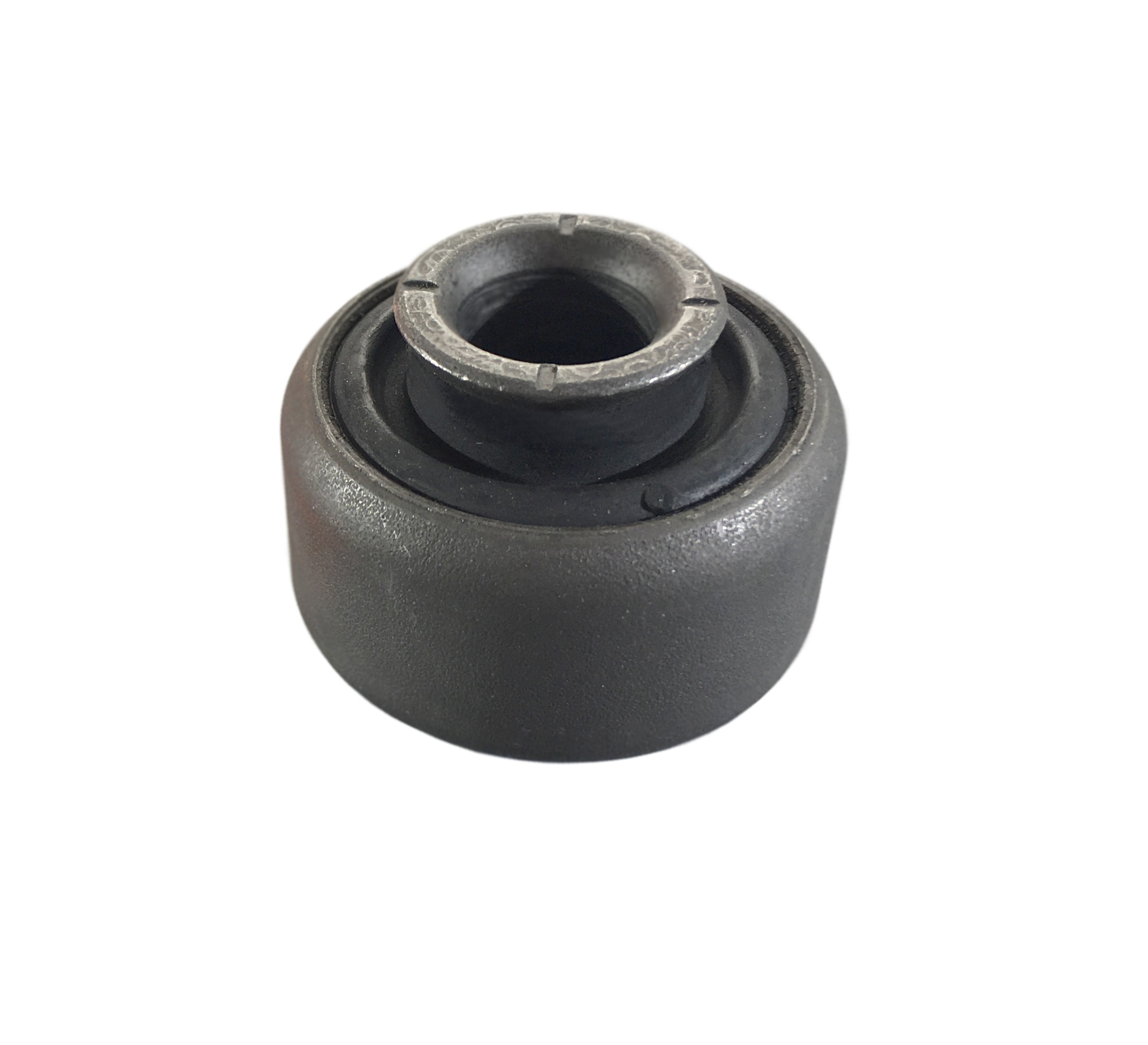

38RN0516
|
Silentblock for TCA |
di:Ø18.5 do:Ø55 L:50mm / 0,27 kg |
6000 618 835*, 6000 618 836* (7) OEM |
 |
38SZ3000
|
Silentblock for TCA |
di: 14.3 dp: 43.5 Lo: 64 0,25 kg / 0,25 kg |
717 42 733, 45530 71L00 (2) OEM |
 |
38SZ3001
|
Silentblock for TCA |
di:Ø14.2 do:Ø60 L:50.8mm / 0,29 kg |
717 42 731*, 717 42 732* (11) OEM |
 |
45FI1620
|
Suspension Support Buffer Kit Front |
di:Ø22 do:Ø64 L:233.5mm / 0,12 kg |
518 56 854, 518 56 851 (4) OEM |
 |
45FI1621
|
Suspension Support Buffer Kit Front |
di:Ø21.5 do: Ø62.5 L:225mm / 0,12 kg |
518 27 031, 1 540 283 (3) OEM |
 |
45FI2620
|
Suspension Support Buffer Front |
di:Ø24.5 do: Ø38.5 L:210mm / 0,12 kg |
465 31 017 |
 |

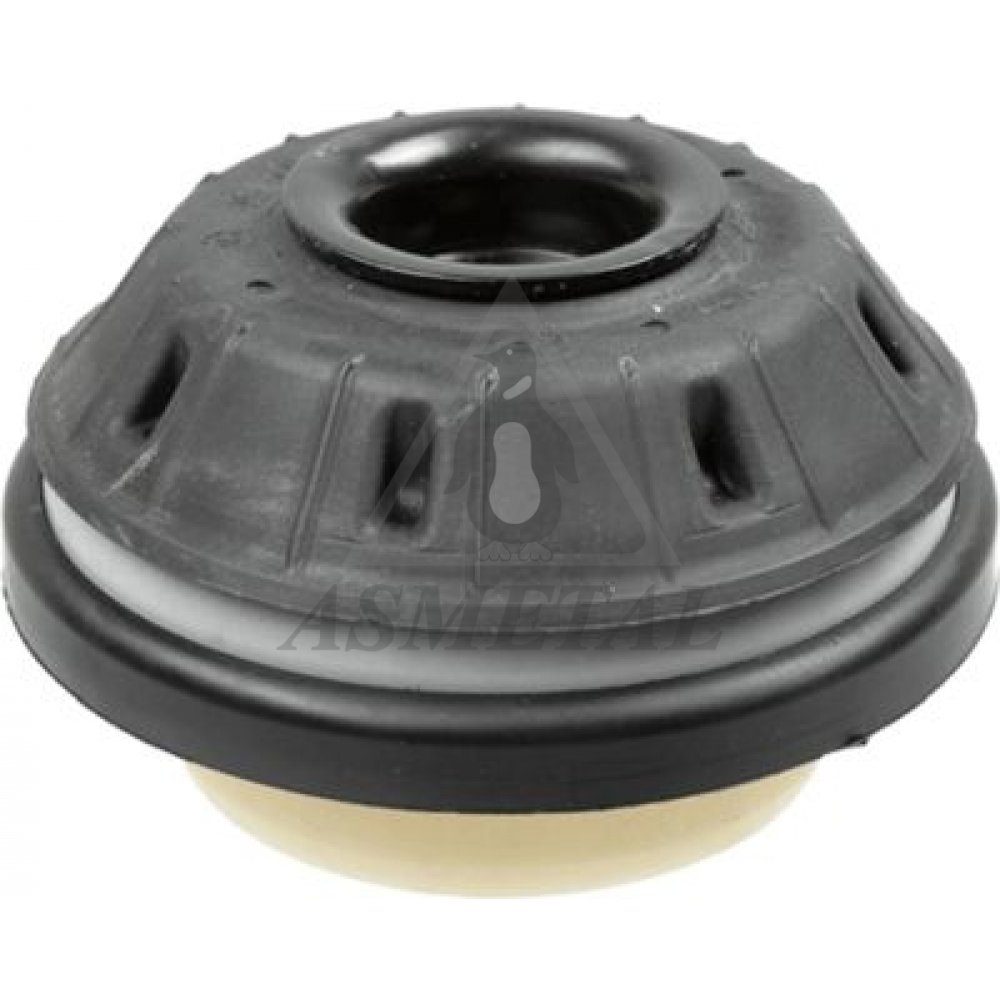

45FI2700
|
Strut Mount With Bearing |
di:Ø13 do:Ø109.5 L:68mm / 0,52 kg |
519 83 626, 520 31 639 (1) OEM |
 |
45FI2710
|
Strut Mount ( New Type Bearing ) |
di: Ø13 / do: Ø108.7 / L: 68 / 0,52 kg |
521 20 559, 519 83 626 (3) OEM |
 |
45FI2720
|
Suspension Support Buffer Front |
di:Ø27 do:Ø64 L:83.5mm / 0,05 kg |
519 21 446, 519 83 725 |
 |
45FI2730
|
Suspension Support Buffer Rear |
di:Ø13.5 do: Ø51.5 L:279mm / 0,15 kg |
520 55 566, 519 83 774 |
 |
45FI2770
NEW
|
Mounting Automatic Transmission |
0,48 kg |
520 26 841 |
 |
45FI2780
|
Mounting Automatic Transmission |
di1: Ø12 / di2: Ø19.5 / L: 145 / 0,74 kg |
520 26 840, 521 09 007 |
 |

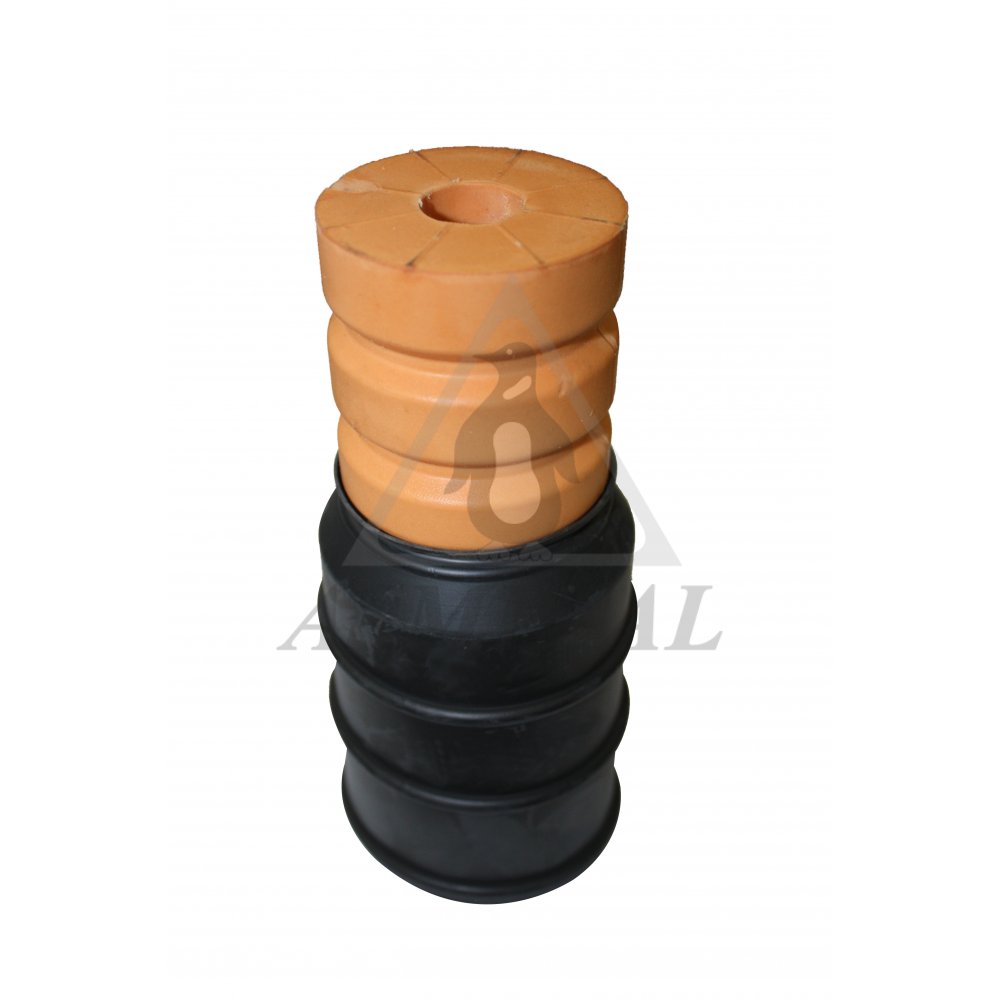

45FI3020
|
Suspension Support Buffer Kit Front |
di: Ø24 / do: Ø68 / 0,2 kg |
5033 41, 13 130 450 80 (1) OEM |
 |
45FI3021
|
Suspension Support Buffer and Dust Cover |
di:Ø26.5 do: Ø85 L:195mm / 0,19 kg |
5033 92, 13 409 280 80 (2) OEM |
 |
45FI3030
|
Suspension Support Buffer Rear |
th:MM10x1.25 RHT di:Ø17 L: 127mm / 0,45 kg |
467 51 547 |
 |
45FI3080
IN PREPARATION
|
Engine Mounting |
|
1827 18, 130 79 05 080 |
 |
45FI3081
IN PREPARATION
|
Engine Mounting |
|
1827 19, 130 79 07 080 |
 |
45FI3200
IN PREPARATION
|
Strut Mount Left |
|
13 231 650 80, 5038 18 (4) OEM |
 |
45FI3201
IN PREPARATION
|
Strut Mount Right |
|
5038 19, 5038 29 (4) OEM |
 |
45FI3210
NEW
|
Strut Mount Left |
L:85mm / 1,05 kg |
5038 87, 16 076 912 80 (6) OEM |
 |
45FI3211
NEW
|
Strut Mount Right |
L:85mm / 1,05 kg |
5038 C9, 5038 E2 (7) OEM |
 |
45FI3212
NEW
|
Strut Mount Left |
1,86 kg |
16 127 361 80, 13 746 660 80 |
 |
45FI3213
NEW
|
Strut Mount Right |
1,86 kg |
16 127 359 80, 13 746 670 80 |
 |
45FI3215
NEW
|
Mounting Automatic Transmission |
0,87 kg |
1806 95, 16 317 241 80 (3) OEM |
 |
45FI3220
|
Suspension Support Buffer Front |
di:Ø26 do:Ø91 L:109mm / 0,15 kg |
5033 E6, 5033 A6 (5) OEM |
 |
45FI3221
|
Suspension Support Buffer Front |
di:Ø26 do: Ø91 L:109mm / 0,16 kg |
16 131 900 80, 5033 A8 (3) OEM |
 |
45FI3230
|
Suspension Support Buffer Rear |
th:MM10x1.25 RHT di: Ø29 L: 129mm / 0,43 kg |
5166 88, 13 512 660 80 |
 |
45FI3231
|
Suspension Support Buffer Front |
di:Ø30 do: Ø89.5 L:99.5mm / 0,13 kg |
507 09 890 |
 |
45FI3233
|
Suspension Support Buffer Rear |
L: 165 / 0,56 kg |
5166 A3, 5166 97 (1) OEM |
 |
45FI3500
|
Strut Mount Left |
without Ball Bearing / 0,5 kg |
16 092 747 80, 5038 J7 (9) OEM |
 |
45FI3501
|
Strut Mount Right |
without Ball Bearing / 0,5 kg |
5038 J8, 16 092 746 80 (8) OEM |
 |
45FI3505
|
Strut Mount Left |
0,68 kg |
16 092 747 80, 16 113 139 80 (9) OEM |
 |
45FI3506
|
Strut Mount Right |
0,68 kg |
5038 J8, 5038 G3 (8) OEM |
 |
45FI3510
|
Strut Mount Left ( New Type Bearing ) |
di:Ø12.1 do:Ø52 L:33 / 0,7 kg |
16 092 747 80, 5038 J7 (9) OEM |
 |
45FI3511
|
Strut Mount Right ( New Type Bearing ) |
di:Ø12.1 do:Ø52 L:33 / 0,7 kg |
16 113 137 80, 16 092 746 80 (9) OEM |
 |
45FI3515
|
Strut Mount With Bearing |
di:Ø30.5 do:Ø108 L:58mm / 0,54 kg |
520 27 765, 518 92 267 (8) OEM |
 |

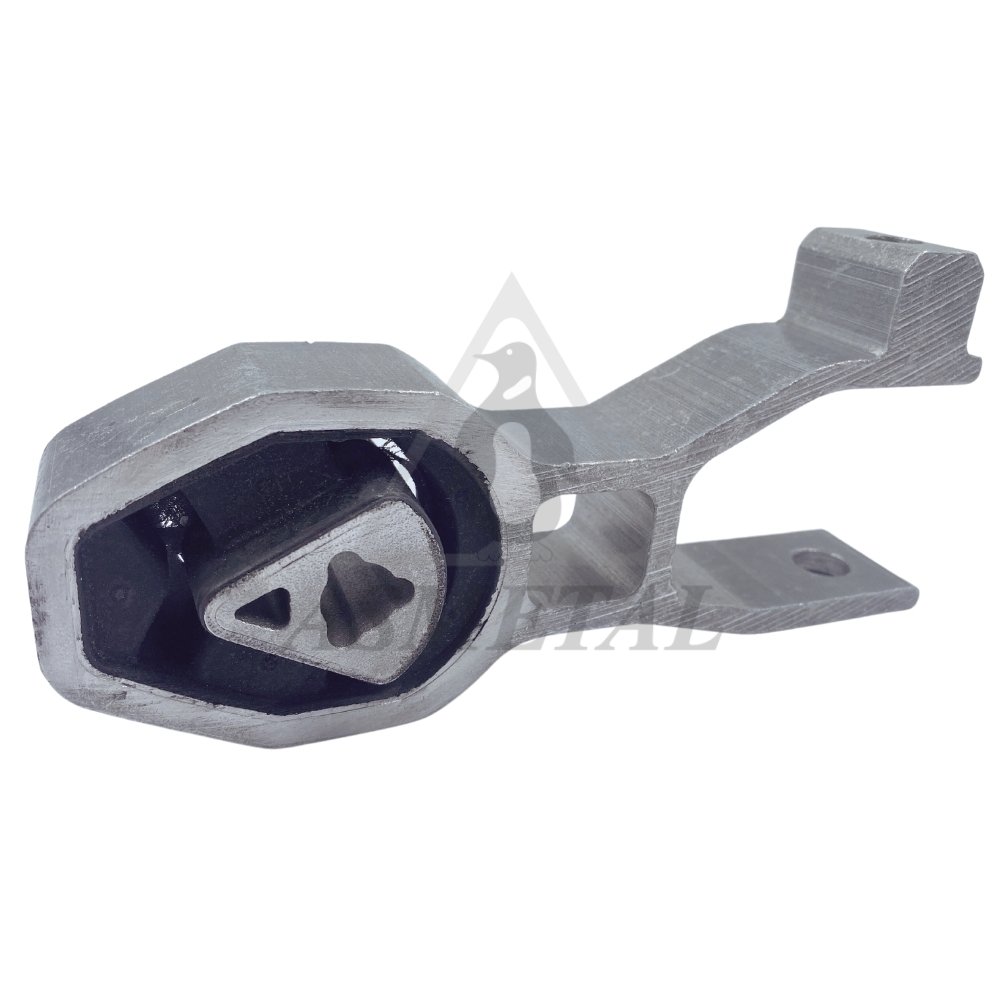

45FI3516
NEW
|
Mounting Automatic Transmission |
0,3665 kg |
557 00 441 |
 |
45FI3520
|
Suspension Support Buffer Front |
di:Ø23 do:Ø63.5 L:64.5mm / 0,06 kg |
518 66 009, 517 75 545 (5) OEM |
 |
45FI3530
|
Suspension Support Buffer Kit Rear |
di:Ø13 do:Ø62 L:280mm / 0,12 kg |
557 01 429 |
 |
45FI3531
|
Suspension Support Buffer Rear |
di:Ø12 do: Ø70.5 L:180mm / 0,45 kg |
5166 A8, 518 04 746 |
 |
45FI3532
|
Suspension Support Buffer Rear |
di:Ø11 L:220 / 0,5 kg |
5166 A4, 518 05 787 |
 |
45FI3533
|
Suspension Support Buffer Kit Rear |
di:Ø15 do: Ø64 L:262mm / 0,12 kg |
517 92 434 |
 |
45FI3580
|
Mounting Automatic Transmission |
L: 198 / 0,89 kg |
518 05 431 |
 |
45FI4200
|
Strut Mount |
di: Ø12 / do: Ø122/ L: 55.2 / 0,36 kg |
507 02 841, 507 00 886 (1) OEM |
 |
45FI4520
|
Suspension Support Buffer Front |
di:Ø20.3 do: Ø59.5 L:185mm / 0,11 kg |
7 588 037, 7 588 036 (3) OEM |
 |
45FI4521
NEW
|
Suspension Support Buffer Front |
di:Ø25.8 do:Ø55 L:105mm / 0,08 kg |
7 588 036 |
 |
45FI5020
|
Suspension Support Buffer Front |
di:Ø16 do:Ø55 L:105mm / 0,11 kg |
464 66 617 |
 |
45FI5030
|
Suspension Support Buffer Rear |
di:Ø22 do:Ø69 L:97mm / 0,1 kg |
468 36 452 |
 |
45FI5500
|
Strut Mount Left With Bearing |
di:Ø14 L:69mm / 0,96 kg |
464 57 410, 467 60 674 (1) OEM |
 |

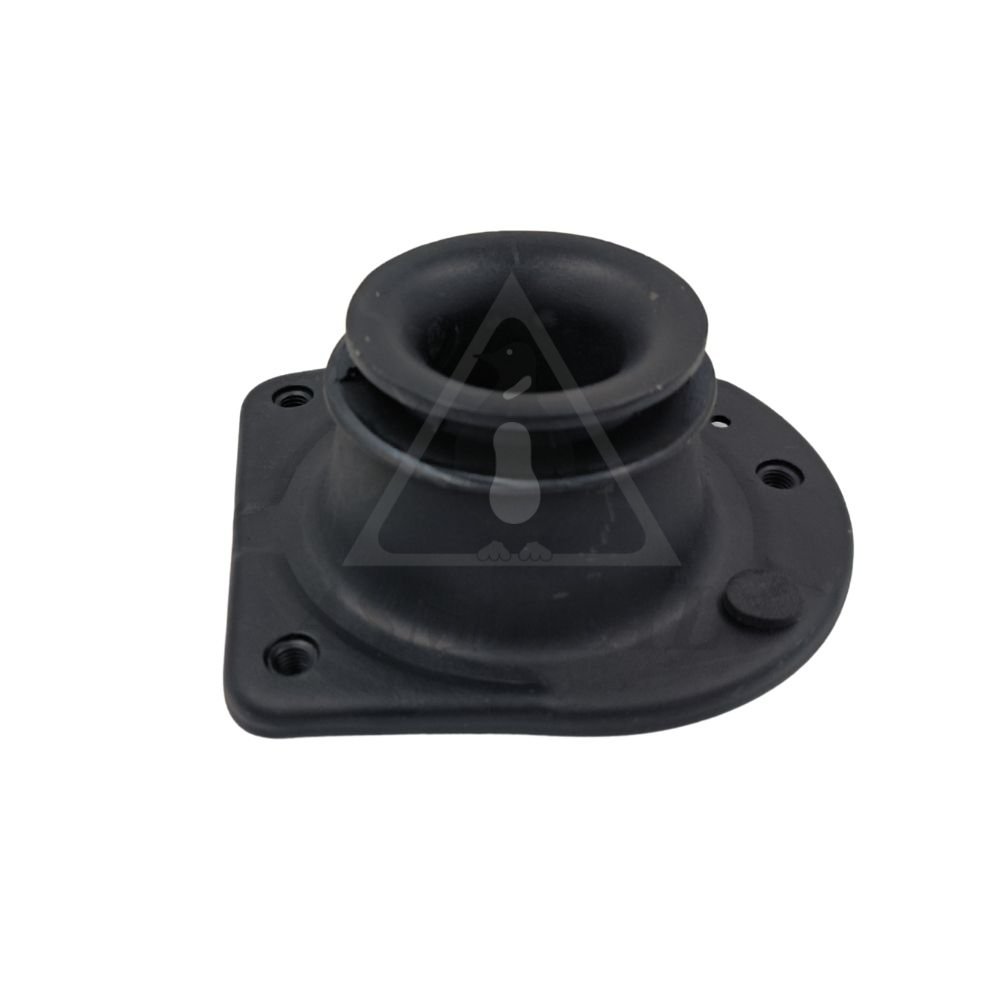

45FI5501
|
Strut Mount Right With Bearing |
di:Ø14 L:69mm / 0,94 kg |
824 91 440, 467 60 673 (1) OEM |
 |
45FI5510
NEW
|
Strut Mount Left With Original Bearing |
1 kg |
824 91 441, 464 57 410 (1) OEM |
 |
45FI5511
NEW
|
Strut Mount Right With Original Bearing |
0,97 kg |
464 57 409, 467 60 673 (1) OEM |
 |
45FI5520
|
Suspension Support Buffer Front |
di:Ø22.5 do:Ø69 L:102mm / 0,11 kg |
467 92 633 |
 |
45FI5521
|
Suspension Support Buffer Front |
di:Ø19 do:Ø70 / 0,1 kg |
464 64 298 |
 |
45FI5522
|
Suspension Support Buffer Front |
di:Ø22 do:Ø69 L:118.5mm / 0,12 kg |
468 04 120 |
 |
45FI5523
|
Protective Cap/Bellow, Shock Absorber |
di:Ø62 do:Ø82.5 L:178mm / 0,08 kg |
464 66 619 |
 |
45FI5530
|
Suspension Support Buffer Rear |
di:Ø19 do:Ø70.5 L:107mm / 0,13 kg |
464 70 781 |
 |
45FI5531
|
Suspension Support Buffer Rear |
th:MM10x1.25 di: Ø17 RHT L: 143,5mm / 0,53 kg |
467 96 102 |
 |
45FI5532
|
Suspension Support Buffer Rear |
th:MM10x1.25 do: Ø118 L: 180mm / 0,54 kg |
517 55 085, 517 59 794 |
 |

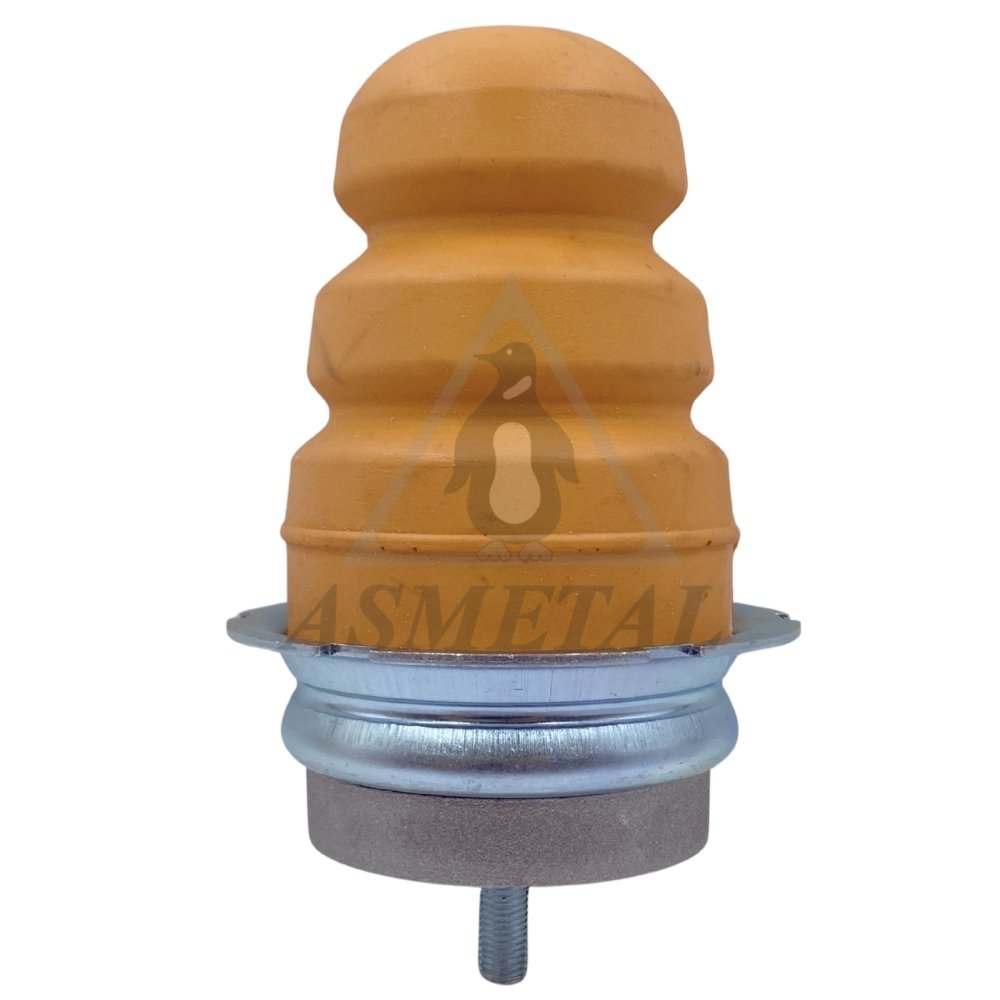

45FI5533
|
Suspension Support Buffer Rear |
di:Ø20 L:151mm / 0,58 kg |
468 17 717 |
 |
45FI5534
|
Suspension Support Buffer Rear |
do: Ø78.5 L:125mm / 0,24 kg |
518 65 204, 518 19 224 |
 |
45FI5535
|
Suspension Support Buffer Rear |
di:Ø21 do: Ø110 L:133mm / 0,47 kg |
467 51 548 |
 |
45FI5570
|
Mounting Automatic Transmission |
di: Ø12 / L: 124 / 0,71 kg |
517 60 173, 467 67 476 (1) OEM |
 |
45FI5620
|
Suspension Support Buffer Front |
di:Ø26.5 do: Ø63.5 L:89mm / 0,07 kg |
955 11 416, 518 51 802 (5) OEM |
 |
45FI5621
|
Suspension Support Buffer Front |
di:Ø30 do:Ø62 L:85mm / 0,08 kg |
518 10 447 |
 |

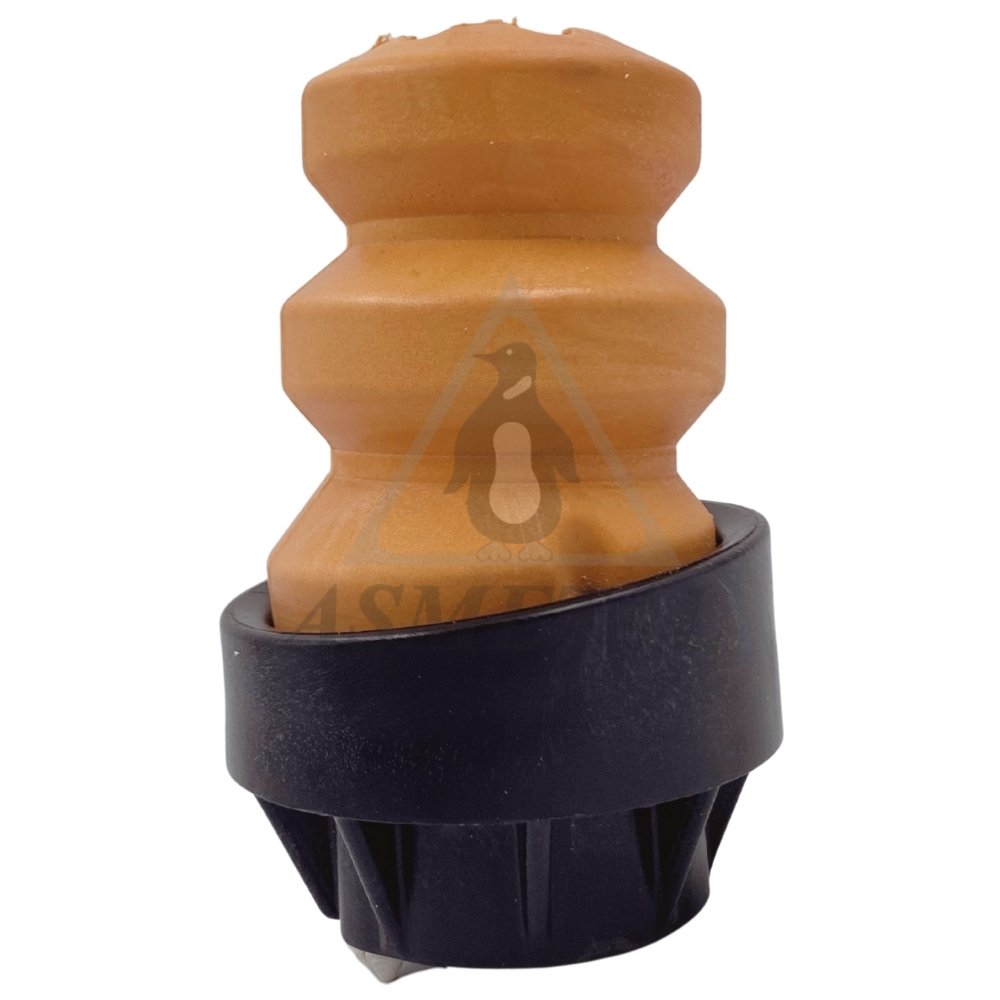

45FI5630
|
Suspension Support Buffer Rear |
di:Ø10.5 L:119mm / 0,23 kg |
518 50 337 |
 |
45FI5680
|
Mounting Automatic Transmission |
L: 227 / 0,8 kg |
518 37 816, 518 97 408 (4) OEM |
 |
45OP2500
|
Strut Mount |
di: Ø15 / do: Ø154 / L: 38.5 / 0,99 kg |
517 55 688, 3 44 529 (8) OEM |
 |
45PE0650
|
Engine Mounting |
di: Ø10 / do: Ø70.25 / L: 52.7 / 0,26 kg |
1809 21, 1809 29 (2) OEM |
 |
45PE1105
|
Engine Mounting |
di:Ø10 do:Ø70 L:54mm / 0,31 kg |
1809 30, 1809 33 (4) OEM |
 |
45PE2120
|
Suspension Support Buffer Front |
di:Ø25.7 L:106.25mm / 0,09 kg |
5033 39, 13 07 021 080 |
 |
45PE3030
|
Suspension Support Buffer Rear |
di: Ø17 / L: 149 / 0,43 kg |
5166 50, 131 18 26 080 |
 |
526PE0500
|
Stabiliser Link |
L: 300 tp: MM10x1,5 / 0,45 kg |
5087 37, 130 07 16 080 |
 |
526PE1000
|
Stabiliser Link |
L: 300 tp: MM10x1,5 / 0,45 kg |
16 127 364 80*, 5081 L1* (3) OEM |
