ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10FI2700	Ball Joint	c:Ø19 / 0,76 kg	520 11 614, 520 26 562 (2) OEM*
17FI2700	Tie Rod End	c:Ø 11,3 th:FM14x1,5 RHT / 0,44 kg	00 773 67 379 001, 773 67 379
17FI4530	Tie Rod End Right	c:Ø12 th:FM12x1,5 RHT / 0,4 kg	759 12 15, 994 74 38 (4) OEM
17FI4550	Tie Rod End Left	c:Ø12 th:FM12x1,5 RHT / 0,4 kg	995 06 71, 994 74 37 (7) OEM
20FI2700	Axial Joint	th1: MM16x1.5 RHT th2:MM14x1.5 RHT L : 325 mm / 0,7 kg	520 14 014, 773 67 378
20FI4501	Axial Joint	th:MM14x1.5 RHT L:266,5mm / 0,47 kg	995 04 52, 994 44 52 (5) OEM
20FI4502	Axial Joint	th:FM14x1.5 RHT L:272mm / 0,47 kg	441 01 45, 595 82 44 (2) OEM
26FI0500	Stabiliser Link	L: 101.5 di: Ø12.1 / 0,26 kg	760 16 47, 608 07 583 (2) OEM
26FI2700 OUT OF SERVICE	Stabiliser Link	L:280mm Plastic / 0,36 kg	519 39 949, 534 72 294 (5) OEM
26FI2710	Stabiliser Link	th:MM12x1.5 RHT L: 280mm / 0,48 kg	534 72 294, 519 39 949 (8) OEM
30FI2700	Track Control Arm Left	c: Ø19 / 3,65 kg	520 56 674, 520 828 96 (1) OEM
30FI2701	Track Control Arm Right	c: Ø19 / 3,65 kg	520 11 612, 520 56 673 (1) OEM
30FI4500 IN PREPARATION	Track Control Arm Left	0 kg	824 61 081, 777 72 39 (2) OEM
30FI4501 IN PREPARATION	Track Control Arm Right	0 kg	464 23 823, 777 72 40 (3) OEM
38FI2700	Silentblock for TCA	di:Ø14,5 do:Ø42,4 / 0,14 kg	520 11 614, 520 11 612 (1) OEM
38FI2701	Silentblock for TCA	di:Ø14,2 do:Ø70,3 / 0,23 kg	519 83 600, 520 11 614* (2) OEM
45FI2700	Strut Mount With Bearing	di:Ø13 do:Ø109.5 L:68mm / 0,52 kg	519 83 626, 520 31 639 (1) OEM
45FI2710	Strut Mount ( New Type Bearing )	di: Ø13 / do: Ø108.7 / L: 68 / 0,52 kg	521 20 559, 519 83 626 (3) OEM
45FI2720	Suspension Support Buffer Front	di:Ø27 do:Ø64 L:83.5mm / 0,05 kg	519 21 446, 519 83 725
45FI2730	Suspension Support Buffer Rear	di:Ø13.5 do: Ø51.5 L:279mm / 0,15 kg	520 55 566, 519 83 774
45FI2770 NEW	Mounting Automatic Transmission	0,48 kg	520 26 841
45FI2780	Mounting Automatic Transmission	di1: Ø12 / di2: Ø19.5 / L: 145 / 0,74 kg	520 26 840, 521 09 007

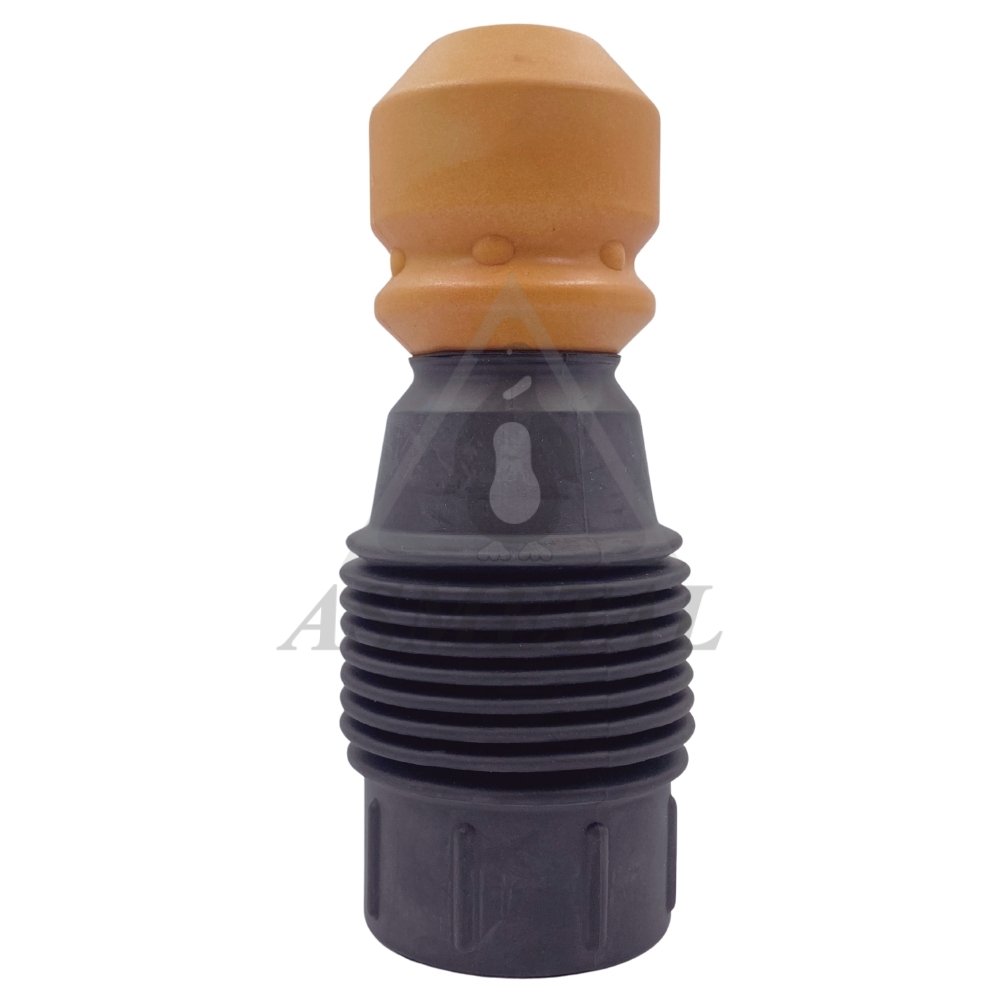

45FI4520	Suspension Support Buffer Front	di:Ø20.3 do: Ø59.5 L:185mm / 0,11 kg	7 588 037, 7 588 036 (3) OEM
45FI4521 NEW	Suspension Support Buffer Front	di:Ø25.8 do:Ø55 L:105mm / 0,08 kg	7 588 036
