ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10HY3200	Ball Joint Lower	th:MM12x1.5 cp:1/8 cs:Ø14.5 / 0,62 kg	51760 2E000
10HY3300	Ball Joint Lower Left	c: Ø17.95 / 0,8 kg	54530 D7000, 54530 C1000 (1) OEM
10HY3301	Ball Joint Lower Right	c: Ø17.95 / 0,8 kg	54530 C1100, 54530 D7100 (1) OEM
10KI1200	Ball Joint	cs:Ø18 / 0,82 kg	54530 3S000, 54530 3R000
10KI1205 IN PREPARATION	Ball Joint		54530 2S500

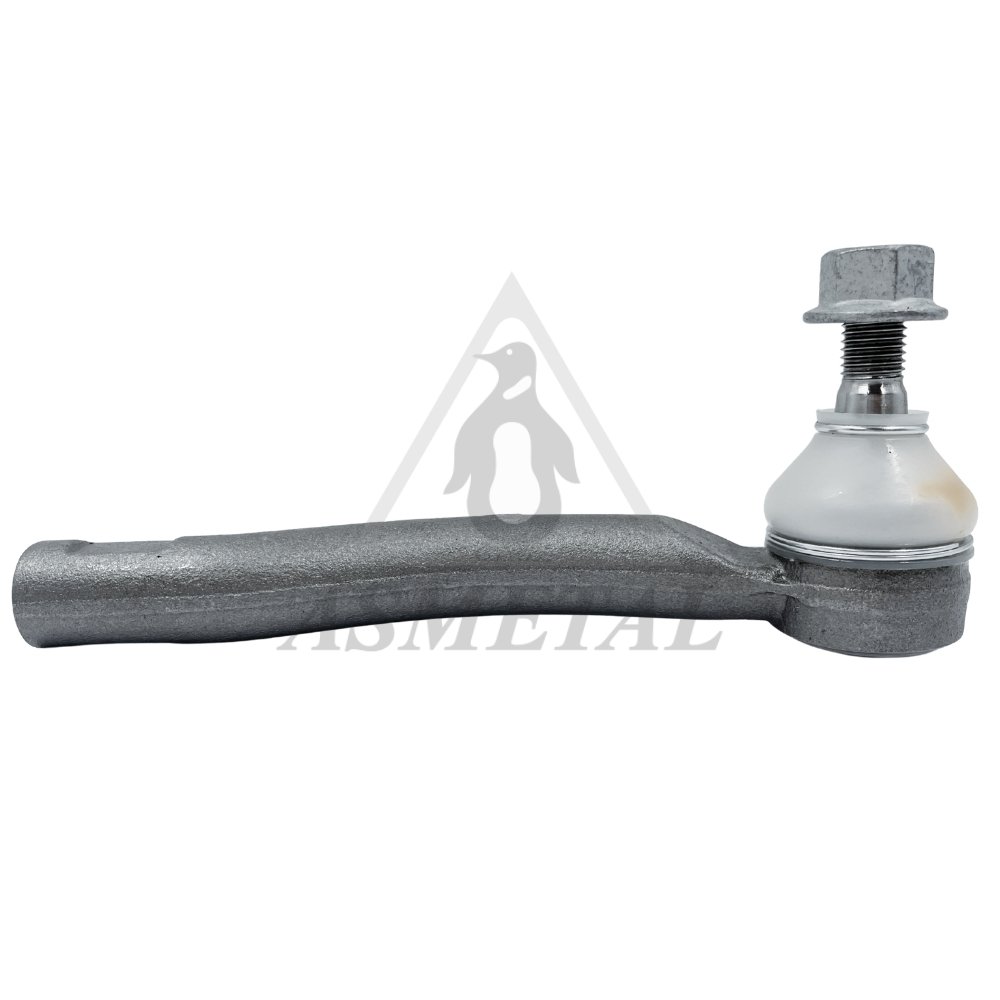

17HY3200	Tie Rod End Left	L: 170 cr: 1:8 c: Ø13.4 tp: M10x1.5 th: FM16x1.5 / 0,64 kg	56820 2E000
17HY3201	Tie Rod End Right	L: 170 cr: 1:8 c: Ø13.4 tp: M10x1.5 th: FM16x1.5 / 0,64 kg	56820 2E900
17HY3300 IN PREPARATION	Tie Rod End Left	0 kg	56820 D7000, 56820 D3500 (3) OEM
17HY3301 IN PREPARATION	Tie Rod End Right	0 kg	56825 D7500, 56825 D7000 (3) OEM
17KI1100	Tie Rod End Left	L: 233 cr: 1:8 c: Ø13.4 tp: M10x1.25 th: FM16x1.5 / 0,89 kg	56820 2T000, 56820 2T190 (5) OEM
17KI1101	Tie Rod End Right	L: 233 cr: 1:8 c: Ø13.4 tp: M10x1.25 th: FM16x1.5 / 0,89 kg	56820 2T500, 56820 3S500 (5) OEM
20HY3200	Axial Joint	th1: MM16X1.5 RHT th2: MM16X1.5 RHT L:243 / 0,66 kg	57724 2E000
20HY3304 IN PREPARATION	Axial Joint		57724 D3100
20KI1200	Axial Joint	th1: MM16X1.5 RHT th2: MM16X1.5 RHT L:183 / 0,56 kg	57724 2S000, 57724 2S010
23KI1200 IN PREPARATION	Track Control Arm Rear	0 kg	55250 2H000, 55250 2S000 (3) OEM
26HY3200	Stabiliser Link	th1:M12x1.5 RHT L:238mm / 0,42 kg	54830 2E100, 54830 2E000 (2) OEM
26HY3210	Stabiliser Link Rear	th:MM12x1.5 RHT L: 220mm / 0,4 kg	55530 2E100, 55530 2E000 (2) OEM
26HY3305 IN PREPARATION	Stabiliser Link Rear		55530 D3000, 55540 D3000
26KI1210	Stabiliser Link Rear	L: 140 TP: M12x1,25 / 0,32 kg	55530 2S100, 55530 2Z100 (2) OEM
26KI3000	Stabiliser Link	tp: MM12x1,5 L:282mm / 0,44 kg	54830 M000, 54830 0U000 (9) OEM
26KI3005 NEW	Stabiliser Link	0,46 kg	54830 1S000, 54830 2S000 (3) OEM
26KI3010	Stabiliser Link Rear	L:87mm / 0,38 kg	55540 3U800, 55530 3R000 (4) OEM
30HY3300 NEW	Track Control Arm Lower Left	4,5 kg	54500 D7000, 54500 F1000
30HY3301 NEW	Track Control Arm Lower Right	4,5 kg	54501 D7000, 54501 F1000
38FR1720	Silentblock for TCA	di:Ø12,2 do:Ø32,2 / 0,11 kg	13 000 384, 3M51 5K653 AA (18) OEM
38HY1100	Silentblock for TCA	di:Ø12.1 do:Ø38.2 L:55mm / 0,23 kg	54500 2W200, 54551 C5000 (1) OEM*
38HY1101	Silentblock for TCA	di:Ø14.3 do: Ø70.2 L:60mm / 0,41 kg	54584 2T000, 54584 2W000
38HY1105	Silentblock for TCA	di: Ø12.1 / do: Ø38.2 / L: 54.8 / 0,21 kg	54551 2S000

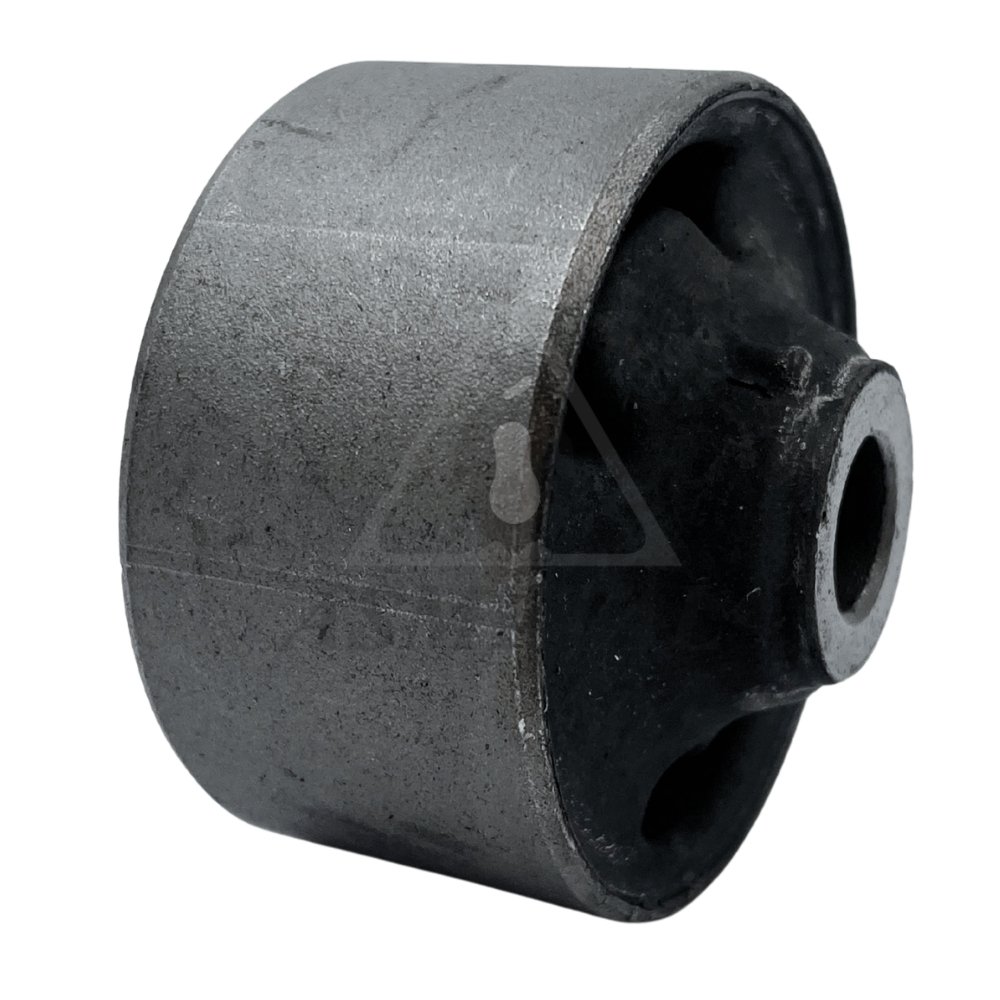

38HY1200	Silentblock for TCA	di:Ø14.3 do: Ø70 L:60mm / 0,43 kg	54584 2S000, 54584 2S100 (11) OEM
38HY3210	Silentblock for TCA	di:Ø14.5 do:Ø66 L:60mm / 0,42 kg	54584 2E000, 54584 4D000 (1) OEM
38HY3211	Silentblock for TCA	di:Ø12.2 do:Ø38.2 L:55mm / 0,23 kg	54551 2E000, 54551 2H000
38HY3300	Silentblock for TCA	di: Ø14.2 / do: Ø70.6 / L: 60 / 0,5 kg	54584 C5000, 54584 D3000 (1) OEM
38KI3000	Silentblock for TCA	di:Ø12.1 do:Ø41.9 L:48 / 0,15 kg	55100 D3050*
45HY1100 NEW	Strut Mount	1,04 kg	54610 2Y000, 54610 2Y500 (3) OEM
45HY1120 NEW	Strut Mount	0,61 kg	55330 2S000, 55330 3R011 (6) OEM
45HY3300 NEW	Strut Mount	0,92 kg	54610 D3000, 54610 D3500 (2) OEM
