10MR0100
|
Ball Joint Lower |
th:M20x1.5 RHT cp:1/10 cs:Ø23,5 do:Ø45,4 / 0,74 kg |
5139 559AA, 901 333 07 27 (10) OEM |
 |
10MR0101
|
Ball Joint Lower |
th:M20x1.5 RHT cp:1/6 cs:Ø21,8 do:Ø45,3 / 0,73 kg |
68012 165 AA, 68012 164 AA (17) OEM |
 |

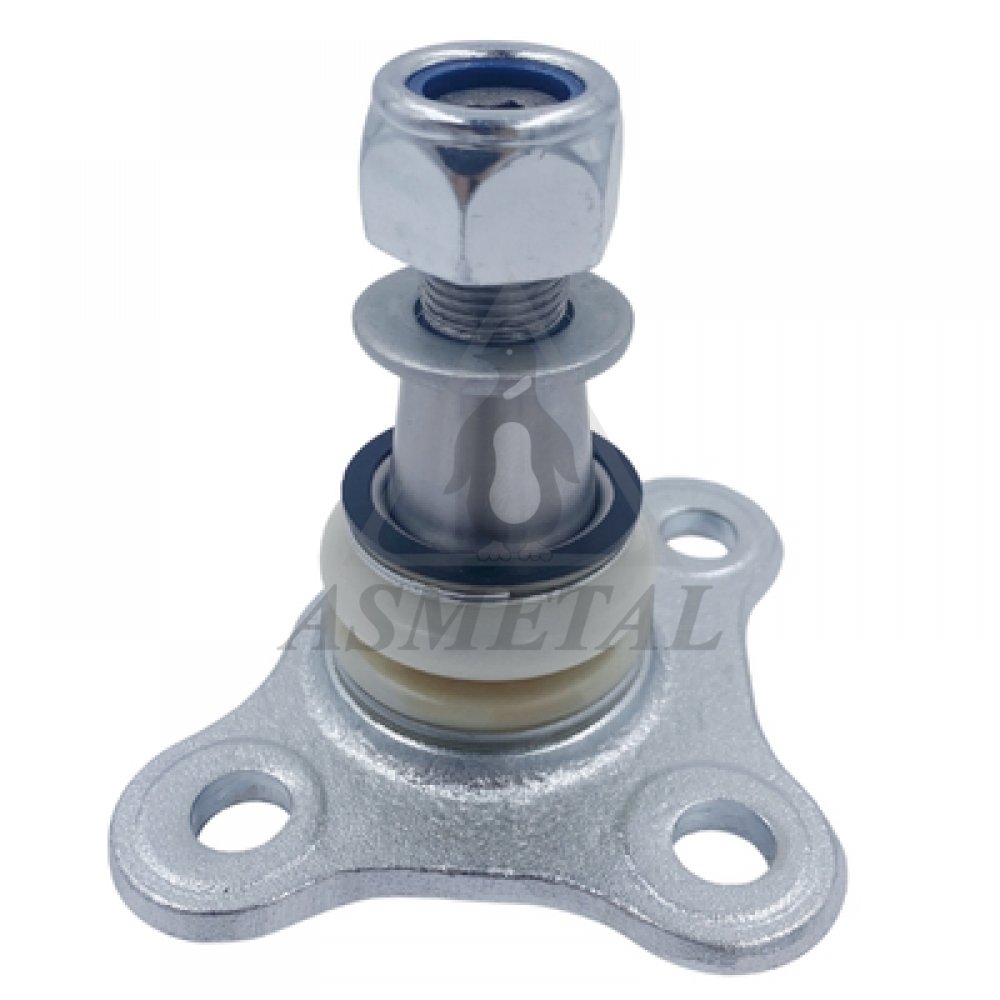

10MR0110
|
Ball Joint Lower |
th:MM18x1.5 RHT cp:1/4 cs:Ø21.8 / 0,86 kg |
A 910 333 04 00, 910 333 04 00 |
 |
10MR02
NEW
|
Ball Joint Upper |
0,3 kg |
210 330 87 07*, 202 330 49 07* (6) OEM |
 |

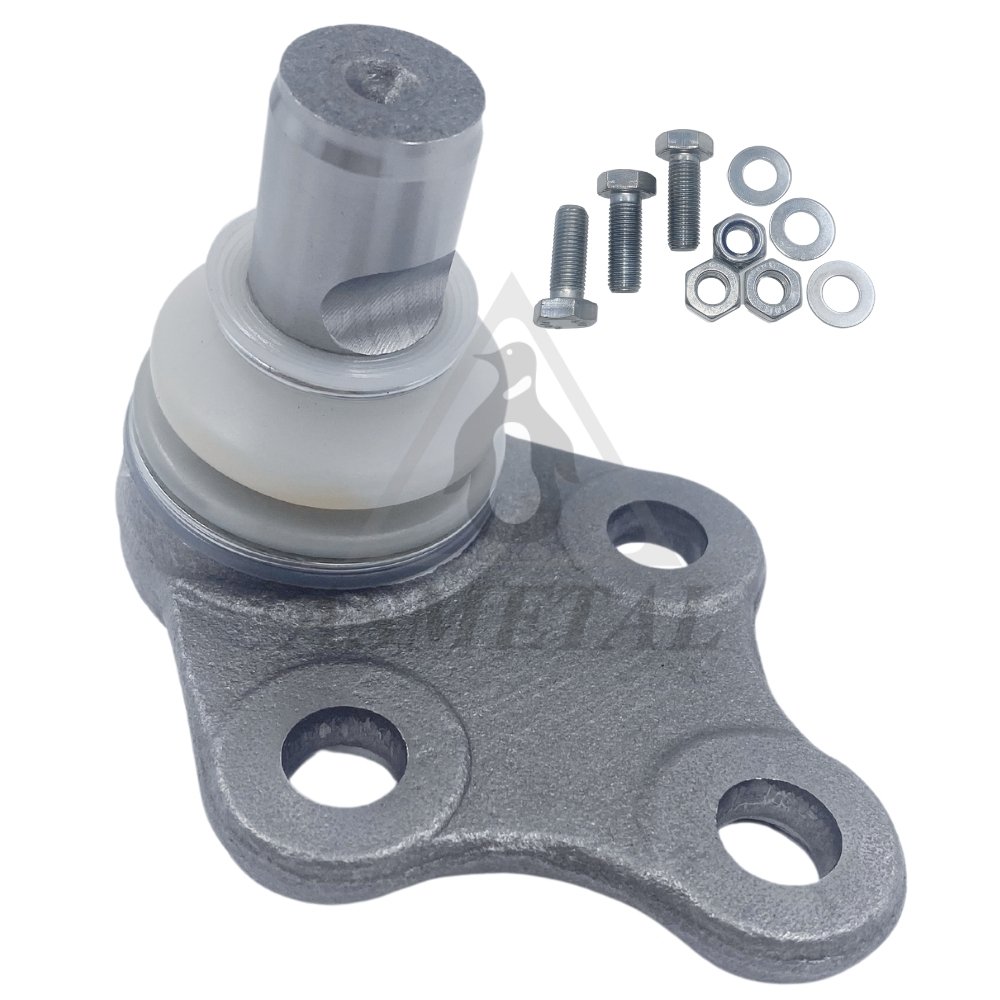

10MR0800
|
Ball Joint Lower |
c:Ø22 / 0,96 kg |
638 330 01 10, A 638 330 00 10 (10) OEM |
 |
10MR0815
|
Ball Joint Lower |
c:Ø22 / 0,88 kg |
639 330 04 10, 639 330 05 10 (1) OEM |
 |

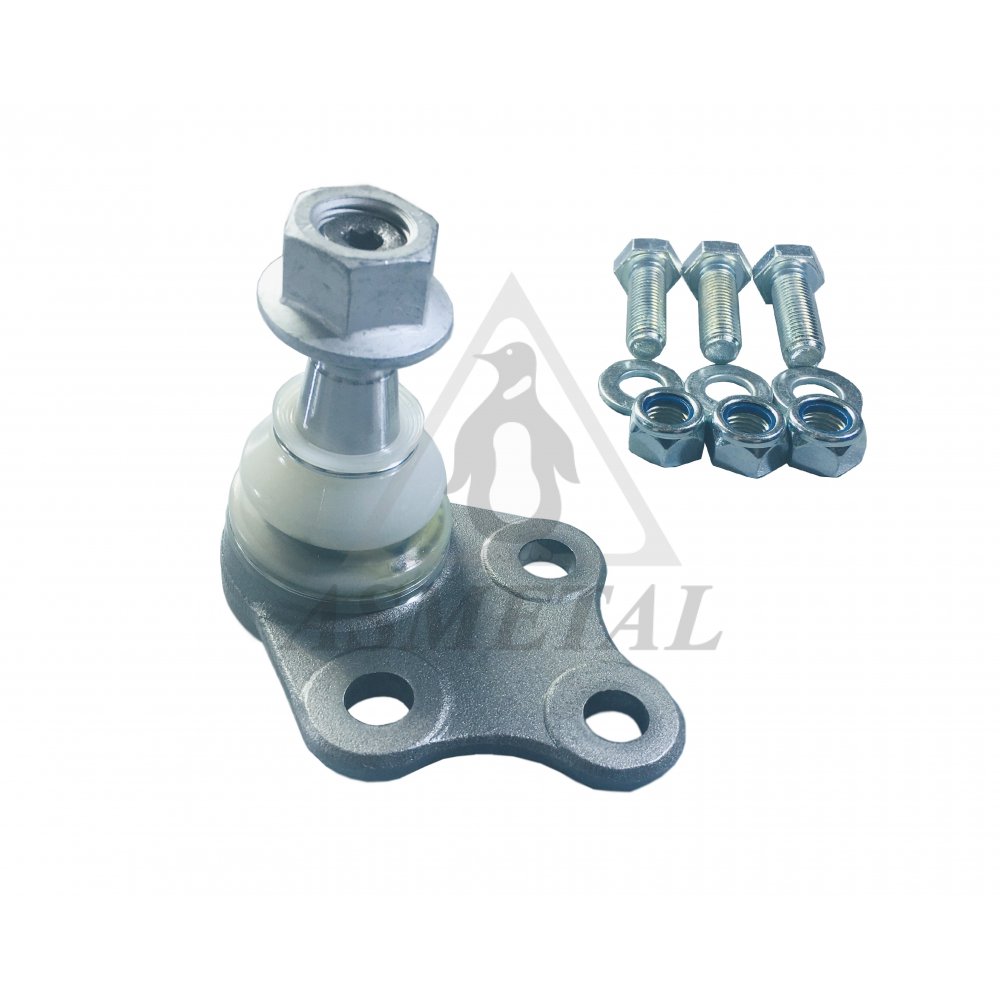

10MR0820
|
Ball Joint |
th1:M16x1.5 RHT c:Ø16 / 0,92 kg |
447 330 30 00, A 447 330 31 00 (12) OEM |
 |

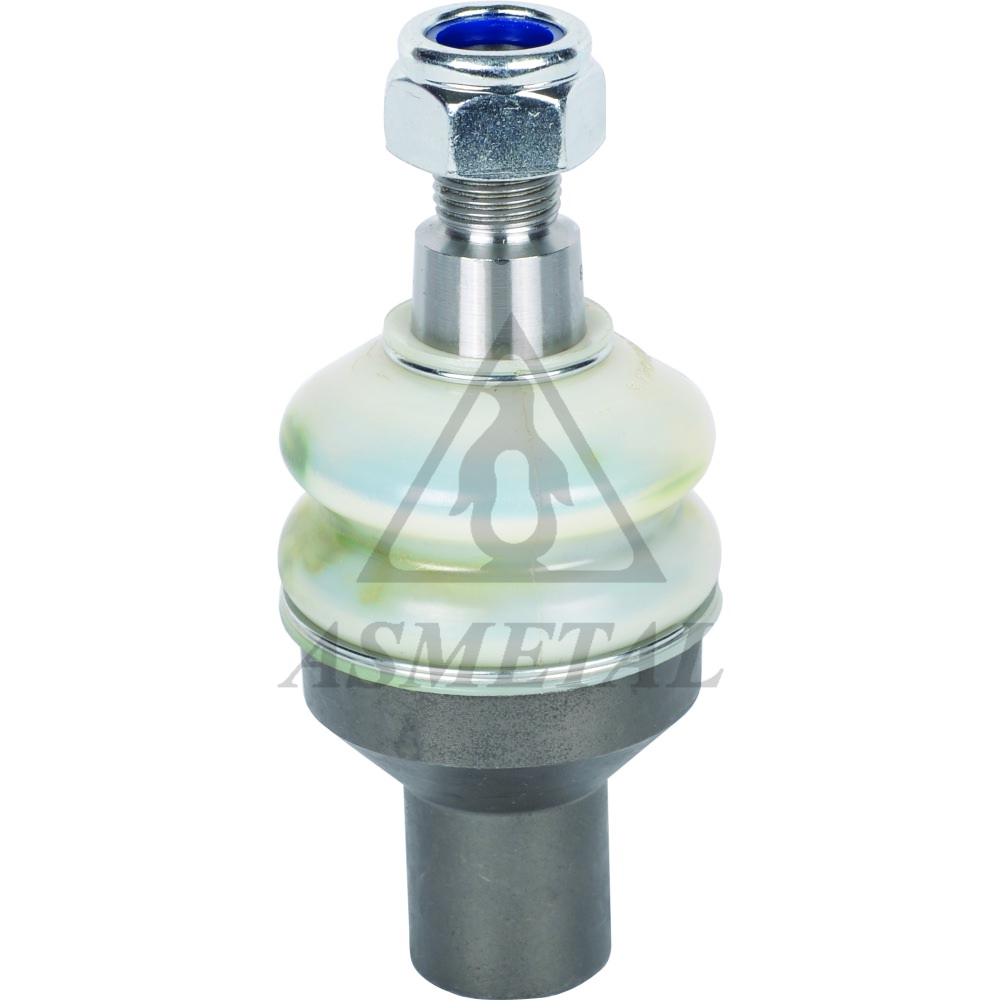

10MR1000
|
Ball Joint Lower |
th:M16x1.5 RHT cp:1/10 cs:Ø20,3 do:Ø26 / 0,72 kg |
608 320 00 28, A 608 320 00 28 (10) OEM |
 |
10MR1202
|
Ball Joint |
th:M12x1.5 RHT cp:1/6 cs:Ø13,75 / 0,34 kg |
A 168 333 02 27, A 168 333 01 27 (2) OEM |
 |
10MR1205
|
Ball Joint |
th:M14x1.5 RHT cp:1/6 cs:Ø15,4 / 0,68 kg |
169 333 00 27, A 169 333 03 27 (2) OEM |
 |

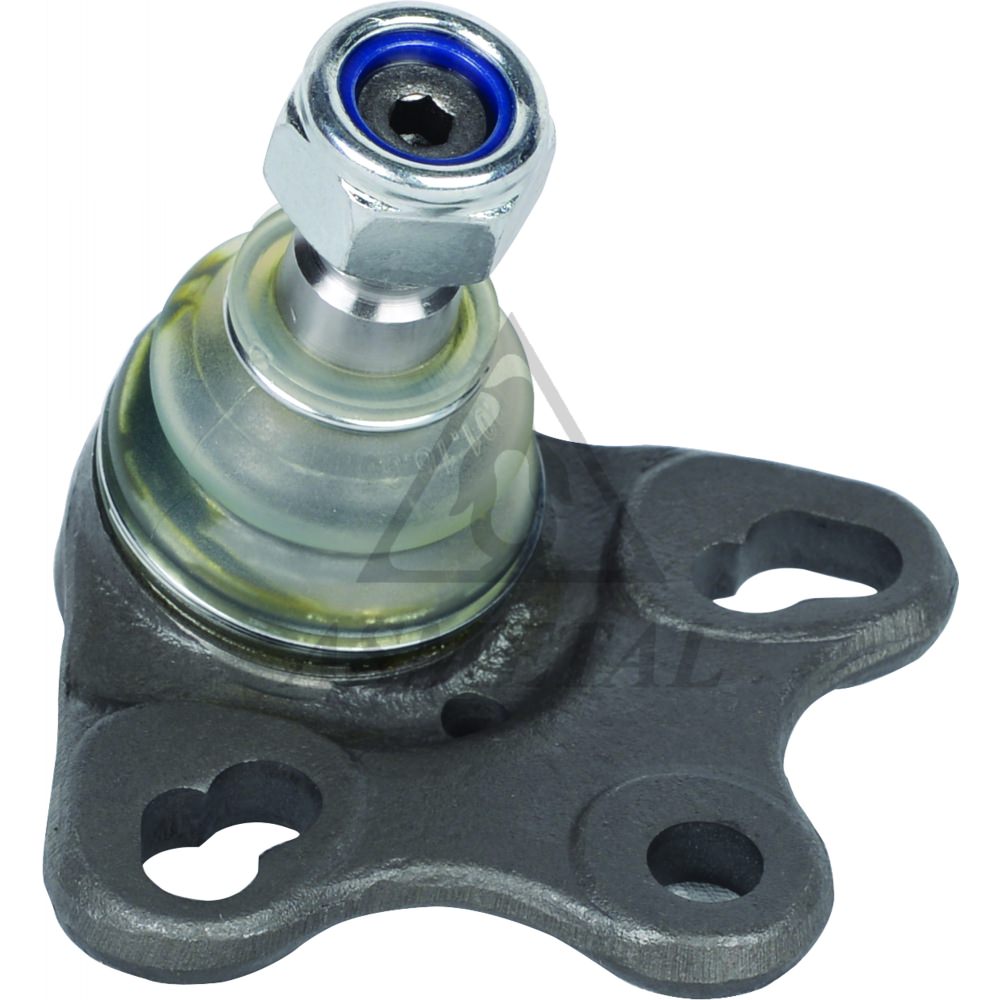

10MR1220
|
Ball Joint |
th:M14x1.5 RHT cp:1/6 cs:Ø15,35 / 0,62 kg |
414 333 02 27, 414 333 01 27 (3) OEM |
 |
10MR1300
|
Ball Joint Lower |
th:M14x1.5 RHT cp:1/10 cs:Ø17,1 do:Ø41,25 / 0,45 kg |
220 333 01 27, 220 333 04 27 (6) OEM |
 |
10MR1310
|
Ball Joint Lower |
th:M14x1.5 RHT do:Ø34,3 / 0,24 kg |
A 220 323 03 68, 211 323 00 68 (2) OEM |
 |

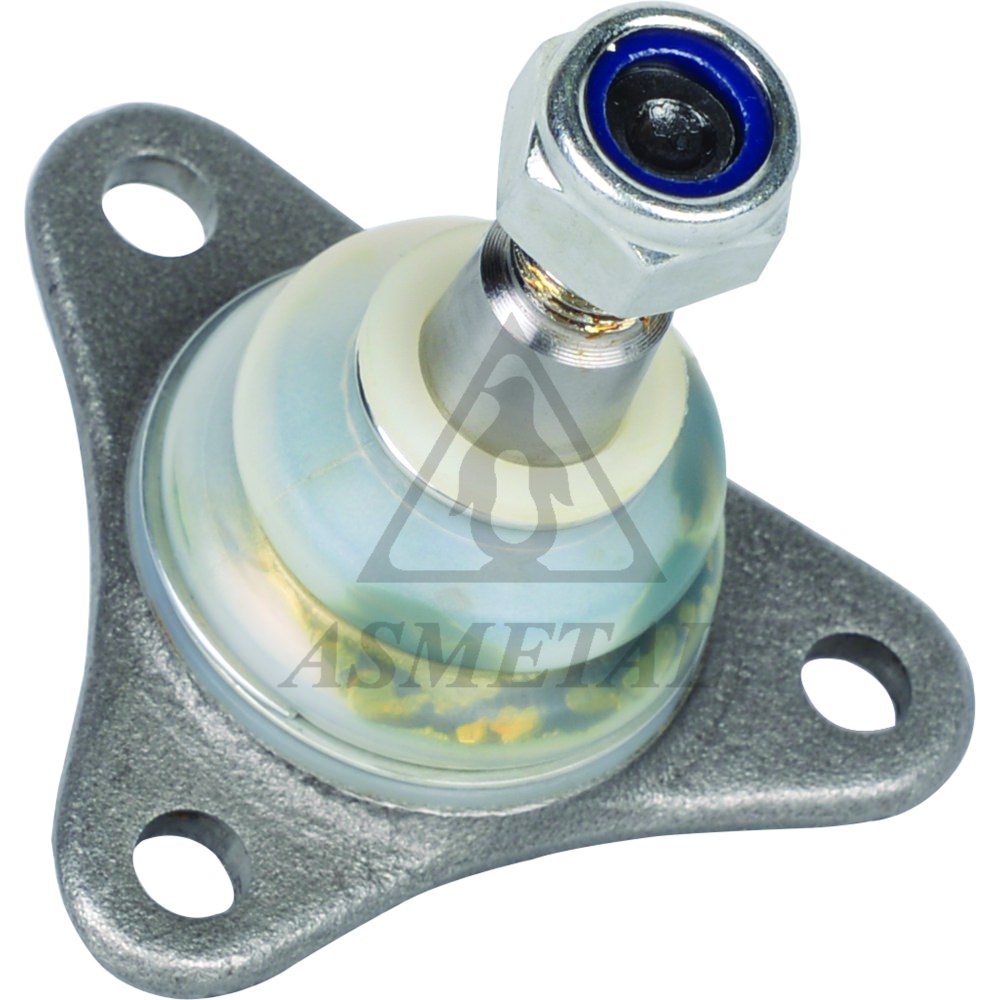

10MR1515
|
Ball Joint Upper |
th:M12x1.25 RHT cp:1/10 cs:Ø14,35 / 0,37 kg |
115 333 05 27, A 115 333 05 27 |
 |

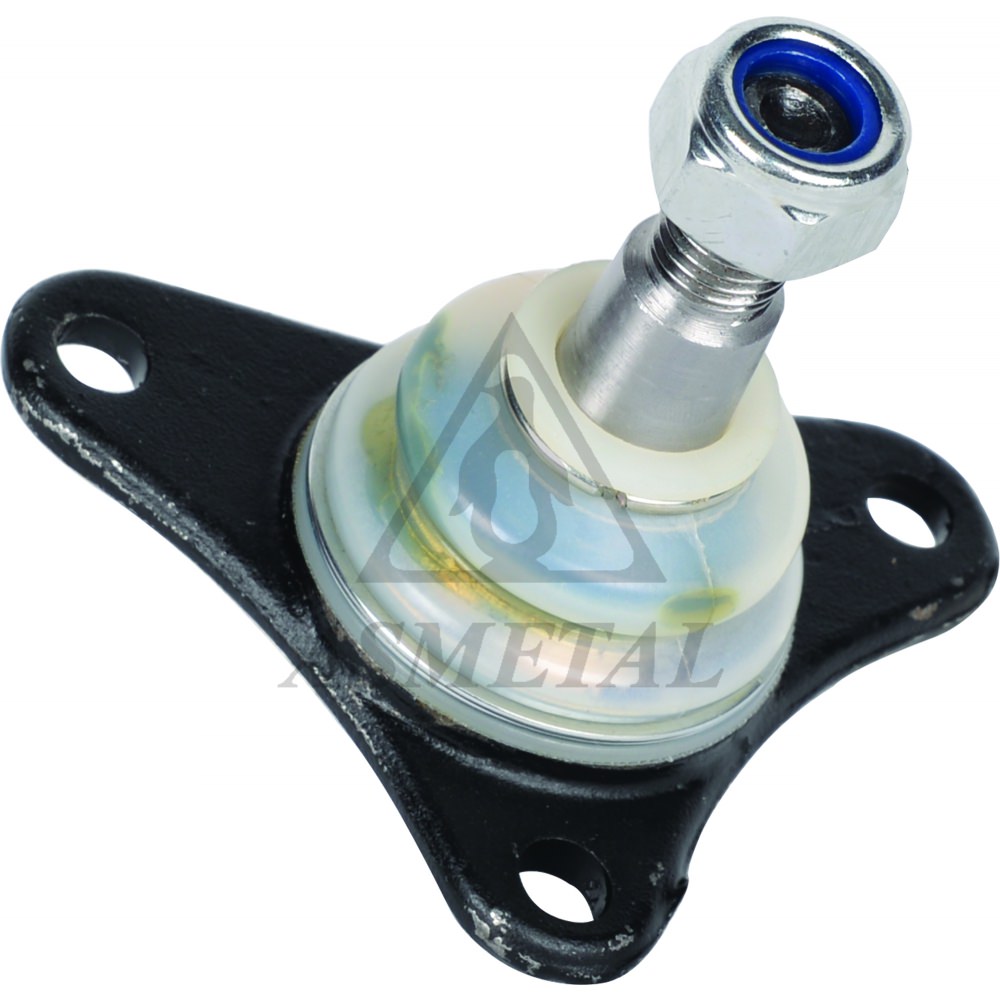

10MR1516
|
Ball Joint Upper |
th:M12x1.25 RHT cp:1/10 cs:Ø14,35 / 0,39 kg |
115 333 08 27, A 115 333 08 27 |
 |
10MR1555
|
Ball Joint Lower |
th:M14X1.5 RHT cp:1/10 cs:Ø16 do:Ø48,35 / 0,5 kg |
115 333 10 27, A 115 333 10 27 (2) OEM |
 |
10MR1800
|
Ball Joint Lower |
th:MM14x1.5 RHT cs: Ø14 do:34.2 / 0,3 kg |
205 330 62 01, 205 330 59 01 (12) OEM |
 |
10MR2355
|
Ball Joint Lower |
th:M14x1.5 RHT cp:1/10 cs:Ø18,3 do:Ø45,4 / 0,52 kg |
A 116 333 09 27, 116 333 09 27 |
 |

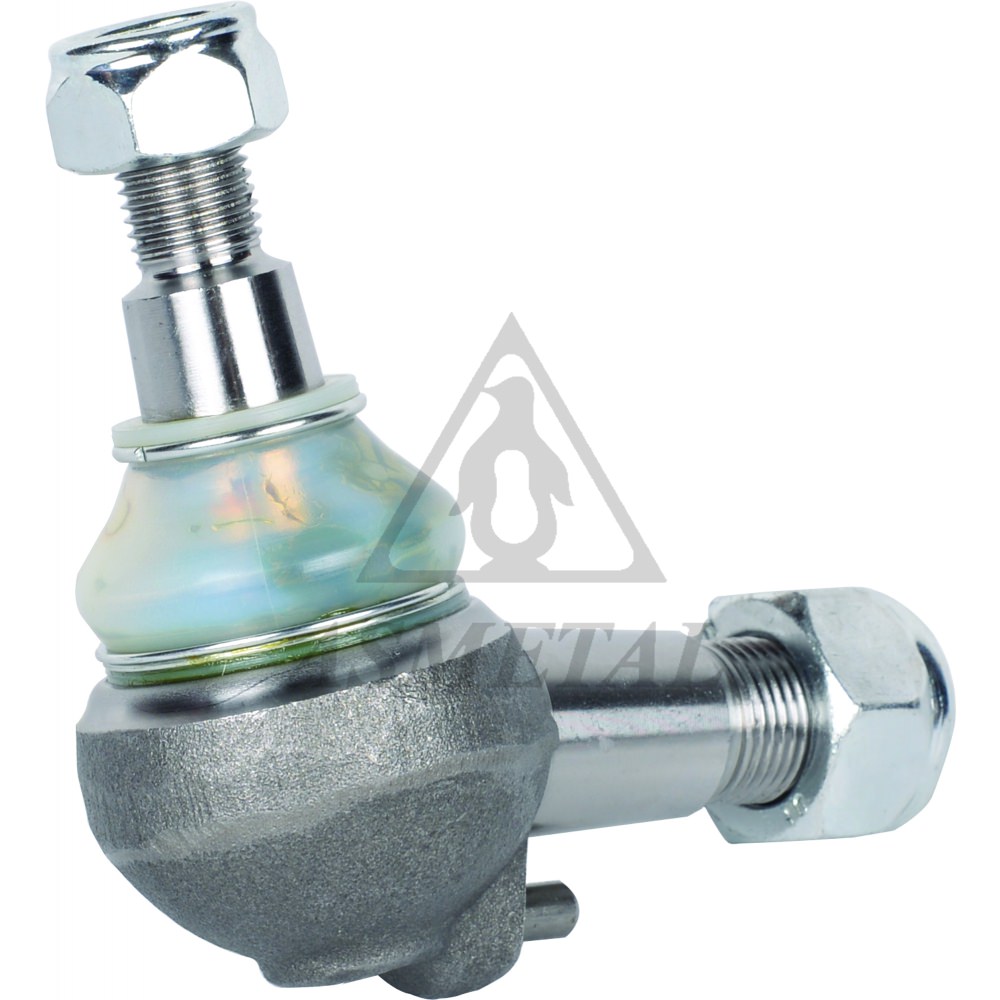

10MR2500
|
Ball Joint Lower |
th:M14x1.5 RHT cp:1/10 cs:Ø17,8 / 0,67 kg |
140 333 03 27, 140 333 03 27 05 (1) OEM |
 |
10MR3055
|
Ball Joint Lower |
c:Ø18 do:Ø46,4 / 0,44 kg |
124 333 01 27, A 124 333 01 27 (2) OEM |
 |
10MR3502
|
Ball Joint Upper |
th:M10x1.5 RHT cp:1/10 cs:Ø13 / 0,47 kg |
211 333 04 27, A 211 330 99 07 (6) OEM |
 |
10MR40
|
Ball Joint Lower |
th:M14x1.5 RHT cp:1/6 cs:Ø15,9 / 0,58 kg |
5099 237AA, K05099 237AA (14) OEM |
 |
10MR4010
|
Ball Joint Lower |
tp: M14x1.5 - M14x1.5 cr: 1:5 c: Ø17.8 / 0,6 kg |
A 212 330 01 35, 212 330 01 35 |
 |

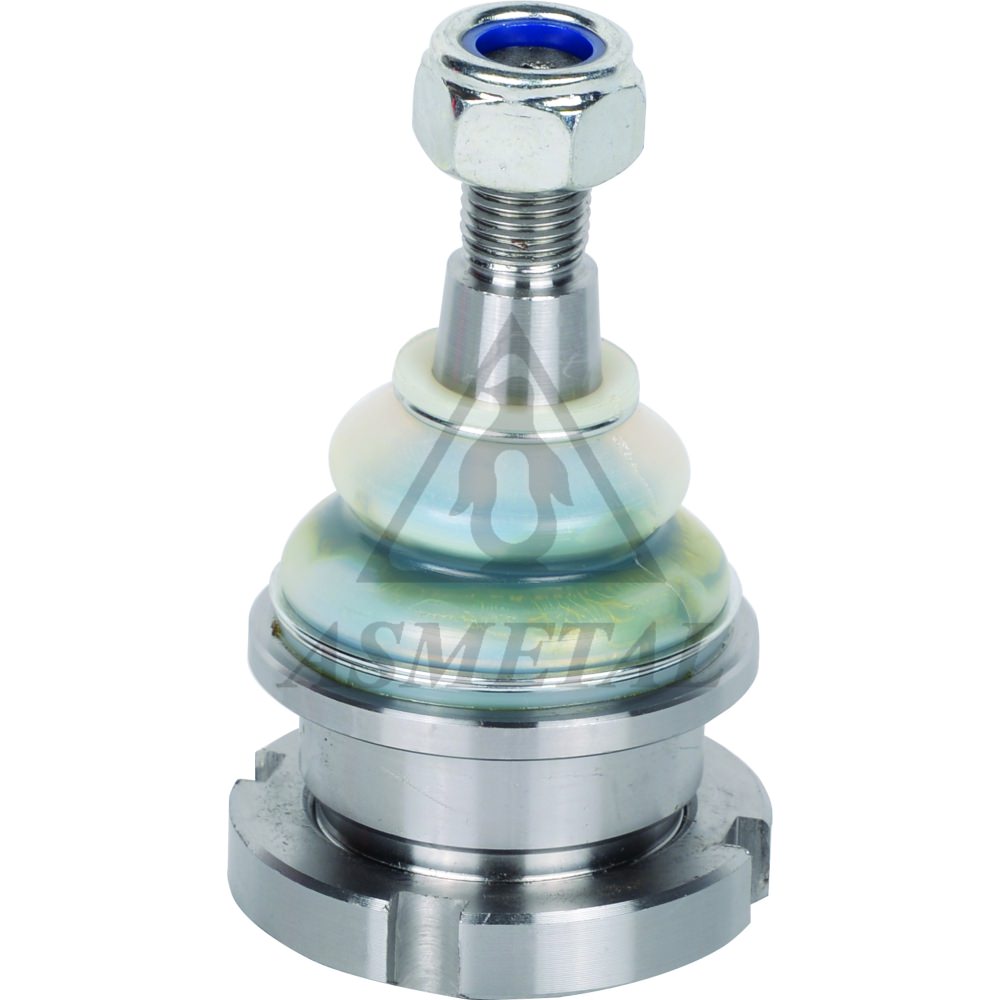

10MR4500
|
Ball Joint Lower |
th:M14x1.5 RHT cp:1/6 cs:Ø16,2 th2:M42x1.5 RHT / 0,79 kg |
A 163 330 01 35, 163 330 00 35 (2) OEM |
 |

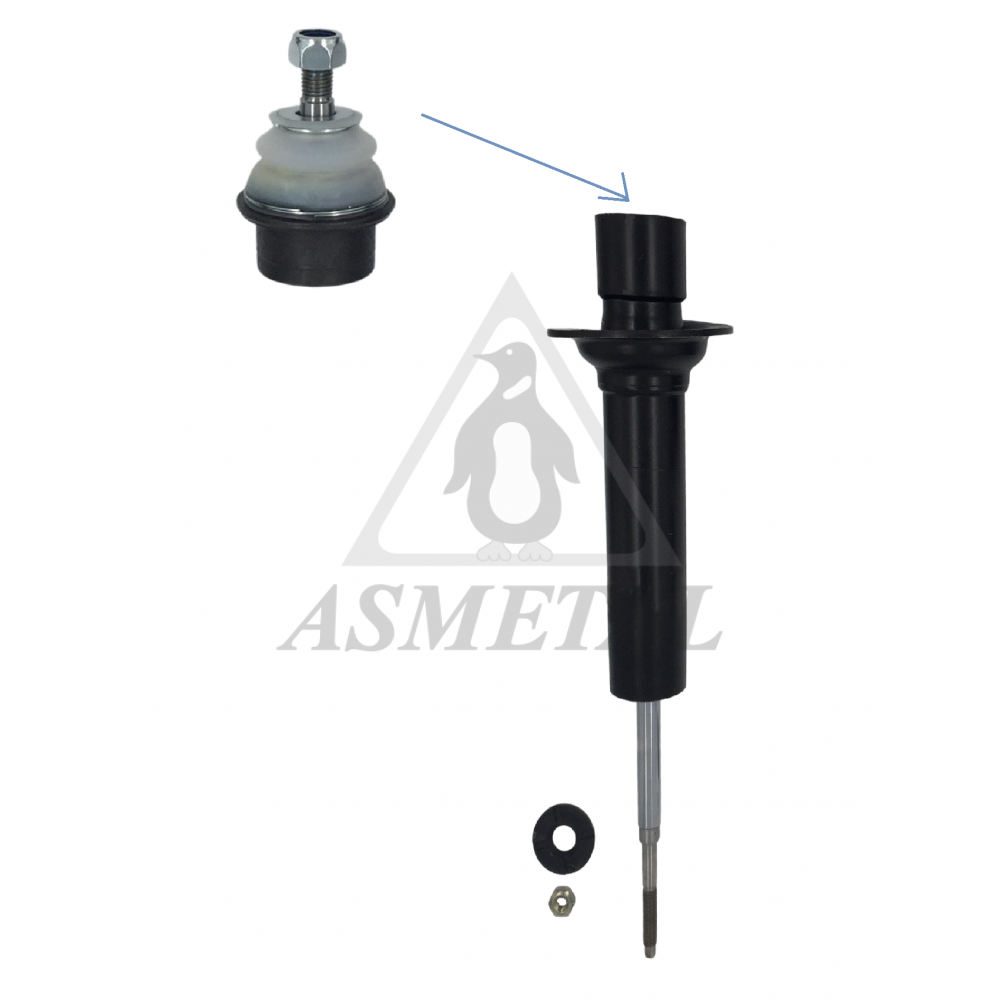

10MR4590
|
Shock Absorber's Ball Joint |
th:M12x1.5 / 0,54 kg |
163 320 05 13, A 163 320 05 13 (8) OEM |
 |
10MR4600
|
Ball Joint Rear |
th:M14x1.5 RHT c:Ø20 th2:M42x1.5 RHT / 0,84 kg |
A 163 350 00 13, 163 350 00 13 (2) OEM |
 |
10MR4700
|
Ball Joint |
th:M16x1.5 RHT th2:M42x1.5 RHT / 0,86 kg |
164 330 09 35, A 164 330 09 35 |
 |

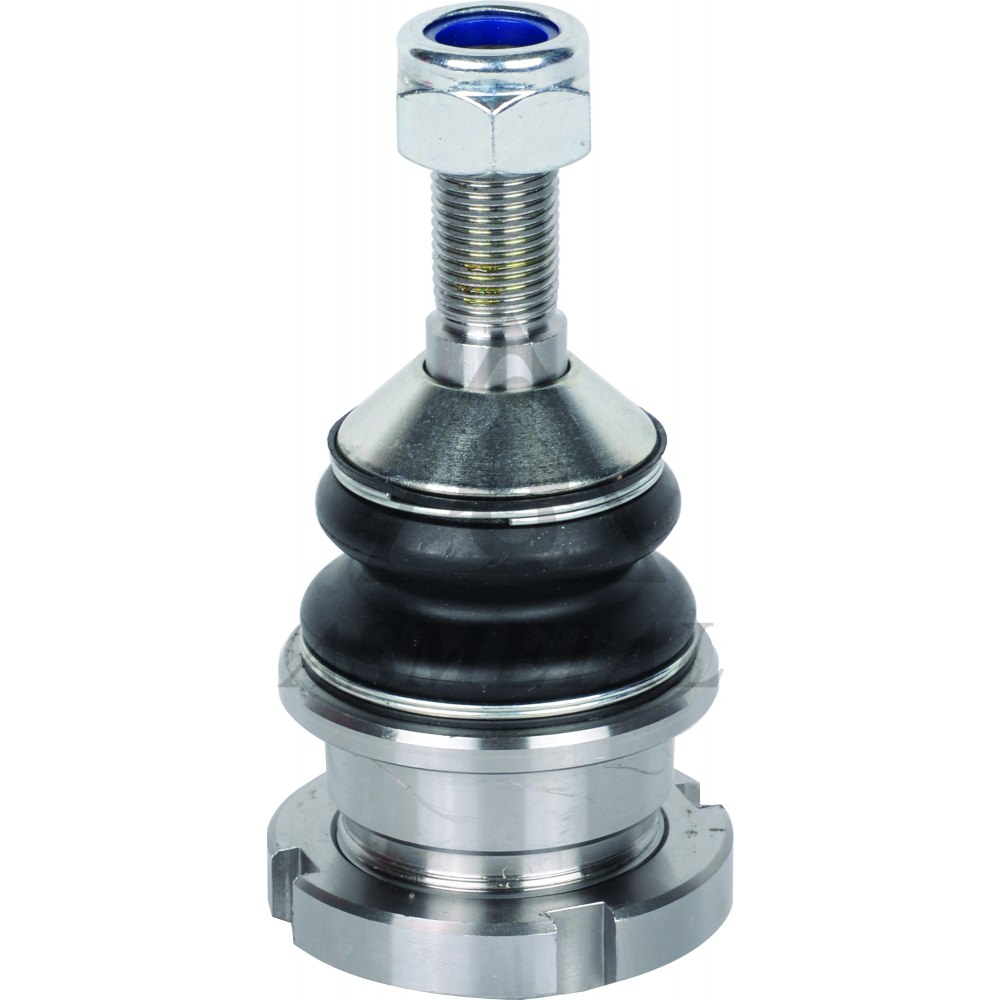

10MR4800
|
Ball Joint Rear |
th:M16x1.5 RHT th2:M42x1.5 RHT / 0,88 kg |
A 164 352 01 27, 164 352 01 27 (3) OEM |
 |

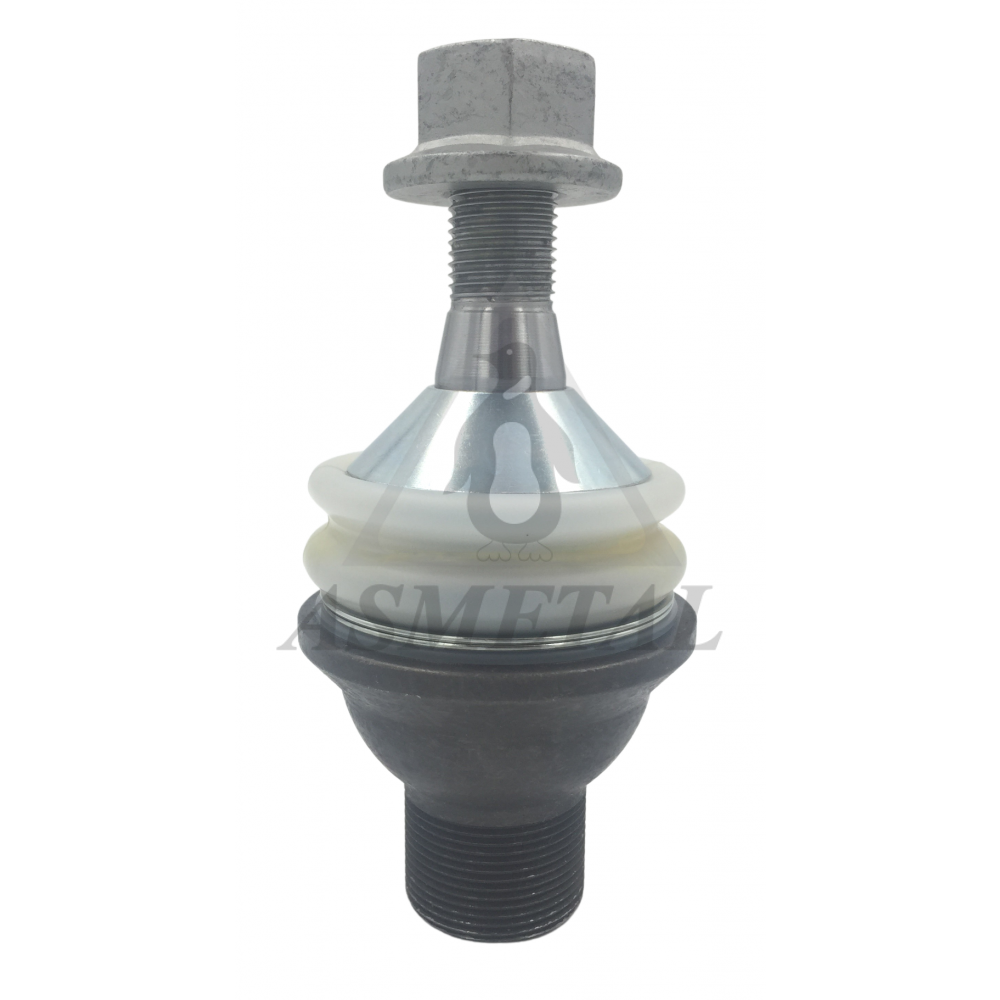

10MR4810
|
Ball Joint Lower |
tp:1 M16x1.5 / tp2: M30x1.5 / cr : Ø16.1 / 0,88 kg |
A 166 330 02 35, 166 330 02 35 |
 |
10MR5000
OUT OF SERVICE
|
Ball Joint (Chassis) |
th:M16x1.5 RHT c:Ø18 / 0 kg |
123 330 13 35, A 123 330 13 35 |
 |
10RN5605
|
Ball Joint Lower Right |
c:Ø20 / 0,56 kg |
A 415 330 02 00, 415 330 02 00 (1) OEM |
 |
10RN5606
|
Ball Joint Lower Left |
c:Ø20 / 0,56 kg |
415 330 03 00, A 415 330 03 00 (1) OEM |
 |
10RN5700
|
Ball Joint Lower |
tp: M12x1.5 cr: 1:5 c: Ø15.85 / 0,76 kg |
54 50 472 75R*, 54 50 496 71R* (2) OEM |
 |
11MR00
|
Silentblock Bushing |
di:Ø14 do:Ø40 / 0,22 kg |
A 204 352 00 27, A 221 352 01 27 (14) OEM |
 |
11MR1800
|
Silentblock Bushing |
di:Ø14 do: Ø44 L:48mm / 0,3 kg |
205 330 64 01, A 205 330 58 01 (8) OEM |
 |

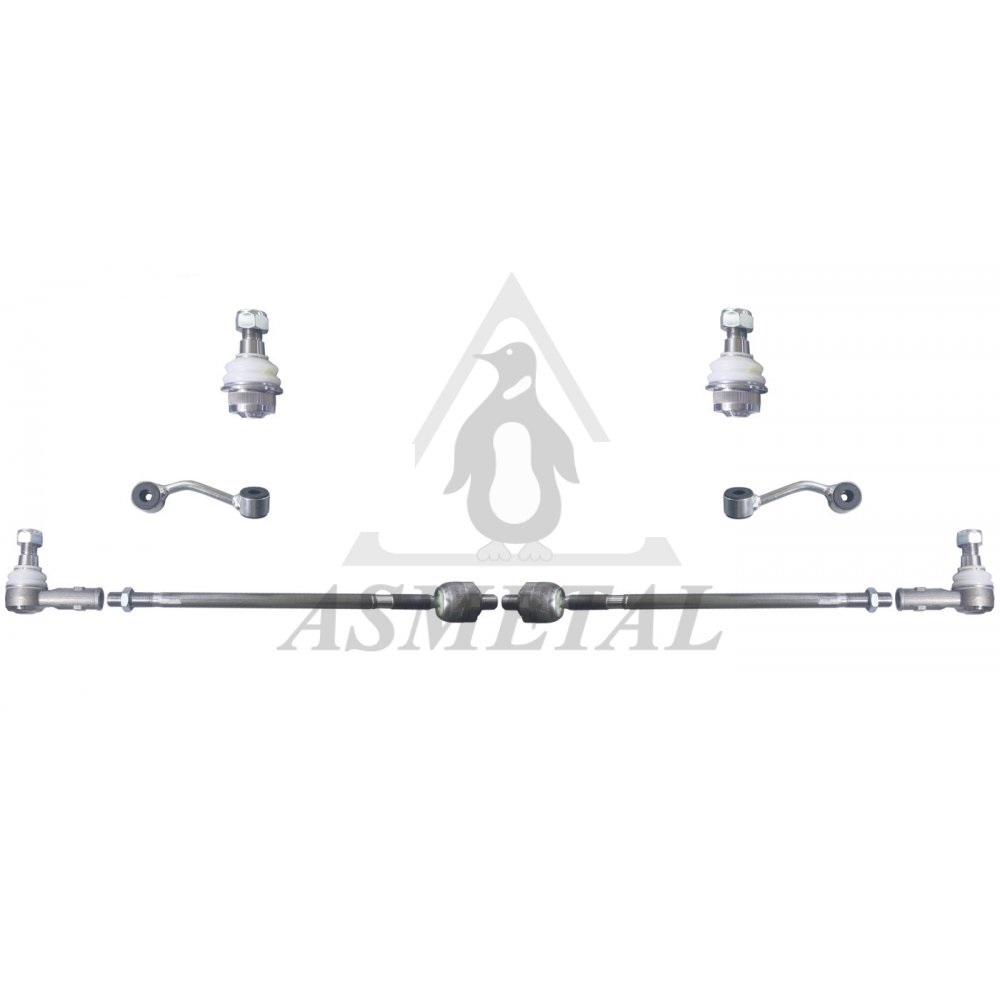

13MR0099
|
Suspension Kit (TCA Kit) |
5,1 kg |
5104 060AA, 5104 059AA (8) OEM |
 |

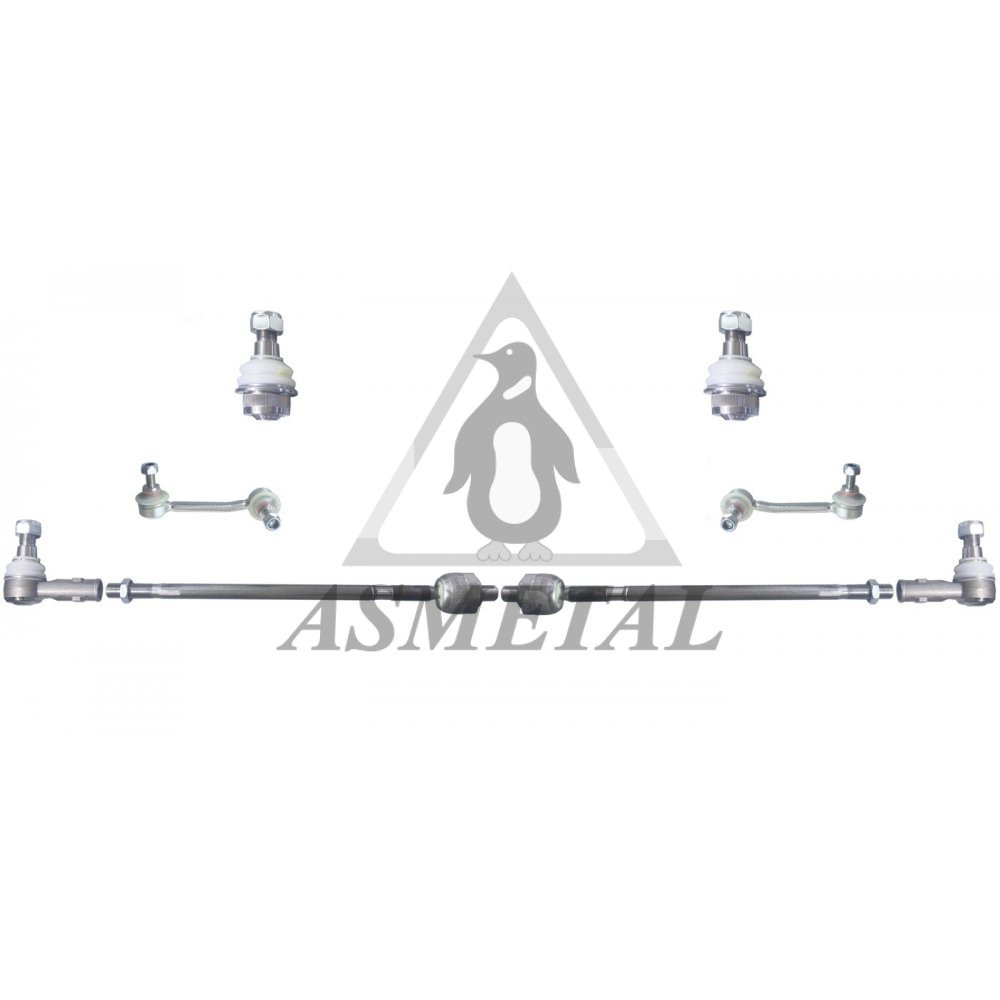

13MR0100
|
Suspension Kit (TCA Kit) |
5,1 kg |
5127 277AA, 5127 276AA (32) OEM |
 |
13MR0101
IN PREPARATION
|
Suspension Kit (TCA Kit) |
0 kg |
6801 2165 AA, 6801 2164 AA (35) OEM |
 |
13MR3200
|
Suspension Kit (TCA Kit) |
13,4 kg |
A 203 330 02 11, 203 330 17 11 (32) OEM |
 |
13MR3201
|
Suspension Kit (TCA Kit) |
10,83 kg |
A 203 330 20 11, 203 330 35 11 (32) OEM |
 |
13RN57A
IN PREPARATION
|
Tie Rod End (KIT) |
|
420 460 17 00, 420 460 19 00 (9) OEM |
 |
13RN57S
IN PREPARATION
|
Tie Rod End (KIT) |
|
420 460 17 00, 420 460 19 00 (9) OEM |
 |
17IV2030
|
Tie Rod End Right |
c:Ø19,7 th:MM28x1,5 RHT / 0,99 kg |
110 196, 0607 452 (35) OEM |
 |
17IV2031
|
Tie Rod End |
c:Ø19,7 th:MM24x1,5 RHT / 0,9 kg |
001 330 00 35, 000 330 98 35 (14) OEM |
 |
17IV2050
|
Tie Rod End Left |
c:Ø19,7 th:MM28x1,5 LHT / 0,99 kg |
ACU9242, 1228114 (32) OEM |
 |

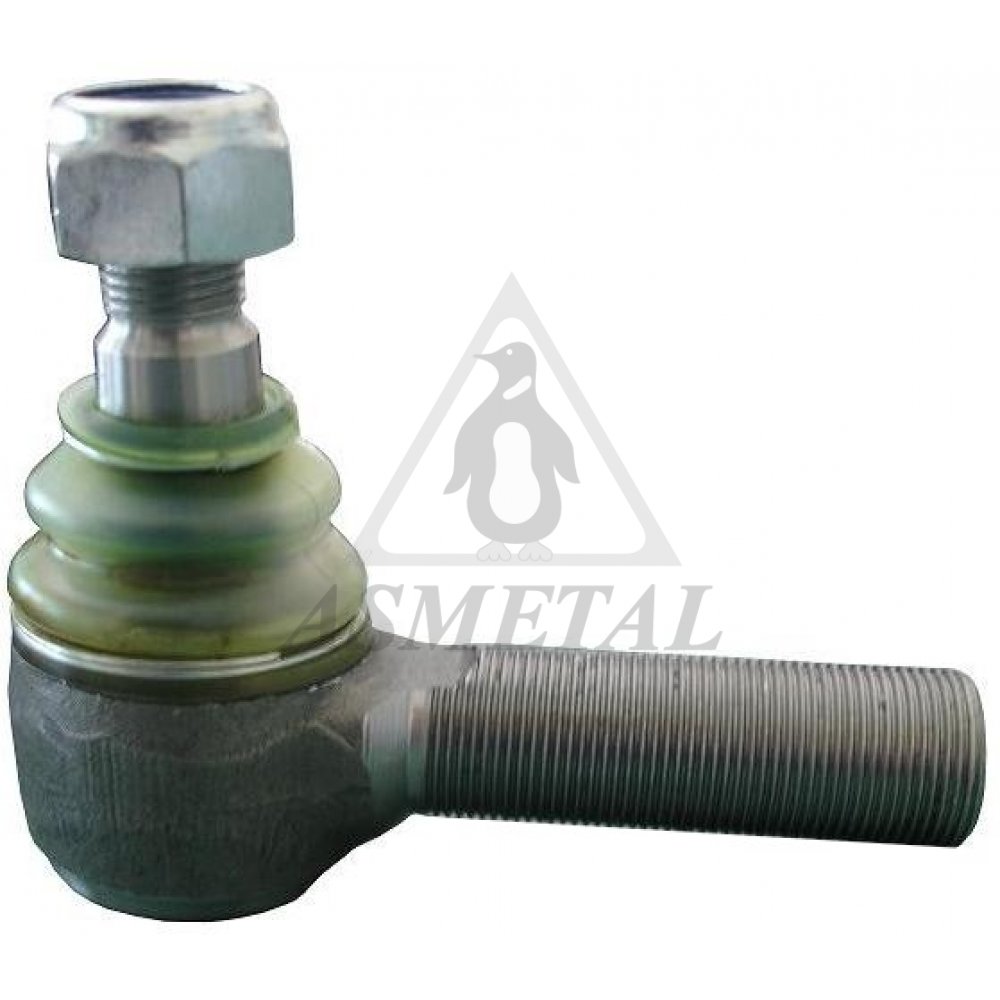

17IV2051
|
Tie Rod End |
c:Ø19,7 th:MM24x1,5 LHT / 0,9 kg |
002 330 13 35, 000 330 99 35 (14) OEM |
 |

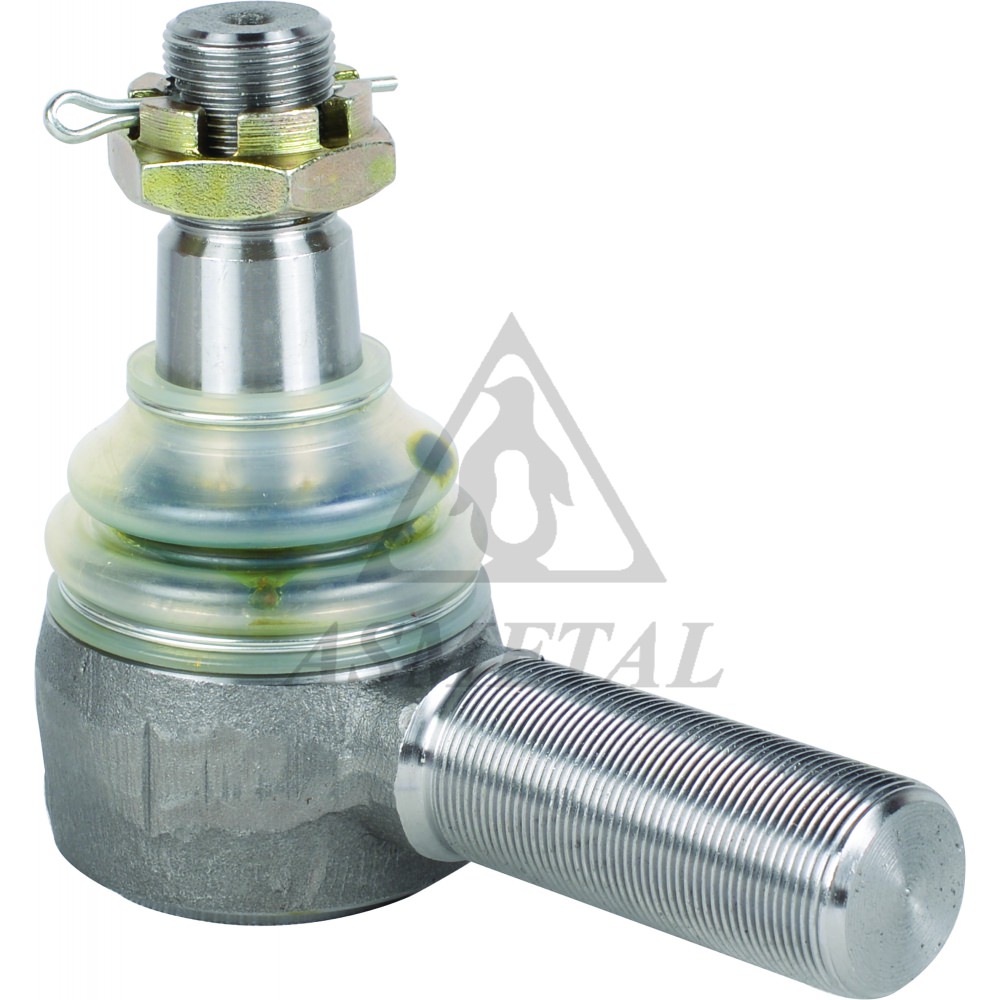

17MN1000
OUT OF SERVICE
|
Tie Rod End Left |
th:MM30x1,5 LHT / 1,73 kg |
1611088, 1329134 (82) OEM |
 |

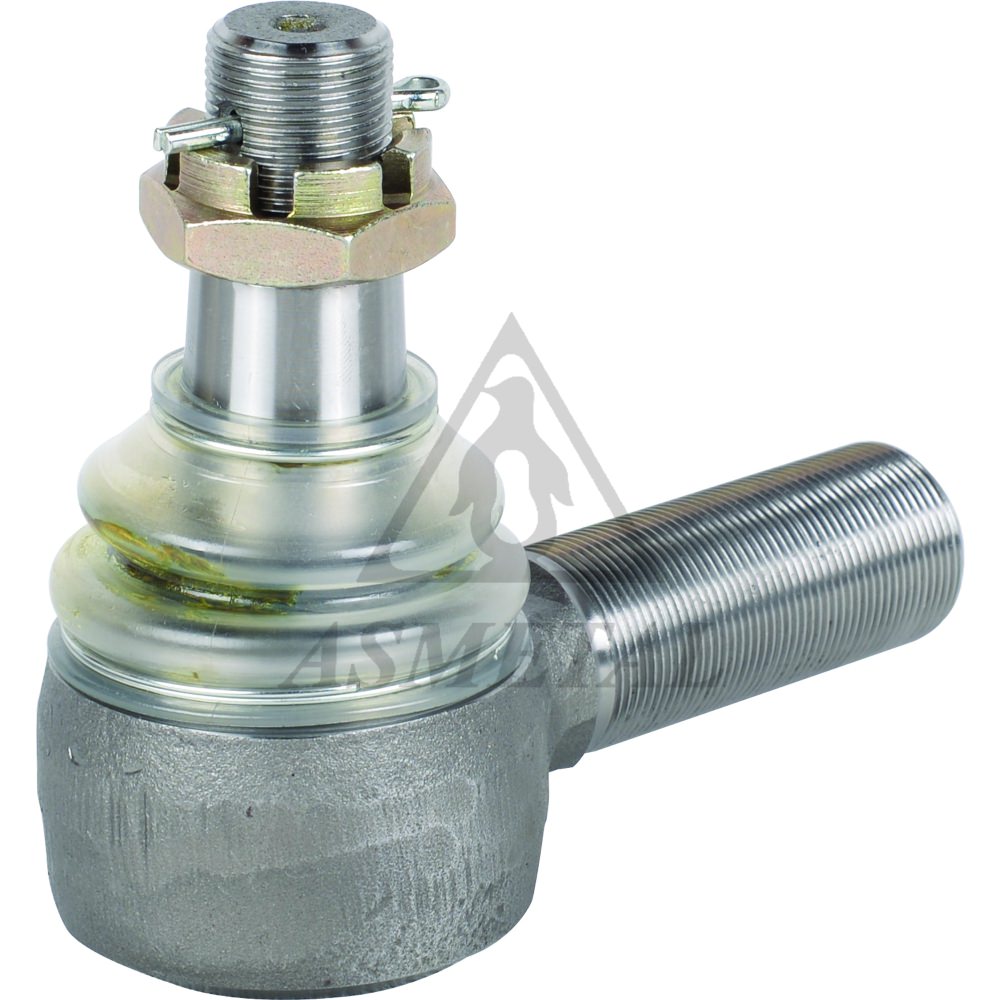

17MN1001
OUT OF SERVICE
|
Tie Rod End Right |
th:MM30x1,5 RHT / 1,73 kg |
S5004025, ACHF060 (105) OEM |
 |
17MN1500
OUT OF SERVICE
|
Ball Socket for Gearshift Left |
0 kg |
0 592 106, 0 656 084 (12) OEM |
 |
17MN1501
OUT OF SERVICE
|
Ball Socket for Gearshift Right |
0 kg |
0 589 333, 0 656 085 (11) OEM |
 |
17MR0100
|
Tie Rod End Left |
c:Ø18,2 th:MM20x1,5 LHT / 0,62 kg |
5 021 447, 6 792 901 (5) OEM |
 |

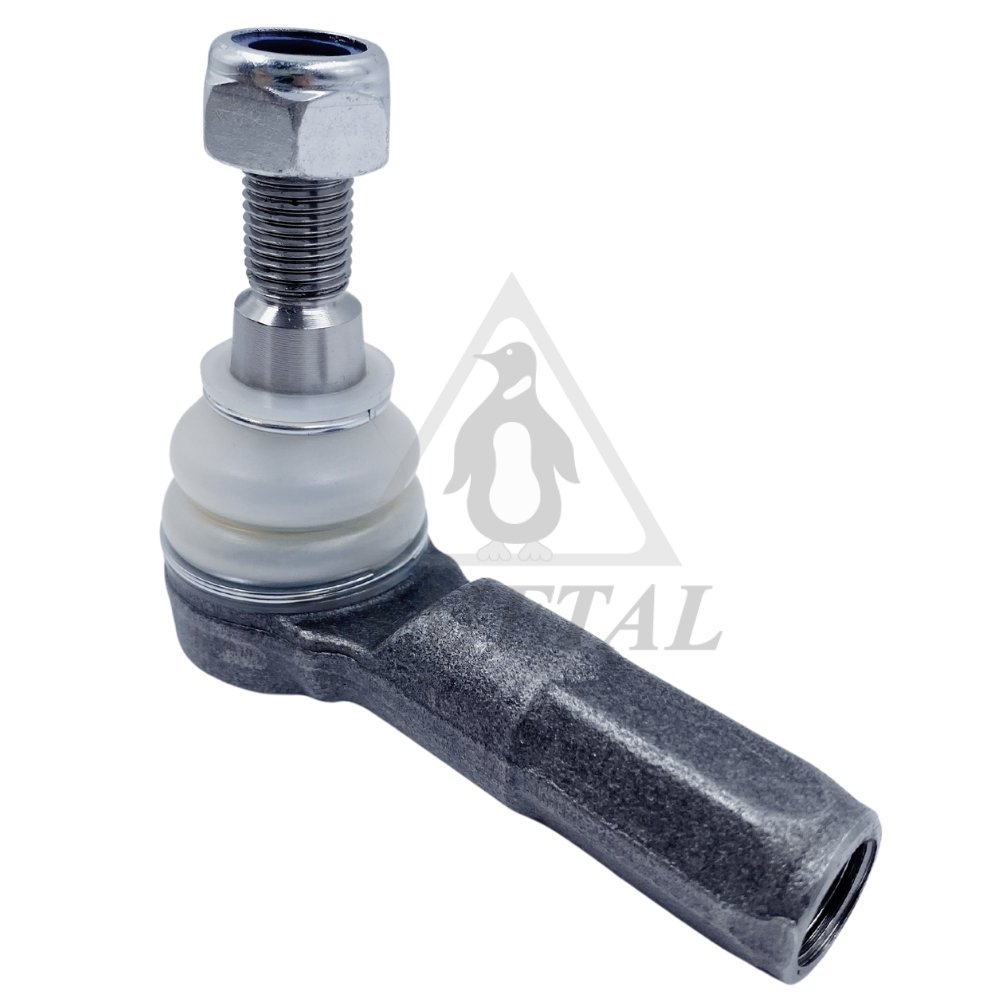

17MR0105
|
Tie Rod End |
c:Ø16,7 th:FM16x1,5 RHT / 0,48 kg |
6804 7089AA, 906 460 00 48 (8) OEM |
 |
17MR0110
|
Tie Rod End Left |
L: 207 / cr: 1:6 / c: Ø16 / tp: M14x1.5 / th: FM16x1.5 / 0,86 kg |
A 910 460 61 00, 910 460 61 00 |
 |
17MR0111
|
Tie Rod End Right |
L: 207 / cr: 1:6 / c: Ø16 / tp: M14x1.5 / th: FM16x1.5 / 0,86 kg |
A 910 460 60 00, 910 460 60 00 |
 |

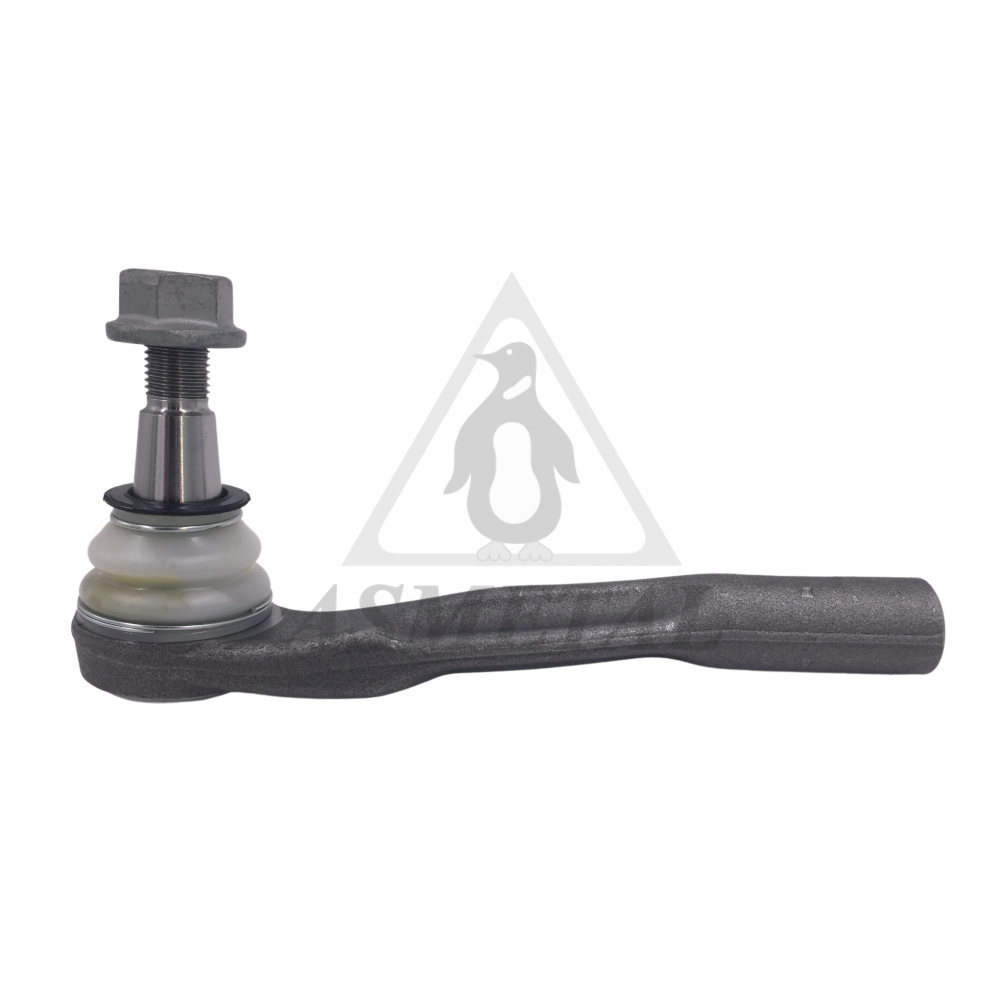

17MR0120
|
Tie Rod End Left |
L: 175 C: Ø16 CR: 1/6 TH: FM16x1,5 TP: M14X1,5 / 0,74 kg |
907 460 62 00, A 907 460 62 00 |
 |
17MR0121
|
Tie Rod End Right |
L: 175 C: Ø16 CR: 1/6 TH: FM16x1,5 TP: M14X1,5 / 0,74 kg |
A 907 460 64 00, 907 460 64 00 |
 |
17MR0200
|
Tie Rod End Right |
c:Ø18,2 th:MM20x1,5 RHT / 0,62 kg |
88VB 3825 AD, 88VB 3825 AB (7) OEM |
 |

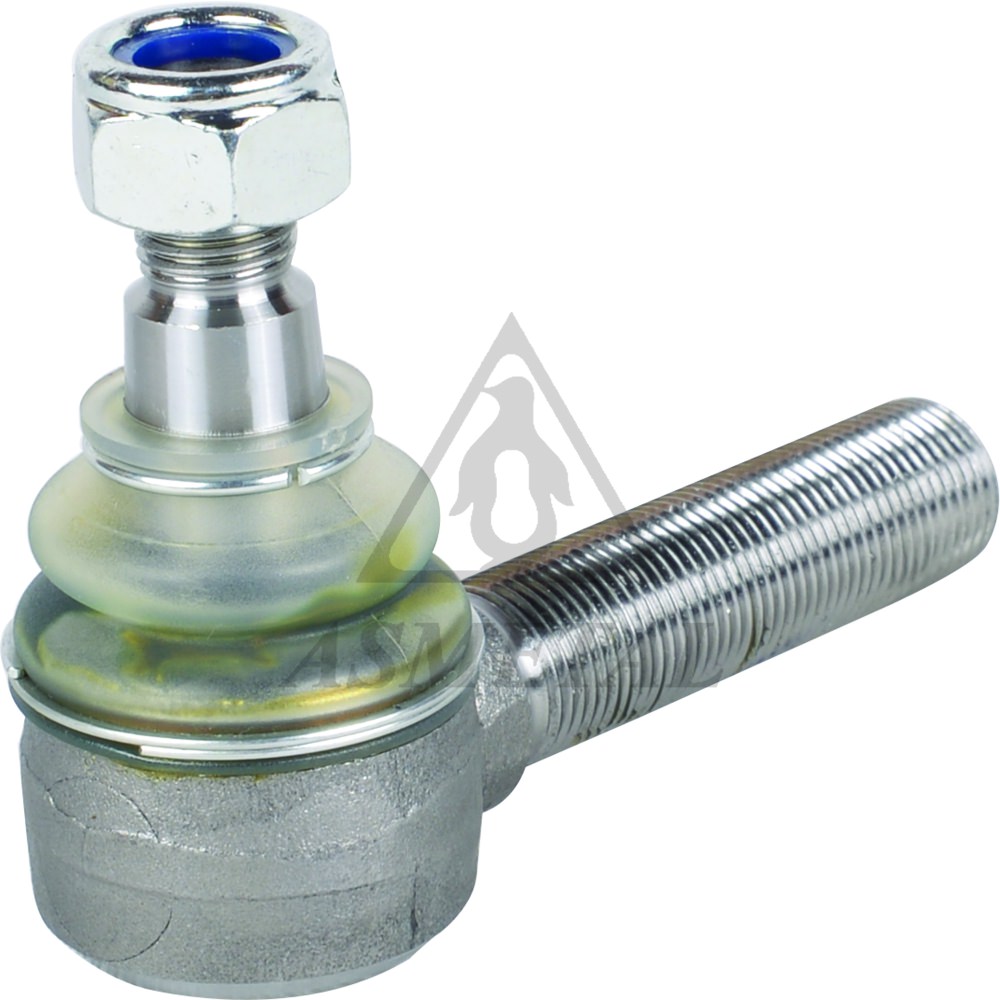

17MR0300
|
Tie Rod End Right |
c:Ø16,2 th:MM18x1,5 RHT / 0,45 kg |
631 338 04 10 |
 |

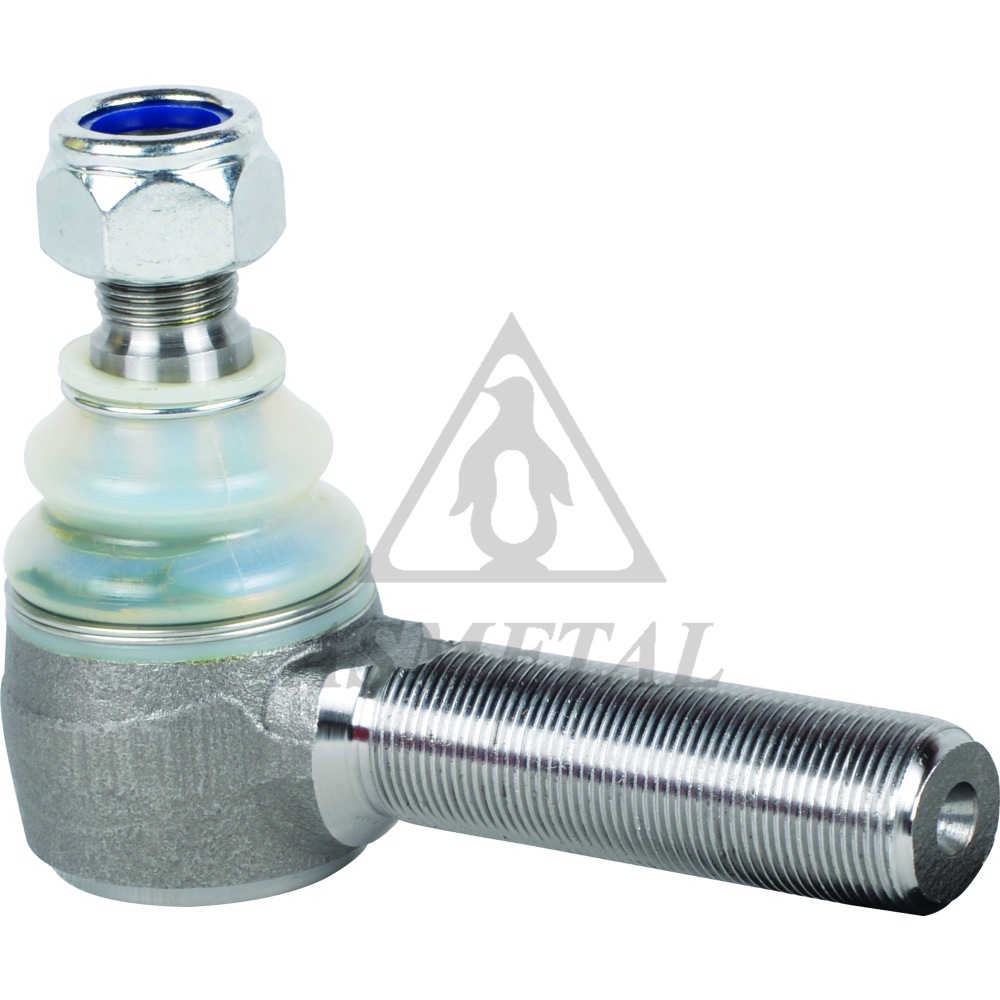

17MR0400
|
Tie Rod End Left |
c:Ø16,2 th:MM18x1,5 LHT / 0,45 kg |
631 338 03 10 |
 |

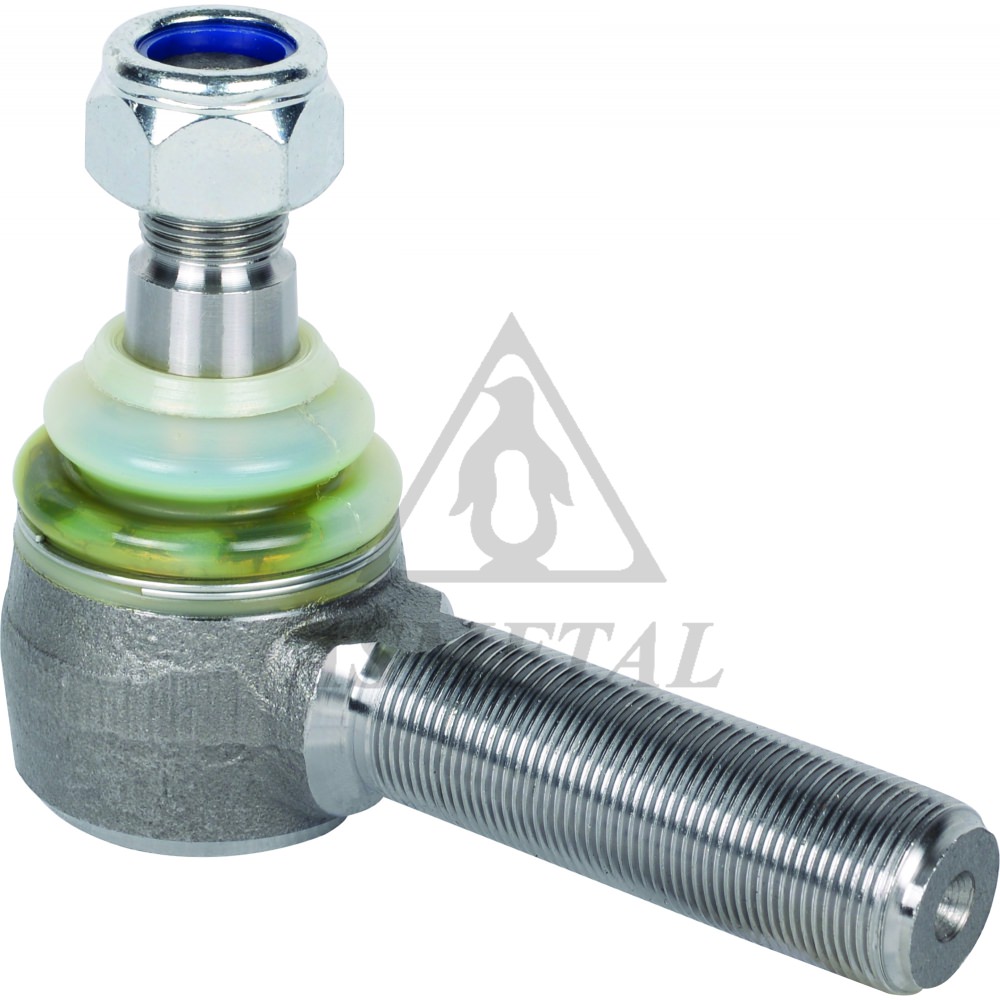

17MR0500
|
Tie Rod End |
c:Ø19,9 th:MM24x1,5 RHT / 0,86 kg |
631 330 05 35, A 631 330 05 35 |
 |
17MR0600
|
Tie Rod End Right |
c:Ø28,9 th:MM30x1,5 RHT / 1,88 kg |
404P892H23, 81953016324 (10) OEM |
 |

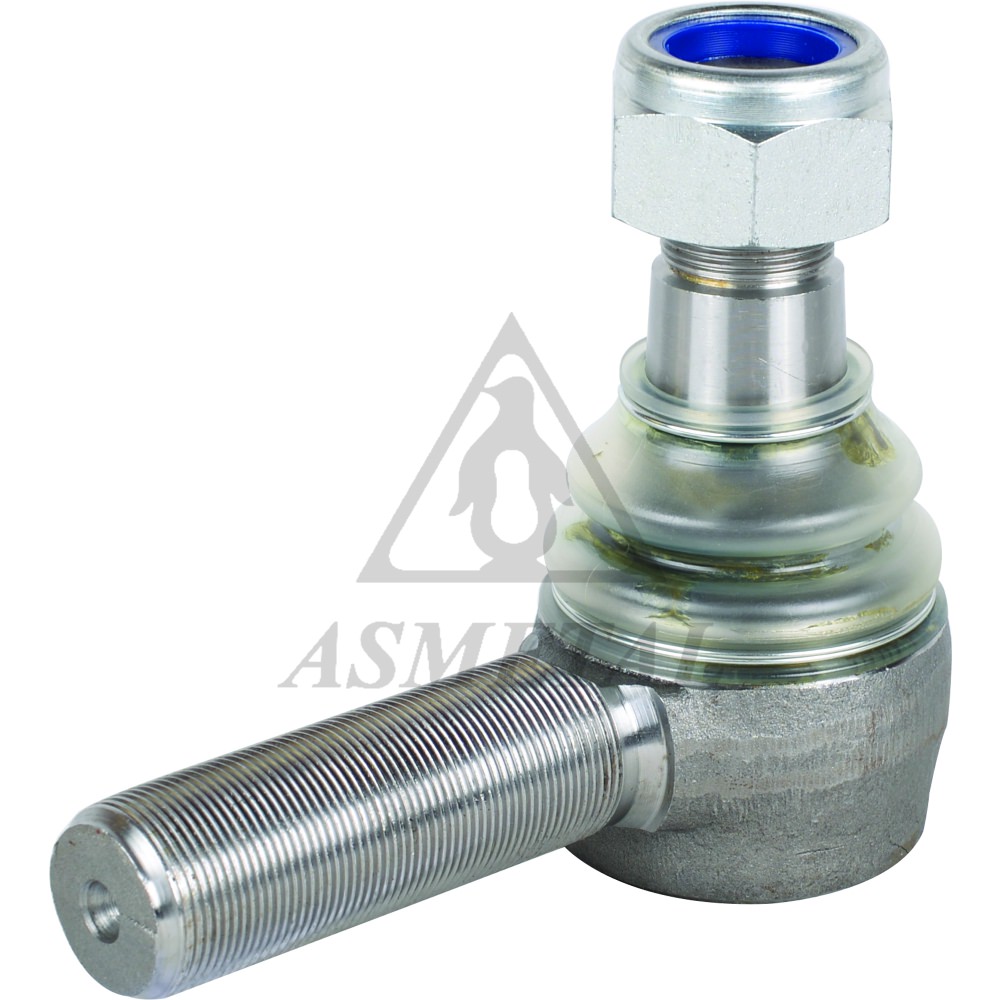

17MR0601
|
Tie Rod End Left |
c:Ø28,9 th:MM30x1,5 LHT / 1,82 kg |
404P892H24, 81953016323 (10) OEM |
 |

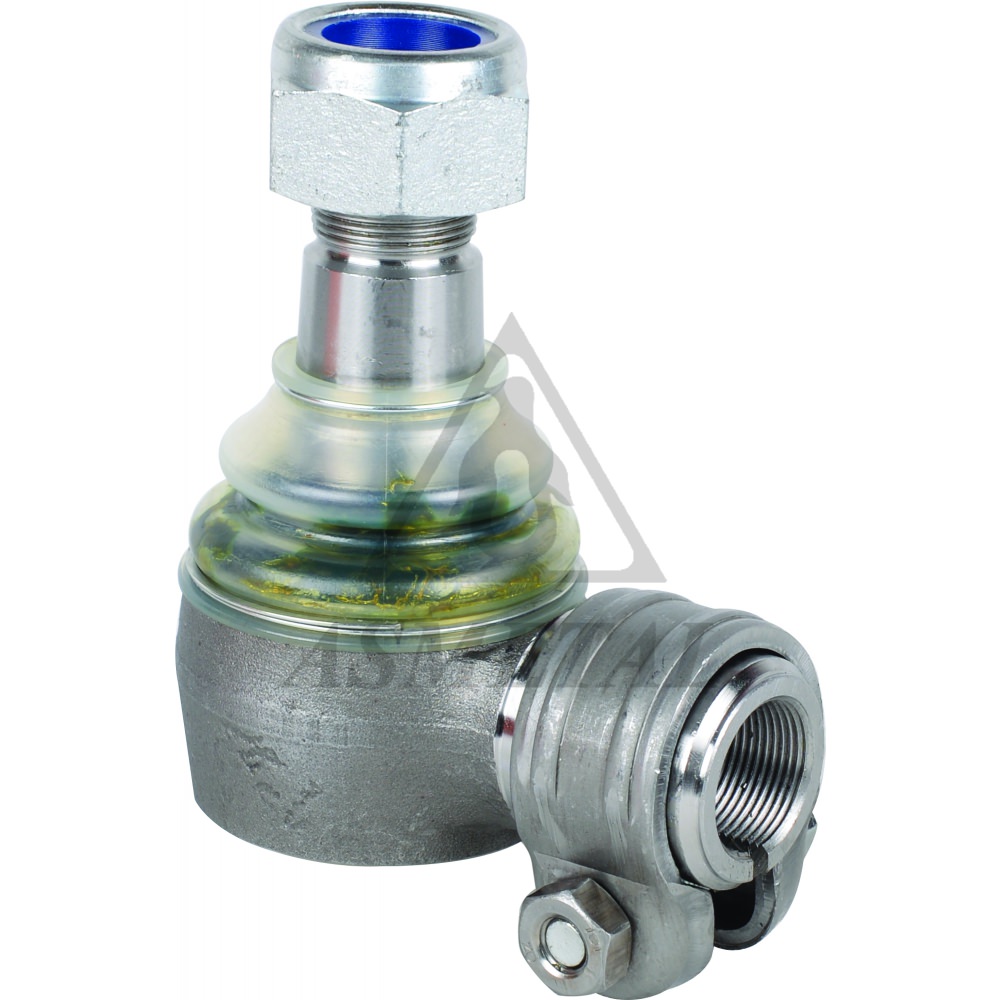

17MR0605
|
Tie Rod End |
c:Ø28,9 th:MM26x1,5 RHT / 2,04 kg |
002 460 06 48, 001 460 16 48 (3) OEM |
 |

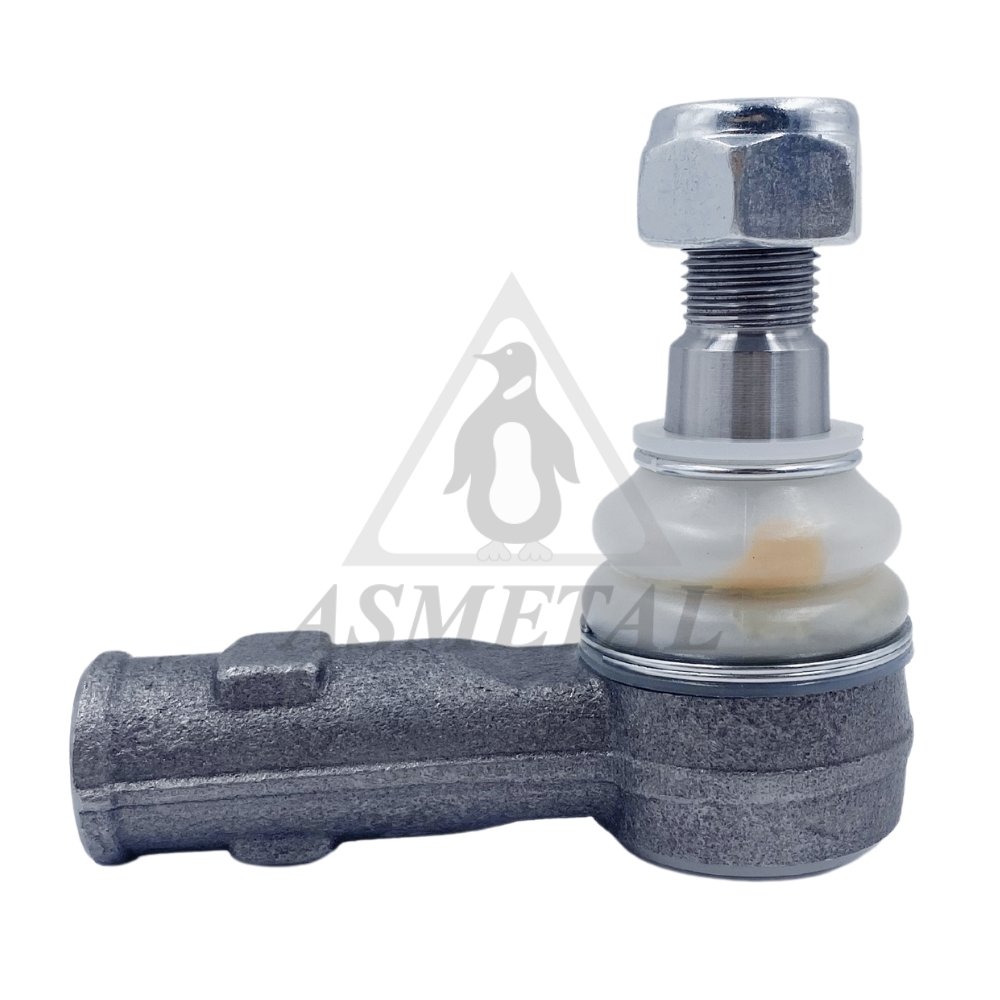

17MR0700
|
Tie Rod End |
c:Ø18,15 th:FM16x1,5 RHT / 0,52 kg |
5104 091AA, A 901 460 03 48 (6) OEM |
 |

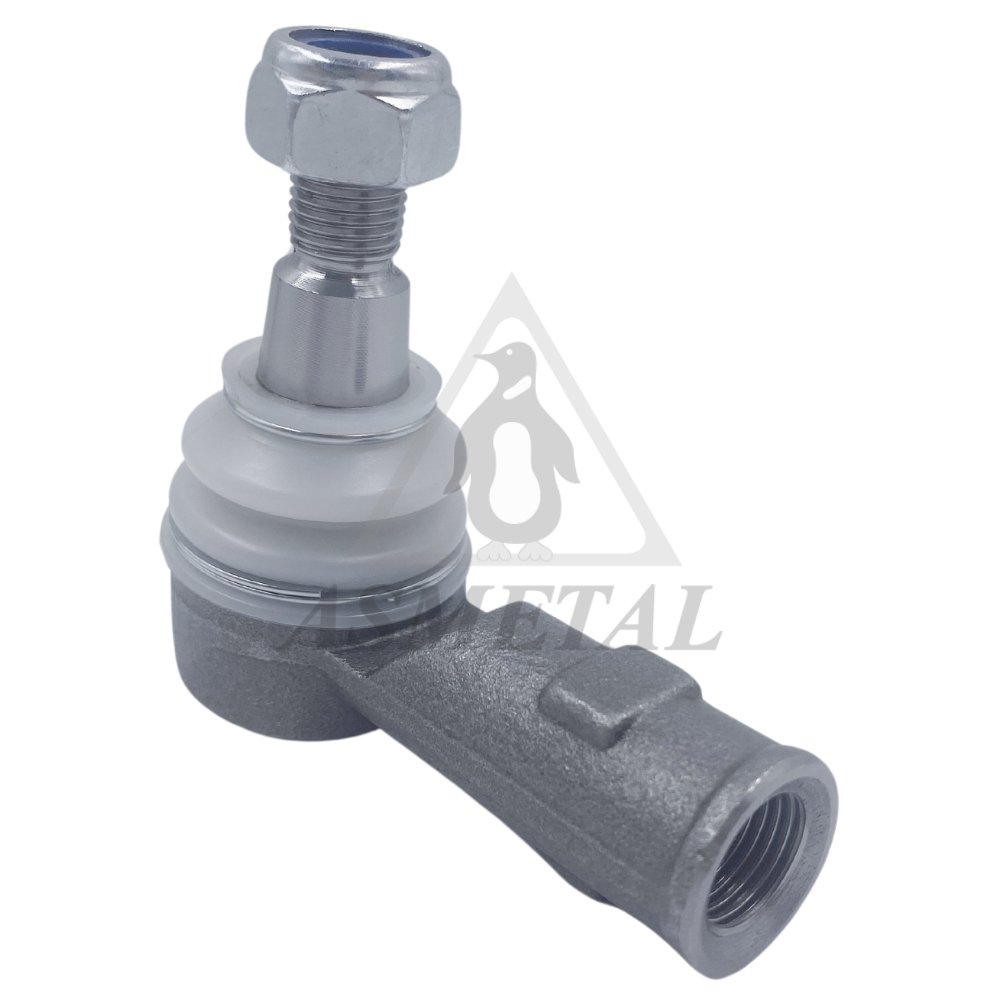

17MR0800
|
Tie Rod End |
c:Ø16,8 th:FM16x1,5 RHT / 0,43 kg |
638 460 00 48, 638 460 02 05 |
 |
17MR0815
|
Tie Rod End Right |
c:Ø17 th:FM16x1,5 RHT / 0,84 kg |
A 639 460 05 48, A 639 460 07 48 (4) OEM |
 |

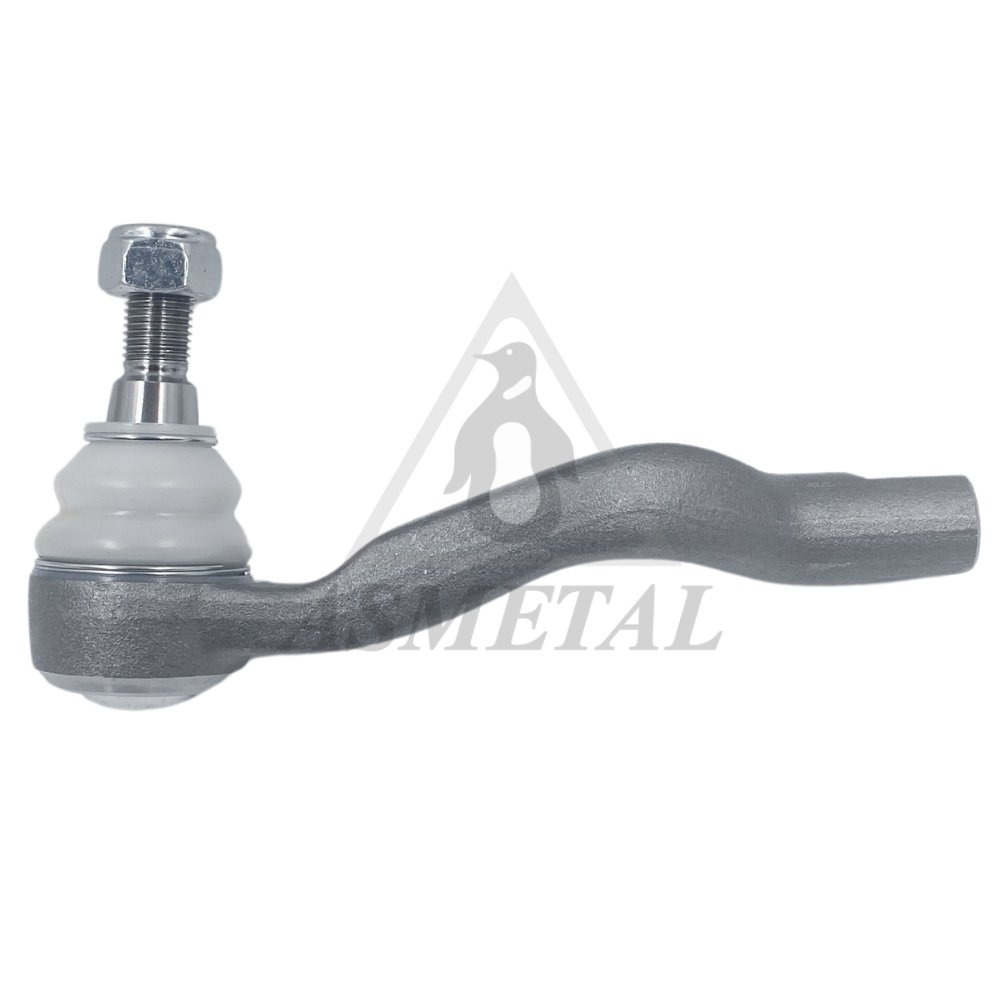

17MR0816
|
Tie Rod End Left |
c:Ø17 th:FM16x1,5 RHT / 0,84 kg |
A 639 460 00 48, 639 460 06 48 (4) OEM |
 |
17MR0820
NEW
|
Tie Rod End Left |
1,02 kg |
447 460 00 48, A 447 460 00 48 |
 |
17MR0821
NEW
|
Tie Rod End Right |
1,02 kg |
A 447 460 01 48, 447 460 01 48 |
 |
17MR0830
NEW
|
Tie Rod End Left |
0,96 kg |
A 447 460 02 48, 447 460 02 48 |
 |
17MR0831
NEW
|
Tie Rod End Right |
0,96 kg |
447 460 03 48, A 447 460 03 48 |
 |
17MR0900
|
Tie Rod End |
c:Ø20,7 th:FM16x1,5 RHT / 0,56 kg |
A 905 460 02 48, 905 460 02 48 |
 |
17MR1000
|
Tie Rod End Inner |
c:Ø12,6 th:MM14x1,5 LHT / 0,4 kg |
000 338 59 10, 000 338 56 10 |
 |

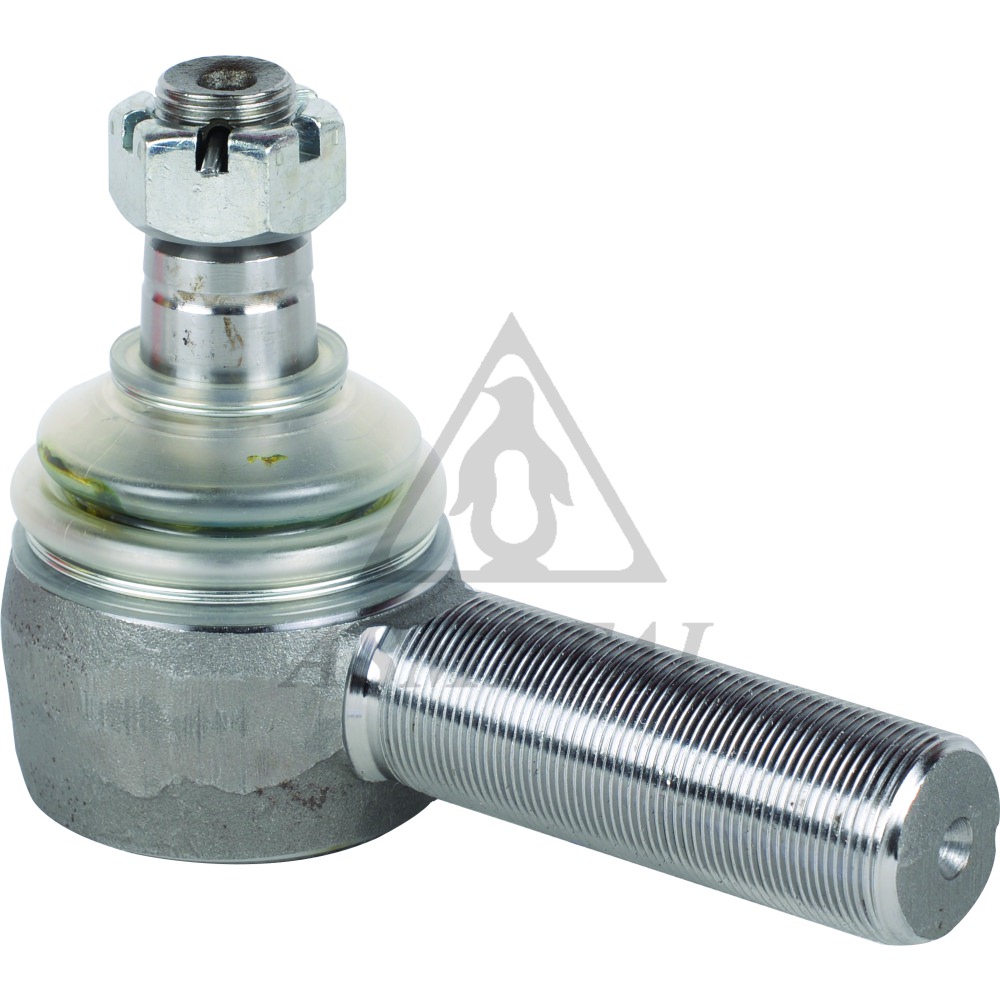

17MR1010
OUT OF SERVICE
|
Tie Rod End Right |
c:Ø23,5 th:MM30x1,5 RHT / 1,6 kg |
|
 |

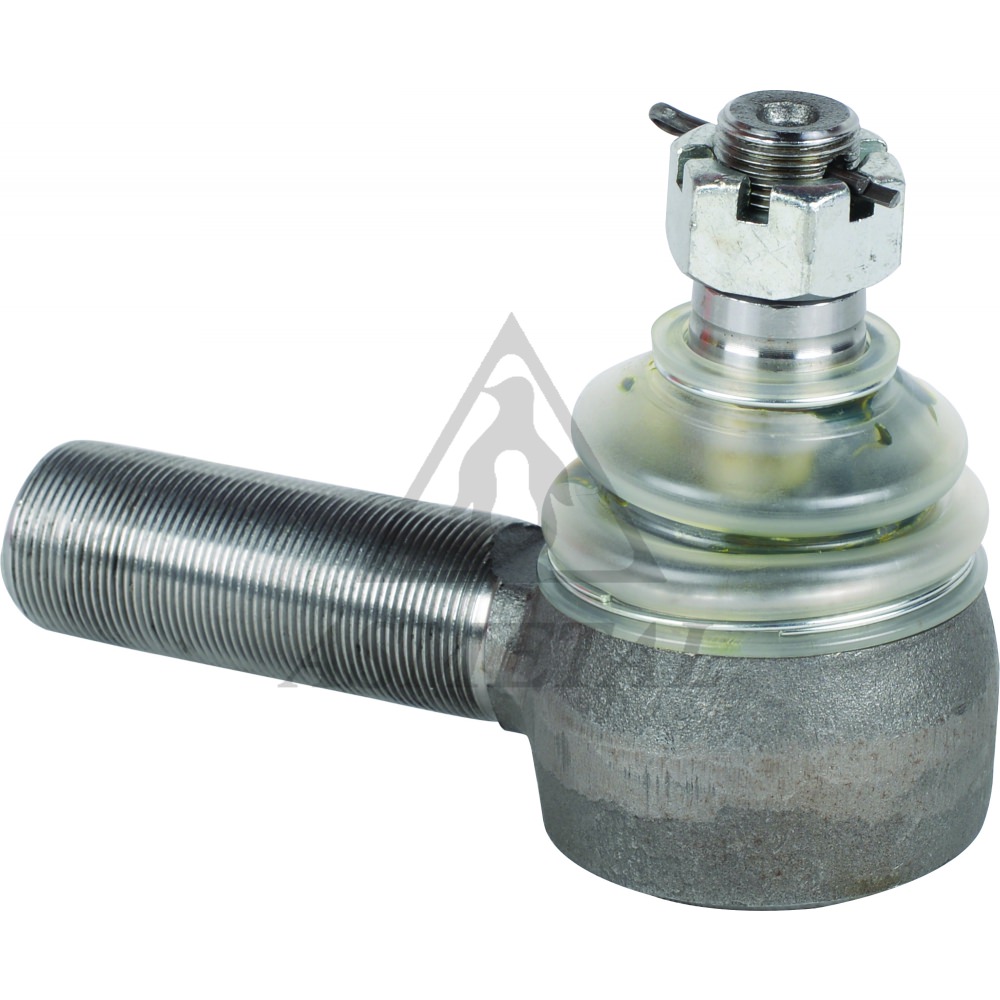

17MR1011
OUT OF SERVICE
|
Tie Rod End Left |
c:Ø23,5 th:MM30x1,5 LHT / 1,6 kg |
|
 |

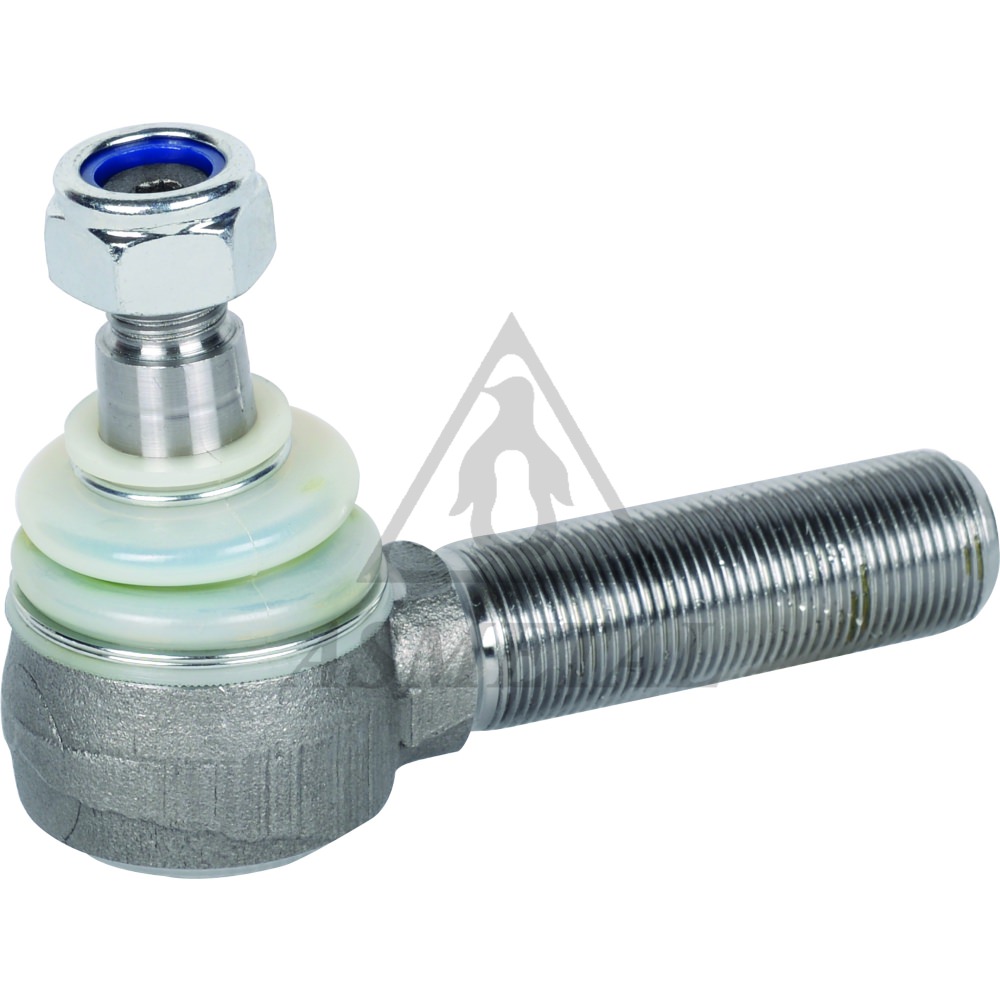

17MR1012
|
Tie Rod End |
c:Ø16,2 th:MM22x1,5 RHT / 0,59 kg |
3141 530 R91, X86 0534 9033 22 (10) OEM |
 |
17MR1013
|
Tie Rod End |
c:Ø16,2 th:MM22x1,5 LHT / 1,15 kg |
000 460 22 48, 000 460 42 48 (2) OEM |
 |

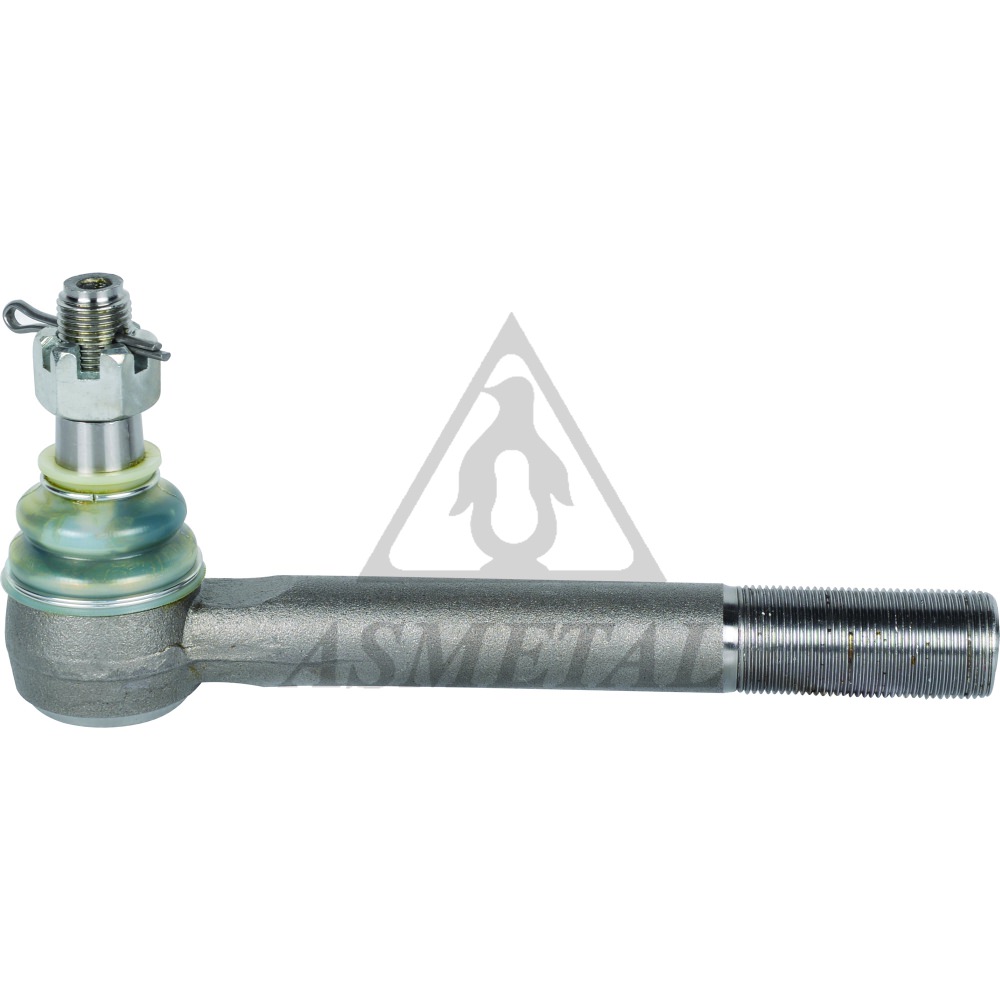

17MR1020
|
Tie Rod End Right |
c:Ø18,05 th:MM24x1,5 RHT / 1,02 kg |
310 330 26 35, 310 330 22 35 (2) OEM |
 |

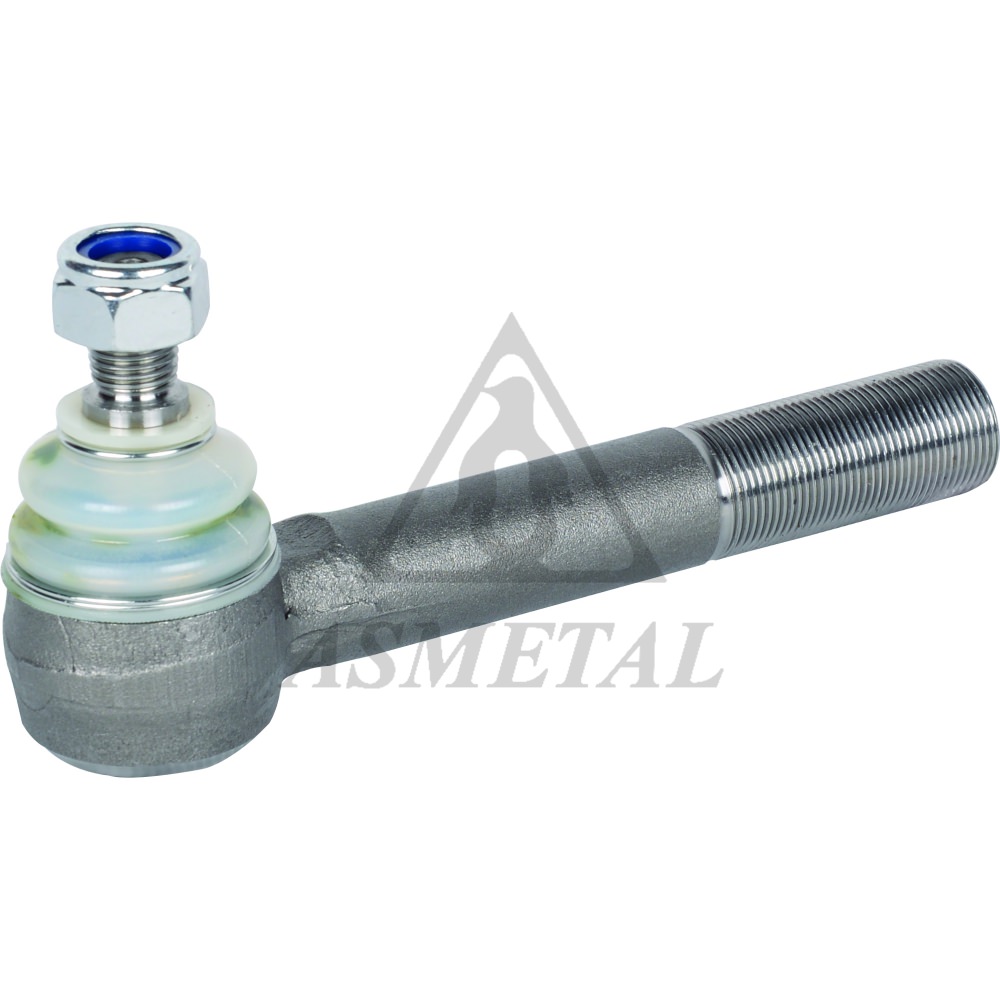

17MR1021
|
Tie Rod End Left |
c:Ø16,3 th:MM24x1,5 RHT / 0,86 kg |
A 000 330 27 35, A 000 330 70 35 (6) OEM |
 |

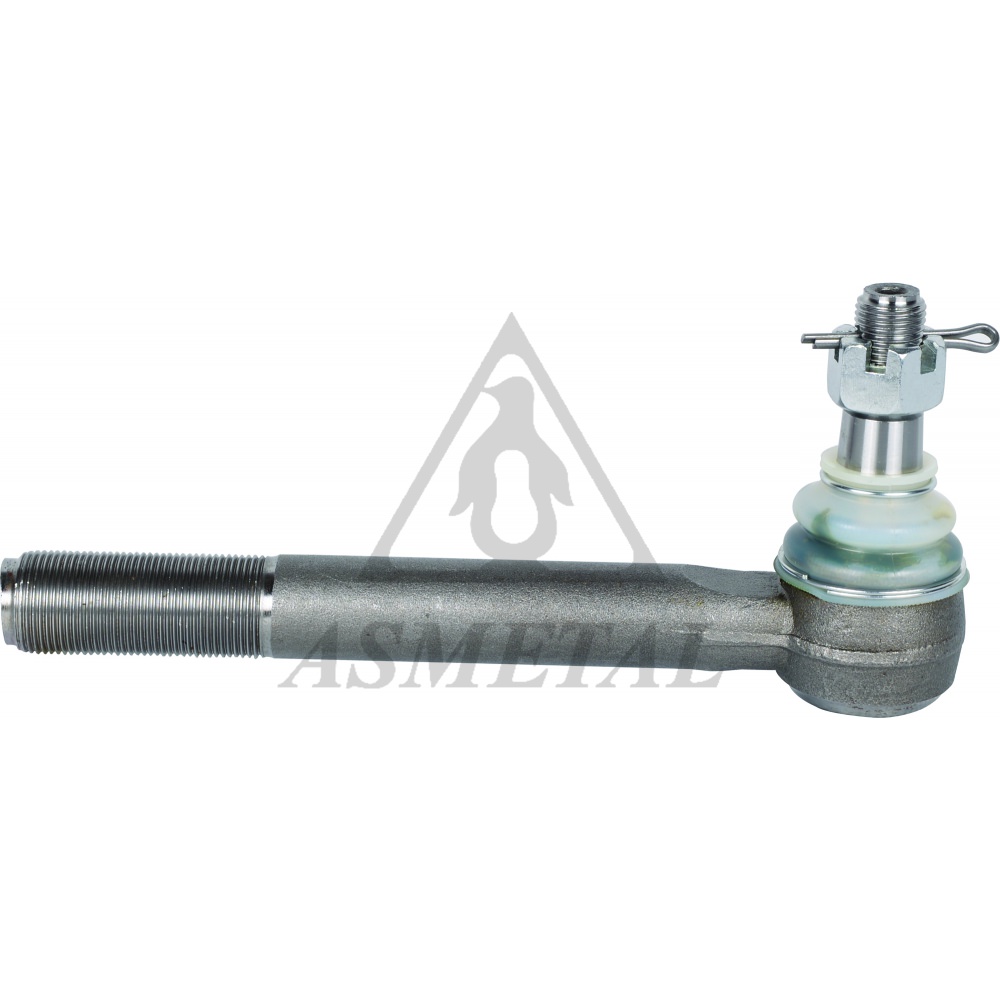

17MR1030
|
Tie Rod End Left |
c:Ø18, th:MM24x1,5 LHT / 1,02 kg |
310 330 27 35, 310 330 23 35 (2) OEM |
 |

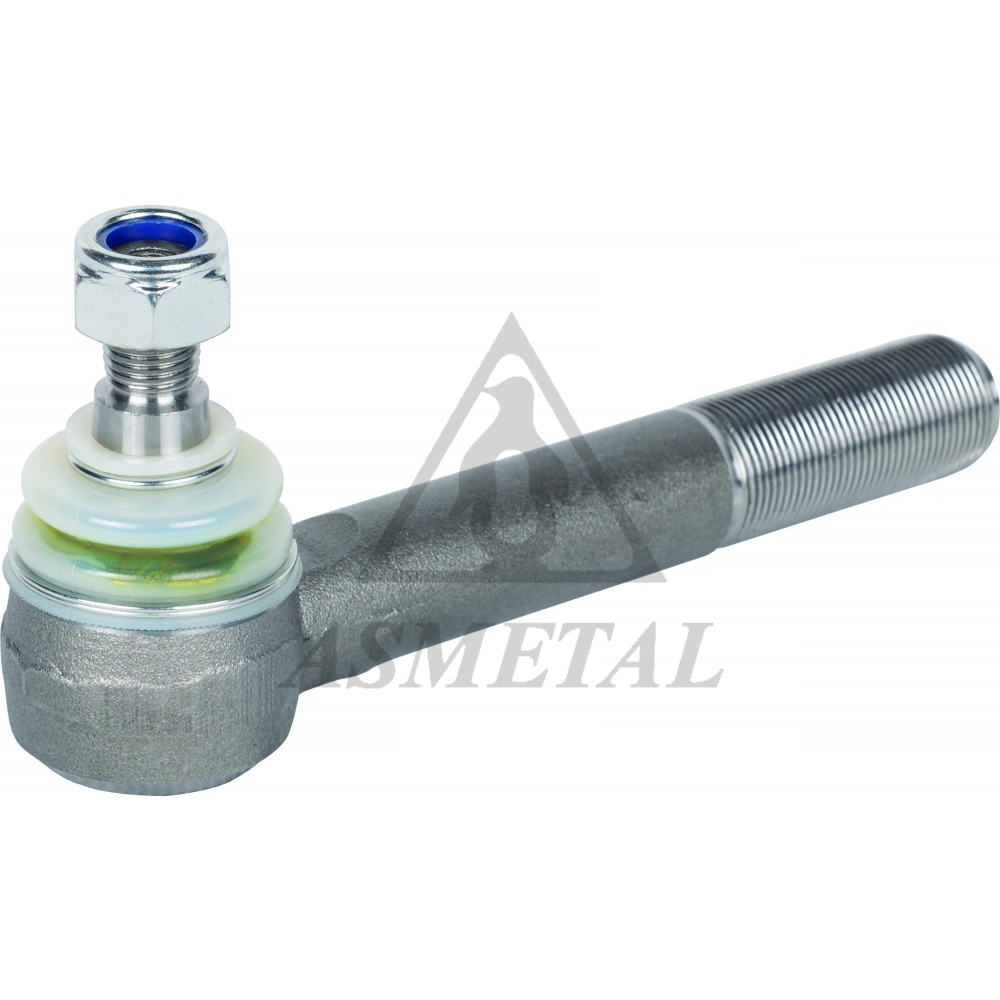

17MR1031
|
Tie Rod End Right |
c:Ø16,3 th:MM24x1,5 LHT / 0,86 kg |
001 330 08 35, 000 330 69 35 (6) OEM |
 |
17MR1100
|
Tie Rod End |
c:Ø14,6 th:FM12x1,5 RHT / 0,3 kg |
13 307 735, 001 330 74 35 (2) OEM |
 |
17MR1200
|
Tie Rod End Left |
c:Ø16,6 th:FM14x1,5 RHT / 0,82 kg |
169 330 05 03 |
 |
17MR1201
|
Tie Rod End Right |
c:Ø16,6 th:FM14x1,5 RHT / 0,82 kg |
169 330 06 03 |
 |
17MR1202
|
Tie Rod End Left |
c:Ø14,6 th:FM12x1,5 RHT / 0,72 kg |
A 168 330 15 35, A 168 330 11 35 (2) OEM |
 |
17MR1203
|
Tie Rod End Right |
c:Ø14,6 th:FM12x1,5 RHT / 0,72 kg |
A 168 330 16 35, A 168 330 12 35 (2) OEM |
 |

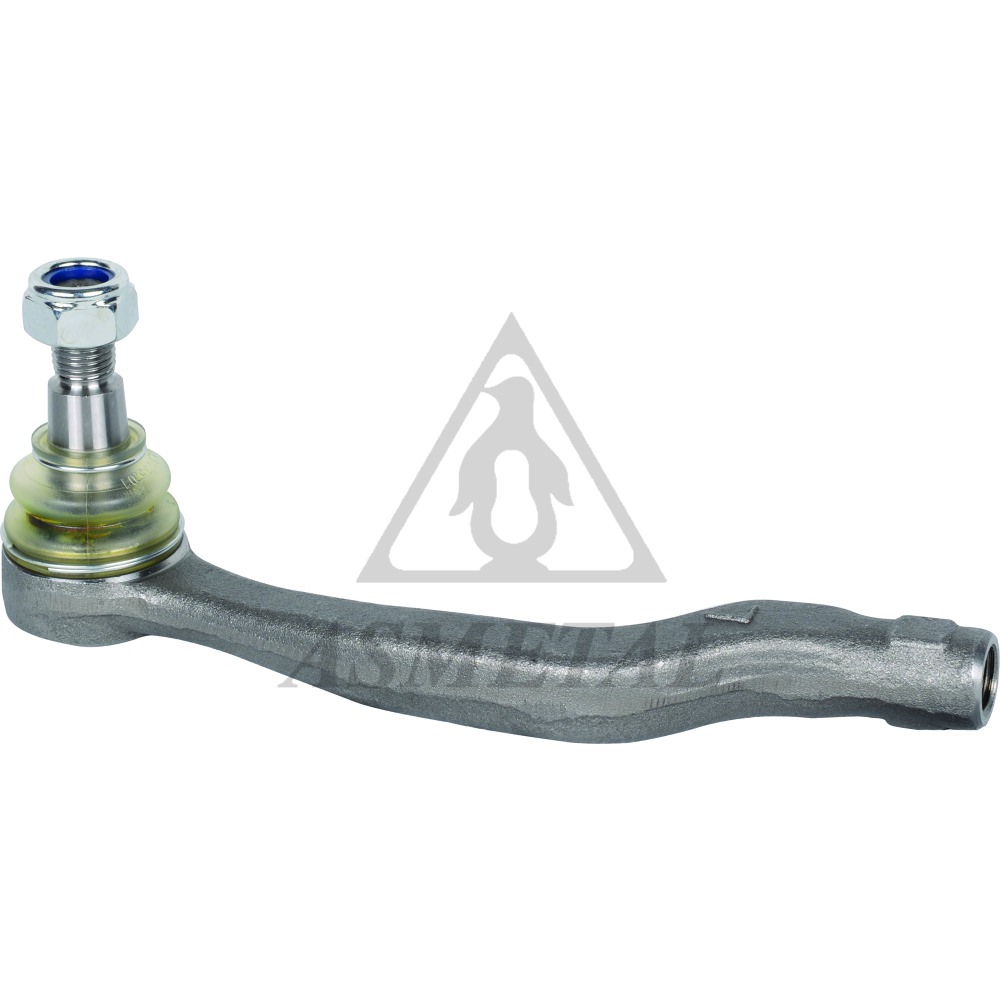

17MR1220
|
Tie Rod End Left |
c:Ø16,45 th:FM14x1,5 RHT / 0,78 kg |
414 460 00 05, 414 333 02 35 (1) OEM |
 |
17MR1221
|
Tie Rod End Right |
c:Ø16,45 th:FM14x1,5 RHT / 0,78 kg |
A 414 460 01 05, A 414 333 01 35 (2) OEM |
 |
17MR1400
|
Tie Rod End Left |
L: 210 cr: 1:5 c: Ø16.3 tp: M14x1.5 th: FM14x1.5 / 0,94 kg |
48630 HG00A, 48630 5DF0A (2) OEM |
 |
17MR1401
|
Tie Rod End Right |
L: 210 cr: 1:5 c: Ø16.3 tp: M14x1.5 th: FM14x1.5 / 0,94 kg |
48510 5DF0A, 48510 HG00A (2) OEM |
 |
17MR1500
|
Tie Rod End Left |
L: 222 / c: Ø14.9 / tp: M14x1.5 / th: FM14x1.5 / 0,73 kg |
177 330 85 00, A 177 330 85 00 |
 |
17MR1501
|
Tie Rod End Right |
L: 222 / c: Ø14.9 / tp: M14x1.5 / th: FM14x1.5 / 0,73 kg |
177 330 84 00, A 177 330 84 00 |
 |
17MR1502
NEW
|
Tie Rod End Left |
0,74 kg |
247 330 89 01, A 247 330 89 01 (2) OEM |
 |
17MR1503
NEW
|
Tie Rod End Right |
0,74 kg |
247 330 82 01, A 247 330 82 01 (2) OEM |
 |
17MR1504
IN PREPARATION
|
Tie Rod End Left |
|
247 330 87 01 |
 |
17MR1505
IN PREPARATION
|
Tie Rod End Right |
|
247 330 86 01 |
 |
17MR1530
|
Tie Rod End Inner |
c:Ø12,6 th:MM14x1,5 RHT / 0,3 kg |
32 21 1 114 842, 32 21 2 775 003 (4) OEM |
 |

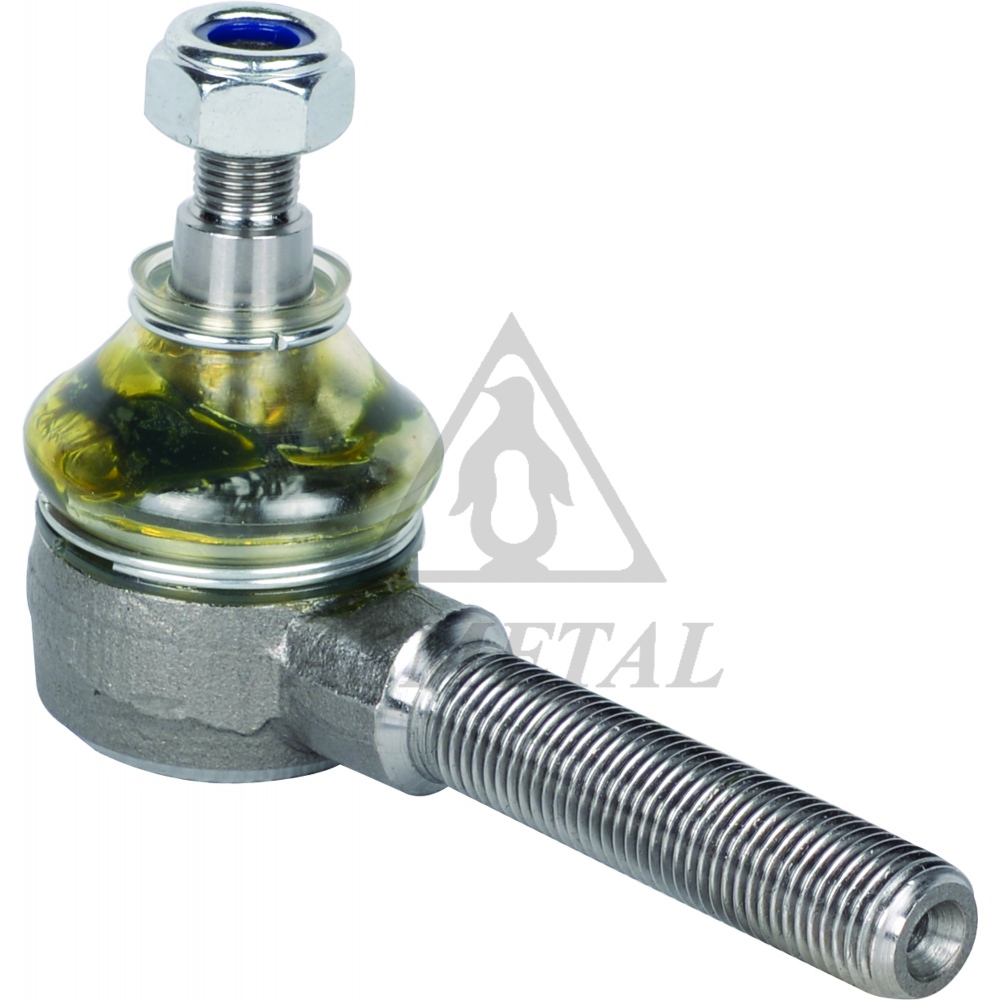

17MR1550
|
Tie Rod End Outer |
c:Ø12,6 th:MM14x1,5 LHT / 0,3 kg |
000 338 20 10, 000 338 08 10 (6) OEM |
 |
17MR1600
IN PREPARATION
|
Tie Rod End Left |
|
206 460 71 00, A 206 460 71 00 |
 |
17MR1601
IN PREPARATION
|
Tie Rod End Right |
|
206 460 72 00, A 206 460 72 00 |
 |
17MR1800
NEW
|
Tie Rod End Left |
0,94 kg |
205 460 06 05, A 205 460 06 05 |
 |
17MR1801
NEW
|
Tie Rod End Right |
0,94 kg |
A 205 460 07 05, 205 460 07 05 |
 |
17MR1810
IN PREPARATION
|
Tie Rod End Left |
0 kg |
205 460 00 05, A 205 460 00 05 |
 |
17MR1811
IN PREPARATION
|
Tie Rod End Right |
0 kg |
205 460 01 05, A 205 460 01 05 (1) OEM |
 |

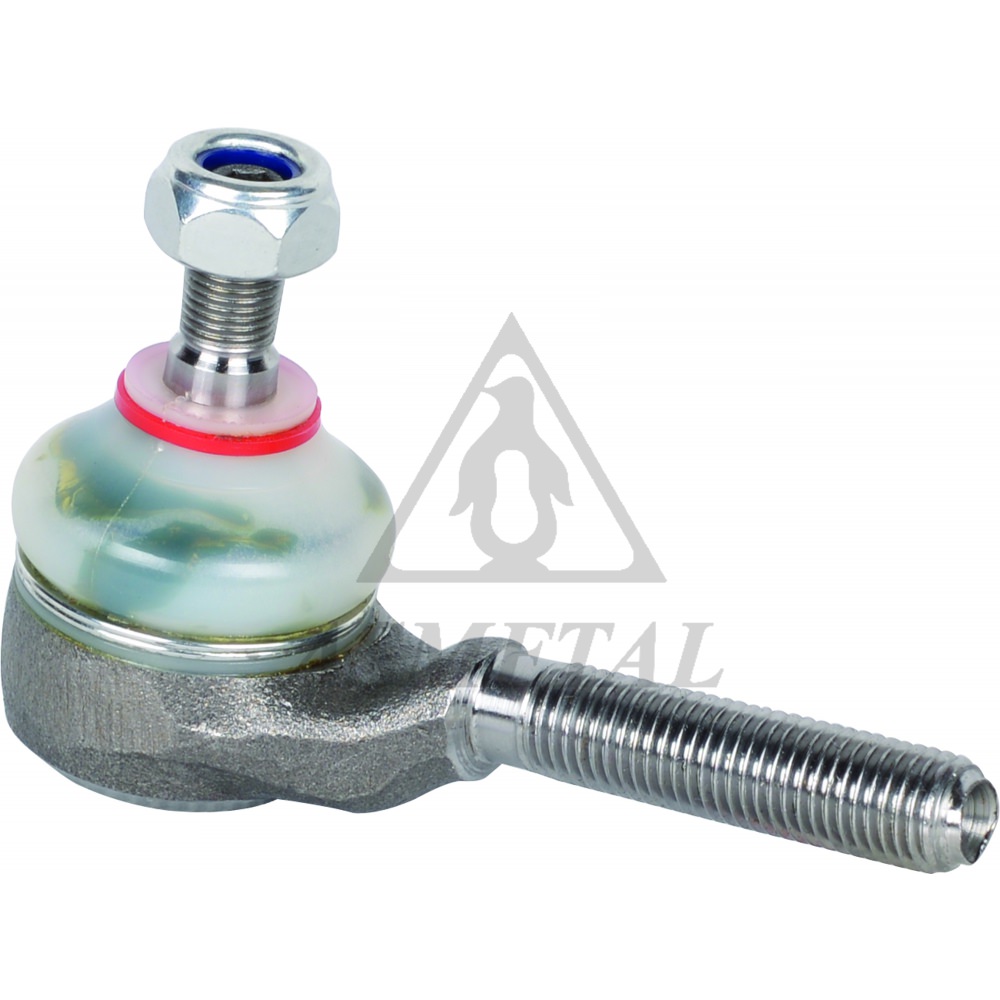

17MR1900
|
Tie Rod End |
c:Ø10,7 th:MM12x1,5 RHT / 0,24 kg |
000 338 49 10, 000 338 63 10 |
 |
17MR2330
|
Tie Rod End Outer |
c:Ø12,6 th:MM14x1,5 RHT / 0,28 kg |
A 000 338 47 10, A 000 338 51 10 (6) OEM |
 |
17MR2331
|
Tie Rod End |
c:Ø12,6 th:MM14x1,5 RHT / 0,5 kg |
A 123 338 00 10, 123 338 00 10 |
 |
17MR2332
OUT OF SERVICE
|
Tie Rod End Inner |
c:Ø12,6 th:MM16x1,5 RHT / 0,51 kg |
123 338 01 10 |
 |
17MR2351
|
Tie Rod End Outer |
c:Ø12,6 th:MM16x1,5 LHT / 0,33 kg |
123 338 02 10 |
 |
17MR2500
|
Tie Rod End Left |
c:Ø14,6 th:MM16x1,5 RHT / 0,62 kg |
001 330 62 35 |
 |
17MR2501
|
Tie Rod End Right |
c:Ø14,6 th:MM16x1,5 LHT / 0,42 kg |
001 330 63 35 |
 |

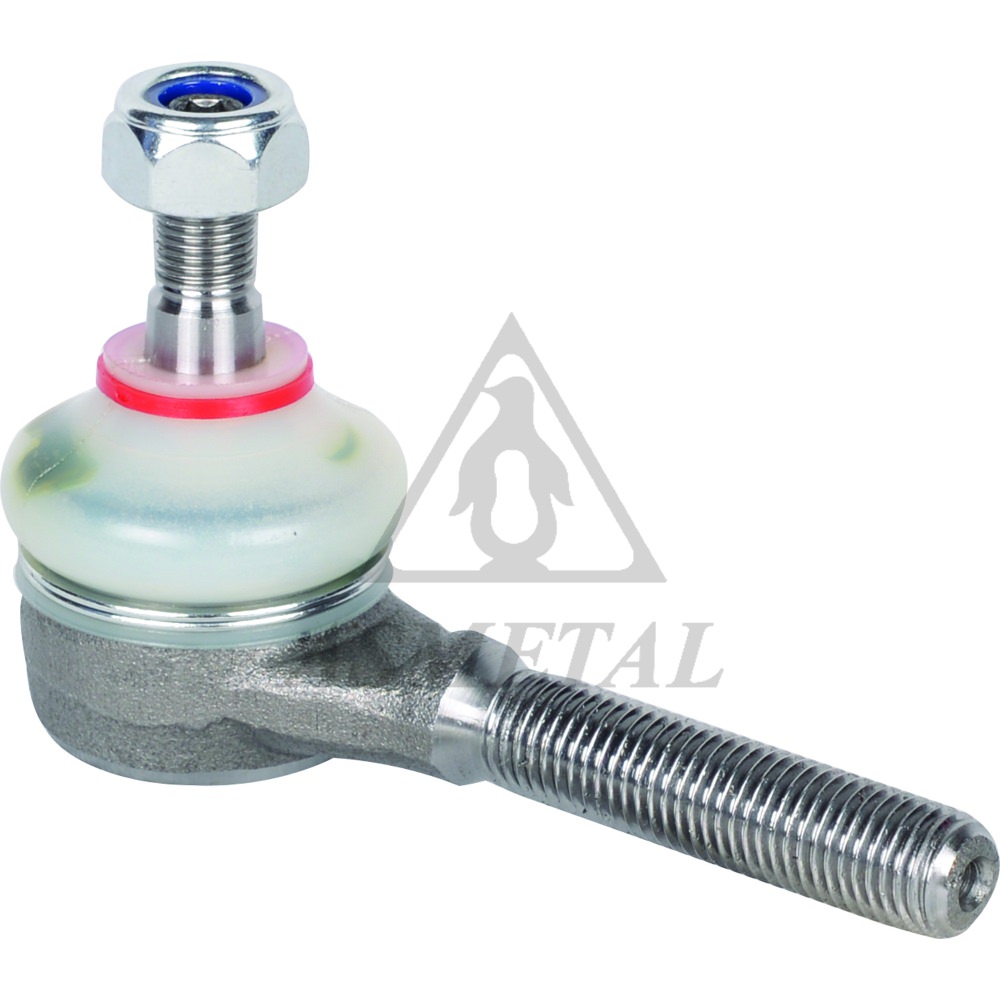

17MR3030
|
Tie Rod End Inner |
c:Ø10,7 th:MM12x1,5 RHT / 0,22 kg |
000 338 42 10, 000 338 44 10 (1) OEM |
 |

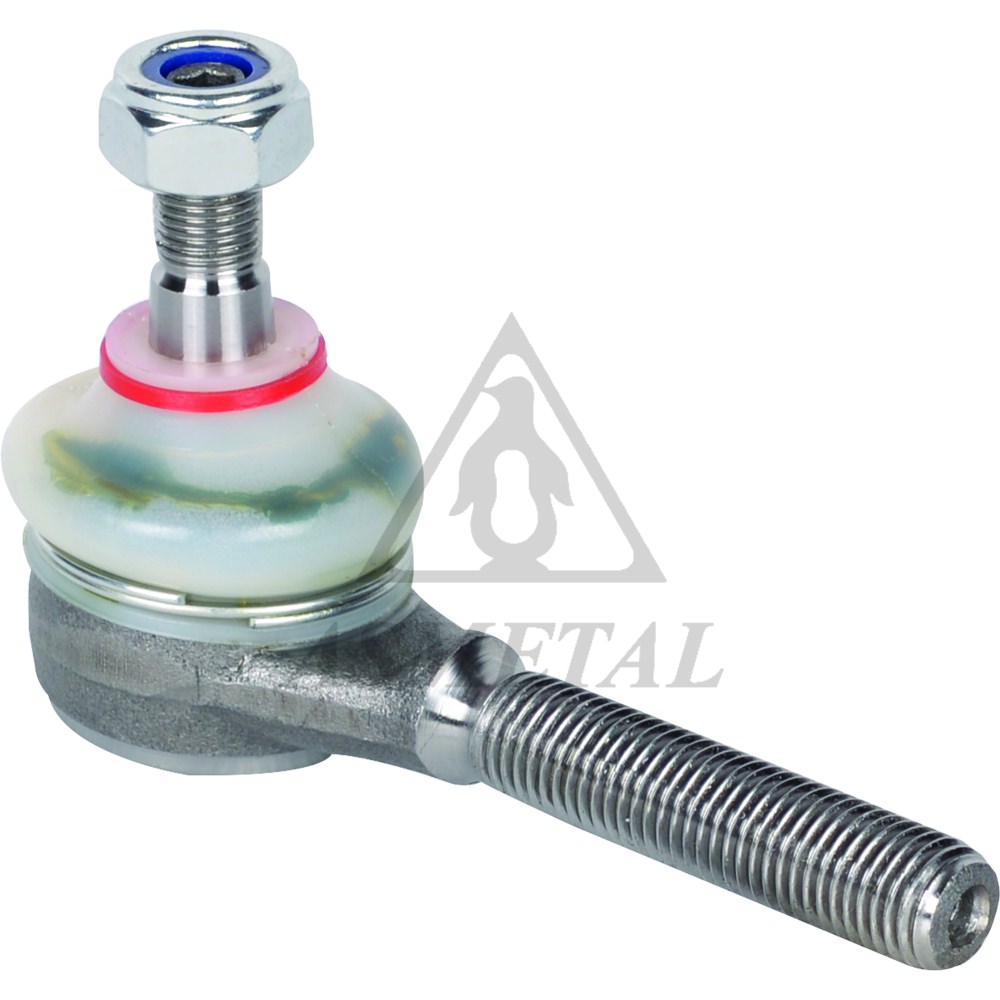

17MR3050
|
Tie Rod End Outer |
c:Ø10,7 th:MM12x1,5 LHT / 0,22 kg |
000 338 45 10, 000 338 43 10 (2) OEM |
 |
17MR3100
|
Tie Rod End |
c:Ø19,9 th:MM30x1,5 RHT / 1,24 kg |
000 330 31 35, 001 330 03 35 (2) OEM |
 |

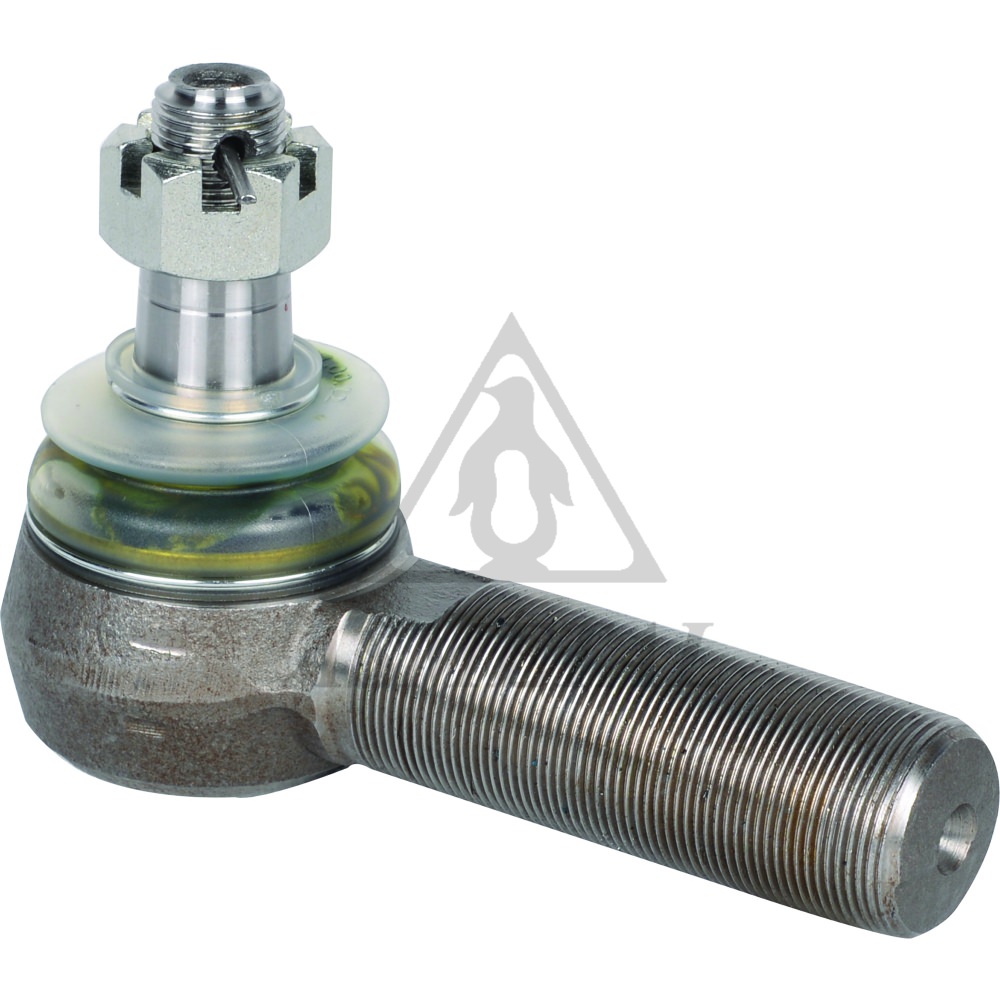

17MR3101
|
Tie Rod End |
c:Ø19,9 th:MM30x1,5 LHT / 1,24 kg |
|
 |
17MR3200
|
Tie Rod End Right |
c:Ø16 th:FM14x1,5 RHT / 0,7 kg |
A 203 330 24 03, 203 330 40 03 (4) OEM |
 |
17MR3201
|
Tie Rod End Left |
c:Ø16 th:FM14x1,5 RHT / 0,7 kg |
A 203 330 23 03, 203 330 39 03 (4) OEM |
 |
17MR3210
IN PREPARATION
|
Tie Rod End Left |
|
203 330 33 03, A 203 330 33 03 |
 |
17MR3211
IN PREPARATION
|
Tie Rod End Right |
|
203 330 34 03, A 203 330 34 03 |
 |
17MR3500
|
Tie Rod End Left |
c:Ø16,6 th:FM14x1,5 RHT / 0,62 kg |
210 338 05 15 |
 |
17MR3501
|
Tie Rod End Right |
c:Ø16,6 th:FM14x1,5 RHT / 0,62 kg |
210 338 06 15 |
 |
17MR3502
|
Tie Rod End Right |
c:Ø16,6 th:FM14x1,5 RHT / 0,65 kg |
211 330 24 03, A 211 330 26 03 (6) OEM |
 |
17MR3503
|
Tie Rod End Left |
c:Ø16,6 th:FM14x1,5 RHT / 0,65 kg |
211 330 01 03, 211 330 25 03 (6) OEM |
 |
17MR3510
IN PREPARATION
|
Tie Rod End Left |
0 kg |
210 338 0915, A 210 338 0915 |
 |
17MR3511
IN PREPARATION
|
Tie Rod End Right |
0 kg |
210 338 10 15, A 210 338 10 15 |
 |
17MR3600
|
Tie Rod End Left |
c:Ø16 th:FM14x1,5 RHT / 0,7 kg / 0,72 kg |
204 330 09 03, A 204 330 09 03 |
 |
17MR3601
|
Tie Rod End Right |
c:Ø16 th:FM14x1,5 RHT / 0,7 kg / 0,72 kg |
204 330 10 03, A 204 330 10 03 |
 |
17MR3610
|
Tie Rod End Left |
L: 189 cr: 1:10 c: Ø16.6 tp: M14x1.5 th: FM14x1.5 / 0,81 kg |
A 204 330 33 03, 204 330 33 03 |
 |
17MR3611
|
Tie Rod End Right |
L: 189 cr: 1:10 c: Ø16.6 tp: M14x1.5 th: FM14x1.5 / 0,81 kg |
A 204 330 34 03, 204 330 34 03 |
 |
17MR3700
|
Tie Rod End |
c:Ø16,6 th:FM14x1,5 RHT / 0,64 kg |
230 330 04 03, 220 338 05 15 (3) OEM |
 |
17MR3710
IN PREPARATION
|
Tie Rod End Left |
0 kg |
220 338 13 15, A 220 338 13 15 |
 |
17MR3711
IN PREPARATION
|
Tie Rod End Right |
0 kg |
220 338 14 15, A 220 338 14 15 |
 |
17MR3800
NEW
|
Tie Rod End |
L: 188 C: Ø16,6 CR: 1/10 TP: M14X1,5TH: FM14x1,5 / 0,65 kg |
221 330 39 03, A 221 330 39 03 (2) OEM |
 |
17MR3810
IN PREPARATION
|
Tie Rod End Left |
0 kg |
221 330 33 03, 221 330 19 03 (2) OEM |
 |
17MR3811
IN PREPARATION
|
Tie Rod End Right |
0 kg |
A 221 330 34 03, 221 330 20 03 (2) OEM |
 |
17MR3900
|
Tie Rod End |
L: 174 / c: Ø16 / tp: M14x1.5 / th: FM16x1.5 / 0,59 kg |
222 330 70 00, A 222 330 70 00 |
 |
17MR3910
IN PREPARATION
|
Tie Rod End Left |
0 kg |
222 330 01 03, A 222 330 01 03 |
 |
17MR3911
IN PREPARATION
|
Tie Rod End Right |
0 kg |
222 330 02 03, A 222 330 02 03 |
 |
17MR4000
IN PREPARATION
|
Tie Rod End Left |
0 kg |
A 212 330 81 00, 212 330 81 00 (4) OEM |
 |
17MR4001
IN PREPARATION
|
Tie Rod End Right |
0 kg |
212 330 22 03, 218 330 04 00 (4) OEM |
 |
17MR4020
IN PREPARATION
|
Tie Rod End Left |
0 kg |
204 330 19 03, 212 330 13 03 |
 |
17MR4021
IN PREPARATION
|
Tie Rod End Right |
0 kg |
204 330 20 03, 212 330 14 03 (1) OEM |
 |
17MR4030
IN PREPARATION
|
Tie Rod End Left |
0 kg |
212 330 24 03, A 212 330 24 03 (2) OEM |
 |
17MR4031
IN PREPARATION
|
Tie Rod End Right |
0 kg |
212 330 27 03, A 212 330 27 03 (2) OEM |
 |
17MR4500
|
Tie Rod End Left |
c:Ø15,1 th:FM16x1,5 RHT / 0,82 kg |
163 338 03 15, 163 338 00 15 (2) OEM |
 |
17MR4501
|
Tie Rod End Right |
c:Ø15,1 th:FM16x1,5 RHT / 0,82 kg |
163 330 04 03, 163 330 02 03 (2) OEM |
 |
17MR4700
|
Tie Rod End Left |
c:Ø15 th:FM14x1,5 RHT / 0,83 kg |
A 164 330 11 03, 164 330 11 03 |
 |

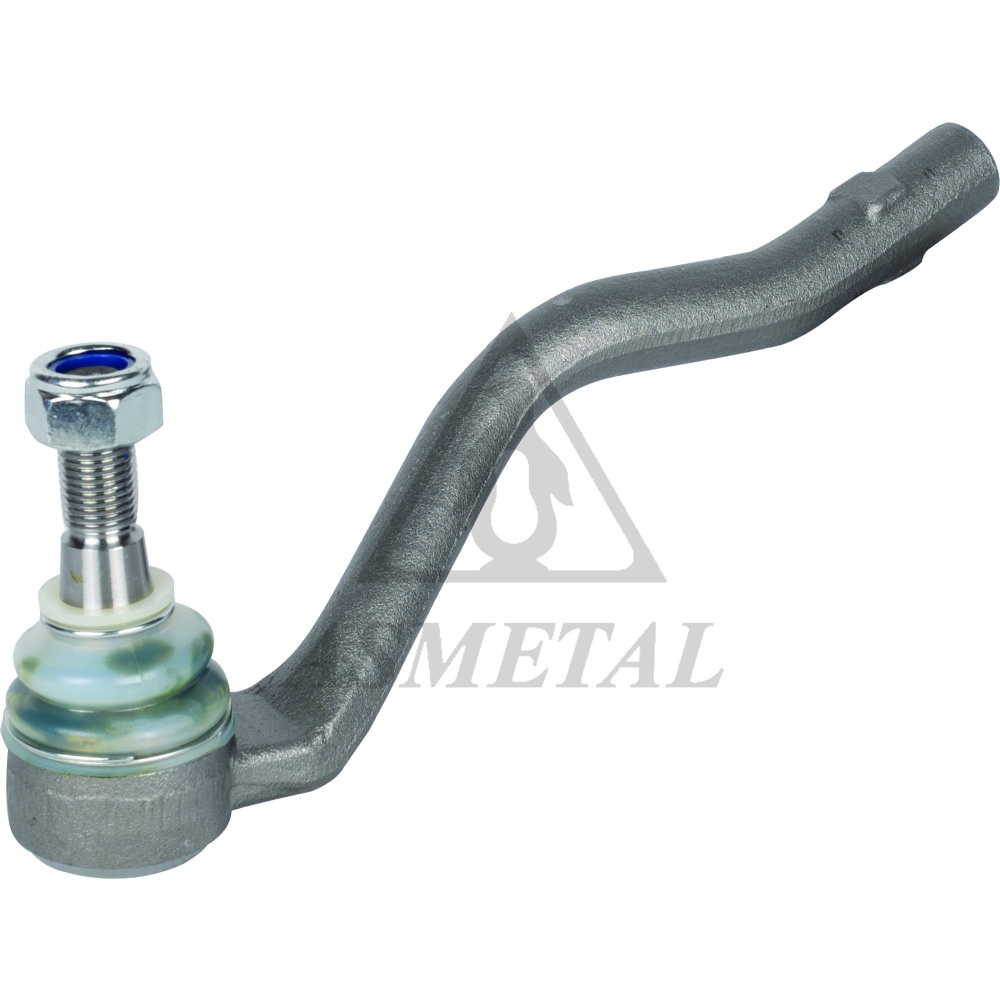

17MR4701
|
Tie Rod End Right |
c:Ø15 th:FM14x1,5 RHT / 0,83 kg |
164 330 12 03, A 164 330 12 03 |
 |
17MR4810
IN PREPARATION
|
Tie Rod End |
0 kg |
166 330 04 03, A 166 330 04 03 |
|
17MR5001
OUT OF SERVICE
|
Tie Rod End |
c:Ø16,2 th:FM10x1 RHT / 0 kg |
|
 |
17MR5002
|
Tie Rod End |
c:Ø16,2 th:FM12x1.25 RHT / 0,55 kg |
17MR5002 |
 |
17MR6000
|
Tie Rod End |
c:Ø18,1 th:MM24x1,5 RHT / 0,67 kg |
17MR6000 |
 |
17MR6001
|
Tie Rod End |
c:Ø18,1 th:MM24x1,5 LHT / 0,67 kg |
17MR6001 |
 |

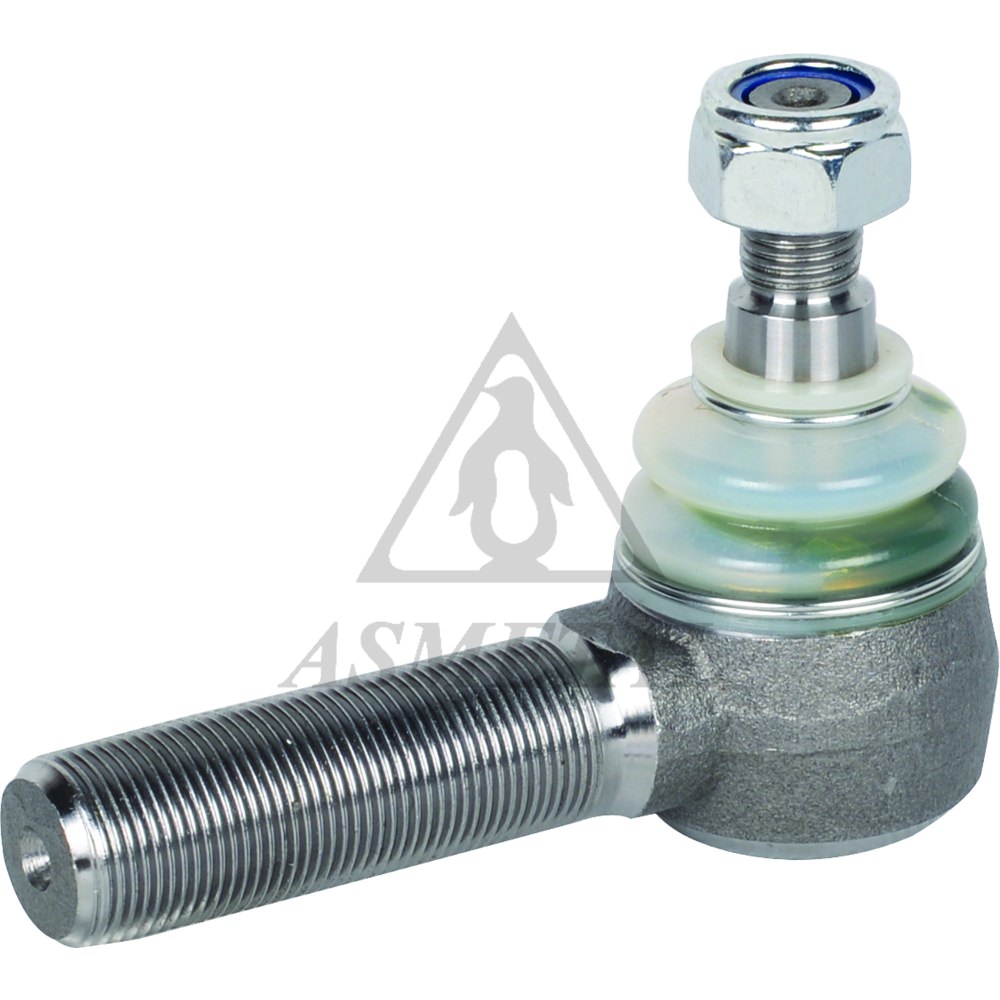

17MR6030
|
Tie Rod End Right |
c:Ø16,3 th:MM22x1,5 RHT / 0,62 kg |
601 330 05 35, 601 330 07 35 (1) OEM |
 |
17MR6031
|
Tie Rod End Right |
c:Ø20 th:MM24x1,5 RHT / 0,88 kg |
602 330 60 35, 602 330 58 35 (2) OEM |
 |
17MR6032
|
Tie Rod End Right |
c:Ø16,2 th:MM20x1,5 RHT / 0,5 kg |
17MR6032 |
 |

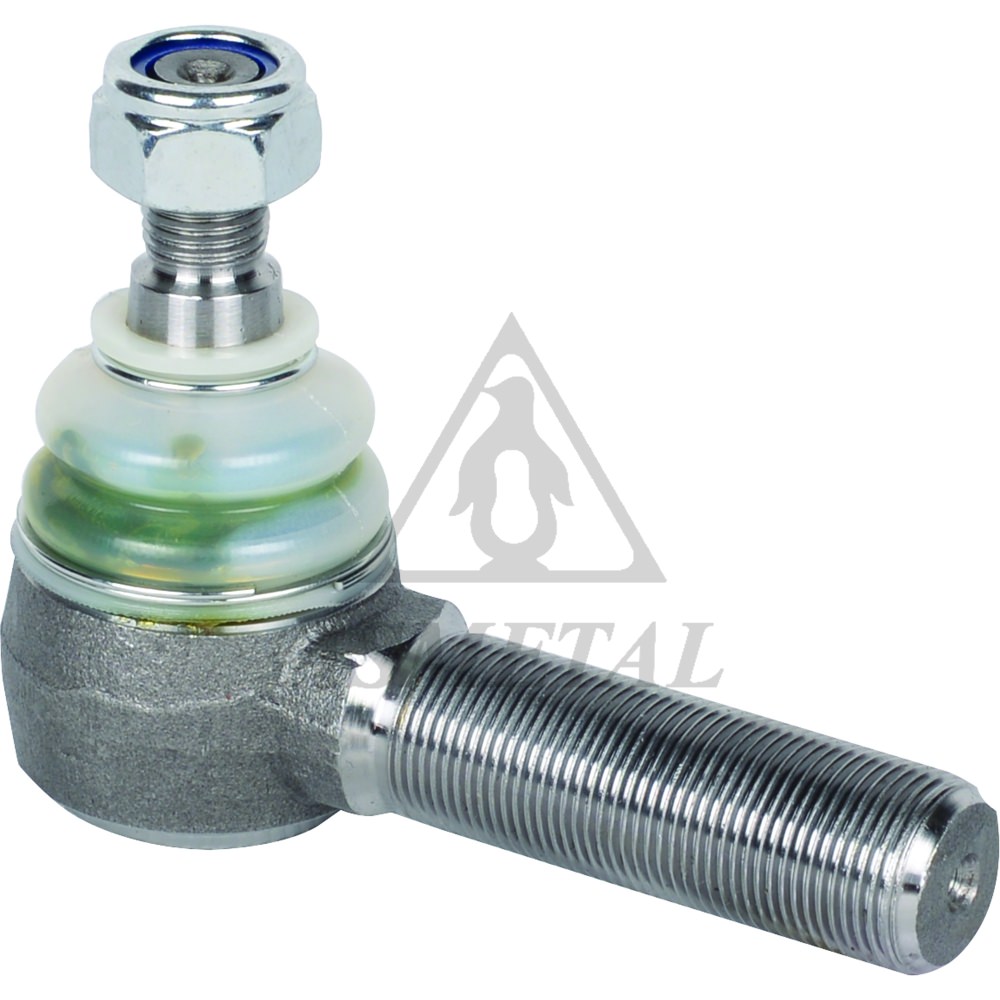

17MR6050
|
Tie Rod End Left |
c:Ø16,3 th:MM22x1,5 LHT / 0,61 kg |
601 330 53 35, 601 330 06 35 (2) OEM |
 |
17MR6051
|
Tie Rod End Left |
c:Ø20 th:MM24x1,5 LHT / 0,88 kg |
17MR6051 |
 |

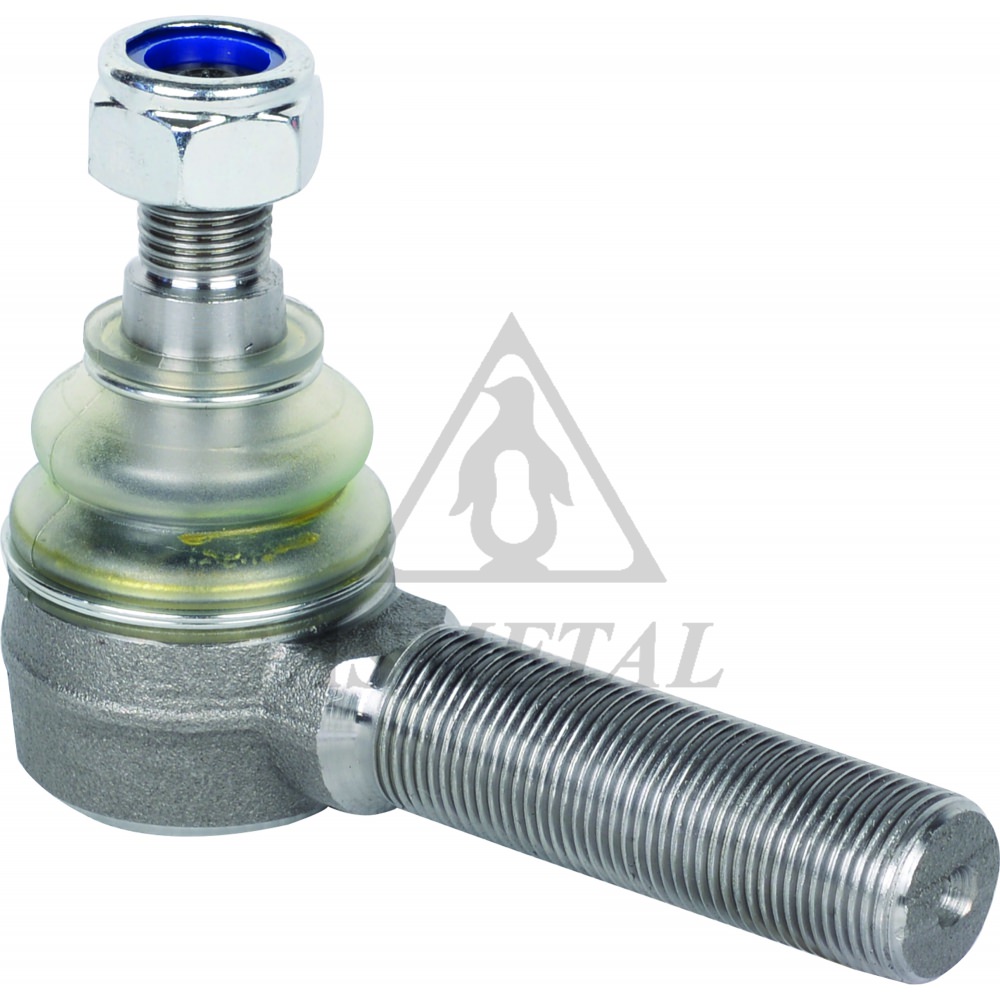

17MR6052
|
Tie Rod End Left |
c:Ø16,2 th:MM20x1,5 LHT / 0,5 kg |
17MR6052 |
 |

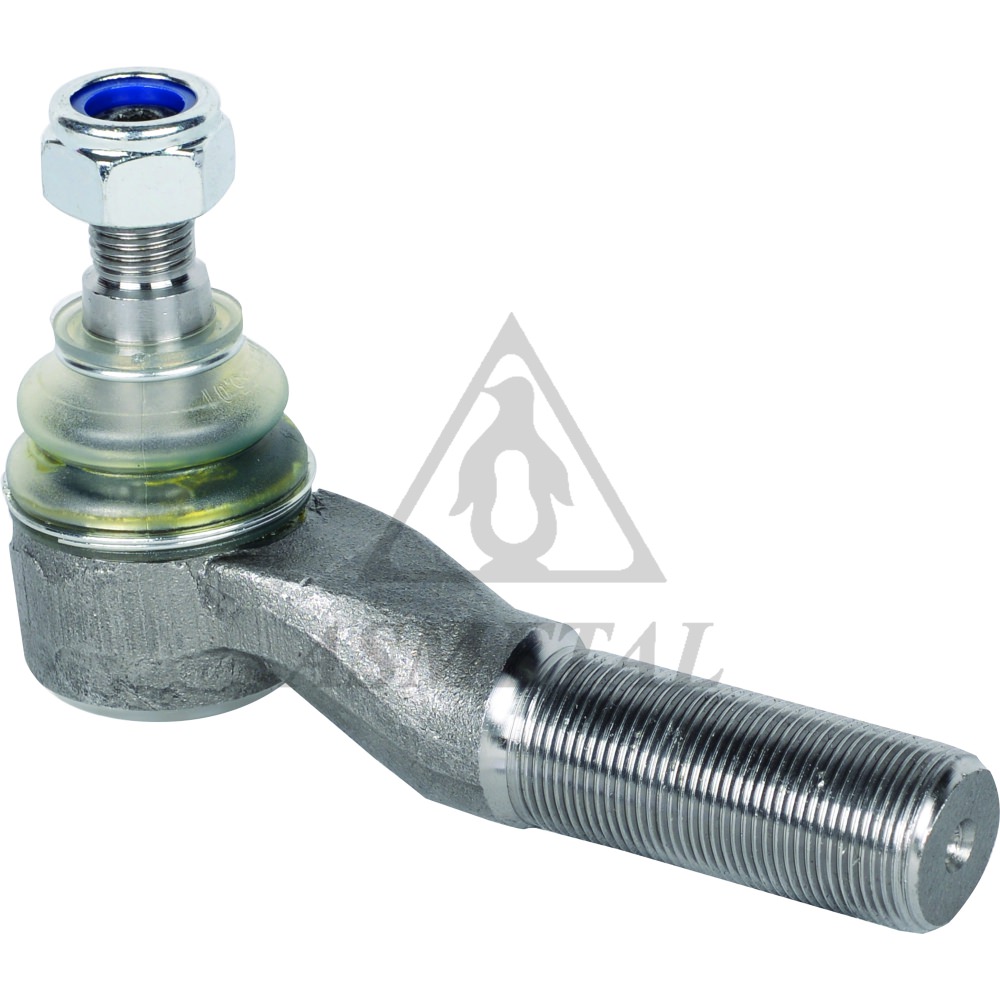

17MR6055
|
Tie Rod End Left |
c:Ø16,2 th:MM24x1,5 RHT / 0,7 kg |
602 330 55 35, 602 330 01 35 (2) OEM |
 |
17MR6056
|
Tie Rod End Right |
c:Ø16,2 th:MM24x1,5 LHT / 0,7 kg |
602 330 54 35, 602 330 00 35 (2) OEM |
 |
17MR7010
OUT OF SERVICE
|
Tie Rod End Right |
c:Ø27,2 th:MM30x1,5 RHT / 1,78 kg |
S5004025, ACHF060 (106) OEM |
 |
17MR7011
OUT OF SERVICE
|
Tie Rod End Left |
c:Ø27,2 th:MM30x1,5 LHT / 1,78 kg |
1611088, 1329134 (82) OEM |
 |

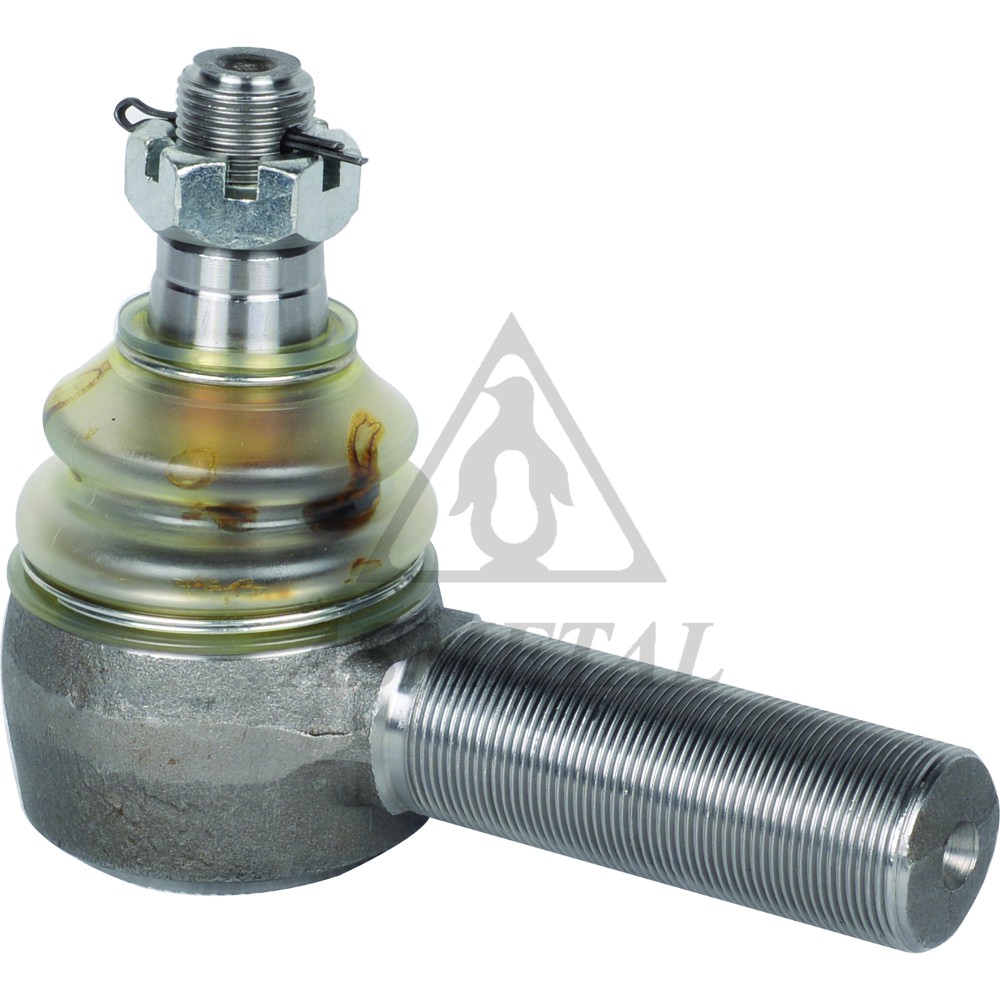

17MR7020
OUT OF SERVICE
|
Tie Rod End Right |
c:Ø24 th:MM30x1,5 RHT / 1,64 kg |
|
 |
17MR7021
OUT OF SERVICE
|
Tie Rod End Left |
c:Ø24 th:MM30x1,5 LHT / 1,64 kg |
|
 |
17MR9001
OUT OF SERVICE
|
Tie Rod End Right |
c:Ø23,5 th:MM30x1,5 RHT / 1,62 kg |
|
 |

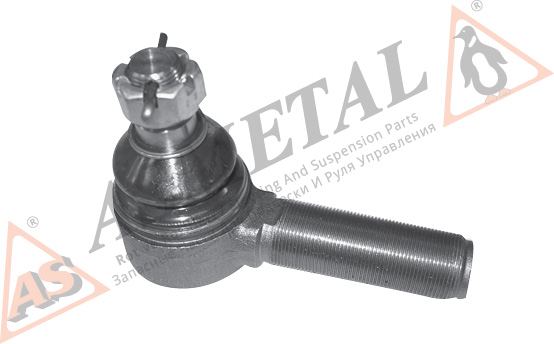

17MR9002
|
Tie Rod End Left |
c:Ø23,5 th:MM30x1,5 LHT / 1,62 kg |
|
 |

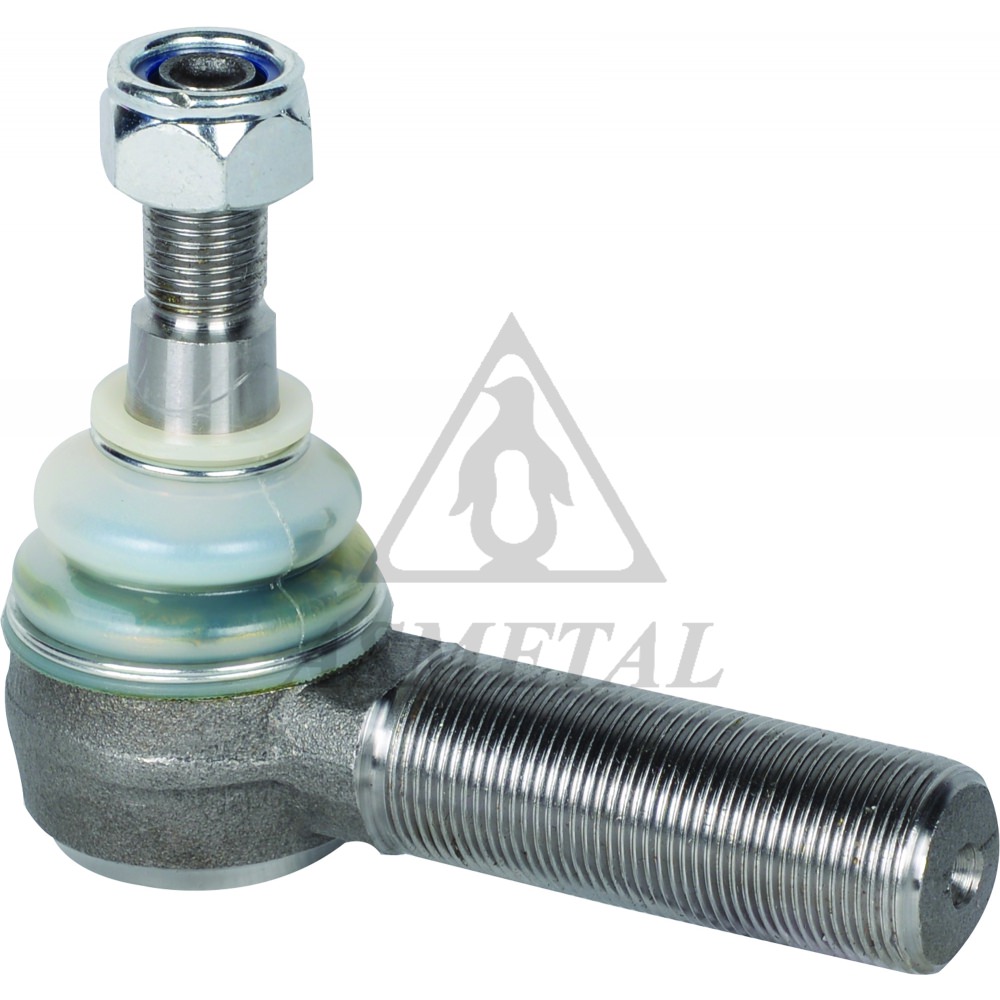

17MR9005
|
Tie Rod End Right |
c:Ø15,9 th:MM24x1,5 RHT / 0,65 kg |
|
 |
17MR9006
|
Tie Rod End Left |
c:Ø15,9 th:MM24x1,5 LHT / 0,65 kg |
|
 |
17MR9010
|
Tie Rod End Right |
c:Ø16,25 th:MM24x1,5 RHT / 0,63 kg |
1 330 14 35, 1 330 12 35 (2) OEM |
 |
17MR9011
|
Tie Rod End Left |
c:Ø16,25 th:MM24x1,5 LHT / 0,63 kg |
|
|
17MR9015
OUT OF SERVICE
|
Tie Rod End Right |
c:Ø24 th:MM30x1,5 RHT / 0,3 kg |
|
|
17MR9016
OUT OF SERVICE
|
Tie Rod End Left |
c:Ø24 th:MM30x1,5 LHT / 0,3 kg |
|
 |
17RN5605
|
Tie Rod End Right |
c:Ø11,8 th:FM14x1,5 RHT / 0,64 kg |
415 460 01 05, 77 01 478 408 |
 |
17RN5606
|
Tie Rod End Left |
c:Ø11,8 th:FM14x1,5 RHT / 0,64 kg |
415 460 00 05, 77 01 478 407 |
 |
17RN5700
|
Tie Rod End Left |
L: 210 cr: 1:5 c: Ø11.9 tp: M10x1.5 th: FM14x1.5 / 0,4 kg |
49 00 174 41R*, 48 52 064 81R |
 |
17RN5700S
|
Tie Rod End Left |
L: 210 cr: 1:5 c: Ø11.9 tp: M10x1.5 th: FM14x1.5 / 0,86 kg |
48 52 064 81R |
 |
17RN5701
|
Tie Rod End Right |
L: 210 cr: 1:5 c: Ø11.9 tp: M10x1.5 th: FM14x1.5 / 0,4 kg |
48 52 013 40R, 49 00 174 41R* |
 |
17RN5701S
|
Tie Rod End Right |
L: 210 cr: 1:5 c: Ø11.9 tp: M10x1.5 th: FM14x1.5 / 0,86 kg |
48 52 013 40R |
 |
20MR0100
|
Axial Joint |
th:MM16x1,5 RHT L:284mm / 0,89 kg |
5104 091AA, 901 460 02 05 (7) OEM |
 |
20MR0101
|
Axial Joint |
th:MM18x1.5 RHT L:397,5mm / 0,95 kg |
6802 0843AA, A 906 460 00 55 (5) OEM |
 |
20MR0110
|
Axial Joint |
th:MM16x1.5 th2:MM16x1.5 RHT L:243mm / 0,7 kg |
A 910 460 62 00, 910 460 62 00 |
 |

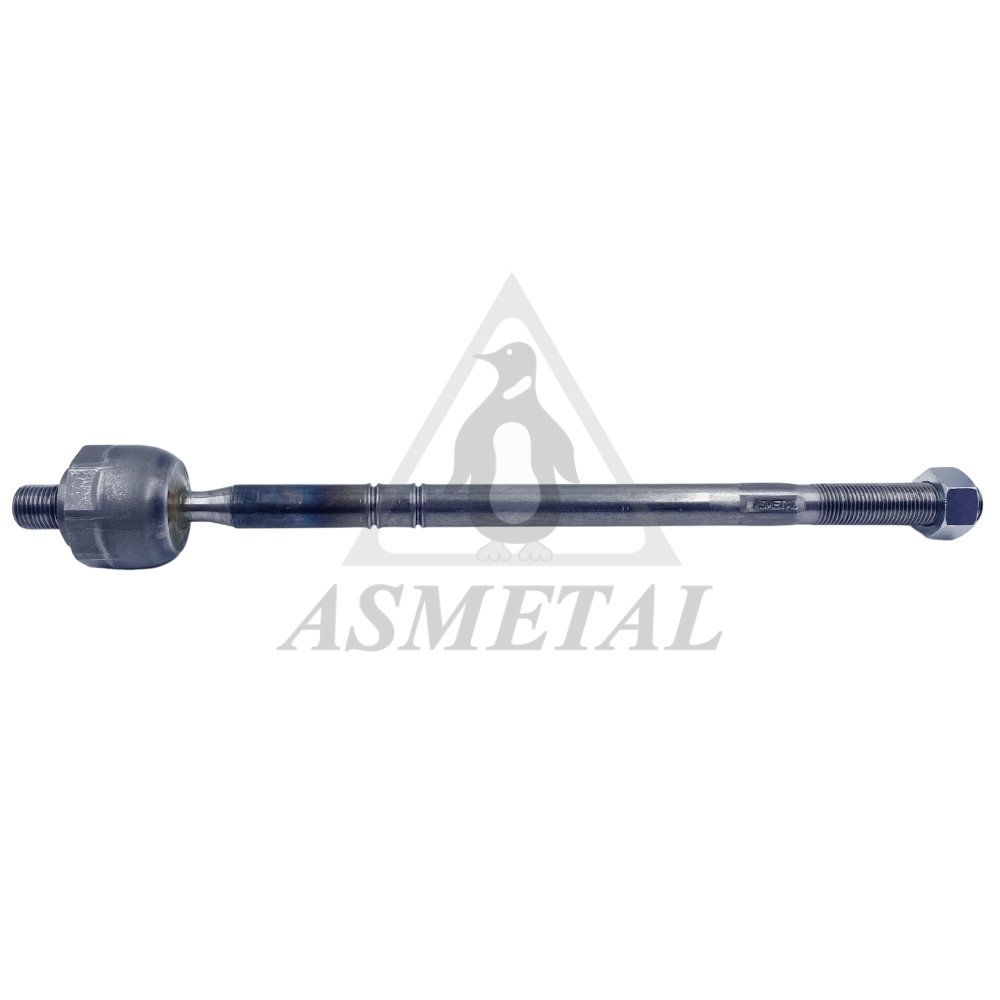

20MR0120
|
Axial Joint |
th:MM16x1.5 RHT th: MM16x1.5 RHT L:322 / 0,8 kg |
A 907 460 63 00, 907 460 63 00 |
 |

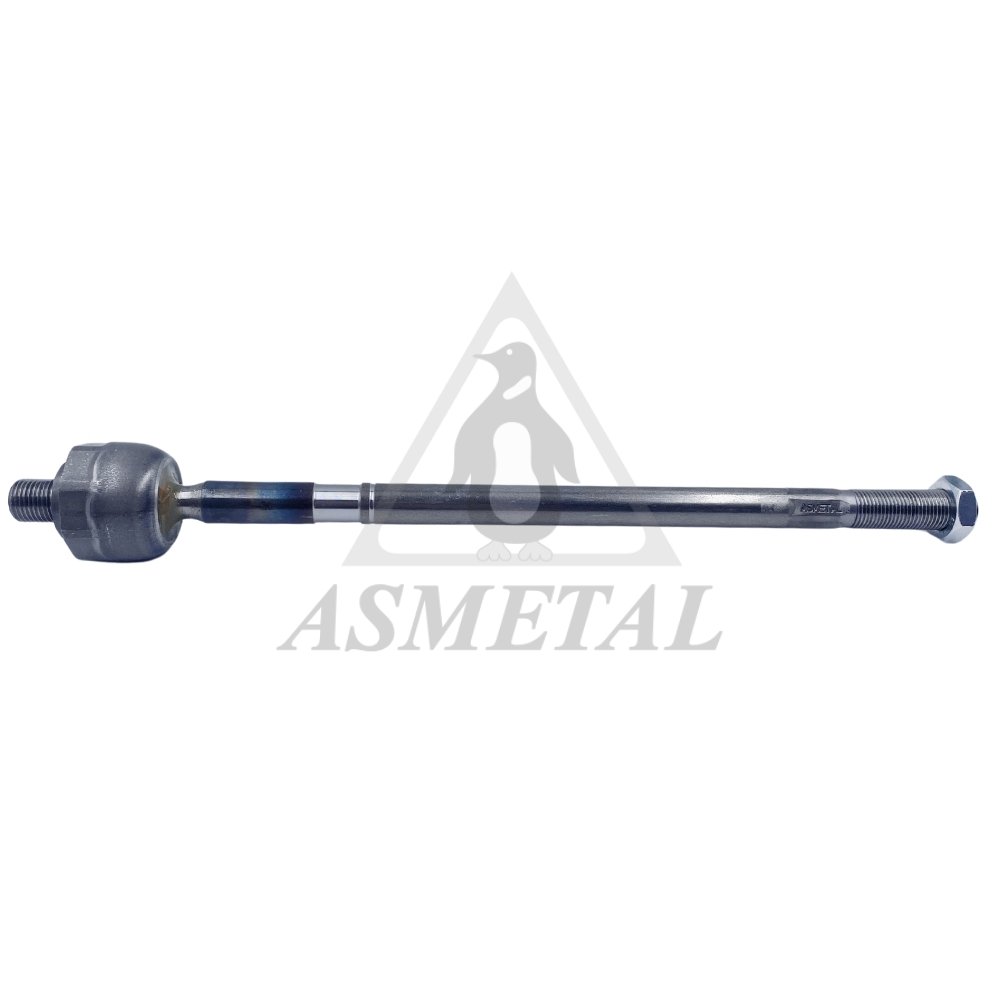

20MR0800
|
Axial Joint |
th:MM16x1,5 RHT L:341,5mm / 0,81 kg |
638 460 00 55, A 638 460 00 55 (4) OEM |
 |
20MR0815
|
Axial Joint |
th:MM16x1,5 RHT L:288mm / 0,8 kg |
A 639 460 02 55, 639 460 00 55 (2) OEM |
 |
20MR0820
|
Axial Joint |
tp: MM16x1.5 tp: MM16x1.5 L: 250 / 0,72 kg |
447 460 00 55, A 447 460 00 55 |
 |
20MR0900
|
Axial Joint |
th:MM18x1.5 RHT L:386mm / 1,02 kg |
A 905 330 01 35, 905 330 01 35 |
 |
20MR1200
|
Axial Joint |
L:203mm / 0,68 kg |
169 330 08 03, 169 330 09 03 (2) OEM |
 |
20MR1202
|
Axial Joint |
th:MM14x1.5 RHT L:197mm / 0,42 kg |
A 168 330 13 35, 168 330 13 35 (2) OEM |
 |
20MR1210
|
Axial Joint |
th:M14x1.5 RHT cp:1/6 cs:Ø19,75 / 0,7 kg |
169 330 07 03, A 169 330 04 03 (2) OEM |
 |
20MR1220
|
Axial Joint |
th:MM14x1.5 RHT L:196,5mm / 0,46 kg |
414 330 00 35, A 414 330 00 35 (2) OEM |
 |
20MR1400
|
Axial Joint |
th1:M14x1.5 RHT th2: M14x1.5 RHT L:222mm / 0,54 kg |
48521 HG00B, 48521 5DA0A (2) OEM |
 |
20MR1500
IN PREPARATION
|
Axial Joint |
|
247 338 00 00, A 247 338 00 00 (4) OEM |
 |
20MR1577
IN PREPARATION
|
Axial Joint |
|
177 338 00 00, 177 338 01 00 (2) OEM |
 |
20MR1600
IN PREPARATION
|
Axial Joint |
|
206 460 69 00, A 206 460 69 00 |
 |
20MR1610
IN PREPARATION
|
Axial Joint |
|
206 460 70 00, A 206 460 70 00 |
 |
20MR1800
|
Axial Joint |
th:MM16x1.5 RHT th:MM14x1.5 RHT L:245.5mm / 0,68 kg |
205 460 08 05, A 205 460 08 05 |
 |
20MR1810
|
Axial Joint |
th1:MM16x1.5 RHT th2: MM14x1.5 RHT L: 243mm / 0,66 kg |
205 460 04 05, A 205 460 04 05 |
 |
20MR3200
|
Axial Joint |
th:MM16x1,5 RHT L:241,5mm / 0,59 kg |
A 220 338 07 15, 230 338 00 15 (2) OEM |
 |
20MR3210
IN PREPARATION
|
Axial Joint |
|
211 338 00 15, A 211 338 00 15 (2) OEM |
 |
20MR3215
IN PREPARATION
|
Axial Joint |
|
203 338 02 15, A 203 338 02 15 |
 |
20MR3500
|
Axial Joint |
th:MM16x1,5 RHT L:245,5mm / 0,51 kg |
210 338 04 15, A 210 338 04 15 |
 |
20MR3510
IN PREPARATION
|
Axial Joint |
0 kg |
210 338 11 15, A 210 338 11 15 |
 |
20MR3600
|
Axial Joint |
th:MM16x1,5 RHT L:261,5mm / 0,66 kg |
A 204 338 04 15, 204 338 00 15 (3) OEM |
 |
20MR3610
|
Axial Joint |
tp: MM16x1.5 tp: MM14x1.5 L: 245 / 0,7 kg |
204 338 05 15, A 204 338 05 15 (2) OEM |
 |
20MR3620
|
Axial Joint |
tp: MM16x1.5 tp: MM14x1.5 L: 250 / 0,65 kg |
207 330 05 00, A 207 330 05 00 |
 |
20MR3630
IN PREPARATION
|
Axial Joint |
0 kg |
204 338 06 15, A 204 338 06 15 |
 |

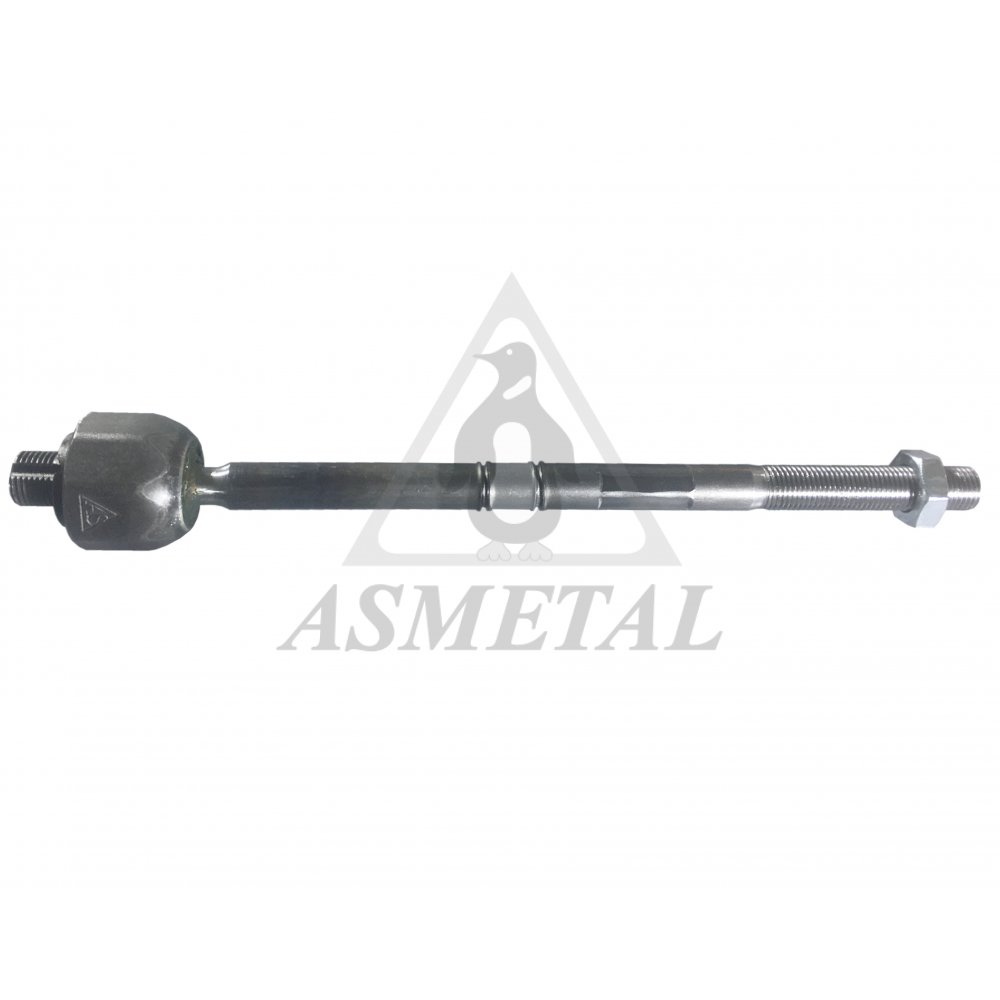

20MR3800
|
Axial Joint |
th:FM16x1,5 RHT th2:14x1.5 RHT L:268 / 0,58 kg |
221 330 16 03, A 221 330 16 03 |
 |

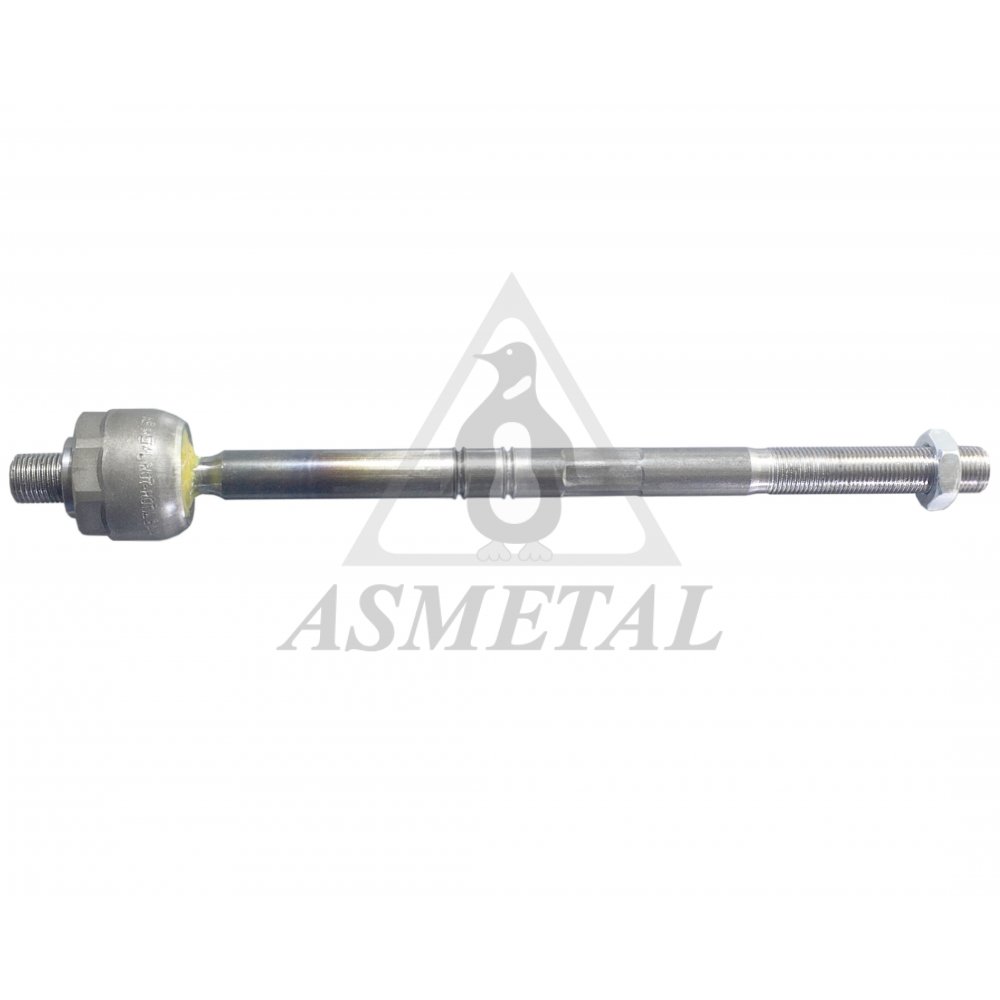

20MR3900
|
Axial Joint |
th1:MM16x1.5 RHT th2: MM16x1.5 RHT L: 298mm / 0,78 kg |
222 330 71 00, A 222 330 71 00 |
 |
20MR4000
|
Axial Joint |
th1:MM16x1.5 RHT th:MM14x1.5 RHT L:237mm / 0,65 kg |
A 212 330 21 03, 212 330 20 00 (2) OEM |
 |
20MR4010
|
Axial Joint |
th1:MM16x1.5 RHT th2:MM14x1.5 RHT L: 237mm / 0,64 kg |
212 330 28 03, A 212 330 28 03 |
 |
20MR4500
|
Axial Joint |
th:MM16x1,5 RHT L:160mm / 0,48 kg |
163 338 02 05, A 163 338 02 05 (2) OEM |
 |

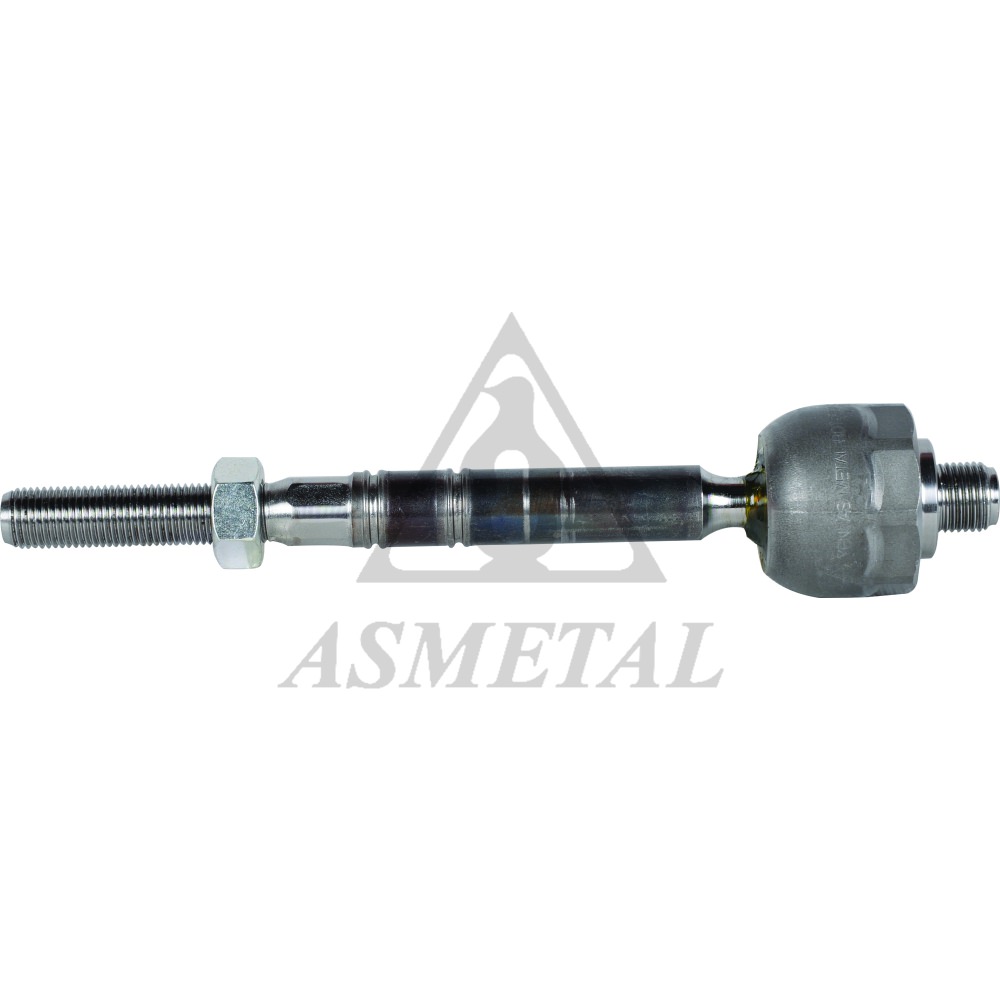

20MR4700
|
Axial Joint |
th:MM16x1,5 RHT L:208,5mm / 0,66 kg |
164 460 00 05, A 164 460 00 05 |
 |
20MR4810
|
Axial Joint |
tp: MM16x1.5 tp: MM16x1.5 L: 270 / 0,75 kg |
A 166 338 03 15, 166 338 03 15 |
 |
20RN5605
|
Axial Joint |
th:MM14x1,5 RHT L:214,5mm / 0,49 kg |
415 320 00 89, 48 52 156 12R (1) OEM |
 |
21MR0100
|
Tie Rod |
c:Ø18,2 th:M16x1.5 RHT / 1,9 kg |
631 330 07 03, 631 330 05 03 (2) OEM |
 |
21MR1000
|
Tie Rod |
c:Ø12,6 th:M10x1.0 RHT / 0,92 kg |
124 330 08 03, 124 330 09 03 (2) OEM |
 |

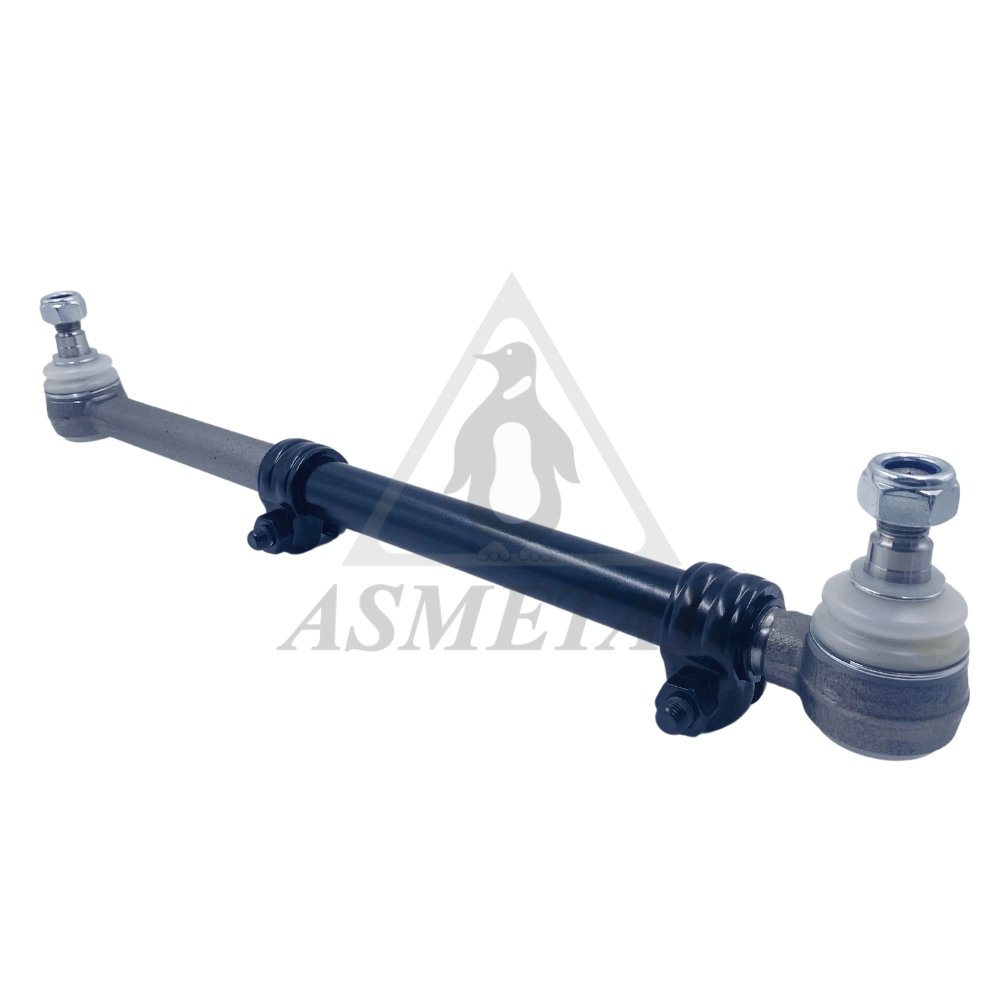

21MR1012
|
Tie Rod Adjustable |
c:Ø16,2 th:M14x1.5 RHT / 2,45 kg |
601 460 15 05, 601 460 13 05 (10) OEM |
 |
21MR1560
|
Tie Rod Adjustable |
c:Ø12,6 th:M10x1.0 RHT / 1,13 kg |
110 330 00 03, 107 330 01 03 (6) OEM |
 |

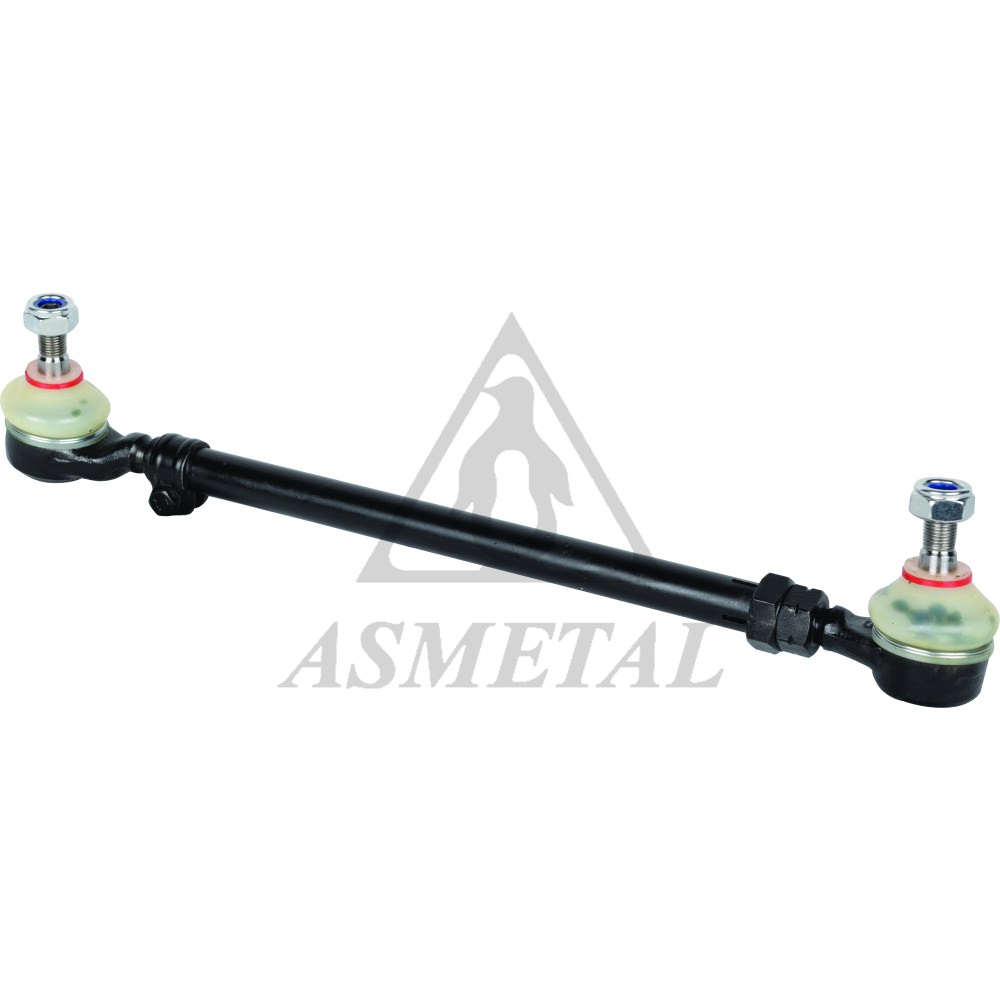

21MR1900
OUT OF SERVICE
|
Tie Rod |
c:Ø10,7 th:M10x1.0 RHT / 0,88 kg |
201 330 12 03, 201 330 16 03 (2) OEM |
 |

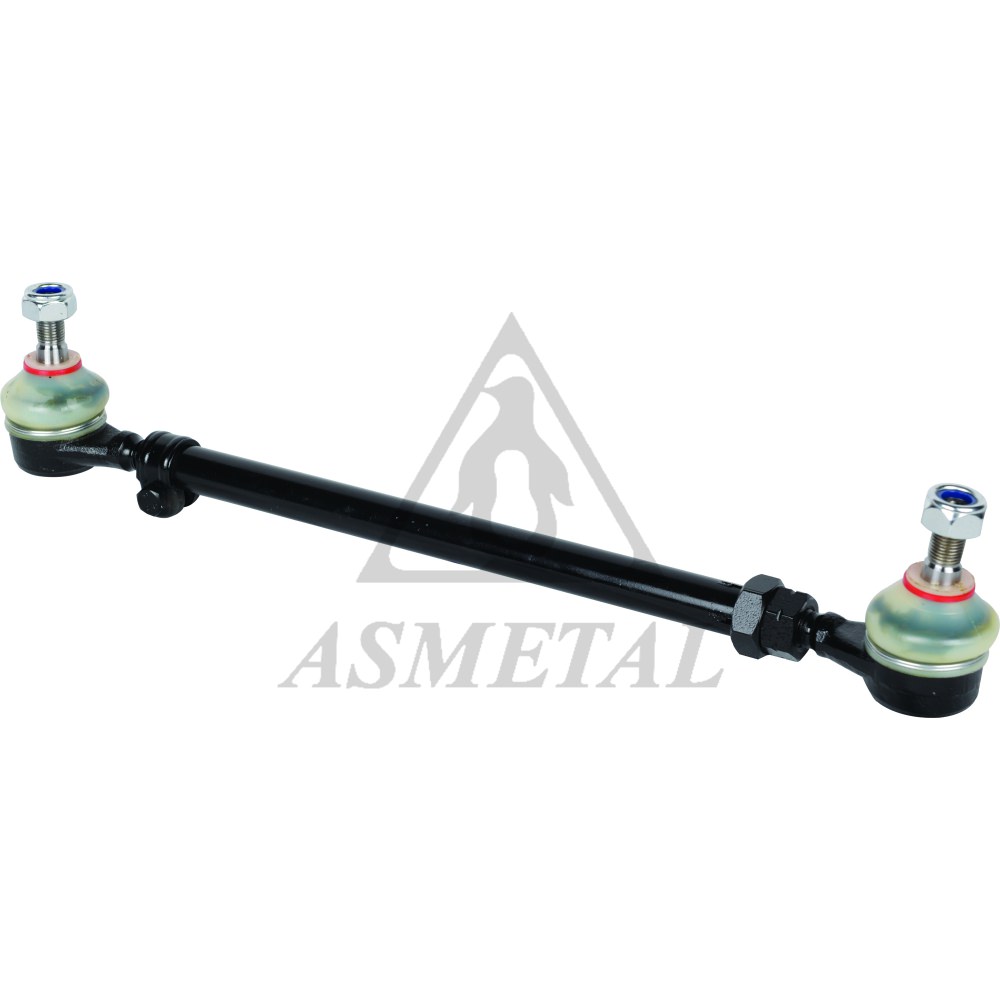

21MR20
OUT OF SERVICE
|
Tie Rod |
c:Ø10,7 th:M10x1.0 RHT / 0,7 kg |
201 330 15 03, 201 330 07 03 (2) OEM |
 |
21MR2360
|
Tie Rod |
c:Ø12,6 th:M10x1.0 RHT / 1 kg |
123 330 07 03, 123 330 15 03 (4) OEM |
 |
21MR2500
|
Tie Rod |
c:Ø14,6 th:M12x1.5 RHT / 1,2 kg |
140 330 00 03, A 140 330 00 03 |
|
21MR9000
OUT OF SERVICE
|
Rod Assembly |
c:Ø12,6 th:M10x1.25 RHT / 0 kg |
|
 |
22MR0100
OUT OF SERVICE
|
Rod Assembly |
th1:M18x1.5 RHT L:650,5mm / 0 kg |
631 330 06 03, A 631 330 06 03 |
 |

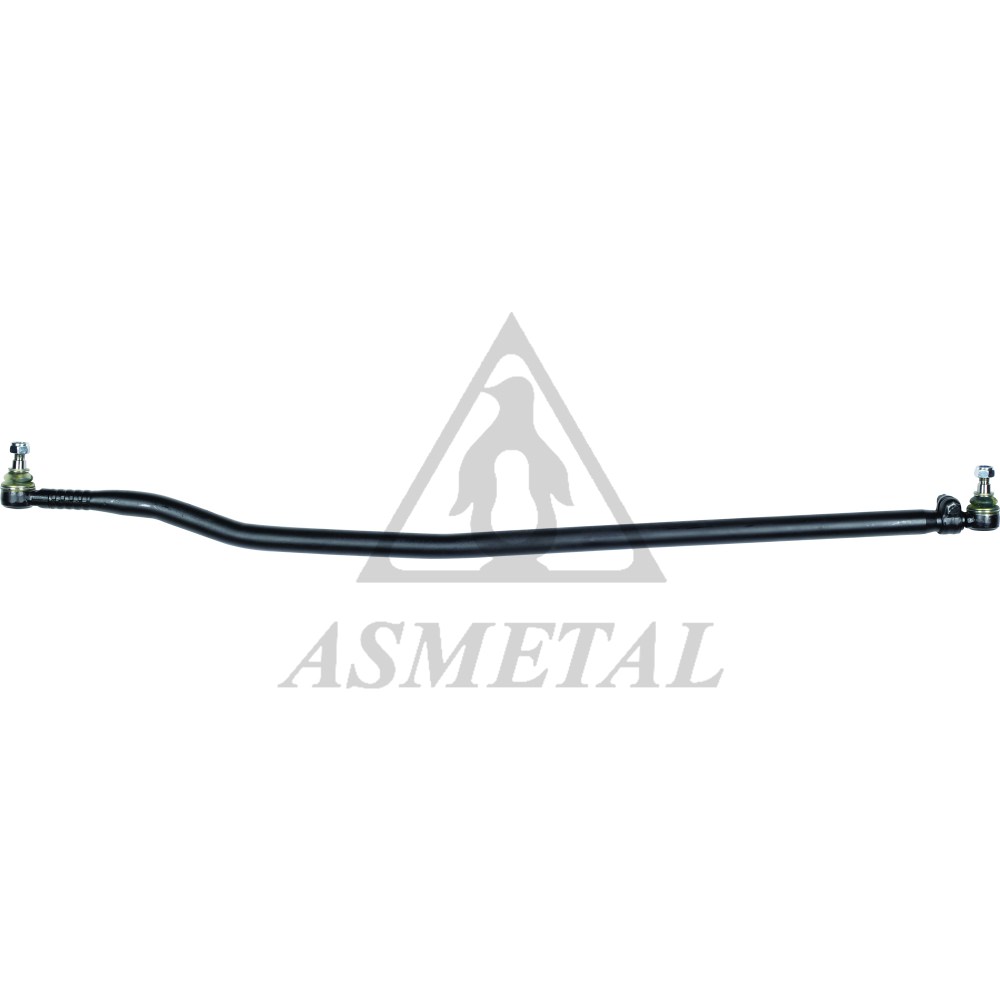

22MR0500
OUT OF SERVICE
|
Rod Assembly |
th1:M14x1.5 RHT / 0 kg |
631 460 07 05, A 631 460 07 05 |
 |
22MR1000
|
Rod Assembly |
th1:M20x1.5 RHT / 6,8 kg |
A 000 114 1644, 000 114 1644 |
 |
22MR1100
|
Tie Rod |
th1:M12x1.5 RHT L:516,5mm / 3,85 kg |
202 460 04 05, A 202 460 04 05 |
 |

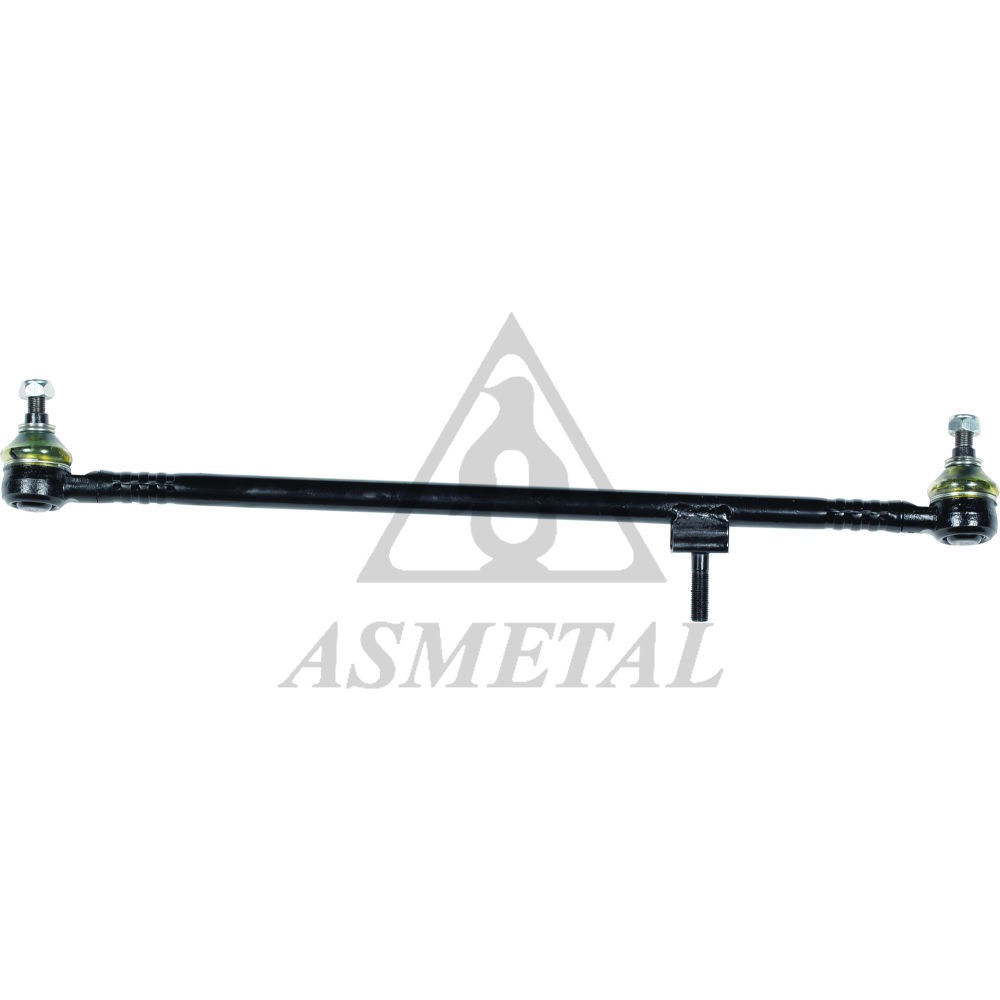

22MR1570
OUT OF SERVICE
|
Rod Assembly |
th1:M10x1.0 RHT / 0 kg |
115 460 16 05, 114 460 02 05 (8) OEM |
 |
22MR1900
|
Rod Assembly |
th1:M10x1.0 RHT L:490mm / 1,25 kg |
A 201 460 15 05, 201 460 14 05 (2) OEM |
 |
22MR2370
|
Rod Assembly |
th1:M10x1.0 RHT L:476mm / 1,1 kg |
123 460 15 05, 116 460 09 05 (4) OEM |
 |
22MR2380
|
Rod Assembly |
th1:M12x1.5 RHT L:525mm / 1,35 kg |
124 460 12 05, A 124 460 12 05 |
 |
22MR2381
|
Rod Assembly |
th1:M10x1.0 RHT L:535mm / 1,3 kg |
124 460 08 05, A 124 460 08 05 |
 |
22MR3000
|
Rod Assembly |
th1:M24x1.5 RHT / 7,1 kg |
620 460 00 05, 387 460 04 05 (4) OEM |
 |

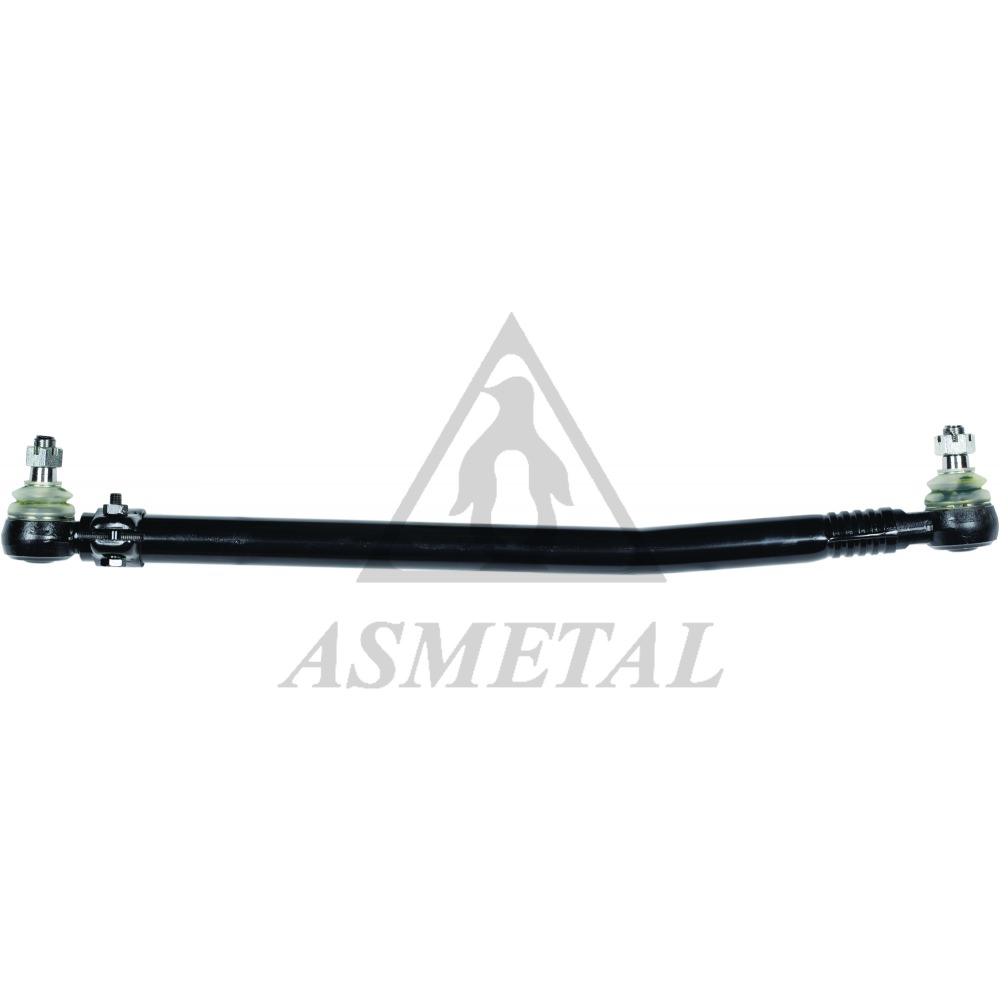

22MR3100
OUT OF SERVICE
|
Rod Assembly |
th1:M18x1.5 RHT / 0 kg |
A 673 460 06 05, A 673 460 08 05 (6) OEM |
 |

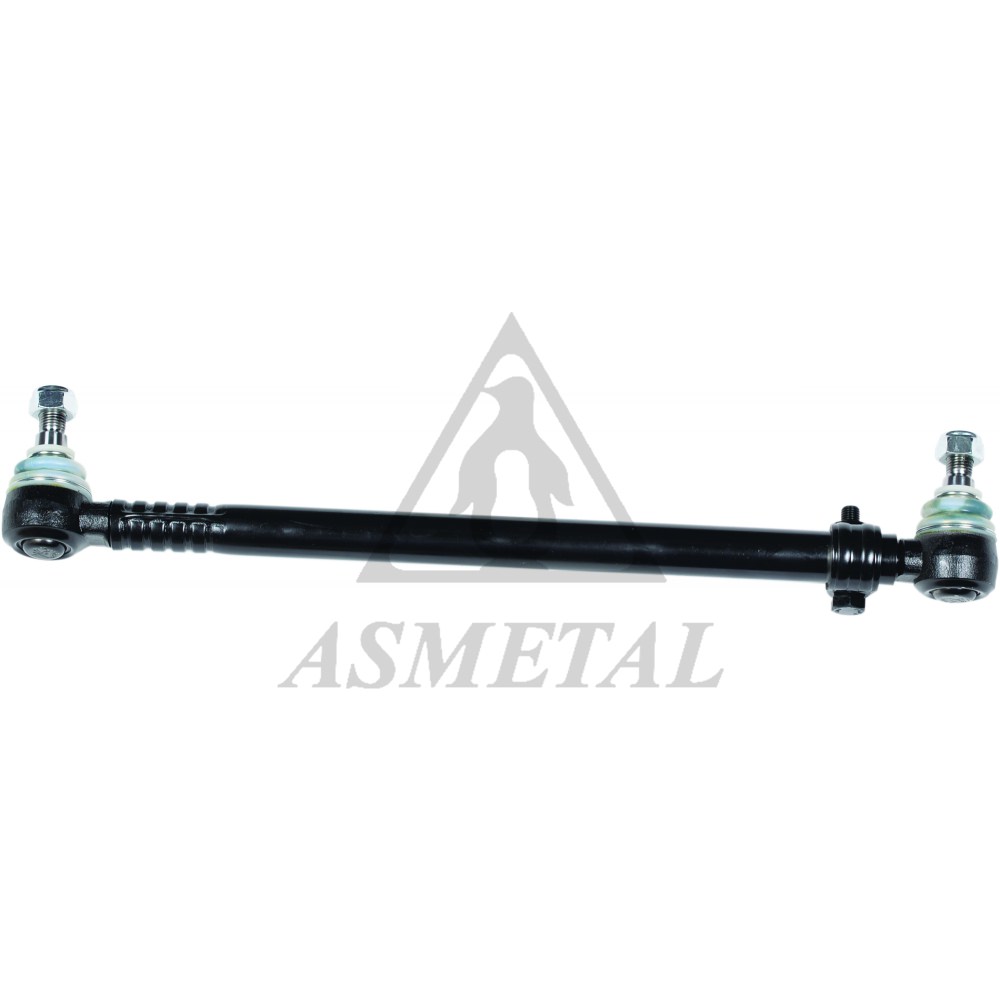

22MR6070
|
Rod Assembly |
th1:M14x1.5 RHT / 2,16 kg |
309 460 24 05, 309 460 23 05 (21) OEM |
 |
22MR6071
|
Rod Assembly |
th1:M14x1.5 RHT / 2,35 kg |
601 460 03 05, 309 460 04 05 (21) OEM |
 |

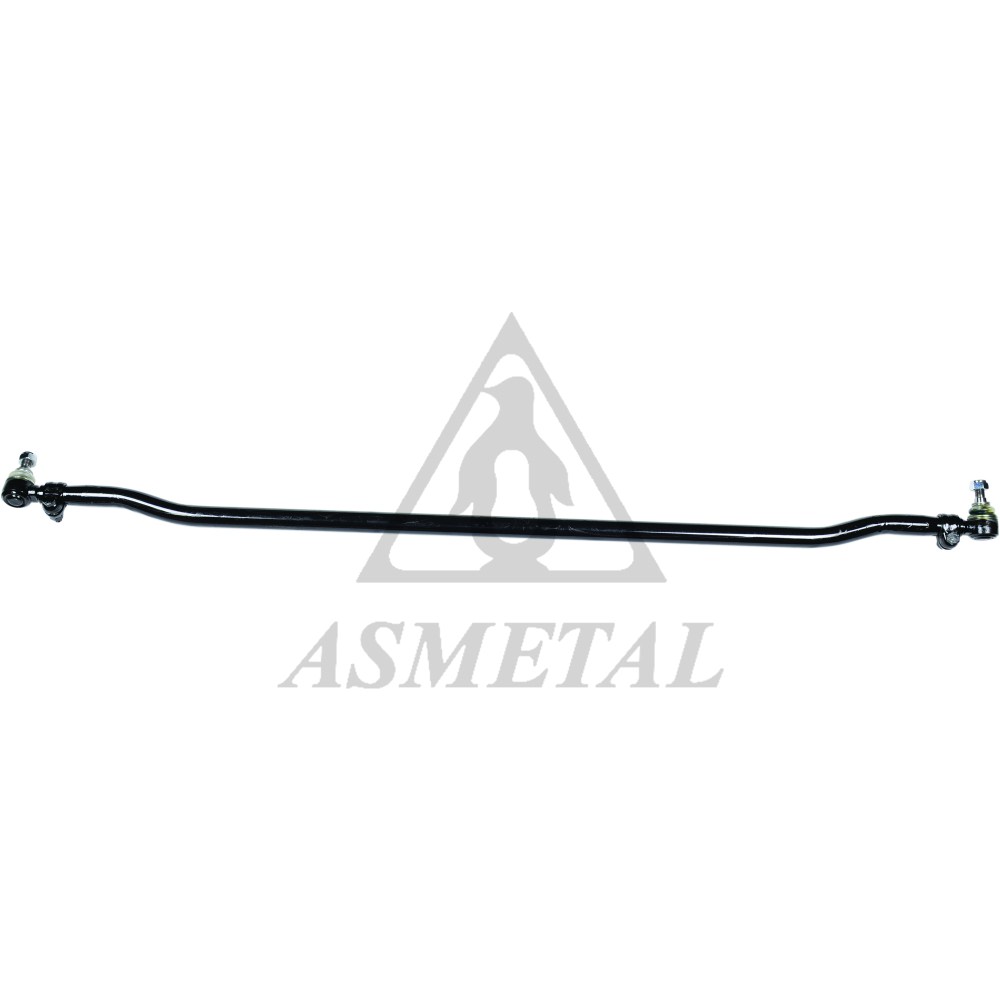

22MR6075
|
Rod Assembly |
th1:M14x1.5 RHT / 5,6 kg |
602 330 00 03, 602 330 04 03 (8) OEM |
|
22MR9000
OUT OF SERVICE
|
Rod Assembly |
th1:M20x1.5 RHT L:385mm / 4,55 kg |
957 460 00 05, A 957 460 00 05 |
|
22MR9001
OUT OF SERVICE
|
Rod Assembly |
1,4 kg |
|
|
22MR9005
OUT OF SERVICE
|
Rod Assembly |
L: 260 mm / 0 kg |
|
|
22MR9007
OUT OF SERVICE
|
Rod Assembly |
0 kg |
|
 |
22MR9010
|
Rod Assembly |
th1:M14x1.5 RHT / 2,05 kg |
668 460 09 05, 668 460 11 05 (2) OEM |
|
22MR9015
OUT OF SERVICE
|
Rod Assembly |
0 kg |
957 460 00 05, A 957 460 00 05 |
 |
23MR02
|
Track Control Arm Rear |
c:1:6 th:M10x1.25 RHT L:245mm / 0,62 kg |
210 350 21 53, 201 350 27 53 (5) OEM |
 |
23MR1300
IN PREPARATION
|
Track Control Arm Left (Without Ball Joint) |
|
211 330 91 07, A 211 330 91 07 |
 |
23MR1301
IN PREPARATION
|
Track Control Arm Right (Without Ball Joint) |
|
211 330 92 07, A 211 330 92 07 |
 |
23MR1800
|
Track Control Arm Lower Left |
th:MM16x1.5 RHT cs:Ø15.85 / 2,84 kg |
205 330 65 10, A 205 330 61 01 (5) OEM |
 |
23MR1800B
|
Track Control Arm Lower Left (Without Fasteners) |
th:MM16x1.5 RHT cs:Ø15.85 / 2,54 kg |
205 330 59 01, A 205 330 19 07 (5) OEM |
 |
23MR1801
|
Track Control Arm Lower Right |
th:MM16x1.5 RHT cs:Ø15.85 / 2,84 kg |
A 205 330 20 07, 205 330 62 01 (6) OEM |
 |
23MR1801B
|
Track Control Arm Lower Right (Without Fasteners) |
th:MM16x1.5 RHT cs:Ø15.85 / 2,54 kg |
205 330 20 07, 205 330 62 01 (6) OEM |
 |
23MR1802
|
Track Control Arm Lower Left |
th:MM16x1.5 RHT cs:Ø15.85 / 2,96 kg |
A 205 330 63 01, 205 330 63 01 (2) OEM |
 |
23MR1802B
|
Track Control Arm Lower Left (Without Fasteners) |
th:MM16x1.5 RHT cs:Ø15.85 / 2,56 kg |
A 205 330 21 07, 205 330 21 07 (2) OEM |
 |
23MR1803
|
Track Control Arm Lower Right |
th:MM16x1.5 RHT cs:Ø15.85 / 2,96 kg |
205 330 64 01, A 205 330 64 01 (2) OEM |
 |
23MR1803B
|
Track Control Arm Lower Right (Without Fasteners) |
th:MM16x1.5 RHT cs:Ø15.85 / 2,56 kg |
205 330 22 07, A 205 330 22 07 (2) OEM |
 |
23MR1804
IN PREPARATION
|
Track Control Arm Lower Left |
0 kg |
205 330 13 05, 205 330 43 03 (4) OEM |
 |
23MR1805
IN PREPARATION
|
Track Control Arm Lower Right |
0 kg |
205 330 16 05, 205 330 14 05 (4) OEM |
 |
23MR1806
IN PREPARATION
|
Track Control Arm Lower Left |
0 kg |
205 330 17 05, A 205 330 17 05 |
 |
23MR1807
IN PREPARATION
|
Track Control Arm Lower Right |
0 kg |
205 330 18 05, A 205 330 18 05 |
 |
23MR1810
|
Track Control Arm Lower |
C: Ø16 TP: M16X1,5 / 2,25 kg |
A 205 330 67 10, 205 330 67 10 (2) OEM |
 |
23MR1810B
|
Track Control Arm Lower (Without Fasteners) |
C: Ø16 TP: M16X1,5 / 2,03 kg |
A 205 330 67 10, 205 330 67 10 (2) OEM |
 |
23MR1816
IN PREPARATION
|
Track Control Arm Left |
|
205 330 19 05, A 205 330 19 05 |
 |
23MR1817
IN PREPARATION
|
Track Control Arm Right |
|
205 330 20 05, A 205 330 20 05 |
 |
23MR1820
|
Track Control Arm Lower |
C: Ø16 TP: M16X1,5 / 2,36 kg |
A 205 330 58 01, 205 330 58 01 |
 |
23MR1820B
|
Track Control Arm Lower (Without Fasteners) |
C: Ø16 TP: M16X1,5 / 2,03 kg |
A 205 330 58 01, 205 330 58 01 |
 |
23MR1850
IN PREPARATION
|
Track Control Arm Left |
|
205 350 61 03, 204 350 15 06 (4) OEM |
 |
23MR1851
IN PREPARATION
|
Track Control Arm Right |
|
205 350 62 03, 204 350 16 06 (4) OEM |
 |
23MR1852
IN PREPARATION
|
Track Control Arm Left |
|
204 350 21 06, 204 350 33 06 (2) OEM |
 |
23MR1853
IN PREPARATION
|
Track Control Arm Right |
|
204 350 22 06, 204 350 34 06 (2) OEM |
 |
23MR2500
IN PREPARATION
|
Track Control Arm |
0 kg |
140 350 18 53, 140 350 30 53 (8) OEM |
 |
23MR2520
IN PREPARATION
|
Track Control Arm |
|
140 350 34 06, 220 350 26 06 (4) OEM |
 |
23MR2530
IN PREPARATION
|
Track Control Arm |
|
140 350 35 06, A 140 350 35 06 |
 |
23MR2540
IN PREPARATION
|
Track Control Arm |
|
140 350 36 06, A 140 350 36 06 |
 |
23MR3200
|
Track Control Arm Lower Left |
tp: M14x1.5 cr: 1:5 c: Ø16.2 / 2,64 kg |
203 330 19 11, 203 330 33 11 (4) OEM |
 |
23MR3200B
|
Track Control Arm Left (Without Fasteners) |
tp: M14x1.5 cr: 1:5 c: Ø16.2 / 2,64 kg |
203 330 33 11, 204 330 19 11 (4) OEM |
 |
23MR3201
|
Track Control Arm Lower Right |
tp: M14x1.5 cr: 1:5 c: Ø16.2 / 2,64 kg |
203 330 20 11, 204 330 20 11 (4) OEM |
 |
23MR3201B
|
Track Control Arm Right (Without Fasteners) |
tp: M14x1.5 cr: 1:5 c: Ø16.2 / 2,26 kg |
A 203 330 20 11, A 204 330 20 11 (4) OEM |
 |
23MR3204
|
Track Control Arm Upper Left |
tp: M14x1.5 cr: 1:5 c: Ø16.2 / 1,92 kg |
203 330 01 11, 203 330 16 11 (9) OEM |
 |
23MR3204B
|
Track Control Arm Left (Without Fasteners) |
tp: M14x1.5 cr: 1:5 c: Ø16.2 / 1,66 kg |
203 330 35 11, 203 330 39 11 (9) OEM |
 |
23MR3205
|
Track Control Arm Upper Right |
tp: M14x1.5 cr: 1:5 c: Ø16.2 / 1,92 kg |
204 330 34 11, A 204 330 34 11 (10) OEM |
 |
23MR3205B
|
Track Control Arm Right (Without Fasteners) |
1,66 kg |
204 330 34 11, A 204 330 34 11 (10) OEM |
 |
23MR3210
|
Track Control Arm Upper Left |
tp: M14x1.5 cr: 1:5 c: Ø16.2 / 1,96 kg |
203 330 01 11, 203 330 16 11 (10) OEM |
 |
23MR3210B
|
Track Control Arm Left (Without Fasteners) |
tp: M14x1.5 cr: 1:5 c: Ø16.2 / 1,66 kg |
203 330 39 11, 204 330 43 11 (10) OEM |
 |
23MR3211
|
Track Control Arm Upper Right |
tp: M14x1.5 cr: 1:5 c: Ø16.2 / 1,96 kg |
203 330 36 11, 203 330 02 11 (10) OEM |
 |
23MR3211B
|
Track Control Arm Right (Without Fasteners) |
TP: M14x1.5 cr: 1:5 c: Ø16.2 / 1,68 kg |
203 330 17 11, 204 330 88 11 (10) OEM |
 |
23MR3214
|
Track Control Arm Lower Left |
tp: M14x1.5 cr: 1:5 c: Ø16.3 / 1,6 kg |
A 204 330 31 11, 204 330 67 11 (2) OEM |
 |
23MR3214B
|
Track Control Arm Lower Left (Without Fasteners) |
tp: M14x1.5 cr: 1:5 c: Ø16.3 / 1,5 kg |
A 204 330 67 11, 204 330 31 11 (2) OEM |
 |
23MR3215
|
Track Control Arm Lower Right |
tp: M14x1.5 cr: 1:5 c: Ø16.3 / 1,6 kg |
A 204 330 32 11, 204 330 68 11 (2) OEM |
 |
23MR3215B
|
Track Control Arm Lower Right (Without Fasteners) |
tp: M14x1.5 cr: 1:5 c: Ø16.3 / 1,55 kg |
A 204 330 32 11, 204 330 68 11 (2) OEM |
 |
23MR3240
|
Track Control Arm Lower Rear |
tp: M10x1.5 / c: Ø11.3 / 0,68 kg |
A 203 350 07 53, 203 350 07 53 (2) OEM |
 |
23MR3310
IN PREPARATION
|
Track Control Arm Lower Left |
0 kg |
204 330 90 11, 204 330 73 11 (2) OEM |
 |
23MR3311
IN PREPARATION
|
Track Control Arm Lower Right |
0 kg |
A 204 330 74 11, A 204 330 91 11 (2) OEM |
 |
23MR3500
|
Track Control Arm Lower Left |
tp: M14x1.5 cr: 1:10 c: Ø17 / 2,3 kg |
211 330 29 11, 211 330 43 11 (8) OEM |
 |
23MR3500B
|
Track Control Arm Lower Left (Without Fasteners) |
tp: M14x1.5 cr: 1:10 c: Ø17 / 2,2 kg |
2303301711, 211 330 29 11 (8) OEM |
 |
23MR3501
|
Track Control Arm Lower Right |
tp: M14x1.5 cr: 1:10 c: Ø17 / 2,3 kg |
211 330 44 11, 211 330 30 11 (8) OEM |
 |
23MR3501B
|
Track Control Arm Lower Right (Without Fasteners) |
tp: M14x1.5 / cr: 1:10 / c: Ø17 / 2,2 kg |
211 330 16 11, 211 330 12 11 (6) OEM |
 |
23MR3570
IN PREPARATION
|
Track Control Arm Upper Left |
0 kg |
230 350 35 06, 230 350 31 06 (2) OEM |
 |
23MR3571
IN PREPARATION
|
Track Control Arm Upper Right |
0 kg |
230 350 36 06, A 230 350 36 06 |
 |
23MR3572
IN PREPARATION
|
Track Control Arm Upper Left |
0 kg |
230 350 27 06, A 230 350 27 06 |
 |
23MR3573
IN PREPARATION
|
Track Control Arm Upper Right |
0 kg |
230 350 28 06, A 230 350 28 06 |
 |
23MR3574
IN PREPARATION
|
Track Control Arm |
|
230 350 20 06, A230 350 20 06 |
 |
23MR3610
IN PREPARATION
|
Track Control Arm Lower |
0 kg |
204 330 80 11, A 204 330 80 11 |
 |
23MR3612
IN PREPARATION
|
Track Control Arm Left |
|
204 330 81 11, A 204 330 81 11 (2) OEM |
 |
23MR3613
IN PREPARATION
|
Track Control Arm Right |
|
204 330 82 11, A 204 330 82 11 (2) OEM |
 |

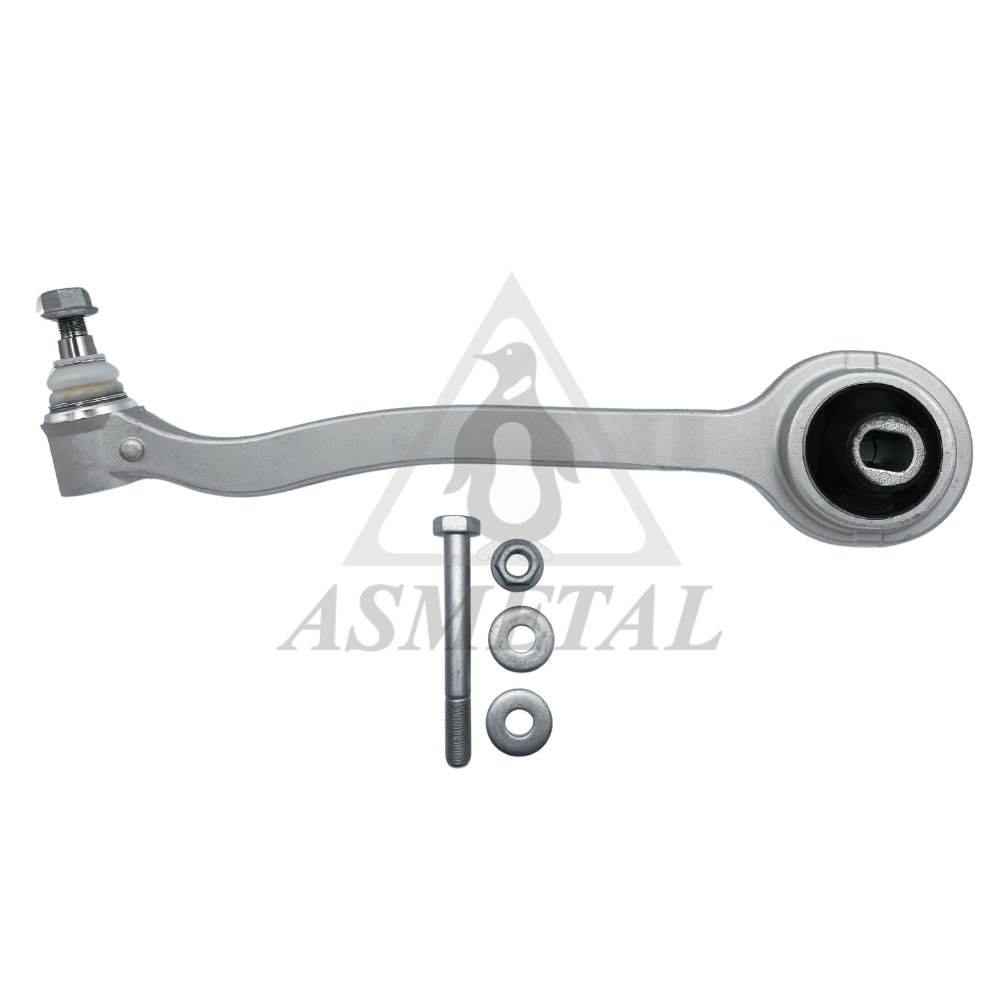

23MR3800
|
Track Control Arm Lower Left |
L: 391,6 C: Ø17 P: M14X1,5 / 2,08 kg |
A 220 330 43 11, A 220 330 57 11 (6) OEM |
 |
23MR3800B
|
Track Control Arm Lower Left (Without Fasteners) |
L: 391,6 C: Ø17 P: M14X1,5 / 1,73 kg |
A 220 330 57 11, 220 330 57 11 (6) OEM |
 |

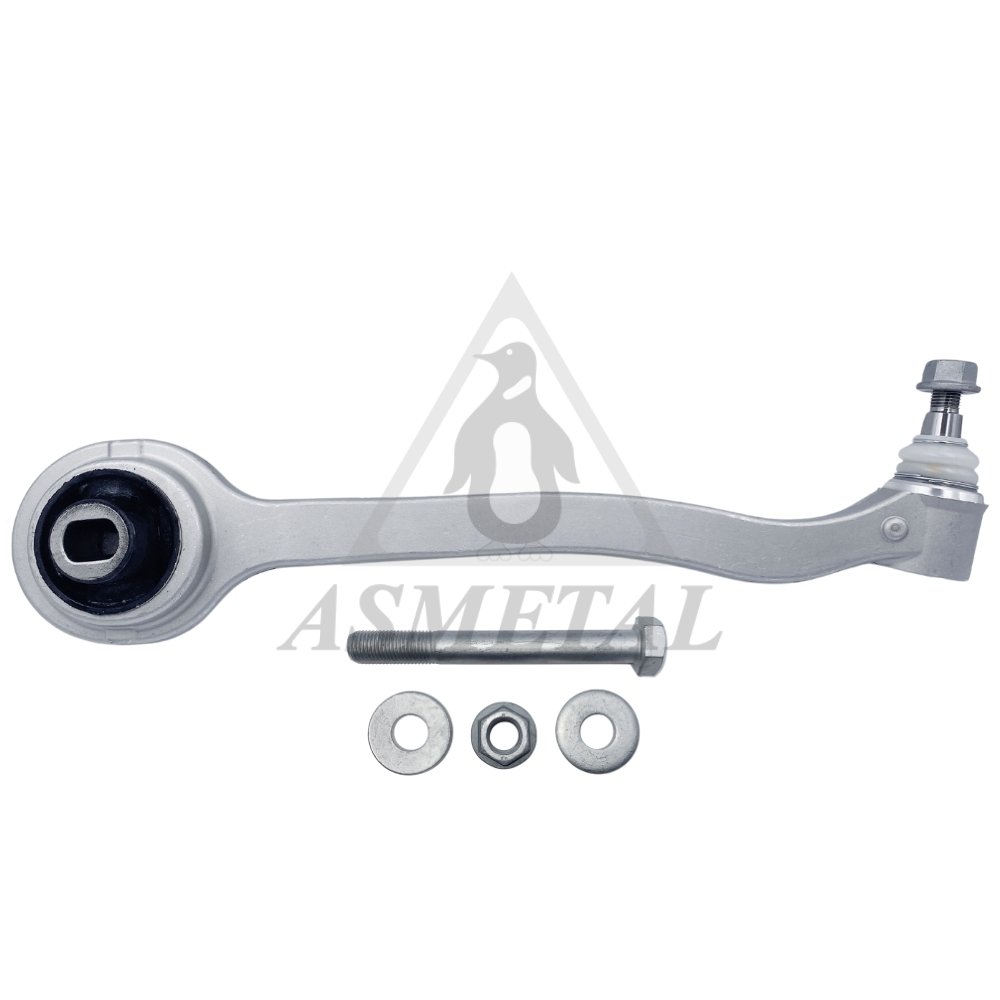

23MR3801
|
Track Control Arm Lower Right |
L: 391,6 C: Ø17 P: M14X1,5 / 2,08 kg |
A 220 330 44 11, A 220 330 58 11 (6) OEM |
 |
23MR3801B
|
Track Control Arm Lower Right (Without Fasteners) |
L: 391,6 C: Ø17 P: M14X1,5 / 1,73 kg |
A 220 330 44 11, A 220 330 58 11 (6) OEM |
 |
23MR3802
IN PREPARATION
|
Track Control Arm Lower Left |
0 kg |
221 330 23 11, 221 330 63 11 (2) OEM |
 |
23MR3803
IN PREPARATION
|
Track Control Arm Lower Right |
0 kg |
221 330 24 11, 221 330 64 11 (2) OEM |
 |
23MR3840
IN PREPARATION
|
Track Control Arm Left |
|
221 330 67 07, A 221 330 67 07 (2) OEM |
 |
23MR3841
IN PREPARATION
|
Track Control Arm Right |
|
221 330 68 07, A 221 330 68 07 (2) OEM |
 |
23MR3850
IN PREPARATION
|
Track Control Arm Left |
|
221 330 71 07, A 221 330 71 07 |
 |
23MR3851
IN PREPARATION
|
Track Control Arm Right |
|
221 330 72 07, A 221 330 72 07 |
 |
23MR3852
IN PREPARATION
|
Track Control Arm Left |
|
221 330 87 07, A 221 330 87 07 |
 |
23MR3853
IN PREPARATION
|
Track Control Arm Lower Right |
|
221 330 88 07, A 221 330 88 07 |
 |
23MR3870
IN PREPARATION
|
Track Control Arm Upper |
0 kg |
220 350 22 06, A 220 350 22 06 (2) OEM |
 |
23MR3880
IN PREPARATION
|
Track Control Arm Upper |
0 kg |
220 350 24 06 |
 |
23MR3900
IN PREPARATION
|
Track Control Arm Lower Left |
|
222 330 23 01, A 222 330 23 01 |
 |
23MR3901
IN PREPARATION
|
Track Control Arm Lower Right |
|
222 330 24 01, A 222 330 24 01 |
 |
23MR3910
IN PREPARATION
|
Track Control Arm Left |
|
222 330 01 07, A 222 330 01 07 |
 |
23MR3911
IN PREPARATION
|
Track Control Arm Right |
|
222 330 02 07, A 222 330 02 07 |
 |
23MR4000
|
Track Control Arm Lower Left |
th:MM14x1.5 RHT cs:Ø17.5 cp: 1/5 / 2,4 kg |
A 212 330 27 11, 212 330 27 11 |
 |
23MR4000B
|
Track Control Arm Lower Left (Without Fasteners) |
th:MM14x1.5 RHT cs:Ø17.5 cp: 1/5 / 2,2 kg |
A 212 330 27 11, 212 330 27 11 |
 |
23MR4001
|
Track Control Arm Lower Right |
th:MM14x1.5 RHT cs:Ø17.5 c: 1/5 / 2,4 kg |
A 212 330 28 11, 212 330 28 11 |
 |
23MR4001B
|
Track Control Arm Lower Right (Without Fasteners) |
th:MM14x1.5 RHT cs:Ø17.5 c: 1/5 / 2,2 kg |
A 212 330 28 11, 212 330 28 11 |
 |
23MR4002
IN PREPARATION
|
Track Control Arm Left |
|
212 330 31 11, A 212 330 31 11 |
 |
23MR4003
IN PREPARATION
|
Track Control Arm Lower Right |
|
212 330 32 11, A 212 330 32 11 |
 |
23MR4010
IN PREPARATION
|
Track Control Arm Lower Left |
0 kg |
212 330 29 11, 212 330 39 00 (2) OEM |
 |
23MR4011
IN PREPARATION
|
Track Control Arm Lower Right |
0 kg |
212 330 30 11, 212 330 40 00 (2) OEM |
 |
23MR4020
IN PREPARATION
|
Track Control Arm Left (Without Ball Joint) |
|
218 330 07 11, A 218 330 07 11 (2) OEM |
 |
23MR4021
IN PREPARATION
|
Track Control Arm Right (Without Ball Joint) |
|
218 330 74 00, A 218 330 74 00 (2) OEM |
 |
23MR4050
IN PREPARATION
|
Track Control Arm |
0 kg |
212 330 19 11, A 212 330 19 11 |
 |
26MR0100
|
Stabiliser Link Right |
L:115mm / 0,23 kg |
A 210 320 37 89, 210 320 37 89 (2) OEM |
 |
26MR0101
|
Stabiliser Link Left |
L:115mm / 0,23 kg |
A 210 320 36 89, 210 320 36 89 (2) OEM |
 |

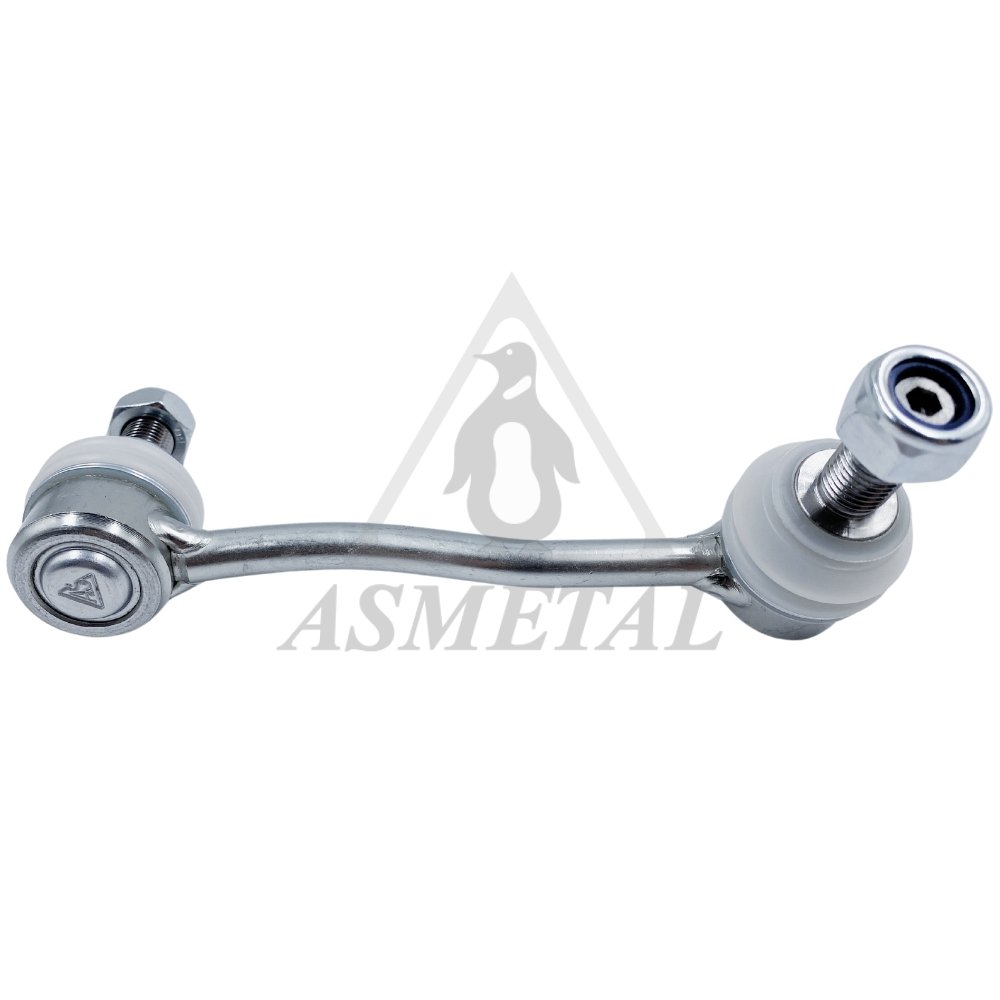

26MR0105
|
Stabiliser Link Left |
L:138mm / 0,38 kg |
6801 3721 AA, 906 320 17 89 (6) OEM |
 |
26MR0106
|
Stabiliser Link Right |
L:138mm / 0,38 kg |
6801 3720 AA, 907 320 05 01 (6) OEM |
 |
26MR0110
|
Stabiliser Link Rear |
L = 213 Ø12.1 / 0,4 kg |
A 906 320 13 89, 906 320 13 89 (1) OEM |
 |
26MR0115
NEW
|
Stabiliser Link Rear |
L: 139,5 di: 12,2 / 0,68 kg |
906 320 14 89, A 906 320 14 89 (1) OEM |
 |
26MR0120
|
Stabiliser Link Left |
th1:M12x1.5 RHT L:286mm / 0,49 kg |
A 910 320 30 00, 910 320 30 00 |
 |
26MR0121
|
Stabiliser Link Right |
th:M12x1.5 RHT L:286 / 0,49 kg |
A 910 320 31 00, 910 320 31 00 |
 |
26MR0125
IN PREPARATION
|
Stabiliser Link |
|
910 326 12 00, A 910 326 12 00 |
 |

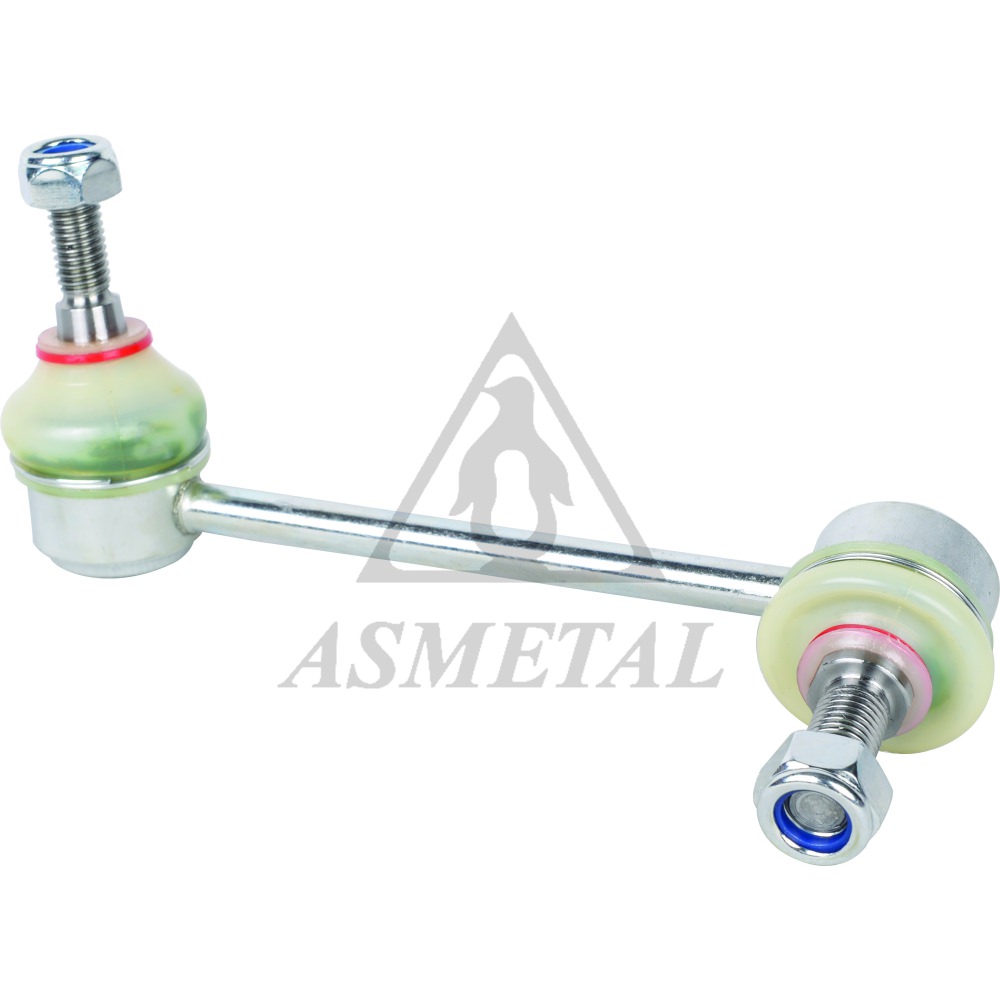

26MR0500
|
Stabiliser Link Left |
L:152,5mm / 0,38 kg |
140 320 11 89, A 140 320 11 89 |
 |

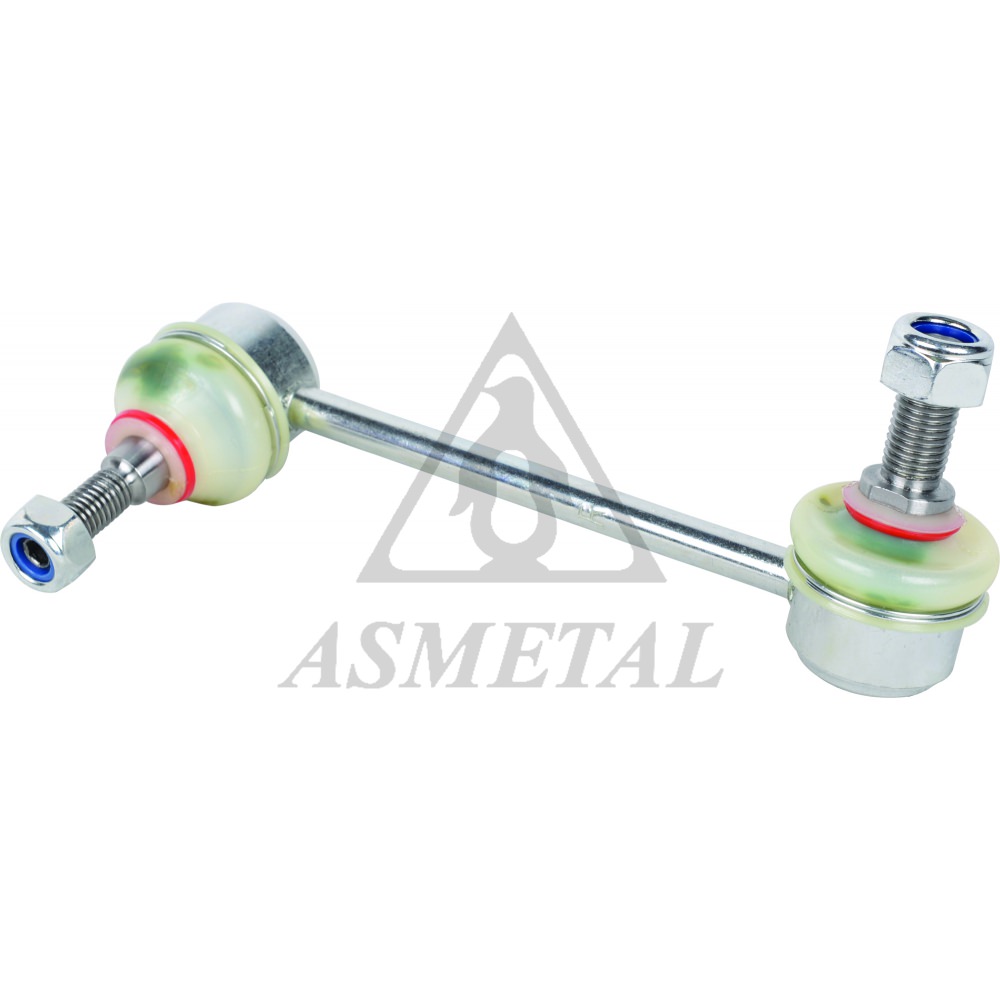

26MR0501
|
Stabiliser Link Right |
L:152,5mm / 0,38 kg |
140 320 12 89, A 140 320 12 89 |
 |
26MR0520
IN PREPARATION
|
Stabiliser Link Rear |
0 kg |
124 320 04 89, A 124 320 04 89 |
 |

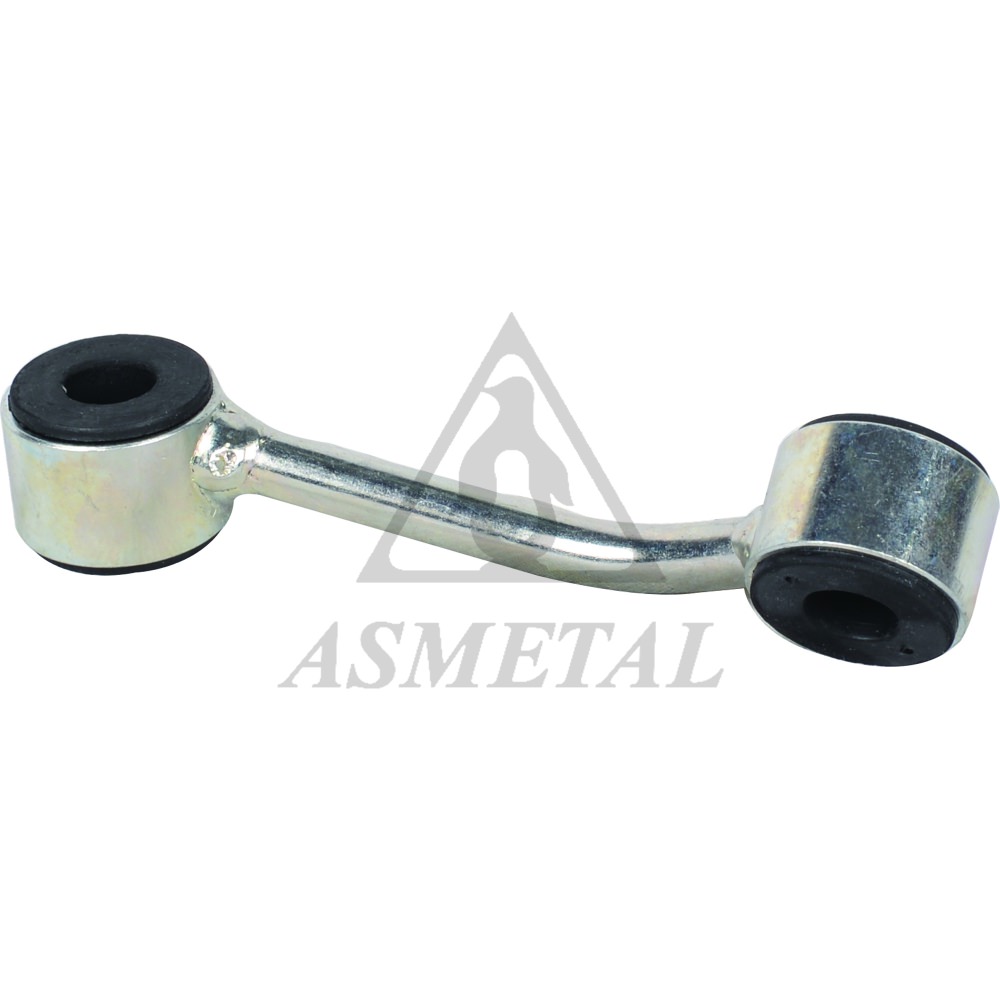

26MR0700
|
Stabiliser Link Left |
L:115mm / 0,19 kg |
5104 059AA, 909 320 02 00 (4) OEM |
 |

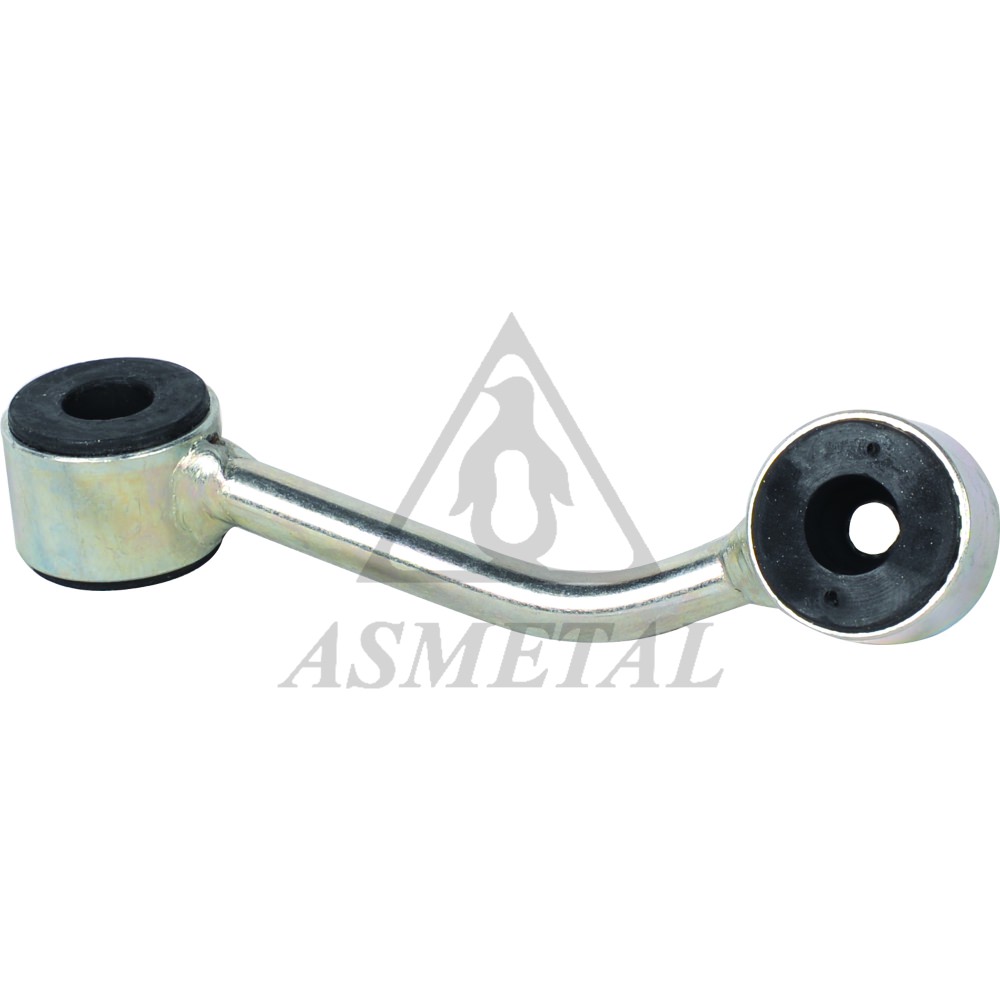

26MR0701
|
Stabiliser Link Right |
L:115mm / 0,19 kg |
5104 060AA, 901 320 03 89 (4) OEM |
 |

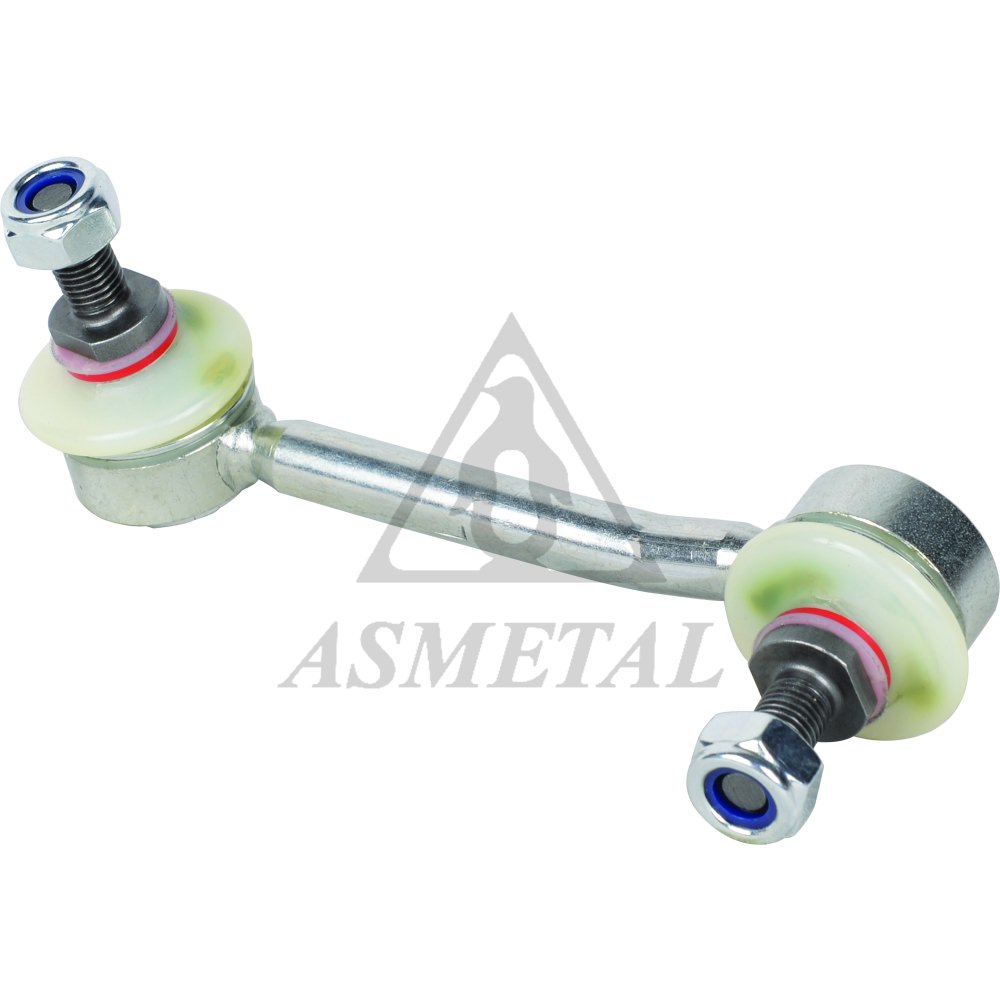

26MR0705
|
Stabiliser Link Left |
L:129mm / 0,34 kg |
5127 276AA, A 905 320 04 89 (1) OEM |
 |

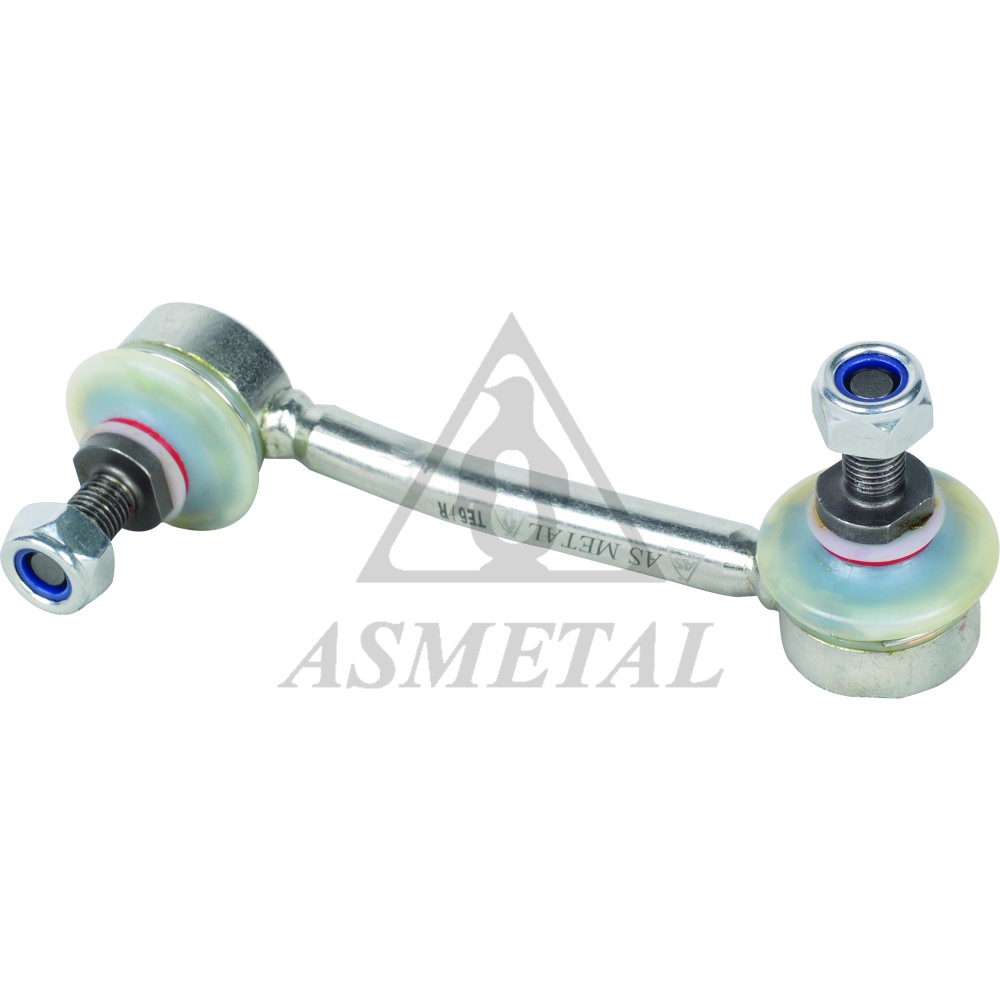

26MR0706
|
Stabiliser Link Right |
L:129mm / 0,34 kg |
5127 277AA, A 905 320 05 89 (1) OEM |
 |
26MR0710
|
Stabiliser Link Rear |
L:95mm / 0,27 kg |
5104 058AA, 901 320 00 89 (2) OEM |
 |
26MR0720
NEW
|
Stabiliser Link Rear |
0,54 kg |
901 320 06 89, A 901 320 06 89 |
 |
26MR0730
NEW
|
Stabiliser Link Rear |
0,44 kg |
901 320 05 89, A 901 320 05 89 (1) OEM |
 |

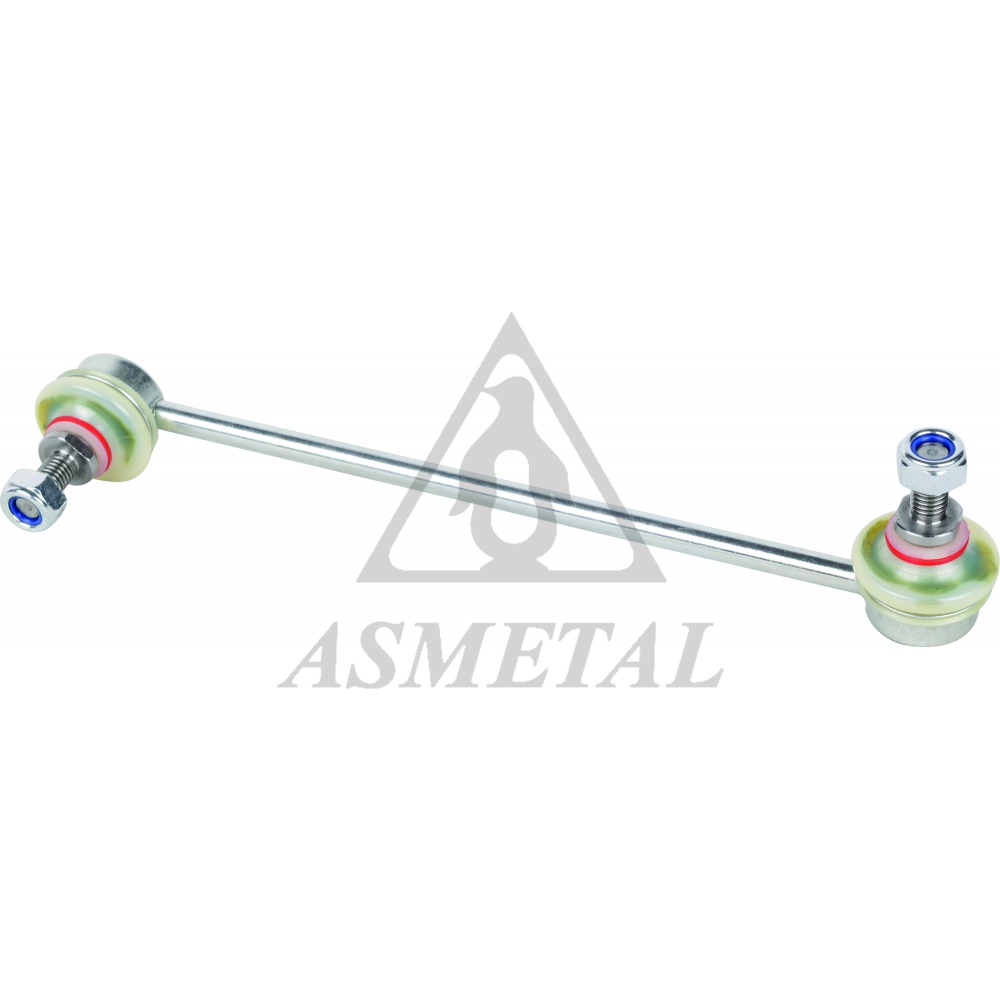

26MR0800
|
Stabiliser Link Left |
L:250mm / 0,35 kg |
638 323 02 68, A 638 323 02 68 |
 |

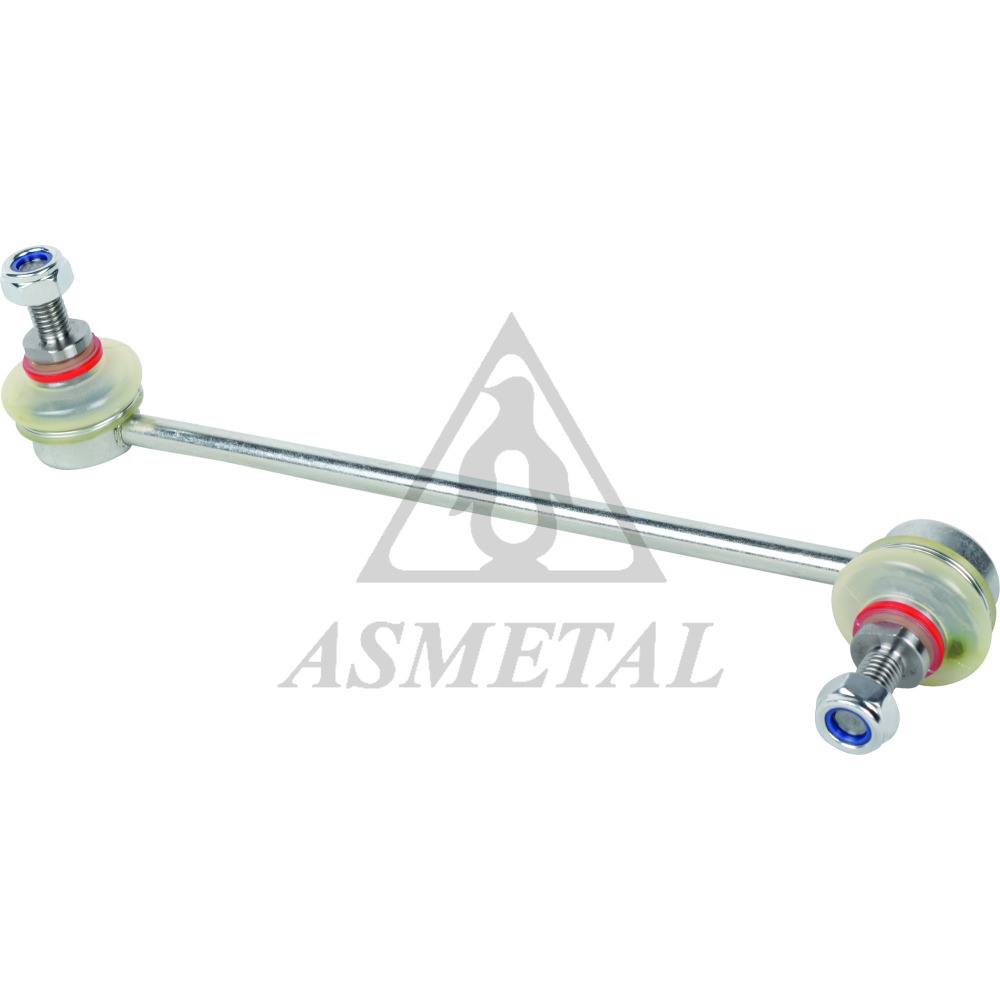

26MR0801
|
Stabiliser Link Right |
L:250mm / 0,35 kg |
A 638 323 03 68, 638 323 03 68 |
 |

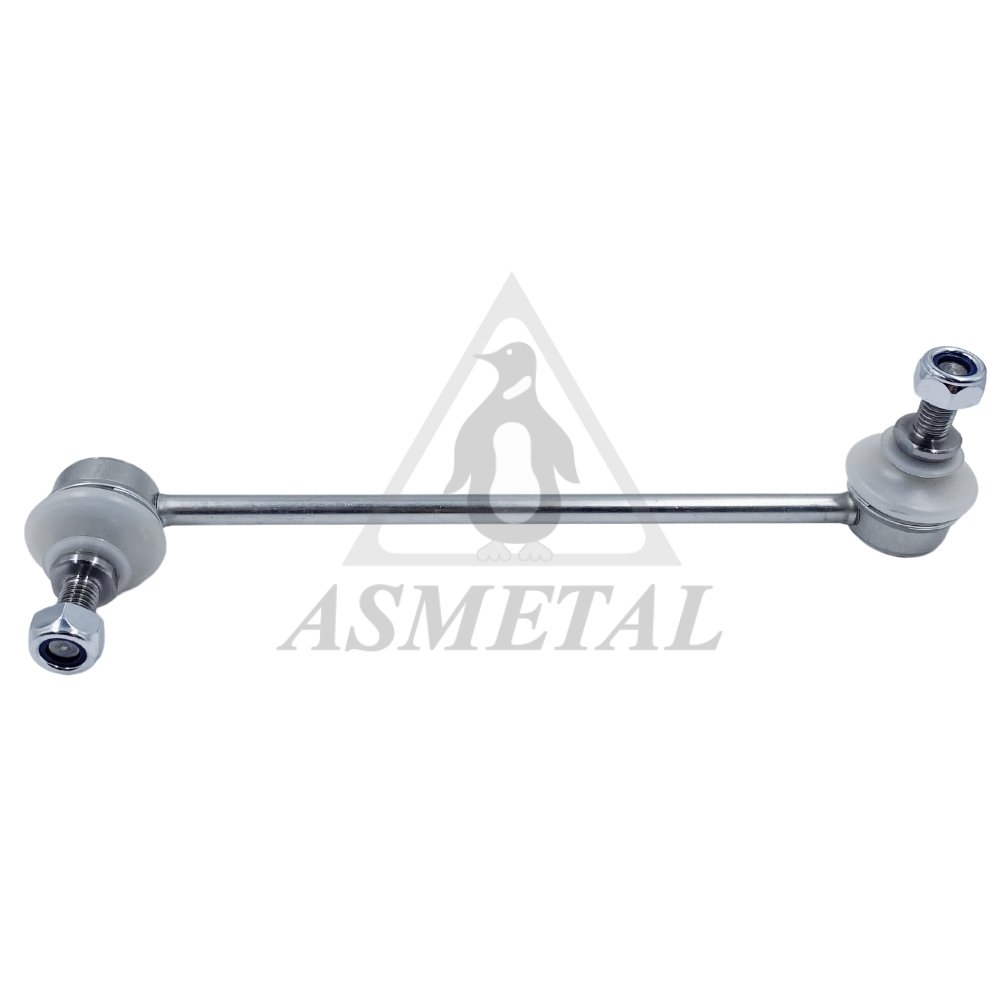

26MR0805
|
Stabiliser Link Left |
L:230mm / 0,36 kg |
638 323 04 68, A 638 323 04 68 |
 |

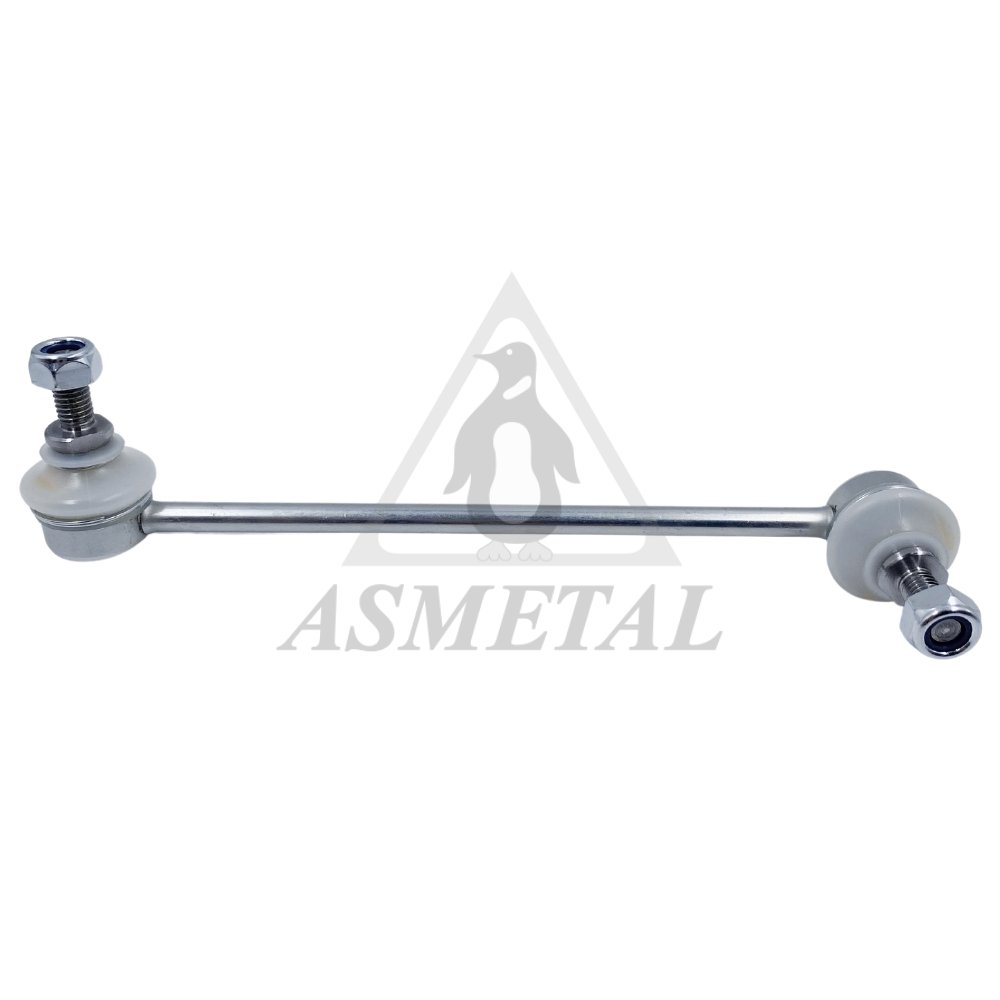

26MR0806
|
Stabiliser Link Right |
L:230mm / 0,36 kg |
638 323 05 68, A 638 323 05 68 |
 |
26MR0810
|
Stabiliser Link Rear |
L:104,7mm / 0,22 kg |
A 638 326 01 16, 638 326 01 16 (2) OEM |
 |
26MR0812
|
Stabiliser Link Left |
L: 285 / tp: MM12x1.5 / 0,44 kg |
639 320 09 89, A 639 320 09 89 |
 |

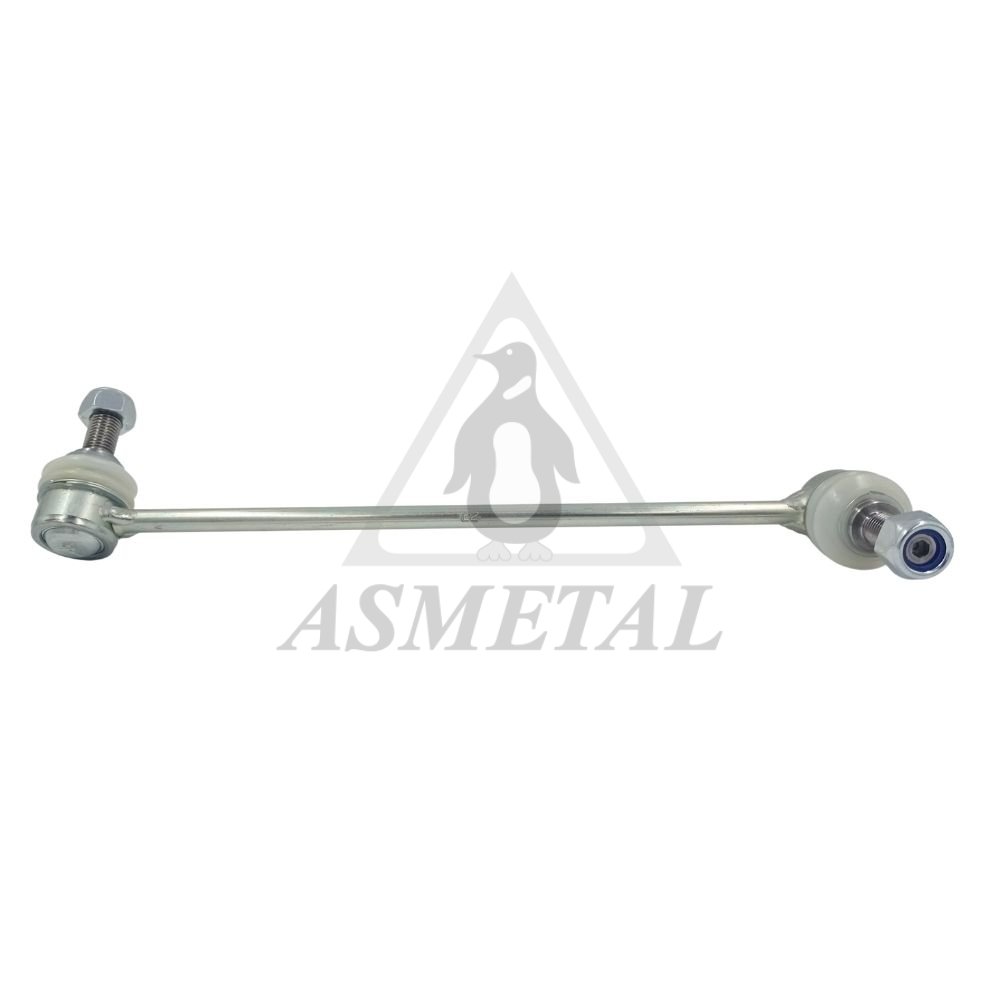

26MR0813
|
Stabiliser Link Right |
L: 285 / tp: MM12x1.5 / 0,44 kg |
639 320 10 89, A 639 320 10 89 |
 |

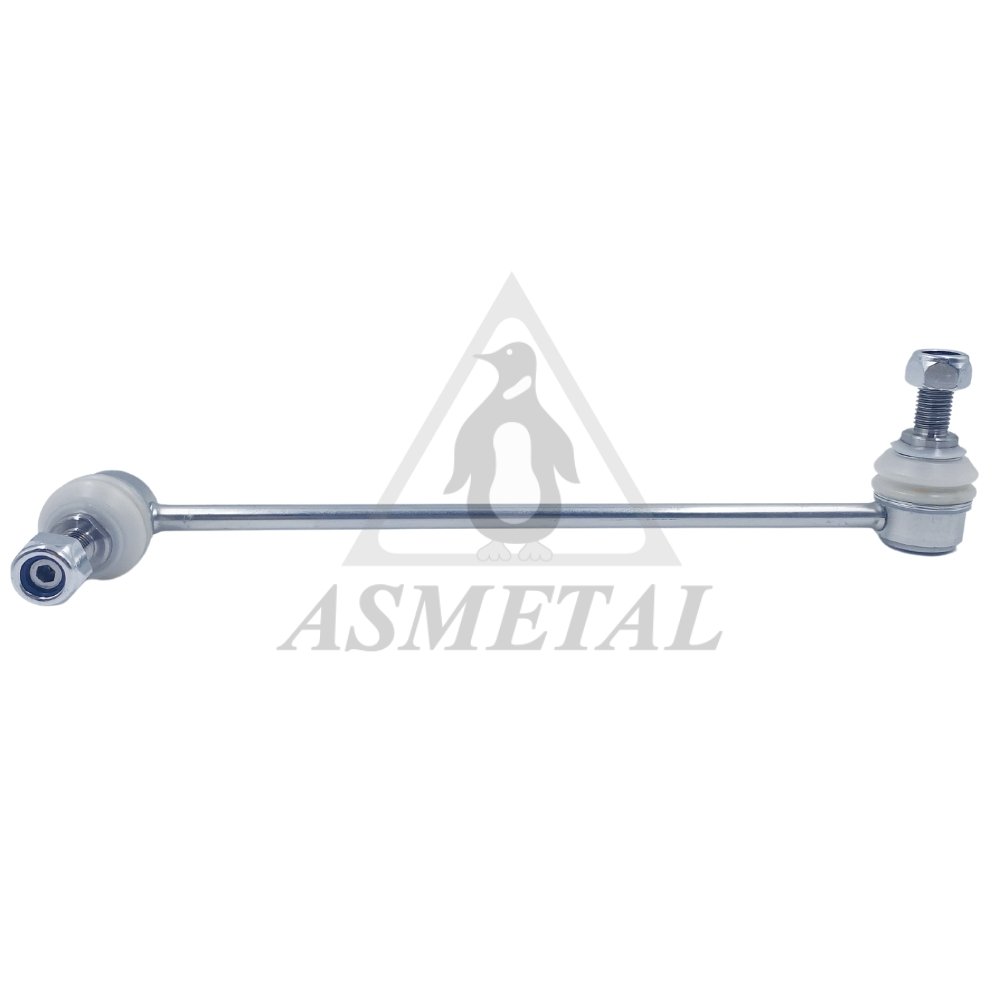

26MR0815
|
Stabiliser Link Right |
L:280mm / 0,43 kg |
A 639 320 05 89, 639 320 03 89 (4) OEM |
 |

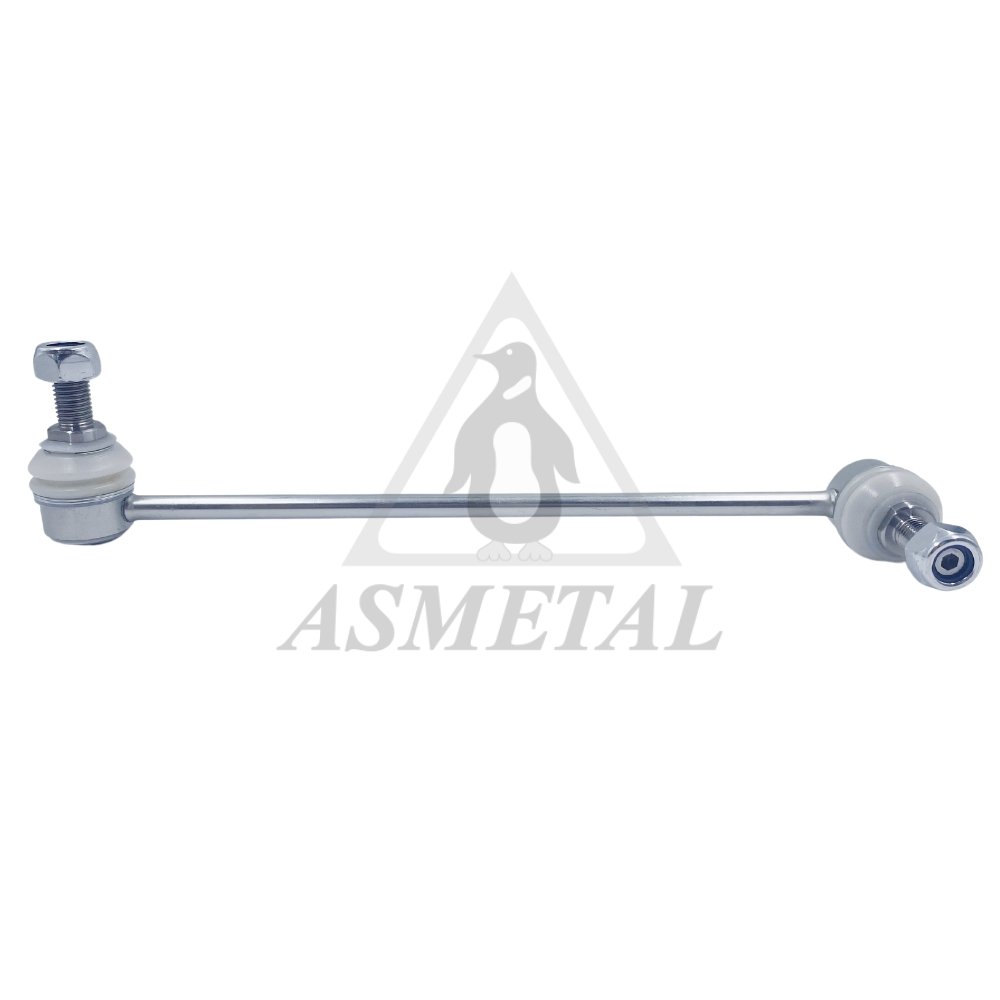

26MR0816
|
Stabiliser Link Left |
L:280mm / 0,43 kg |
639 320 04 89, A 639 320 02 89 (4) OEM |
 |
26MR0817
|
Stabiliser Link Rear |
d:Ø10.2 L:145mm / 0,24 kg |
A 639 326 02 16, 639 326 02 16 |
 |
26MR0818
|
Stabiliser Link Left |
L: 297 / tp: MM12x1.5 / 0,48 kg |
A 639 320 07 89, 639 320 07 89 |
 |

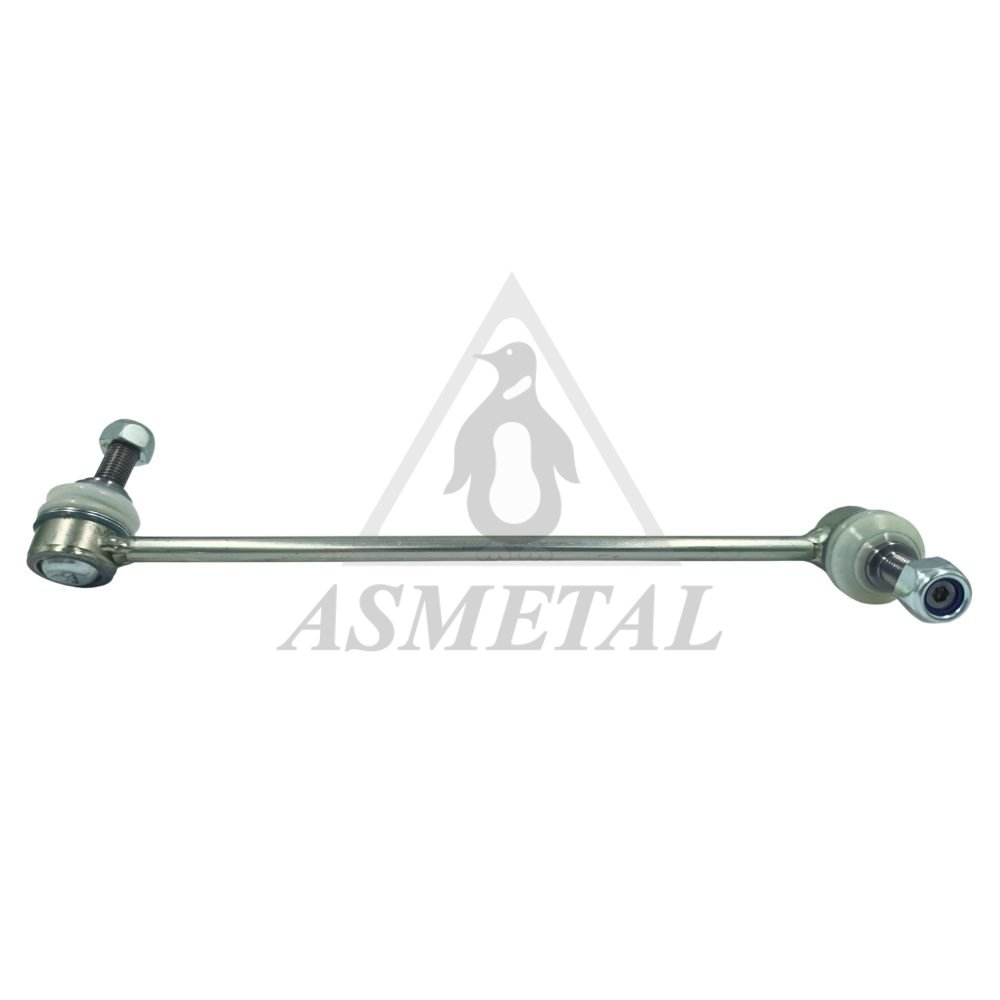

26MR0819
|
Stabiliser Link Right |
L: 297 / tp: MM12x1.5 / 0,48 kg |
639 320 08 89, A 639 320 08 89 |
 |
26MR0820
|
Stabiliser Link |
th:M12x1.5 RHT L:316mm / 0,52 kg |
A 447 320 04 89, 447 320 04 89 |
 |

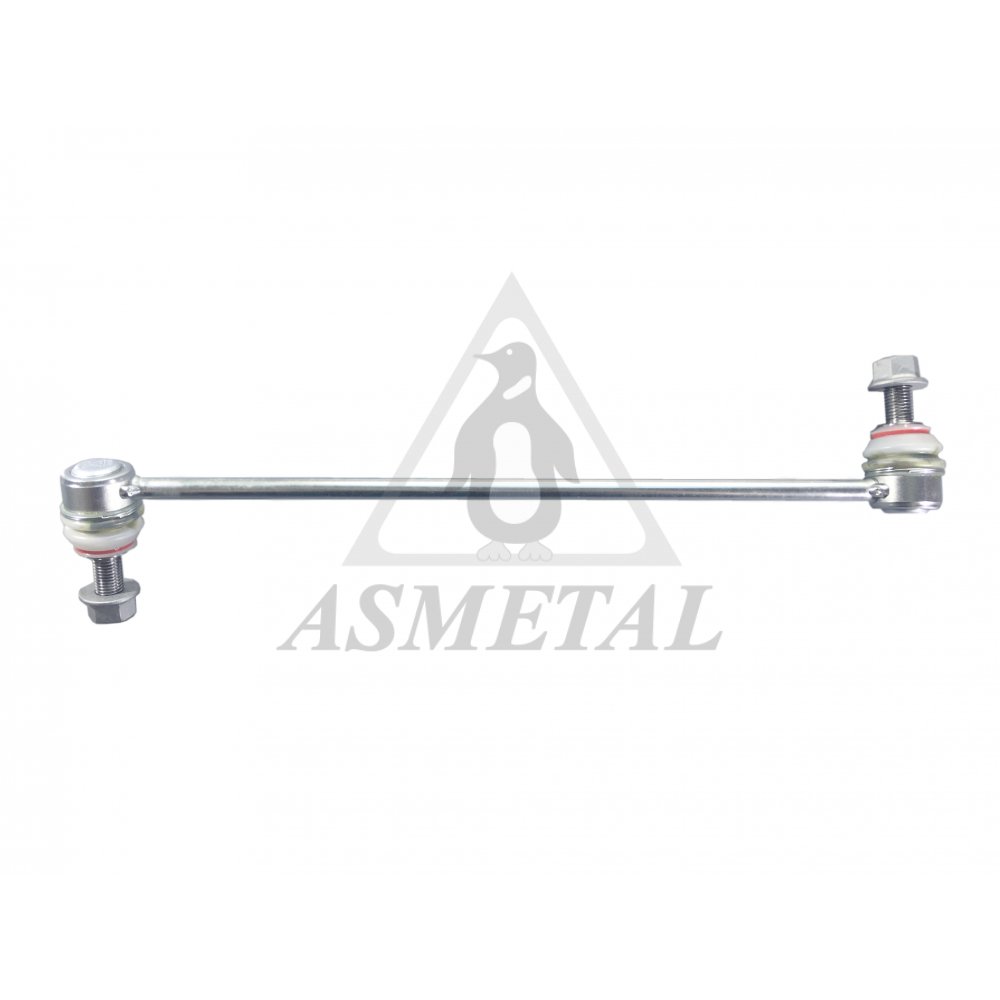

26MR0822
|
Stabiliser Link Left |
th:M12x1.5 RHT L:363mm / 0,54 kg |
A 447 320 00 89, 447 320 00 89 |
 |
26MR0823
|
Stabiliser Link Right |
th:M12x1.5 RHT L:363mm / 0,54 kg |
447 320 03 89, A 447 320 03 89 |
 |
26MR0824
|
Stabiliser Link Left |
th:M12x1.5 RHT L:347mm / 0,53 kg |
A 447 320 01 89, 447 320 01 89 |
 |
26MR0825
|
Stabiliser Link Right |
th:M12x1.5 RHT L:347mm / 0,53 kg |
A 447 320 02 89, 447 320 02 89 |
 |
26MR1000
|
Stabiliser Link Rear |
L:197,4mm Plastic / 0,11 kg |
124 320 02 89, A 124 320 02 89 |
 |
26MR1200
|
Stabiliser Link |
L:220mm / 0,36 kg |
168 320 11 89, A 168 320 10 89 (8) OEM |
 |
26MR1205
|
Stabiliser Link |
L:244mm / 0,36 kg |
169 320 09 89, A 169 320 09 89 |
 |
26MR1210
|
Stabiliser Link Rear |
L: 87 tp: MM10x1.5 / 0,16 kg |
169 320 05 89, A 169 320 05 89 |
 |
26MR1220
|
Stabiliser Link |
L:207mm / 0,38 kg |
414 320 03 89, 414 320 01 89 (4) OEM |
 |
26MR1300
|
Stabiliser Link Rear |
L:260mm / 0,38 kg |
A 211 320 08 89, A 211 320 33 89 (2) OEM |
 |
26MR1305
|
Stabiliser Link |
L:230mm / 0,35 kg |
140 320 35 89, A 140 320 35 89 (4) OEM |
 |
26MR1400
|
Stabiliser Link |
th:MM12x1.5 RHT L: 333mm / 0,42 kg |
54618 HG00A, 54616 5DA0A (5) OEM |
 |
26MR1420
IN PREPARATION
|
Stabiliser Link Rear |
0 kg |
246 320 04 89, A 246 320 04 89 |
 |
26MR1500
|
Stabiliser Link |
L: 339 TP: M12X1,5 / 0,54 kg |
247 320 76 03, 247 320 75 03 (4) OEM |
 |
26MR1600
IN PREPARATION
|
Stabiliser Link Left |
|
206 323 05 00, A 206 323 05 00 (2) OEM |
 |
26MR1601
IN PREPARATION
|
Stabiliser Link Right |
|
206 323 06 00, A 206 323 06 00 (2) OEM |
 |
26MR1605
IN PREPARATION
|
Stabiliser Link Rear |
|
206 326 01 00, A 206 326 01 00 |
 |
26MR1610
IN PREPARATION
|
Stabiliser Link Left |
|
206 323 09 00, 206 323 37 00 (2) OEM |
 |
26MR1611
IN PREPARATION
|
Stabiliser Link Right |
|
206 323 10 00, 206 323 38 00 (2) OEM |
 |
26MR1800
IN PREPARATION
|
Stabiliser Link Left |
0,58 kg |
205 323 09 17, A 205 323 09 17 |
 |
26MR1801
IN PREPARATION
|
Stabiliser Link Right |
0,58 kg |
205 323 10 17, A 205 323 10 17 |
 |
26MR1810
|
Stabiliser Link Rear Left |
L: 227 / 0,28 kg |
205 326 03 17, A 205 326 03 17 |
 |
26MR1811
|
Stabiliser Link Rear Right |
L: 227 / 0,28 kg |
205 326 04 17, A 205 326 04 17 |
 |
26MR1820
NEW
|
Stabiliser Link Left |
0,56 kg |
205 323 07 17, A 205 323 07 17 |
 |
26MR1821
NEW
|
Stabiliser Link Right |
0,56 kg |
205 323 08 17, A 205 323 08 17 |
 |
26MR1830
IN PREPARATION
|
Stabiliser Link Left |
0,58 kg |
253 323 01 17, A 253 323 01 17 |
 |
26MR1831
IN PREPARATION
|
Stabiliser Link Right |
0,58 kg |
253 323 02 17, A 253 323 02 17 |
 |

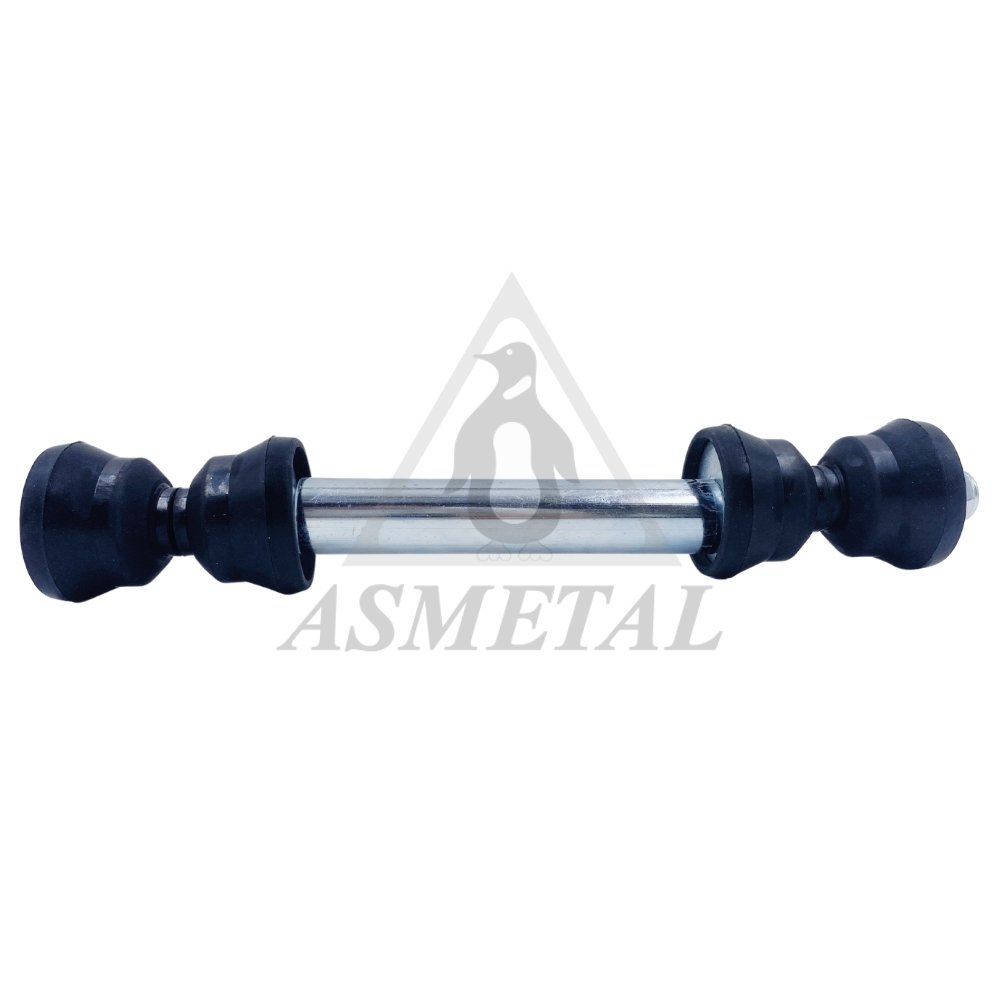

26MR2000
|
Stabiliser Link Rear |
L:222,3mm Plastic / 0,29 kg |
163 320 00 32, A 163 320 00 32 |
 |
26MR2300
|
Stabiliser Link Rear |
L:50,75mm Plastic / 0,13 kg |
A 123 320 09 89, 123 320 09 89 |
 |
26MR3200
|
Stabiliser Link |
L:276mm / 0,38 kg |
A 203 320 27 89, 203 320 38 89 (8) OEM |
 |
26MR3205
|
Stabiliser Link Rear Right |
L:185mm / 0,32 kg |
203 320 08 89, A 203 320 08 89 |
 |
26MR3206
|
Stabiliser Link Rear Left |
L:185mm / 0,32 kg |
203 320 07 89, A 203 320 07 89 |
 |
26MR3210
|
Stabiliser Link |
L: 276 / tp: MM12x1.5 / 0,58 kg |
203 320 26 89, A 203 320 26 89 (4) OEM |
 |
26MR3220
|
Stabiliser Link |
L: 289 / tp: MM12x1.5 / 0,64 kg |
203 320 18 89, 203 320 30 89 (2) OEM |
 |
26MR3600
|
Stabiliser Link Left |
L:306mm / 0,62 kg |
A 204 320 17 89, 204 320 17 89 (2) OEM |
 |
26MR3601
|
Stabiliser Link Right |
L:306mm / 0,62 kg |
204 320 38 89, A 204 320 18 89 (2) OEM |
 |
26MR3610
|
Stabiliser Link Left |
L:290 & M12x1.5 / 0,47 kg |
204 320 07 89, A 204 320 07 89 |
 |
26MR3611
|
Stabiliser Link Right |
L:290 & M12x1.5 / 0,47 kg |
A 204 320 22 89, 204 320 22 89 |
 |
26MR3620
|
Stabiliser Link Rear Left |
th:MM10x1.5 RHT L: 232mm / 0,31 kg |
204 320 05 89, A 204 320 05 89 |
 |
26MR3621
|
Stabiliser Link Rear Right |
th:MM10x1.5 RHT L: 232mm / 0,31 kg |
204 320 04 89, A 204 320 04 89 |
 |
26MR3630
IN PREPARATION
|
Stabiliser Link Left |
|
172 323 01 17, A 172 323 01 17 |
 |
26MR3631
IN PREPARATION
|
Stabiliser Link Right |
|
172 323 02 17, A 172 323 02 17 |
 |
26MR3700
IN PREPARATION
|
Stabiliser Link Left |
0 kg |
220 320 3389, A 220 320 3389 |
 |
26MR3701
IN PREPARATION
|
Stabiliser Link Right |
0 kg |
220 320 34 89, A 220 320 34 89 |
 |

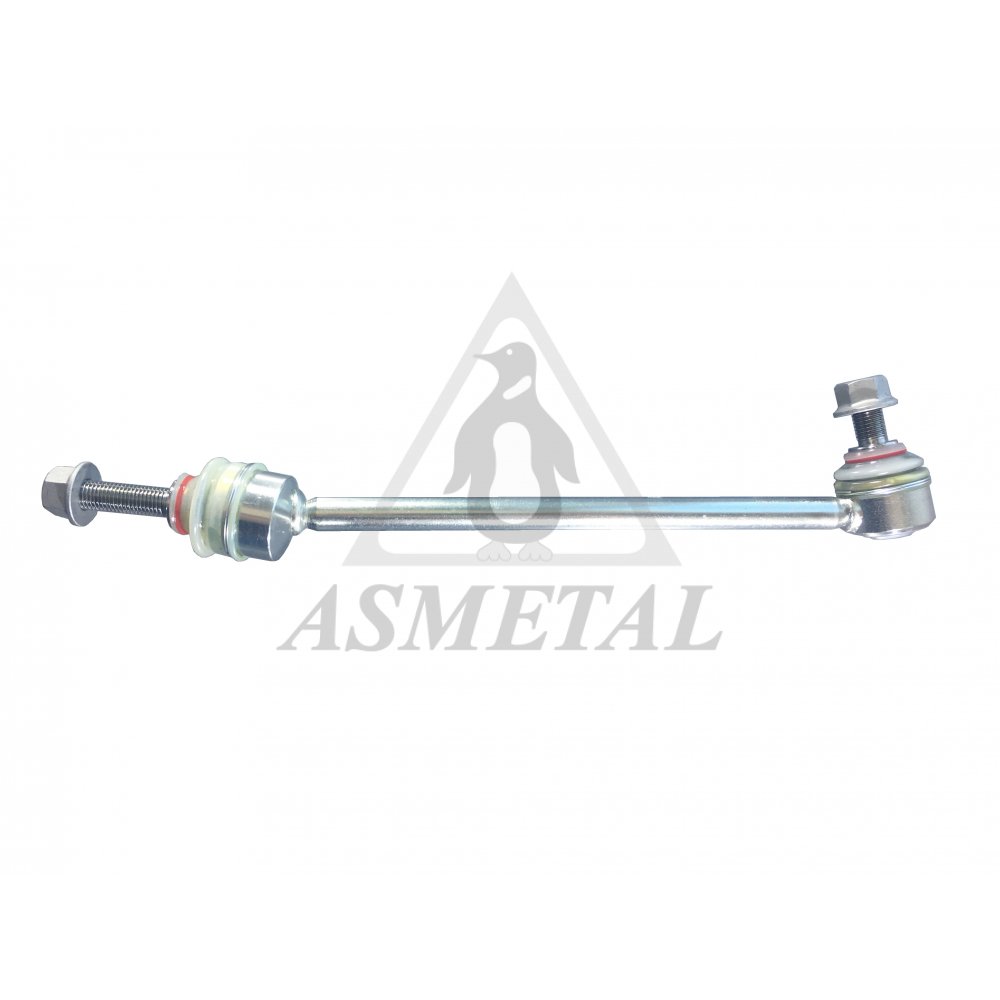

26MR3800
|
Stabiliser Link Left |
th1:M12x1.5 RHT L:293mm / 0,76 kg |
221 320 15 89, A 221 320 15 89 |
 |

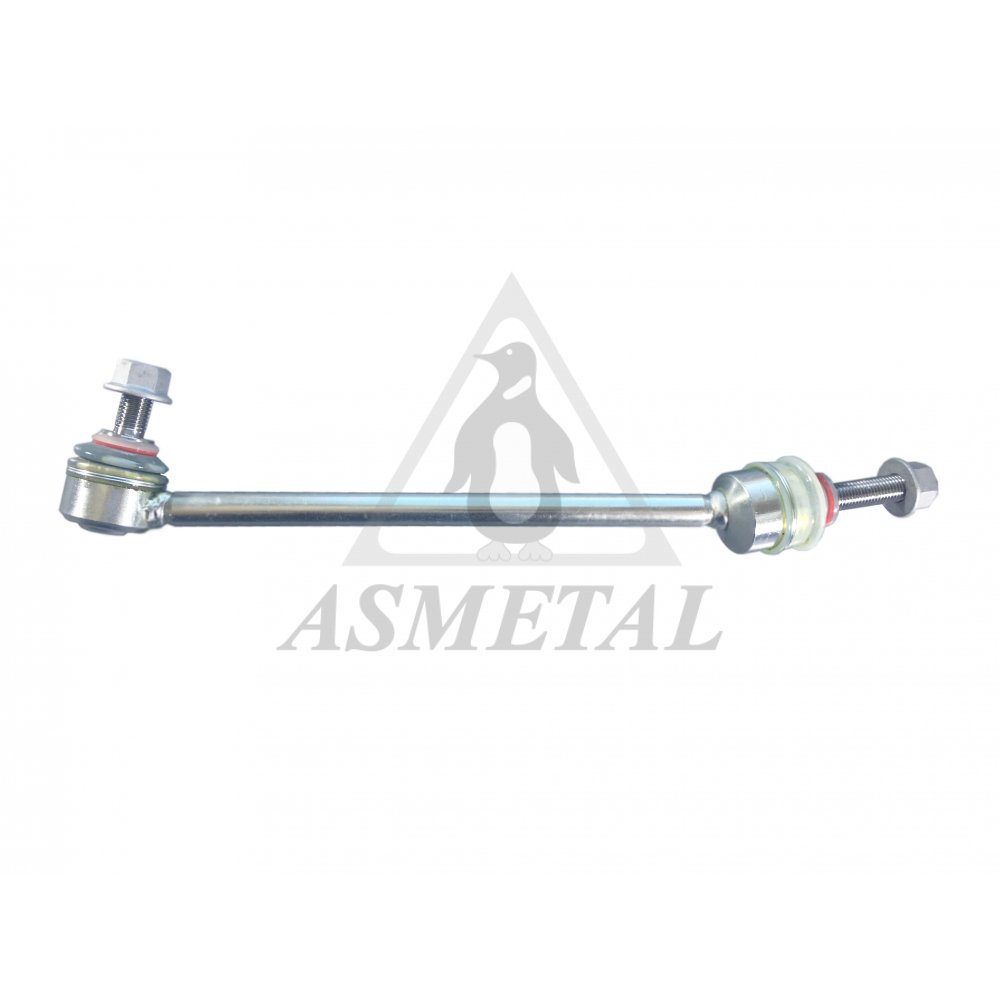

26MR3801
|
Stabiliser Link Right |
th1:M12x1.5 RHT L:293mm / 0,76 kg |
221 320 16 89, A 221 320 16 89 |
 |
26MR3802
|
Stabiliser Link Left |
th1:M12x1.5 RHT L:266mm / 0,6 kg |
221 320 01 89, A 221 320 01 89 |
 |

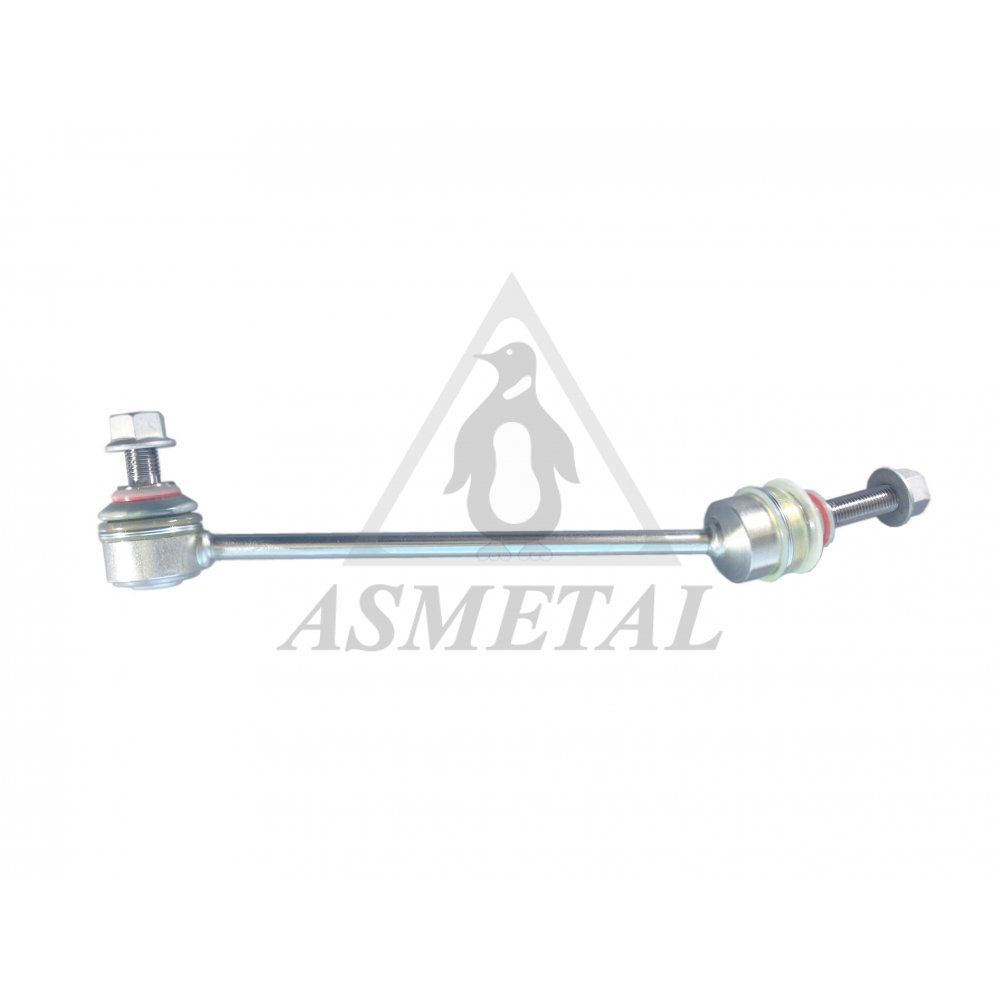

26MR3803
|
Stabiliser Link Right |
th1:M12x1.5 RHT L:266mm / 0,6 kg |
221 320 02 89, A 221 320 02 89 |
 |
26MR3850
IN PREPARATION
|
Stabiliser Link Rear Left |
0 kg |
221 320 19 89, A 221 320 19 89 |
 |
26MR3851
IN PREPARATION
|
Stabiliser Link Rear Right |
0 kg |
221 320 22 89, A 221 320 22 89 |
 |
26MR3900
NEW
|
Stabiliser Link Left |
0,62 kg |
A 222 320 17 89, 222 320 17 89 |
 |
26MR3901
NEW
|
Stabiliser Link Right |
0 kg |
222 320 16 89, A 222 320 16 89 |
 |
26MR3902
IN PREPARATION
|
Stabiliser Link Left |
0 kg |
A 222 320 11 89, 222 320 11 89 |
 |
26MR3903
IN PREPARATION
|
Stabiliser Link Right |
0 kg |
A 222 320 10 89, 222 320 10 89 |
 |
26MR4000
|
Stabiliser Link Left |
L:275 & M12x1.5 / 0,46 kg |
A 212 320 25 89, 212 320 25 89 |
 |
26MR4001
|
Stabiliser Link Right |
L:275 & M12x1.5 / 0,46 kg |
A 212 320 26 89, 212 320 26 89 |
 |
26MR4002
|
Stabiliser Link Left |
L:324 & M12x1.5 / 0,49 kg |
212 320 11 89, A 212 320 11 89 |
 |
26MR4003
|
Stabiliser Link Right |
L:324 & M12x1.5 / 0,49 kg |
212 320 12 89, A 212 320 12 89 |
 |
26MR4700
|
Stabiliser Link |
L:205mm / 0,68 kg |
A 251 320 12 32, 164 320 13 32 (4) OEM |
 |
26MR4800
|
Stabiliser Link Rear |
L:117mm / 0,56 kg |
164 320 12 32, A 164 320 12 32 |
 |
26MR4810
|
Stabiliser Link Left |
L: 360 / tp: MM12x1.5 / 0,78 kg |
166 320 07 89, A 166 320 07 89 (2) OEM |
 |
26MR4811
|
Stabiliser Link Right |
L: 360 / tp: MM12x1.5 / 0,78 kg |
166 320 08 89, A 166 320 08 89 (2) OEM |
 |
26RN5605
|
Stabiliser Link |
L:283mm / 0,36 kg |
A 415 320 00 00, 415 320 00 00 (5) OEM |
 |
26RN5700
|
Stabiliser Link |
L: 274 tp: MM10x1.5 / 0,41 kg |
54 61 888 97R, 54 61 870 05R (1) OEM |
 |
29MR3200
IN PREPARATION
|
Tie Rod Right |
|
220 338 07 15, 230 338 00 15 (8) OEM |
 |
29MR3201
IN PREPARATION
|
Tie Rod Left |
|
220 338 07 15, 230 338 00 15 (8) OEM |
 |
29MR3700
|
Tie Rod |
th: M14x1.5 RHT / cr: 1:10 / cs: Ø16.6 / tp: M16x1.5 / 1,23 kg |
230 330 02 03, 220 338 07 15 (12) OEM |
 |
30MR0100
|
Track Control Arm Left |
tp: M20x1,5 cr: 1:10 c: Ø23,55 / 7,1 kg |
68051756AA, 901 330 12 07 (9) OEM |
 |
30MR0101
|
Track Control Arm Right |
tp: M20x1,5 cr: 1:10 c: Ø23,55 / 7,1 kg |
68051757AA, A901 330 25 07 (9) OEM |
 |
30MR0102
|
Track Control Arm Left |
tp: M20x1,5 cr: 1:6 c: Ø21,82 / 8 kg |
906 330 46 07, A 906 330 46 07 (4) OEM |
 |
30MR0103
|
Track Control Arm Right |
tp: M20x1,5 cr: 1:6 c: Ø21,82 / 8 kg |
A 906 330 47 07, 906 330 41 07 (4) OEM |
 |
30MR0110
NEW
|
Track Control Arm Left (Without Ball Joint) |
7,35 |
910 330 25 00, A 910 330 25 00 |
 |
30MR0111
NEW
|
Track Control Arm Right (Without Ball Joint) |
7,35 kg |
A 910 330 26 00, 910 330 26 00 |
 |
30MR02
NEW
|
Track Control Arm Upper Left |
1,78 kg |
A 210 330 50 07, A 210 330 25 07 (16) OEM |
 |
30MR03
NEW
|
Track Control Arm Upper Right |
1,78 kg |
210 330 88 07, 210 330 23 07 (15) OEM |
 |
30MR0508
|
Track Control Arm Rear |
di: Ø12.2 / L: 314 / 0,7 kg |
124 350 01 29, 210 350 00 29 (4) OEM |
 |
30MR0509
|
Track Control Arm Rear |
0,67 kg |
201 350 47 06, A 210 350 33 06 (11) OEM |
 |
30MR0510
|
Track Control Arm Rear |
0,74 kg |
210 350 34 06, A 210 350 24 06 (14) OEM |
 |
30MR0800
|
Track Control Arm Left |
cs:Ø21.95 / 5,1 kg |
A 638 330 00 10, 638 330 00 10 |
 |
30MR0801
|
Track Control Arm Right |
cs:Ø21.95 / 5,1 kg |
638 330 01 10, A 638 330 01 10 |
 |
30MR0814
|
Track Control Arm Left |
cs:Ø22 / 5,36 kg |
A 639 330 08 10, 639 330 08 10 (2) OEM |
 |
30MR0815
|
Track Control Arm Right |
cs:Ø22 / 5,34 kg |
639 330 05 10, A 639 330 09 10 (2) OEM |
 |
30MR0816
|
Track Control Arm Left |
cs:Ø22 / 3 kg |
A 639 330 14 01, 639 330 14 01 (2) OEM |
 |
30MR0817
|
Track Control Arm Right |
cs:Ø22 / 3 kg |
A 639 330 15 01, 639 330 15 01 (2) OEM |
 |
30MR0822
IN PREPARATION
|
Track Control Arm Left |
0 kg |
447 330 14 07, A447 330 14 07 |
 |
30MR0823
IN PREPARATION
|
Track Control Arm Right |
0 kg |
447 330 15 07, A447 330 15 07 |
 |
30MR0824
IN PREPARATION
|
Track Control Arm Left |
|
447 330 31 00 |
 |
30MR0825
IN PREPARATION
|
Track Control Arm Right |
|
447 330 30 00 |
 |
30MR1204
IN PREPARATION
|
Track Control Arm Left |
0 kg |
169 330 05 07, 169 330 07 07 (4) OEM |
 |
30MR1205
IN PREPARATION
|
Track Control Arm Right |
0 kg |
169 330 06 07, 169 330 08 07 (4) OEM |
 |
30MR1206
IN PREPARATION
|
Track Control Arm Upper Left |
0 kg |
221 330 89 07, 221 330 03 07 (2) OEM |
 |
30MR1207
IN PREPARATION
|
Track Control Arm Upper Right |
0 kg |
221 330 90 07, 221 330 04 07 (2) OEM |
 |
30MR1208
IN PREPARATION
|
Track Control Arm Upper Left |
0 kg |
163 333 00 01, A 163 333 00 01 |
 |
30MR1209
IN PREPARATION
|
Track Control Arm Upper Right |
0 kg |
163 333 01 01, A 163 333 01 01 |
 |
30MR1400
IN PREPARATION
|
Track Control Arm Left |
0 kg |
242 330 07 00, A 242 330 07 00 (4) OEM |
 |
30MR1401
IN PREPARATION
|
Track Control Arm Right |
0 kg |
242 330 08 00, A 242 330 08 00 (4) OEM |
 |
30MR1420
|
Track Control Arm Rear |
cs:Ø12.2 L:327,5 mm / 1,34 kg |
55120 5DA0A, 246 350 10 06 (1) OEM |
 |
30MR1422
|
Track Control Arm Rear Left |
L:390.5mm / 1,68 kg |
246 350 04 06, 55502 5DA0A (1) OEM |
 |
30MR1423
|
Track Control Arm Rear Right |
L:390.5mm / 1,66 kg |
A 246 350 05 06, 246 350 05 06 (1) OEM |
 |
30MR4700
IN PREPARATION
|
Track Control Arm Left |
|
251 330 07 07, A251 330 07 07 |
 |
30MR4701
IN PREPARATION
|
Track Control Arm Right |
|
251 330 08 07, A251 330 08 07 |
 |
30MR4702
IN PREPARATION
|
Track Control Arm Left |
|
205 330 55 01, A205 330 55 01 |
 |
30MR4703
IN PREPARATION
|
Track Control Arm Right |
|
A 205 330 56 01, 205 330 56 01 |
 |
30MR4710
IN PREPARATION
|
Track Control Arm Left |
|
164 330 34 07, A 164 330 34 07 |
 |
30MR4711
IN PREPARATION
|
Track Control Arm Right |
|
164 330 35 07, A 164 330 35 07 |
 |
30MR4790
|
Track Control Arm Rear Left |
0,76 kg |
164 350 13 06, A 164 350 13 06 |
 |
30MR4791
|
Track Control Arm Rear Right |
0,76 kg |
164 350 16 06, A 164 350 16 06 |
 |
30MR4800
IN PREPARATION
|
Track Control Arm Left |
|
166 330 17 07, A 166 330 17 07 |
 |
30MR4801
IN PREPARATION
|
Track Control Arm Right |
|
166 330 18 07, A 166 330 18 07 |
 |
30MR4810
IN PREPARATION
|
Track Control Arm Left |
|
166 330 01 07, 292 330 07 00 (2) OEM |
 |
30MR4811
IN PREPARATION
|
Track Control Arm Right |
|
166 330 02 07, 292 330 08 00 (2) OEM |
 |
30RN5606
|
Track Control Arm Left |
c: Ø20 / 3,4 kg |
A 415 330 03 00, 415 330 03 00 (1) OEM |
 |
30RN5607
|
Track Control Arm Right |
c: Ø20 / 3,4 kg |
415 330 02 00, A 415 330 02 00 (1) OEM |
 |
38MR0100
|
Spring Bush Rear |
di:Ø12,2 do:Ø32,5 / 0,34 kg |
5118 731 AA, 901 324 00 50 (2) OEM |
 |
38MR0101
|
Shock Absorber Bushing |
di:Ø17,7 do:Ø32,5 / 0,03 kg |
000 323 73 85, 000 323 78 85 (4) OEM |
 |
38MR0105
|
Spring Bush Rear |
di:Ø12,2 do:Ø32,5 / 0,22 kg |
901 324 01 50, A 901 324 01 50 (1) OEM |
 |
38MR0110
|
Silentblock for TCA |
di:Ø14,1 do:Ø44 / 0,32 kg |
5133 818 AA, A901 333 02 14 (3) OEM |
 |
38MR0115
|
Spring Bush Rear |
di:Ø12,1 do:Ø49,2 / 0,42 kg |
5118 732 AA, 901 324 02 50 (3) OEM |
 |
38MR0118
|
Stabiliser Mounting |
di:Ø21,6 / 0,04 kg |
5104 073 AA, A 901 326 00 81 (2) OEM |
 |
38MR0119
|
Stabiliser Mounting |
di:Ø24,5 / 0,03 kg |
5104 577 AA, 904 323 00 85 (2) OEM |
 |
38MR0121
|
Silentblock for Stabiliser Link |
di:Ø16,1 do:Ø26 / 0,04 kg |
A 602 321 04 50, A 602 321 03 50 (6) OEM |
 |
38MR0122
|
Stabiliser Mounting |
di:Ø27 / 0,03 kg |
5128 604 AA, A 901 326 01 81 (1) OEM |
 |
38MR0123
|
Stabiliser Mounting |
di:Ø27 / 0,09 kg |
904 326 08 81, A 904 326 08 81 (1) OEM |
 |
38MR0124
|
Stabiliser Mounting |
di:Ø30 / 0,08 kg |
904 326 09 81, A 904 326 09 81 (1) OEM |
 |
38MR0125
|
Stabiliser Mounting |
di:Ø33 / 0,07 kg |
904 326 10 81, A 904 326 10 81 (1) OEM |
 |
38MR0128
|
Strut Mount |
di:Ø16,75 / 0,66 kg |
906 323 05 20, A 906 323 05 20 (2) OEM |
 |
38MR0129
|
Sientblock For Radiator |
di: Ø18 / L: 40 / 0,045 kg |
A 000 997 70 70, 000 997 70 70 |
 |
38MR0130
|
Strut Mount |
di:Ø16,2 / 0,64 kg |
639 323 05 20, A 639 323 05 20 (4) OEM |
 |
38MR0131
|
Mounting Leaf Spring |
0,21 kg |
6801 2190 AA, 906 322 06 19 (2) OEM |
 |
38MR0132
|
Mounting Leaf Spring |
0,25 kg |
A 906 322 00 19, 906 322 00 19 |
 |
38MR0133
|
Stabiliser Mounting |
di:Ø22,5 / 0,09 kg |
A 906 323 36 85, A 906 323 16 85 (4) OEM |
 |
38MR0134
|
Stabiliser Mounting |
di:Ø20 / 0,15 kg |
906 323 37 85, 906 323 36 85 (6) OEM |
 |
38MR02
|
Silentblock for TCA |
di: Ø12.1 / do: Ø31.5 / L: 43 / 0,08 kg |
124 352 43 65, A 124 352 43 65 (8) OEM |
 |
38MR03
|
Silentblock for TCA |
di:Ø10.2 do:Ø48.2 L:99.5mm / 0,25 kg |
5101 057 AA, 5101 056 AA (4) OEM |
 |
38MR0500
|
Bellow Driveshaft |
di:Ø25 / 0,18 kg |
631 330 01 85 S2, 631 330 01 85 (1) OEM |
 |
38MR0501
|
Bellow Driveshaft |
di:Ø24 / 0,14 kg |
000 337 00 85, A 000 330 16 85 |
 |
38MR0502
|
Bellow Driveshaft |
di:Ø22 / 0,14 kg |
A 124 357 02 91, A 124 350 01 37 (6) OEM |
 |
38MR0503
|
Silentblock for Stabiliser Link |
di:Ø12,1 do:Ø32,5 / 0,1 kg |
A 667 320 00 73, 667 320 00 73 (3) OEM |
 |
38MR0504
NEW
|
Silentblock for TCA |
0,27 kg |
A 202 460 03 19, 202 460 03 19 |
 |
38MR0505
|
Silentblock for Stabiliser Link |
di:Ø18,5 do:Ø39,5 / 0,06 kg |
124 323 23 85, 124 323 49 85 (2) OEM |
 |
38MR0506
|
Silentblock for Stabiliser Link |
di:Ø22 do:Ø39,5 / 0,04 kg |
201 323 48 85, A 201 323 48 85 (2) OEM |
 |
38MR0507
|
Silentblock for Stabiliser Link |
di:Ø24 do:Ø44,5 / 0,06 kg |
124 323 54 85, 124 323 37 85 (1) OEM |
 |
38MR0508
|
Silentblock for TCA |
di:Ø11 do:Ø36,2 L:38 / 0,11 kg |
124 352 35 65, 124 350 05 75 |
 |
38MR0509
|
Silentblock for TCA |
di:Ø12,2 do:Ø36 / 0,08 kg |
A 124 352 34 65, 124 352 90 65 (6) OEM |
 |
38MR0510
|
Silentblock for TCA |
do:Ø70,6 / 0,4 kg |
A 203 333 09 14, 203 333 03 14 (2) OEM |
 |
38MR0511
|
Silentblock for TCA |
do:Ø70,4 / 0,34 kg |
A 211 333 28 14, 211 333 25 14 (4) OEM |
 |
38MR0512
|
Silentblock for TCA |
do:Ø70,6 / 0,38 kg |
A 211 333 11 14, 211 333 11 14 |
 |
38MR0514
|
Mounting Kit |
di:Ø18 do:Ø38 / 0,26 kg |
A 124 320 00 47, 124 320 18 47 (2) OEM |
 |
38MR0515
|
Shock Absorber Bushing |
di:Ø10,3 / 0,05 kg |
124 320 20 31, A 124 320 20 31 |
 |
38MR0516
|
Stabiliser Mounting |
di:Ø21,5 / 0,06 kg |
901 323 01 85, A 901 323 01 85 (4) OEM |
 |
38MR0517
|
Silentblock for TCA |
di:Ø20 do:Ø50 / 0,3 kg |
210 333 55 14, A 210 333 55 14 |
 |
38MR0518
|
Silentblock for TCA |
di:Ø14,2 do:Ø60,2 / 0,27 kg |
A 202 333 64 14, 170 330 00 75* (3) OEM |
 |
38MR0519
|
Silentblock for TCA |
di:Ø20 / 0,25 kg |
202 330 00 75*, 202 333 67 14 (2) OEM |
 |
38MR0520
|
Silentblock for TCA |
di:Ø15,25 do:Ø60 / 1,28 kg |
A 208 330 00 75, 208 330 00 75 |
 |
38MR0521
|
Silentblock for TCA |
di:Ø15,3 do:Ø60 / 0,56 kg |
203 330 04 07*, 202 330 00 75* (3) OEM |
 |
38MR0522
|
Silentblock for TCA |
di:Ø12.2 do: Ø36.2 L:38mm / 0,15 kg |
210 350 33 06*, 210 352 09 65 (1) OEM |
 |
38MR0523
|
Mounting Axle Body |
di: Ø17 / do: Ø98 / L: 67 / 0,35 kg |
201 351 28 42, A 201 351 28 42 (2) OEM |
 |
38MR0524
|
Silentblock for TCA |
di: Ø 12,5 / do: Ø33,5 / L: 57,7 / 0,12 kg |
A 124 352 36 65, 202 352 01 65 (10) OEM |
 |
38MR0525
|
Mounting Axle Body |
di: Ø12.5 / do: Ø66.5 / L: 57 / 0,22 kg |
124 351 19 42, 201 351 27 42 (2) OEM |
 |
38MR0600
|
Stabiliser Link Left |
di:Ø14,2 / 0,53 kg |
211 320 39 89, 211 320 09 89 (2) OEM |
 |
38MR0601
|
Stabiliser Link Right |
di:Ø14,2 / 0,53 kg |
A 211 320 38 89, A 211 320 10 89 (2) OEM |
 |
38MR0610
|
Silentblock for TCA |
di:Ø14,2 do:Ø52,5 / 0,16 kg |
211 333 19 14, A 211 333 19 14 |
 |
38MR0615
|
Silentblock for TCA |
di:Ø12,2 do:Ø51,2 / 0,26 kg |
A 220 352 13 65, A 204 352 10 65 (6) OEM |
 |
38MR0617
|
Silentblock for TCA |
di:Ø12,2 do:Ø38,5 / 0,08 kg |
A 230 352 15 65, A 205 352 05 08 (4) OEM |
 |
38MR0700
|
Silentblock for Stabiliser Link |
di:Ø9 do:Ø26 / 0,02 kg |
901 323 02 85, A 901 323 02 85 (1) OEM |
 |
38MR0705
|
Silentblock for TCA |
di:Ø24 do:Ø44,5 / 0,52 kg |
203 333 02 14, 211 333 29 14 (6) OEM |
 |
38MR0706
|
Silentblock for TCA |
di:Ø15 do:Ø70,5 / 0,56 kg |
A 204 333 11 14, 204 333 11 14 (10) OEM |
 |
38MR0706K
IN PREPARATION
|
Silentblock for TCA Set |
0 kg |
A 203 333 10 14, A 204 333 10 14 (4) OEM |
 |
38MR0707
|
Mounting Axle Body |
di: Ø15 / do: Ø44 / L: 74,1 / 0,27 kg |
204 351 04 42, 205 351 02 00 (2) OEM |
 |
38MR0710
|
Silentblock for Stabiliser Link |
di:Ø12,1 do:Ø25,7 / 0,04 kg |
5103 955AB, A 601 321 03 50 (3) OEM |
 |
38MR0805
|
Silentblock for TCA |
di:Ø14.2 do:Ø42 L:75mm / 0,25 kg |
A 638 333 00 14, 639 333 03 14 (4) OEM |
 |
38MR0808
|
Mounting Axle Body |
di: Ø35 / do: Ø79 / L: 65,5 / 0,431 kg |
638 317 09 12, A 638 317 03 12 (2) OEM |
 |
38MR0816
|
Silentblock for TCA Left |
di:Ø25.8 do: Ø70.5 L:62.5mm / 0,68 kg |
639 333 08 14, A 639 333 08 14 (5) OEM |
 |
38MR0817
|
Silentblock for TCA Right |
di:Ø25.8 do: Ø70.5 L:62.5mm / 0,68 kg |
A 639 333 09 14, 639 330 12 07* (5) OEM |
 |
38MR0818
|
Silentblock for TCA |
di:Ø14.3 do: Ø70.5 L:60mm / 0,44 kg |
A 639 330 15 01, 639 330 15 01* (6) OEM |
 |
38MR0820
|
Stabiliser Mounting |
di:Ø24 L:53mm / 0,08 kg |
A 638 323 02 85, A 906 326 09 81 (3) OEM |
 |
38MR0825
NEW
|
Silentblock for TCA |
0,69 kg |
447 333 05 14, A 447 333 05 14 (4) OEM |
 |
38MR0827
NEW
|
Silentblock for Stabiliser Link |
0,0400 kg |
639 326 02 16*, A 639 326 02 16* |
 |
38MR0837
NEW
|
Silentblock for Stabiliser Link |
0,02 kg |
639 326 02 16*, A 639 326 02 16* |
 |
38MR0840
|
Silentblock for TCA |
di: Ø14,5 / do: Ø63,2 / L: 75 / 0,52 kg |
447 333 04 00, 447 330 31 00 (2) OEM |
 |
38MR0888
|
Spring Bush Rear |
di: Ø15 / do: Ø75.5 / L: 66 / 0,3141 kg |
639 350 61 01, 639 350 05 42 (2) OEM |
 |
38MR0900
|
Silentblock for TCA |
di:Ø12,2 do:Ø39,8 / 0,08 kg |
164 350 13 06*, 164 350 14 06* (3) OEM |
 |
38MR0901
|
Silentblock for TCA |
di:Ø12.2 do: Ø39.6 L:41.3mm / 0,08 kg |
164 350 14 06*, 164 350 02 75 (3) OEM |
 |
38MR1004
|
Stabiliser Link Right |
di:Ø14,2 do:Ø60 / 0,58 kg |
220 320 15 89, A 220 320 15 89 |
 |
38MR1005
|
Stabiliser Link Left |
di:Ø14,2 do:Ø60 / 0,58 kg |
220 320 16 89, A 220 320 16 89 |
 |
38MR1100
|
Stabiliser Mounting |
di:Ø23 / 0,03 kg |
A 601 326 04 82, 601 326 04 82 |
 |
38MR1110
|
Silentblock for TCA |
di:Ø12,1 do:Ø33 / 0,18 kg |
321 00 50, 321 01 50 (4) OEM |
 |
38MR1120
|
Stabiliser Mounting |
di:Ø32,5 / 0,08 kg |
602 326 02 82, A 602 326 02 82 |
 |
38MR1121
|
Stabiliser Mounting |
d:Ø30 L:48.5mm / 0,09 kg |
602 326 08 82, A 602 326 08 82 |
 |
38MR1200
|
Silentblock for TCA |
di:Ø14,1 do:Ø70,5 / 0,47 kg |
A 638 333 08 14, 638 333 08 14 |
 |
38MR1204
|
Silentblock for TCA |
di: Ø19.9 / do: Ø46 / L: 41.9 / 0,222 kg |
169 333 01 14, A 169 333 01 14 |
 |
38MR1211
|
Silentblock for TCA |
di: Ø14 / do: Ø60,3 / L: 116,8 / 0,37 kg |
A 169 330 08 07*, A 169 333 00 14 (10) OEM |
 |
38MR1212
|
Silentblock for TCA |
di:Ø12.1 do:Ø61 L:52.5mm / 0,17 kg |
A 168 333 06 14, 168 333 02 14 (2) OEM |
 |
38MR1213
NEW
|
Silentblock for TCA |
0,19 kg |
168 333 07 14, 168 333 00 14 (2) OEM |
 |
38MR1220
|
Silentblock for TCA |
di: Ø13.4 / do: Ø60.3 / L: 52.7 / 0,182 kg |
414 333 00 14, A 414 333 00 14 |
 |
38MR1300
|
Mounting Axle Body |
di:Ø16,6 do:Ø62,5 / 0,25 kg |
168 350 14 08, 168 351 01 42 (2) OEM |
 |
38MR1400
NEW
|
Silentblock for TCA Left |
di: Ø14.3 / L: 172 / 0,67 kg |
54501 5DA0A*, 246 333 01 00 (1) OEM |
 |
38MR1401
NEW
|
Silentblock for TCA Right |
di: Ø14.3 / L: 172 / 0,67 kg |
54500 5DA0A*, 246 333 02 14 (1) OEM |
 |
38MR1402
|
Silentblock for TCA |
0,19 kg |
54500 5DA0A*, 54501 5DA0A* (32) OEM |
 |
38MR1414
|
Silentblock for TCA |
di: Ø12.1 / do: Ø45.1 / L: 77.8 / 0,172 kg |
246 352 01 00, A 246 352 01 00 (2) OEM |
 |
38MR1420
|
Silentblock for TCA |
di: Ø12.2 / do: Ø47 / L: 50 / 0,1270 kg |
55046 5DA0A, 247 352 16 00 (4) OEM |
 |
38MR1421
|
Silentblock for TCA |
di: Ø12 / do: Ø50,5 / L: 70.5 / 0,27 kg |
414 333 01 14, 414 330 03 07 (8) OEM |
 |
38MR1500
|
Silentblock for TCA Left |
di: Ø14.3 / 0,6 kg |
247 333 05 00, A 247 333 05 00 |
 |
38MR1501
|
Silentblock for TCA Right |
di: Ø14.3 / 0,61 kg |
247 333 06 00, A 247 333 06 00 |
 |
38MR1502
NEW
|
Silentblock for TCA |
0,3 kg |
177 330 74 00*, A 177 330 74 00* (2) OEM |
 |
38MR1800
|
Silentblock for TCA |
di:Ø14 do: Ø45 L:47.8mm / 0,18 kg |
205 330 62 01*, 205 333 02 14 (4) OEM |
 |
38MR1801
|
Silentblock for TCA |
di:Ø14.2 do: Ø72.5 L:80mm / 0,44 kg |
222 330 01 07*, 231 333 03 14 (8) OEM |
 |
38MR1802
|
Silentblock for TCA |
di: Ø14.5 / do: Ø56.8 / L: 60 / 0,24 kg |
205 333 04 14, 205 330 58 01* (6) OEM |
 |
38MR1805
NEW
|
Silentblock for TCA |
0,18 kg |
205 333 03 14, A 205 333 03 14 (4) OEM |
 |
38MR1840
IN PREPARATION
|
Silentblock for TCA |
di: Ø14.2 / do: Ø75.4 / L: 80 / 0,499 kg |
213 330 21 00*, 213 330 22 00* (4) OEM |
 |
38MR2500
|
Silentblock for TCA |
di:Ø15 do:Ø60 / 0,5 kg |
A 210 333 68 14, 210 333 68 14 (2) OEM |
 |
38MR3105
OUT OF SERVICE
|
Mounting Axle Body |
di:Ø36,2 do:Ø58 / 0,35 kg |
673 320 01 50, A 673 320 01 50 |
 |
38MR3200
OUT OF SERVICE
|
Mounting Axle Body |
di:Ø17,1 do:Ø45,5 / 0 kg |
673 320 00 50, A 673 320 00 50 |
 |
38MR3210
|
Silentblock for TCA |
di: Ø12.2 / do: Ø51.4 / L: 58 / 0,29 kg |
203 352 00 65, A 203 352 00 65 |
 |
38MR3214
|
Silentblock for TCA |
0,22 kg |
204 330 68 11*, 204 333 04 14 (4) OEM |
 |
38MR3230
|
Stabiliser Mounting |
di:Ø21 L:42mm / 0,05 kg |
203 323 06 85, A 203 323 20 85 (2) OEM |
 |
38MR3232
|
Silentblock for TCA |
di: Ø24 / do: Ø75.5 / L: 80 / 0,35 kg |
220 333 17 14, 220 333 31 14 (10) OEM |
 |
38MR3502
|
Silentblock for TCA |
di: Ø 10 / do: Ø60,5 / L: 62 / 0,19 kg |
211 330 68 07, A 211 330 68 07 (8) OEM |
 |
38MR3510
|
Stabiliser Mounting |
di: Ø27 do: Ø65.5 L: 47 / 0,12 kg |
210 323 15 85, A 210 323 15 85 |
 |
38MR3535
|
Mounting Axle Body |
di: Ø14.5 / do: Ø66.1 / L: 55 / 0,27 kg |
211 351 11 42, A 211 351 11 42 (2) OEM |
 |
38MR3610
|
Silentblock for TCA |
di:Ø14.9 do: Ø55.4 L:60mm / 0,22 kg |
204 330 80 11*, A 204 330 80 11* (2) OEM |
 |
38MR3700
|
Silentblock for TCA |
di: Ø10.1 / do: Ø49 / L: 74 / 0,21 kg |
A 230 333 03 14, 230 333 03 14 (4) OEM |
 |
38MR3720
|
Silentblock for TCA |
di: Ø12.2 / do: Ø41.6 / L: 38 / 0,076 kg |
140 352 44 65, A 140 352 44 65 (2) OEM |
 |
38MR3800
|
Silentblock for TCA |
di:Ø17.5 do: Ø68 L:80mm / 0,31 kg |
220 330 43 11, 220 330 33 11 (10) OEM |
 |
38MR3805
|
Silentblock for TCA |
di: Ø14.4 / do: Ø72 / L: 80 / 0,45 kg |
221 333 08 14, A 221 333 08 14 |
 |
38MR3808
NEW
|
Silentblock for TCA |
0,49 kg |
221 333 07 14, A 221 333 07 14 |
 |
38MR3814
NEW
|
Silentblock for TCA |
0,08 kg |
221 350 02 06*, 221 350 10 06* (10) OEM |
 |
38MR3815
NEW
|
Silentblock for TCA |
0,09 kg |
221 350 02 06*, A 221 350 02 06* (10) OEM |
 |
38MR3816
NEW
|
Silentblock for TCA |
0,08 kg |
221 352 13 65, A 221 352 13 65 (9) OEM |
 |
38MR3817
NEW
|
Silentblock for TCA |
0,08 kg |
A 221 350 04 06*, A 221 350 06 06* (18) OEM |
 |
38MR3818
NEW
|
Silentblock for TCA |
0,08 kg |
221 350 11 53*, 221 350 12 53* (4) OEM |
 |
38MR3819
NEW
|
Silentblock for TCA |
0,11 kg |
221 352 22 65, A 221 352 22 65 (4) OEM |
 |
38MR3838
|
Mounting Axle Body |
di: Ø17.2 / do: Ø83 / L: 79 / 0,6 kg |
221 351 12 42, A 221 351 12 42 |
 |
38MR3900
IN PREPARATION
|
Silentblock for TCA |
0 kg |
222 350 14 02*, 222 350 13 02* (2) OEM |
 |
38MR3901
IN PREPARATION
|
Silentblock for TCA |
0 kg |
222 350 14 02*, 222 350 13 02* (2) OEM |
 |
38MR4000
|
Silentblock for TCA |
di:Ø14.5 do: Ø75.2 L:80mm / 0,42 kg |
A 212 333 00 14, 212 333 00 14 |
 |
38MR4001
|
Silentblock for TCA |
di:Ø14.2 do: Ø53 L:80mm / 0,23 kg |
212 330 29 11*, 212 330 39 00 (10) OEM |
 |
38MR4009
|
Mounting Axle Body |
di: Ø18 / do: Ø77 / L: 77.5 / 0,52 kg |
204 351 03 42, 204 351 08 42 (2) OEM |
 |
38MR4700
|
Silentblock for TCA |
di:Ø16.2 do: Ø52.3 L:82mm / 0,27 kg |
164 333 03 14, A 164 333 03 14 |
 |
38MR4701
|
Silentblock for TCA |
di:Ø14.1 do: Ø57.3 L:64.5mm / 0,26 kg |
68022 612AB, 5168 159AB* (7) OEM |
 |
38MR4702
|
Silentblock for TCA Left |
di:Ø30 L:55.5mm / 0,72 kg |
164 330 07 43, 164 330 29 07* (5) OEM |
 |
38MR4703
|
Silentblock for TCA Right |
di:Ø30 L:55.5mm / 0,71 kg |
164 330 18 07*, 164 330 26 07* (2) OEM |
 |
38MR4704
|
Silentblock for TCA Left |
di: Ø26 / do: Ø70 / L: 55.2 / 0,73 kg |
A 166 330 01 43, 166 330 01 43 |
 |
38MR4705
|
Silentblock for TCA Right |
di: Ø26 / do: Ø70 / L: 55.2 / 0,73 kg |
A 166 330 02 43, 166 330 02 43 |
 |
38MR4710
|
Silentblock for TCA |
di:Ø10.2 do: Ø46.2 L:45mm / 0,13 kg |
A 251 333 01 14, 166 331 02 14 (2) OEM |
 |
38MR4711
|
Silentblock for TCA |
di:Ø16.2 do: Ø50.2 L:62mm / 0,39 kg |
166 326 02 81, 164 326 06 81 (2) OEM |
 |
38RN5541
|
Silentblock for TCA |
di:Ø12 do:Ø33,1 / 0,16 kg |
82 00 242 025, 54 50 401 31R* (5) OEM |
 |
38RN5542
|
Silentblock for TCA |
di:Ø12,2 do:Ø58 / 0,26 kg |
82 00 298 455*, 82 00 041 166 (5) OEM |
 |
38RN5710
|
Silentblock for TCA |
di:Ø18.5 do:Ø55 L:50.5mm / 0,24 kg |
54 50 567 11R*, 54 50 547 33R* (5) OEM |
 |
38VW5001
|
Stabiliser Mounting |
di:Ø20 / 0,1 kg |
A 906 323 14 85, 906 323 35 85 (4) OEM |
 |
38VW5010
|
Silentblock for TCA |
di:Ø14,2 do:Ø50,5 / 0,37 kg |
6 801 216 9AA, 906 333 00 14 (3) OEM |
 |
38VW5020
|
Silentblock for TCA |
di:Ø14,2 do:Ø50,5 / 0,36 kg |
A 906 333 01 14, 906 333 01 14 (2) OEM |
 |
38VW5030
OUT OF SERVICE
|
Mounting Axle Body |
0,36 kg |
611 324 04 50, A 611 324 03 50 (3) OEM |
 |
40MR0100
|
Bearing Drive Shaft |
di:Ø45 h:138mm thi:52mm / 0,94 kg |
901 411 0312, 901 411 0412 (3) OEM |
 |
40MR0105
|
Bearing Drive Shaft |
0,24 kg |
124 410 0181, 124 410 0681 |
 |
40MR0106
|
Bearing Drive Shaft |
0,23 kg |
201 410 05 81 |
 |
40MR0110
|
Driveshaft Kit |
1,2 kg |
903 410 00 10, 901 411 0412 (4) OEM |
 |
40MR0200
|
Bearing Drive Shaft |
di:Ø47 h:138mm thi:45mm / 0,98 kg |
906 410 03 81, 906 410 12 81 (9) OEM |
 |
40MR0202
|
Driveshaft Kit |
di:Ø47 L:21mm / 1,09 kg |
A515 410 72 82, A515 410 68 82 (10) OEM |
 |
40MR0210
|
Bearing Drive Shaft (FAG) |
di:Ø47 h:138mm thi:45mm FAG / 0,98 kg |
6803 1836 AA, 6800 6650 AA (23) OEM |
 |
40MR0212
|
Driveshaft Kit [FAG] |
di:Ø47 L:21mm / 1,08 kg |
906 410 15 81, 906 410 12 81 (9) OEM |
 |
40MR02RK
|
Repair Kit |
di: Ø46.5 / 0,12 kg |
906 410 17 81, 906 410 03 81 (8) OEM |
 |
40MR0310
|
Bearing Drive Shaft (FAG) |
di: Ø40 / 1,26 kg |
907 410 62 01, A 907 410 62 01 |
 |
40MR0500
OUT OF SERVICE
|
Bearing Drive Shaft |
0 kg |
201 411 2147, 202 411 1447 |
 |
40MR0505
|
Driveshaft Protective Cover |
h:136,5mm h:70mm thi:57mm / 0,08 kg |
5133 898AA, 0 5133 898AA (1) OEM |
 |
40MR0812
NEW
|
Bearing Drive Shaft |
1,22 kg |
A 447 410 32 00, 447 410 32 00 |
 |
40MR0815
NEW
|
Bearing Drive Shaft |
0,797 kg |
639 410 04 81, A 639 410 04 81 |
 |
40MR0816
NEW
|
Bearing Drive Shaft |
0,842 kg |
639 410 06 81, A 639 410 06 81 |
 |
40MR0822
NEW
|
Bearing Drive Shaft |
1,24 kg |
447 410 31 00, A 447 410 31 00 (2) OEM |
 |
40MR0840
NEW
|
Bearing Drive Shaft |
0,87 kg |
447 410 33 00, A 447 410 33 00 |
 |
40MR0844
NEW
|
Bearing Drive Shaft |
0,89 kg |
447 410 36 00, A 447 410 36 00 |
 |
40MR0854
NEW
|
Bearing Drive Shaft |
0,91 kg |
447 410 34 00, A 447 410 34 00 |
 |
45MR0100
|
Engine Mounting |
th1:M12x1,5 th2:M10x1,5 / 0,86 kg |
05 104 035 AA, 51 040 35 AA (4) OEM |
 |
45MR0105
|
Engine Mounting |
th1:M12x1,5 th2:M10x1,5 / 0,86 kg |
901 241 25 13, 901 241 27 13 (3) OEM |
 |
45MR0110
|
Engine Mounting |
di:Ø10.1 do:Ø72,5 h:88mm / 0,56 kg |
5117 736AA, 901 242 15 13 (3) OEM |
 |
45MR0115
|
Rubber Buffer, Suspension |
h:136,5mm h:70mm thi:57mm / 0,4 kg |
05 118 762 AA, 901 325 0144 (2) OEM |
 |
45MR0121
NEW
|
Rubber Buffer, Suspension |
|
05139188AA, 5139188AA (2) OEM |
 |
45MR0122
NEW
|
Rubber Buffer, Suspension |
|
05139189AA, 901 322 22 19 (1) OEM |
 |
45MR0126
NEW
|
Rubber Buffer, Suspension |
|
901 322 26 19, A 901 322 26 19 (6) OEM |
 |
45MR0500
|
Mounting Automatic Transmission |
di:Ø9,9 th:M12x1.75 h:86mm / 1 kg |
601 240 07 18 |
 |
45MR0510
|
Engine Mounting |
1,15 kg |
A 210 240 08 17, 202 240 12 17 (12) OEM |
 |
45MR0511
|
Engine Mounting |
1,123 kg |
A 202 240 19 17, 210 240 05 17 (12) OEM |
 |
45MR0515
|
Mounting Automatic Transmission |
L: 110 / 0,51 kg |
210 240 03 18, 210 240 01 18 (4) OEM |
 |
45MR0520
IN PREPARATION
|
Suspension Support Buffer Front |
0 kg |
A 201 323 20 44, 201 323 20 44 (1) OEM |
 |
45MR0600
|
Engine Mounting |
h:134mm thi:74,7mm thi:64,5mm / 0,52 kg |
639 242 00 13, A 639 242 00 13 (1) OEM |
 |
45MR0606
IN PREPARATION
|
Mounting Leaf Spring |
|
906 322 10 19, A 906 322 10 19 |
 |
45MR0800
|
Strut Mount |
0,66 kg |
A 638 323 03 20, A 638 323 04 20 (2) OEM |
 |
45MR0805
|
Bearing |
di: Ø37 / 0,23 kg |
638 981 01 20, A 638 981 01 20 |
 |
45MR0815
IN PREPARATION
|
Strut Mount |
|
639 323 07 20, A 639 323 07 20 (2) OEM |
 |
45MR0830
|
Suspension Support Buffer Rear |
di:Ø8.5 do:Ø160 L:125mm / 0,25 kg |
A 639 324 02 06, 639 324 03 08 |
 |
45MR1100
|
Engine Mounting |
do:Ø96 L:57mm / 1,14 kg |
203 240 19 17, A 202 240 02 17 (18) OEM |
 |
45MR1205
NEW
|
Strut Mount |
0,82 kg |
169 320 00 73, A 169 320 00 73 |
 |
45MR1220
|
Suspension Support Buffer Front |
di: Ø23 / do: Ø59.5 / L: 78.5 / 0,07 kg |
168 323 07 44, A 168 323 07 44 (2) OEM |
 |
45MR1221
IN PREPARATION
|
Suspension Support Buffer and Dust Cover |
0 kg |
A 169 323 01 92, 169 323 01 92 |
 |
45MR1300
IN PREPARATION
|
Strut Mount |
|
211 320 00 26, A 211 320 00 26 |
 |
45MR1420
NEW
|
Strut Mount |
0,45 kg |
176 320 05 31*, A 176 320 05 31* (8) OEM |
 |
45MR1800
IN PREPARATION
|
Strut Mount |
0,56 kg |
205 323 00 20, 213 323 00 20 (6) OEM |
 |
45MR3200
NEW
|
Strut Mount |
2 kg |
203 320 02 73, A 203 320 02 73 |
 |
45MR3205
|
Mounting Automatic Transmission |
L: 103.8 / 0,53 kg |
212 240 03 18, 220 240 01 18 (4) OEM |
 |
45MR3500
|
Engine Mounting |
do:Ø95.5 L:49.5mm / 1,1 kg |
210 240 28 17, A 210 240 27 17 (8) OEM |
 |
45MR3520
|
Suspension Support Buffer Front |
di:Ø16 do:Ø62.5 L:76mm / 0,07 kg |
A 211 323 04 44, 211 323 04 44 |
 |
45MR3600
NEW
|
Strut Mount |
0,97 kg |
204 320 00 73, A 204 320 00 73 (2) OEM |
 |
45MR4000
|
Strut Mount |
di: Ø15 / L: 63 / 1,04 kg |
212 323 00 20, A 212 323 00 20 (2) OEM |
 |
45MR4010
NEW
|
Strut Mount |
0,31 kg |
204 320 03 73, 204 320 08 73 (18) OEM |
 |
45MR4040
|
Strut Mount |
di: Ø15 / L: 64 / 0,96 kg |
204 323 01 20, A204 323 01 20 |
 |
45RN5605
IN PREPARATION
|
Strut Mount |
0 kg |
415 323 00 20, 82 00 591 283 |
 |
45VW1621
|
Suspension Support Buffer Front |
di:Ø25 do: Ø49 L:87.5mm / 0,05 kg |
6K0 413 031 B, 357 412 303 F (4) OEM |
 |
526MR3100
|
Bracket , Stabiliser Mounting Left |
di: Ø8,6 / 0,24 kg |
124 323 27 40, A 124 323 27 40 (4) OEM |
 |
526MR3101
|
Bracket , Stabiliser Mounting Right |
di: Ø8,6 / 0,24 kg |
A 124 323 05 26, 124 323 05 26 (4) OEM |
 |
526MR3110
|
Bracket , Stabiliser Mounting Left |
di: Ø8,6 / 0,2 kg |
201 323 55 40, A 201 323 55 40 |
 |
526MR3111
|
Bracket , Stabiliser Mounting Right |
di: Ø8,6 / 0,2 kg |
201 323 56 40, A 201 323 56 40 |
 |
526MR3120
|
Bracket , Stabiliser Mounting Left |
0,21 kg |
208 323 01 40, A 208 323 01 40 (2) OEM |
 |
526MR3121
|
Bracket , Stabiliser Mounting Right |
0,21 kg |
202 323 09 40, A 202 323 09 40 (2) OEM |
 |
99MR0110
|
Repair Kit |
0,2 kg |
903 410 00 10, A 903 410 00 10 (2) OEM |
 |
99MR25
OUT OF SERVICE
|
Interior Door Panel |
0 kg |
901 766 02 19, 901 766 0219 |
 |
99MR30
OUT OF SERVICE
|
Door Lock Right |
0 kg |
000 720 12 35, A0007201235 (3) OEM |
 |
99MR31
OUT OF SERVICE
|
Door Lock Left |
0 kg |
7201335, 000720-1335 (3) OEM |
 |
99MR40
OUT OF SERVICE
|
Bearing Journal |
0 kg |
606 202 01 20 |
