ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10NS1000	Ball Joint Lower	c:Ø20 do:Ø41,3 / 0,38 kg	54501 9W20C, 54500 BB00A (26) OEM*

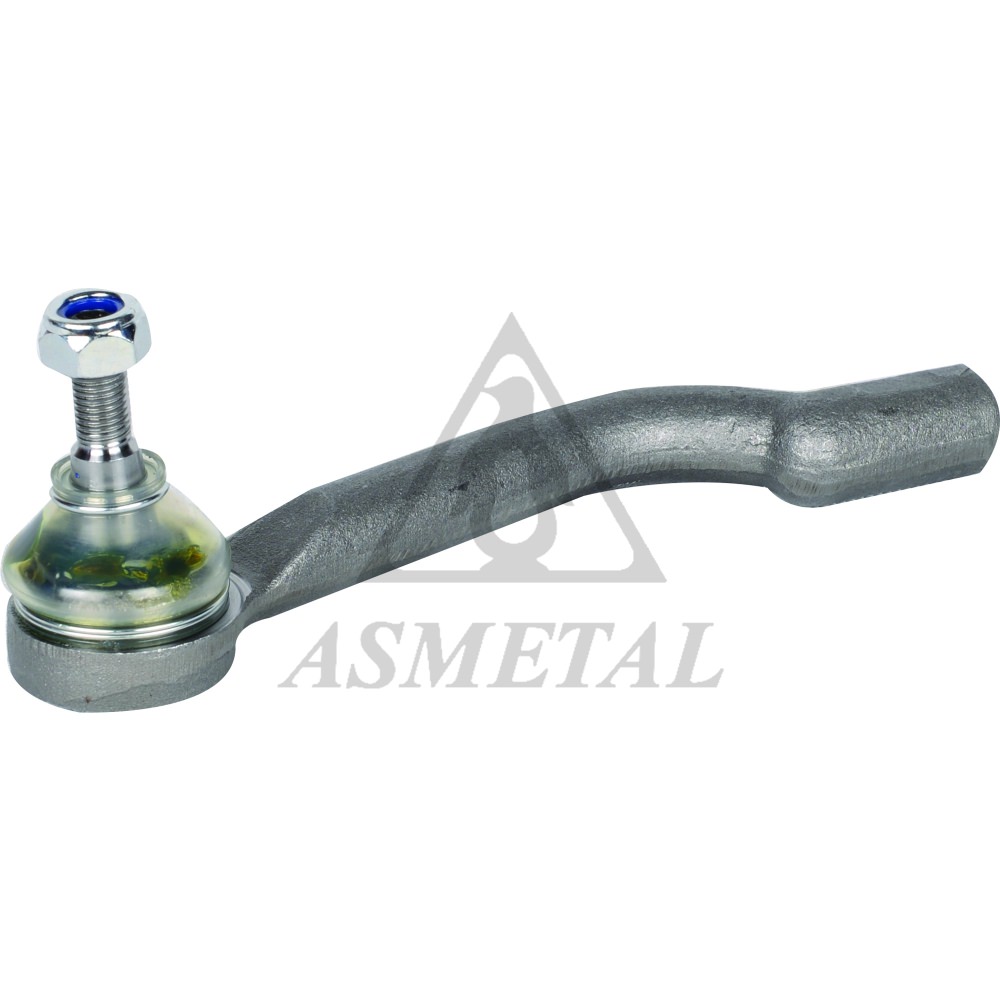

17NS1000	Tie Rod End Left	c:Ø11,7 th:FM14x1,5 RHT / 0,58 kg	48647 JD01A, D8640 JG00A (1) OEM

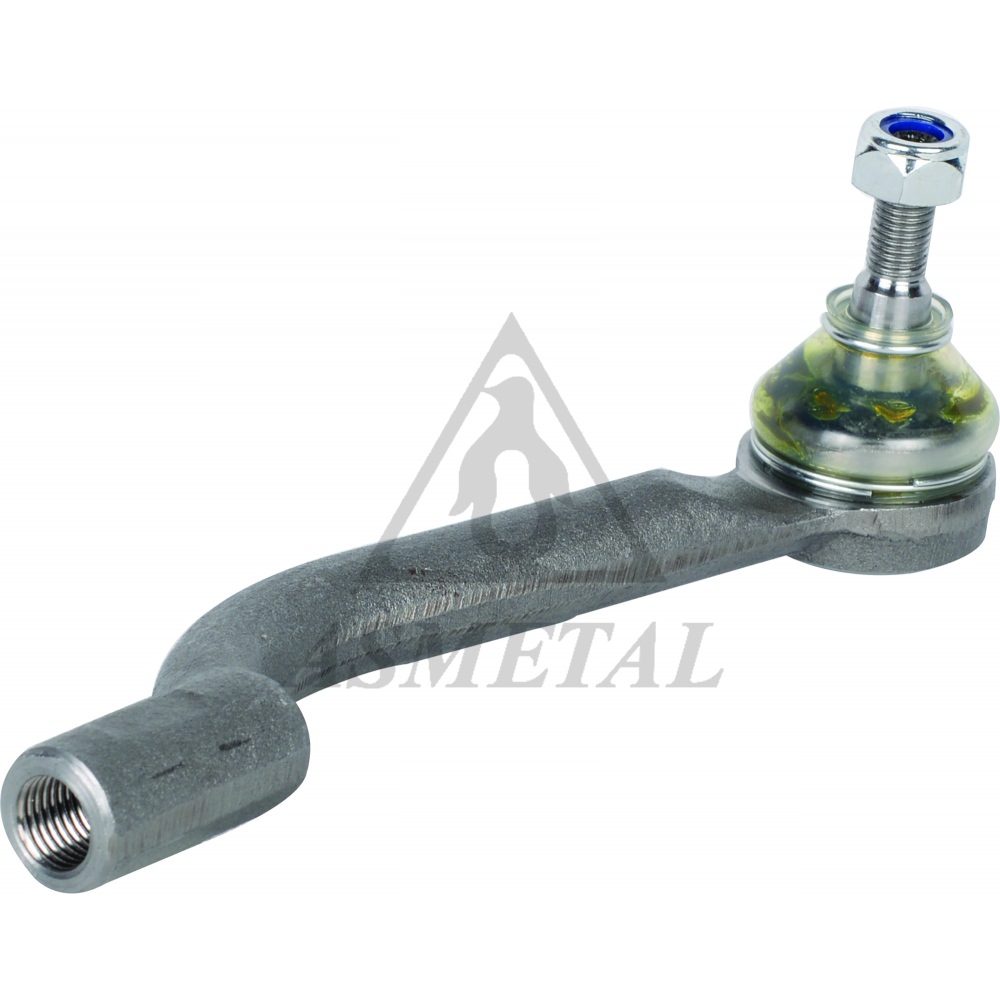

17NS1001	Tie Rod End Right	c:Ø11,7 th:FM14x1,5 RHT / 0,58 kg	48527 JD01A, D8520 JG00A (1) OEM
17NS1010	Tie Rod End Left	L: 193 cr: 1:5 c: Ø11.8 tp: M10x1.25 th: FM14x1.5 / 0,69 kg	D8640 4EA0A, 48 64 04E A0A
17NS1011	Tie Rod End Right	th:FM14x1,5 RHT th:MM10x1.25RHT L:193 c:Ø11.8 cp: 1/5 / 0,69 kg	D8520 4EA0A, 48 52 04E A0A
20NS1000	Axial Joint	th:MM22x1.5 RHT L:234mm / 0,6 kg	4800 1JD900, D852 1JD00B (2) OEM
20NS1010	Axial Joint	th1:M14x1.5 RHT th2:MM16x1.5 RHT L:213.5 / 0,48 kg	48001 4EH0A, 48001 4EH0B (3) OEM

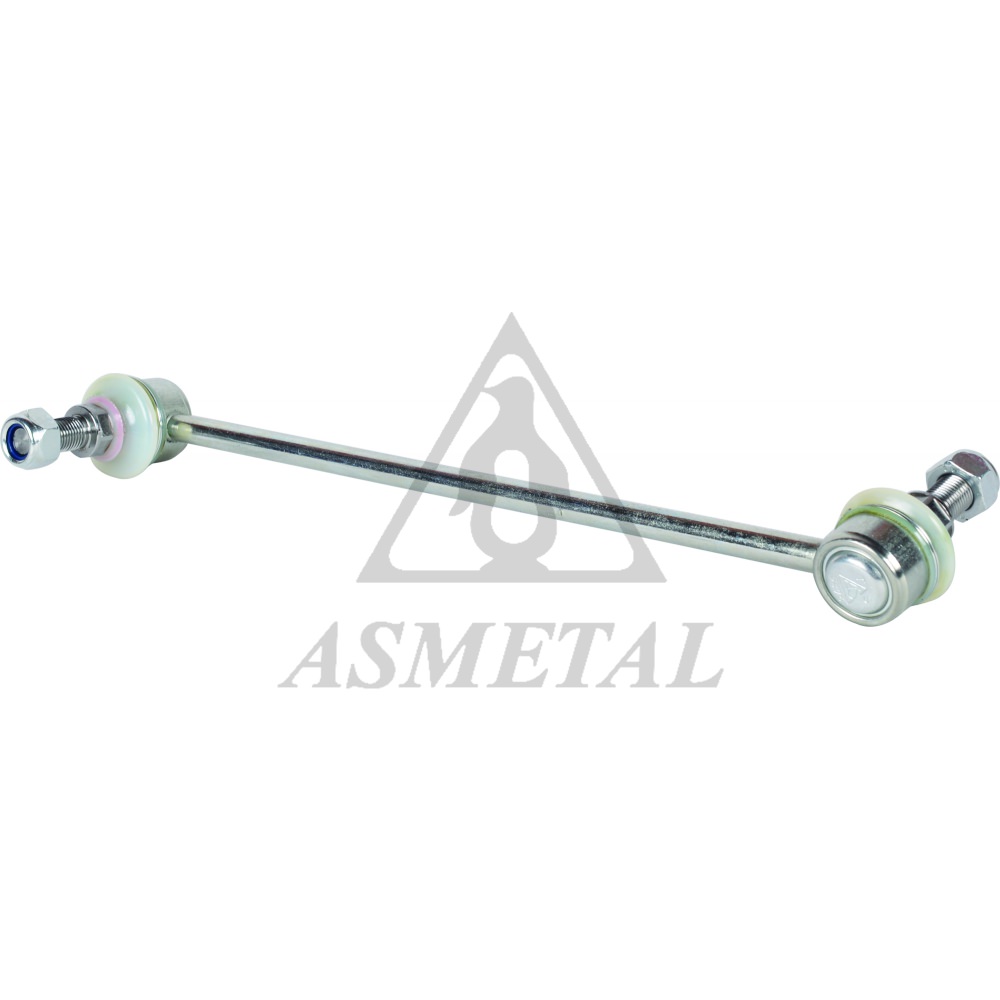

26NS1000	Stabiliser Link Left	L:299mm / 0,5 kg	54668 4CB0A, 54668 1AA0E (3) OEM

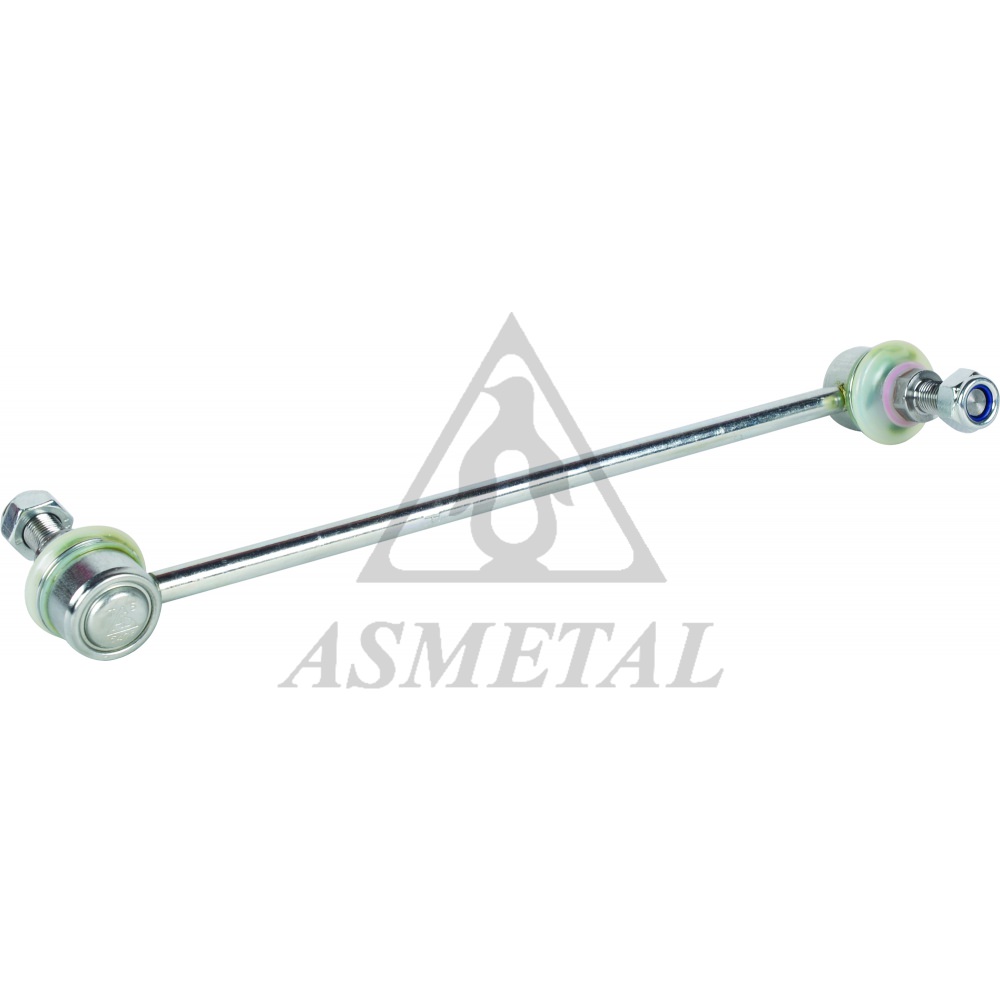

26NS1001	Stabiliser Link Right	L:299mm / 0,5 kg	54618 4CB0A, 54618 1AA0E (4) OEM
26NS1010	Stabiliser Link Rear Left	L: 145 / 0,54 kg	55619 JD01A, 55619 JE20A (4) OEM
26NS1011	Stabiliser Link Rear Right	L: 145 / 0,54 kg	55618 JD00A, 55618 JD01A (3) OEM
26NS1030 IN PREPARATION	Stabiliser Link Left		54668 6UA0A, 54 66 834 83R
26NS1031 IN PREPARATION	Stabiliser Link Right		54618 6UA0A, 54 61 842 46R
26NS1032 IN PREPARATION	Stabiliser Link Left		56261 6UA0B

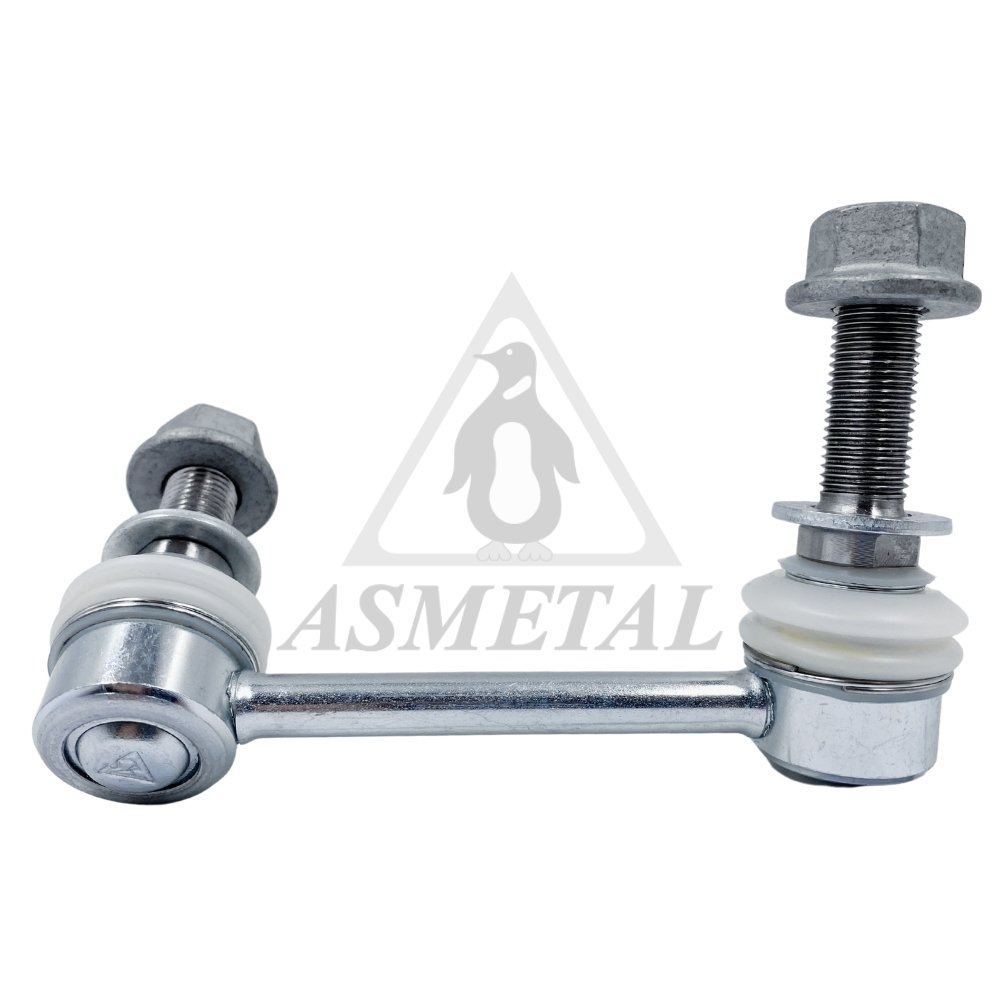

26NS1033 IN PREPARATION	Stabiliser Link Right		56261 6UA0A
26NS1090 IN PREPARATION	Track Rod Rear		55110 6UA0A
26NS1200	Stabiliser Link	L:284mm / 0,5 kg	54618 3NF0A, 54618 9AM1A (6) OEM
30NS1000	Track Control Arm Left	c: Ø20 / 4 kg	54 50 14E A0A, 54 50 14E A0B
30NS1001	Track Control Arm Right	c: Ø20 / 4 kg	54 50 04E A0B, 54 50 04E A0A
30NS1010	Track Control Arm Left	cs:Ø20 / 3,2 kg	54500 JG00A, 54501 JG000 (5) OEM
30NS1011	Track Control Arm Right	cs:Ø20 / 3,2 kg	54500 BB00A, 54500 BR30A (5) OEM
30NS1030 NEW	Track Control Arm Left	3,2 kg	54501 6UA0A
30NS1031 NEW	Track Control Arm Right	3,2 kg	54500 6UA0A
38NS1000	Silentblock for TCA	di:Ø32,5 / 0,35 kg	54500 JG000, 54501 JG000 (7) OEM

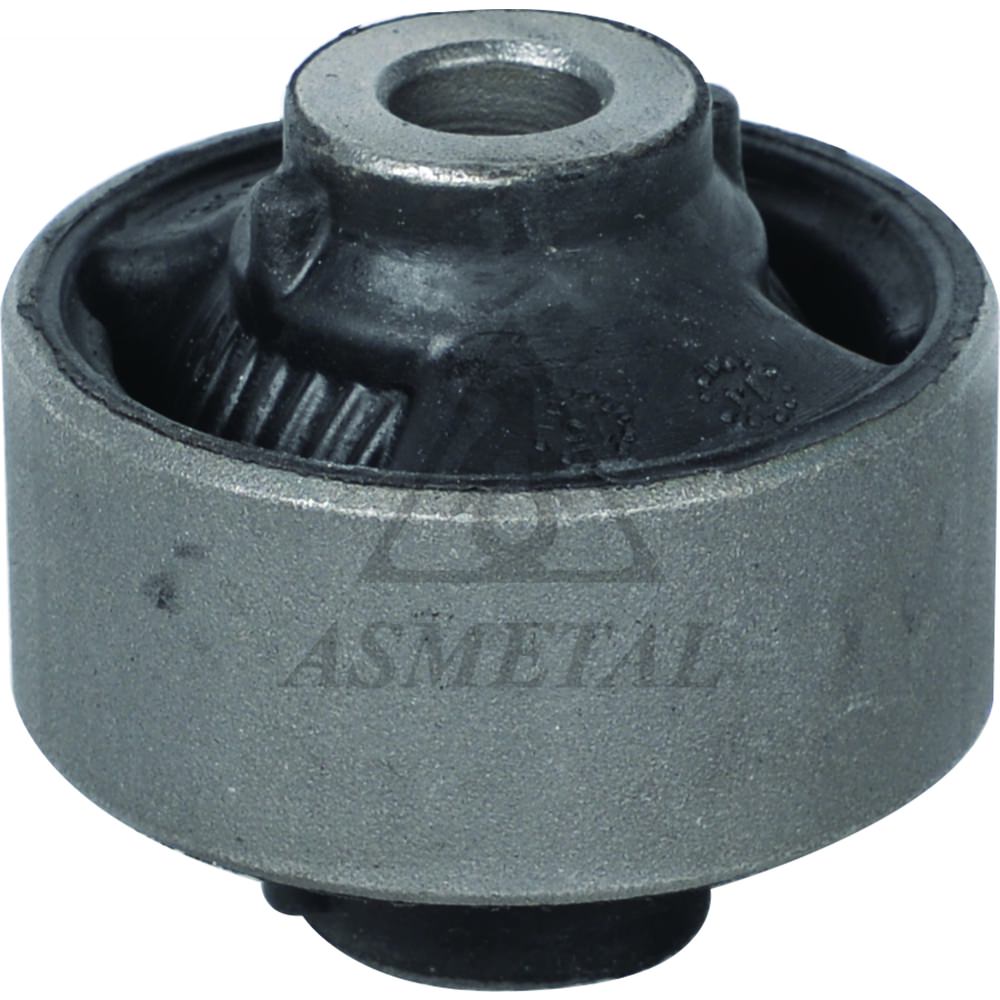

38NS1001	Silentblock for TCA	di:Ø12,2 do:Ø58 / 0,36 kg	54570 EN002, 54570 BB00A (18) OEM
38NS1010	Silentblock for TCA	di:Ø14.2 do: Ø55 L:50.4mm / 0,39 kg	54501 4EA0B, 54501 4EA0A (2) OEM
38NS1011	Silentblock for TCA	di:Ø12.2 do:Ø58 L:65mm / 0,48 kg	54500 4EA0B, 54501 4EA0B
45NS1010 NEW	Strut Mount	0,458 kg	54 32 069 68R, 54320 6968R (2) OEM

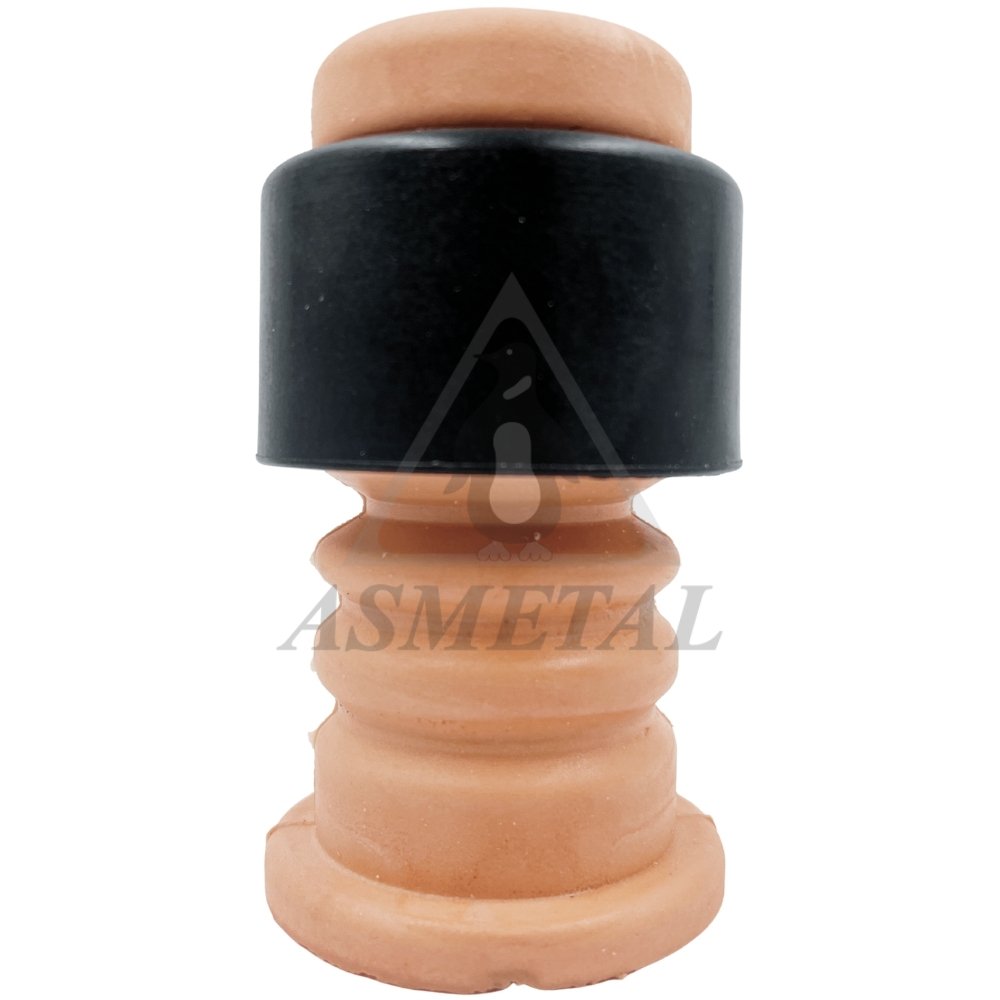

45NS1022	Suspension Support Buffer Front	di:Ø26 do:Ø58 L:101.5mm / 0,09 kg	54050 HV10A, 54050 6FR0A (2) OEM
45NS1200 NEW	Strut Mount Left	1,01 kg	54321 JD00B, 54321 JG00B (5) OEM
45NS1201 NEW	Strut Mount Right	1,02 kg	54320 JG00B, 54320 JG01B (5) OEM
