ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10RN1100	Ball Joint Upper	th:M14x1.5 RHT cp:1/5 cs:Ø16,1 do:Ø45,5 / 0,52 kg	40160 00QAB, 45 00 254 (2) OEM
10RN1105	Ball Joint Lower	c:Ø22 do:Ø43,45 / 0,42 kg	40160 00QAD, 40160 00QAC (6) OEM
10RN1110	Ball Joint Upper	cp:1/10 cs:Ø16,4 / 0,83 kg	40110 00QAA, 40110 00QAB (6) OEM
10RN1112	Ball Joint Lower	c:Ø24 do:Ø43,5 / 0,46 kg	40160 00Q0B, 44 18 631 (2) OEM
10RN1120	Ball Joint	th:M16x1.5 RHT cp:1/5 cs:Ø18,1 th2:M45x1.5 RHT / 0,54 kg	40160 00Q0E, 40160 00Q0K (7) OEM
10RN1121	Ball Joint Right	th:M16x1.5 RHT cp:1/5 cs:Ø18,1 th2:M45x1.5 LHT / 0,54 kg	40160 00Q0F, 44 08 252 (6) OEM
17FI3210	Tie Rod End Left	c:Ø16,7 th:FM16x1,5 RHT / 0,92 kg	13 763 460 80, 16 109 397 80 (3) OEM
17RN1100	Tie Rod End Left	c:Ø16,4 th:FM16x1,5 RHT / 0,9 kg	48520 00QAH, 45 01 262 (2) OEM
17RN1101	Tie Rod End Right	c:Ø16,4 th:FM16x1,5 RHT / 0,9 kg	48520 00QAJ, 45 01 263 (2) OEM
17RN1120	Tie Rod End Left	c:Ø16,4 th:FM18x1,5 RHT / 1,1 kg	48520 00Q0F, 44 20 097 (2) OEM
17RN1121	Tie Rod End Right	c:Ø16,4 th:FM18x1,5 RHT / 1,1 kg	48520 00Q0E, 44 20 098 (2) OEM
20RN1100	Axial Joint	th:MM14x1.5 RHT L:175,5mm / 0,5 kg	48521 00Q0B, 48521 00QAF (6) OEM
20RN1120	Axial Joint	th:MM16x1,5 RHT L:253mm / 0,78 kg	93 167 687, 48521 00Q0E (2) OEM
26RN1100	Stabiliser Link Left	L:127,5mm / 0,31 kg	54616 00Q0C, 54616 00QAB (7) OEM
26RN1101	Stabiliser Link Right	L:127,5mm / 0,31 kg	54618 00Q0A, 54618 00Q0C (8) OEM
26RN1120	Stabiliser Link	L:330mm / 0,44 kg	54616 00Q0E, 44 19 291 (2) OEM
26RN1130	Stabiliser Link Rear	th:MM10x1.5 RHT L: 166mm / 0,35 kg	56261 00Q0B, 44 20 954 (2) OEM
26RN1140	Stabiliser Link Rear	L: 106 / tp: MM10x1.5 / 0,34 kg	93 197 332, 093 197 332 (7) OEM
30RN1100 IN PREPARATION	Track Control Arm Left	0 kg	54501-00QAC, 54501-00QAE (15) OEM
30RN1101 IN PREPARATION	Track Control Arm Right	0 kg	54500-00QAC, 54500-00Q0C (15) OEM
38CT1000	Silentblock for TCA	di:Ø19,7 do:Ø74,4 / 0,41 kg	3520 S0, 3520 S1 (7) OEM
38RN1020	Silentblock for TCA	di:Ø16,2 do:Ø70 / 0,58 kg	54501 00Q1C, 54500 00Q1E (9) OEM

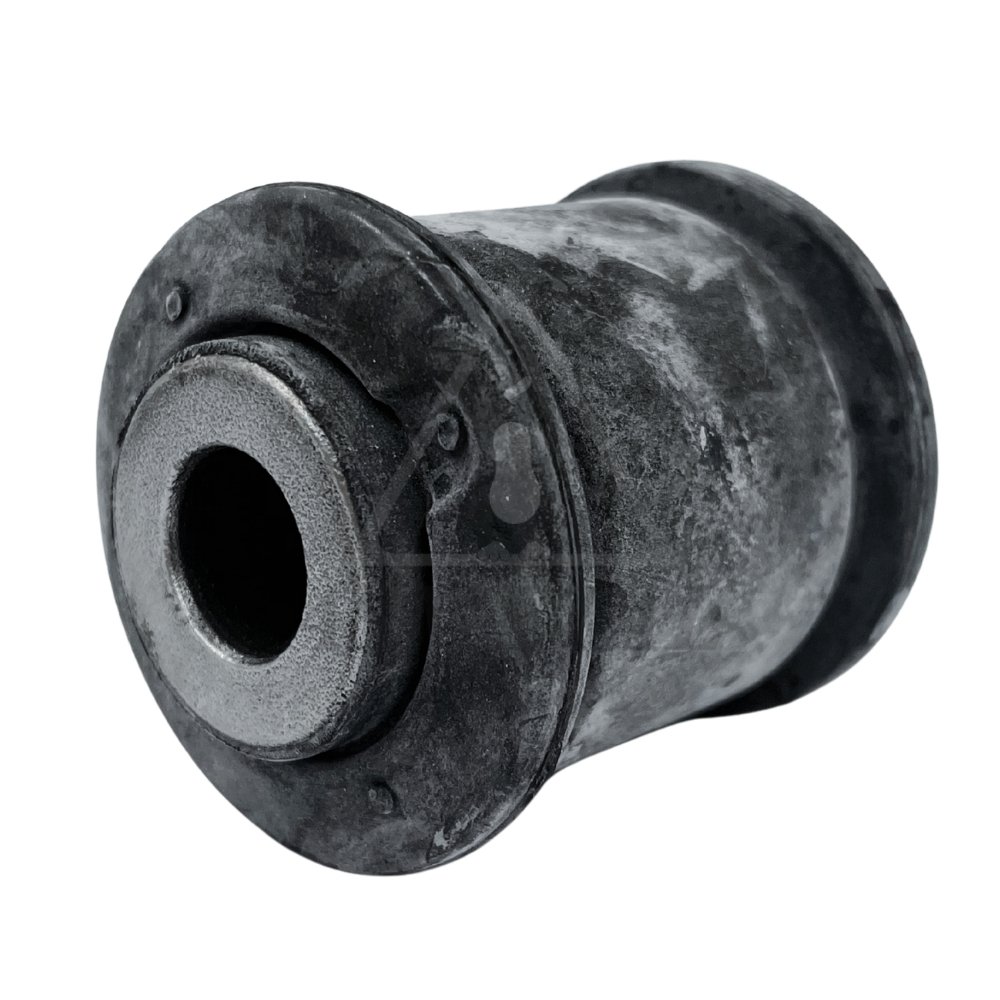

38RN1030	Silentblock for TCA	di:Ø16,2 do:Ø49 / 0,26 kg	54501 00Q1C, 54500 00Q1E (9) OEM
38RN1100	Silentblock for TCA	di:Ø28 do:Ø55.4 L:74mm / 0,5 kg	91 60 394, 091 60 394 (5) OEM
38RN1101	Silentblock for TCA	di: Ø28 / do: Ø55.5 / L: 79 / 0,64 kg	54423 00QAA, 45 00 095 (2) OEM
40RN1120 NEW	Bearing Drive Shaft (FAG)	1,286 kg	37520 00Q0A, 44 21 159 (2) OEM
45FI3212 NEW	Strut Mount Left	1,86 kg	16 127 361 80, 13 746 660 80
45FI3213 NEW	Strut Mount Right	1,86 kg	16 127 359 80, 13 746 670 80
45RN1120	Protective Cap/Bellow, Shock Absorber	di:Ø78 do: Ø108 L:216mm / 0,11 kg	55248 00Q0D, 55248 00Q0C (6) OEM
45RN1121	Suspension Support Buffer Front	di: Ø30 / L: 146 / 0,23 kg	54050 00Q0C, 44 19 286 (2) OEM
45RN1122	Suspension Support Buffer and Dust Cover	di: Ø30 / L: 319 / 0,33 kg	44 19 289, 93 197 323 (6) OEM
45RN1130	Suspension Support Buffer Front	di:Ø17.5 L:108mm / 0,26 kg	91 09 939, 44 01 939 (1) OEM
45RN1131	Suspension Support Buffer Rear	di:Ø27 do: Ø91.75 L:158mm / 0,58 kg	93 168 278, 4 420 574 (4) OEM
45RN1132	Suspension Support Buffer Rear	di: Ø26.5 / L: 124.5 / 0,51 kg	55464 00Q0C, 95 525 662 (8) OEM
526PE1000	Stabiliser Link	L: 300 tp: MM10x1,5 / 0,45 kg	16 127 364 80, 5081 L1 (3) OEM
