ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10CT0100	Ball Joint Lower	c:Ø16 / 0,54 kg	3640 39, 96 025 445 (2) OEM
10CT0200	Ball Joint Lower	c:Ø16 / 0,54 kg	95 025 445, 3640 38 (2) OEM
10PE1003	Ball Joint Lower	th:M14x1.5 RHT cp:1/8 cs:Ø15,6 th2:M38x1.5 RHT / 0,31 kg	3640 73, 3640 60 (6) OEM
10PE1100	Ball Joint Lower	c:Ø18 / 0,57 kg	3640 50, 3640 51
10PE1300 IN PREPARATION	Ball Joint Lower	0 kg	98 310 885 80, 98 073 060 99 (3) OEM
17PE1105	Tie Rod End Left	c:Ø12 th:FM14x1,5 RHT / 0,5 kg	16 109 368 80, 3817 76 (1) OEM
17PE1106	Tie Rod End Right	c:Ø12 th:FM14x1,5 RHT / 0,5 kg	3817 88, 3817 75 (1) OEM
17PE1200	Tie Rod End Left	th1: FM14x1.5RHT th2: MM12X1.5R cs: Ø14.5 cp: 1/5 L: 215mm / 0,8 kg	16 108 177 80, 39 176 184* (2) OEM
17PE1201	Tie Rod End Right	th1: FM14X1.5R th2: MM12X1.5R cs: Ø14.5 cp:1/5 L:215 / 0,8 kg	16 108 178 80, 39 176 184* (2) OEM
17PE1502	Tie Rod End	c:Ø11,95 th:MM14x1,5 RHT / 0,32 kg	3817 50, 94 71 003 465 (6) OEM

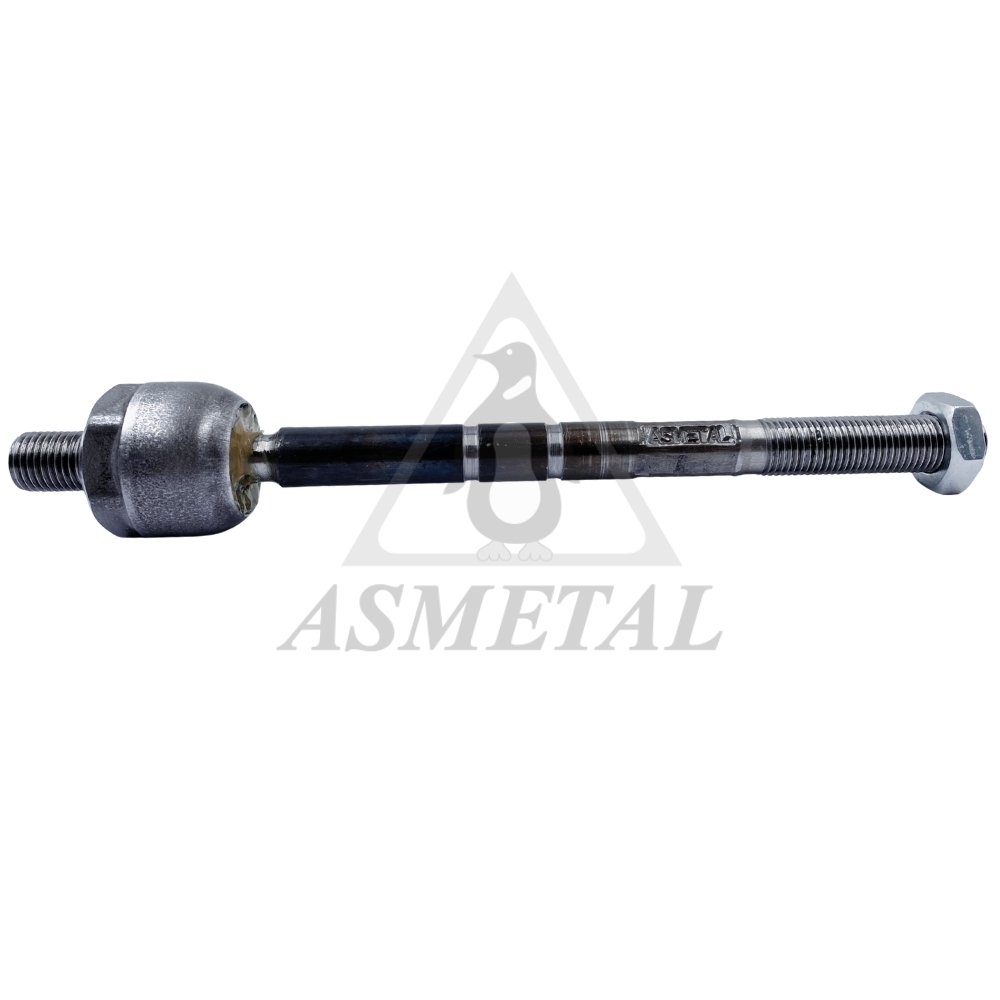

20PE1105	Axial Joint	th:MM14x1.5 RHT L:265mm / 0,62 kg	3812 F4
20PE1200	Axial Joint	th1: MM14X1.5R th2: MM14X1.5R L:207mm / 0,46 kg	16 112 423 80
23PE0800	Track Control Arm Left	4,7 kg	3520 S2, 16 431 885 80 (6) OEM
23PE0801	Track Control Arm Right	4,7 kg	3521 G8, 3521 K3 (6) OEM
26CT0300	Stabiliser Link	L: 301 mm TP: M10x1.5 / 0,48 kg	5087 61, 5087 39 (3) OEM
26PE0800	Stabiliser Link	L:335mm / 0,42 kg	98 049 474 80, 96 347 856 (16) OEM
29PE1100 IN PREPARATION	Tie Rod		3817 10, 3817 18 (9) OEM
30CT0100	Track Control Arm Left	cs:Ø16 / 3,7 kg	3520 H8, 3520 H6 (2) OEM
30CT0101	Track Control Arm Right	cs:Ø16 / 3,7 kg	3521 E4, 3520 G3 (4) OEM
30PE1100	Track Control Arm Left	cs:Ø17.95 / 3,7 kg	3520 A1, 95 658 885 (2) OEM
30PE1101	Track Control Arm Right	cs:Ø17.95 / 3,7 kg	3521 71, 95 658 884 (2) OEM
30PE1102 IN PREPARATION	Track Control Arm Left	0 kg	3520 Q5, 3520 Q4 (5) OEM
30PE1103 IN PREPARATION	Track Control Arm Right	0 kg	3521 L5, 3521 L4 (4) OEM
30PE2010	Track Control Arm Left (Without Ball Joint)	3,2 kg	3520 H8, 3520.H8 (9) OEM
30PE2011	Track Control Arm Right (Without Ball Joint)	3,2 kg	3521 E8, 3521.E8 (11) OEM
38CT0205	Silentblock for TCA	di: Ø12.1 / do: Ø33.15 / L: 30.8 / 0,11 kg	3521 71, 3521 E5 (11) OEM
38CT0208	Silentblock for TCA	M8x1,25 / 0,36 kg	3523 62, 3523 59 (1) OEM
38CT0210	Silentblock for TCA	M10x1,25 / 0,36 kg	3523 75, 3523 62 (1) OEM
38CT1110 NEW	Stabiliser Mounting	0,11 kg	5094 E7, 96 857 198 80 (1) OEM
38PE0605	Silentblock for TCA	di:Ø14,1 do:Ø55,3 / 0,37 kg	3523 92, 3523 77
38PE0800	Silentblock for TCA	di:Ø14,2 do:Ø55 / 0,35 kg	3523 91, 3523 AJ (1) OEM
38PE0924 NEW	Stabiliser Mounting	di: Ø23 / L: 50 / 0,12 kg	5094 E4, 96 857 200 80
38PE1110 NEW	Stabiliser Mounting	0,12 kg	5094 89, 5094 E3
38PE1111	Stabiliser Mounting	di: Ø24.5 / L: 50 / 0,1125 kg	5094 E6, 96 872 667 80
38PE1200	Silentblock for TCA	di: Ø14.1 / do: Ø50.3 / L: 65 / 0,26 kg	98 163 803 80, 3 644 790 (1) OEM
38PE1201	Silentblock for TCA	di: Ø14,1 / do:Ø43,2 / L: 59,5 / 0,23 kg	96 760 321 80, 3 637 432
38PE1205 NEW	Mounting Axle Body	0,4 kg	5131 H1, 96 810 170 80
45PE1100	Strut Mount	Ø119 mm / 0,33 kg	5038 G0, 5038 46 (3) OEM
45PE1101	Strut Mount	Ø120 mm / 0,34 kg	98 047 763 80, 98 210 408 80
45PE1110	Strut Mount	di:Ø14.2 do:Ø121 L:31.5mm / 0,36 kg	5031 77, 5038 85 (4) OEM
45PE1111	Strut Mount Kit	di:Ø14.2 do: Ø121 L:31.5mm / 0,53 kg	5038 F7, 5038 46 (4) OEM
45PE1112	Strut Mount Kit	di:Ø14.2 do:Ø121 L:31.5mm / 0,58 kg	5031 77, 5038 85 (4) OEM
45PE1113	Spring Seat	di: Ø14.8 / do: Ø64 / L: 12 / 0,07 kg	5033 75, 5033 C9 (1) OEM
45PE1121	Suspension Support Buffer Front	di:Ø23 do:Ø45 L:111mm / 0,07 kg	5033 65, 96 398 979 80
45PE9999 IN PREPARATION	Bearing	0 kg	5035 19, 5035 27 (7) OEM
