10VW1000
|
Ball Joint |
c:Ø15 / 0,35 kg |
171 407 365 C, 171 407 365 D |
 |
10VW1001
|
Ball Joint |
c:Ø17 / 0,38 kg |
171 407 365 G, 171 407 365 F (3) OEM |
 |
10VW1100
|
Ball Joint |
c:Ø19 / 0,45 kg |
357 407 365 A, 357 407 365 |
 |
10VW1105
|
Ball Joint |
th:M12x1.5 RHT cp:1/10 cs:Ø16,4 / 0,41 kg |
1H0 407 365 A, 1H0 407 365 |
 |
10VW1200
|
Ball Joint |
c:Ø17 / 0,43 kg |
191 407 365, 191 407 365 A (1) OEM |
 |
10VW1501
|
Ball Joint Lower Right |
th:M12x1.5 RHT cp:1/5 cs:Ø15 / 0,46 kg |
1J0 407 366 A, 1J0 407 366 J (4) OEM |
 |
10VW1502
|
Ball Joint Lower Left |
th:M12x1.5 RHT cp:1/5 cs:Ø15 / 0,46 kg |
1J0 407 365 D, 1J0 407 365 H (4) OEM |
 |
10VW1600
|
Ball Joint Lower Left |
th:M12x1.5 RHT cp:1/5 cs:Ø15,4 / 0,62 kg |
1K0 407 365 C, 5Q0 407 365 A (6) OEM |
 |
10VW1601
|
Ball Joint Lower Right |
th:M12x1.5 RHT cp:1/5 cs:Ø15,4 / 0,62 kg |
1KD 407 366, 1K0 407 366 E (6) OEM |
 |
10VW1605
|
Ball Joint Lower Right |
th:M12x1.5 RHT cp:1/5 cs:Ø15,2 / 0,64 kg |
35D 407 366, 5QD 407 366 (3) OEM |
 |
10VW1606
|
Ball Joint Lower Left |
th:M12x1.5 RHT cp:1/5 cs:Ø15,2 / 0,64 kg |
5QD 407 365, 3C0 407 365 A (3) OEM |
 |
17AU1200
|
Tie Rod End Right |
c:Ø13,2 th:FM16x1,5 RHT / 0,42 kg |
1K0 423 812 F, 1K0 423 812 J (10) OEM |
 |
17AU1201
|
Tie Rod End Left |
c:Ø13,2 th:FM16x1,5 RHT / 0,42 kg |
3C0 423 811 B, 1K1 423 070 X (9) OEM |
 |
17AU1202
|
Tie Rod End Left |
L: 94 cr: 1:5 c: Ø13.22 tp: M12x1.5 th: FM16x1.5 / 0,45 kg |
1K0 423 811 K, 1K0 423 811 J (8) OEM |
 |
17AU1203
|
Tie Rod End Right |
L: 94 cr: 1:5 c: Ø13.22 tp: M12x1.5 th: FM16x1.5 / 0,45 kg |
1K0 423 812 K, 1K0 423 812 G (7) OEM |
 |

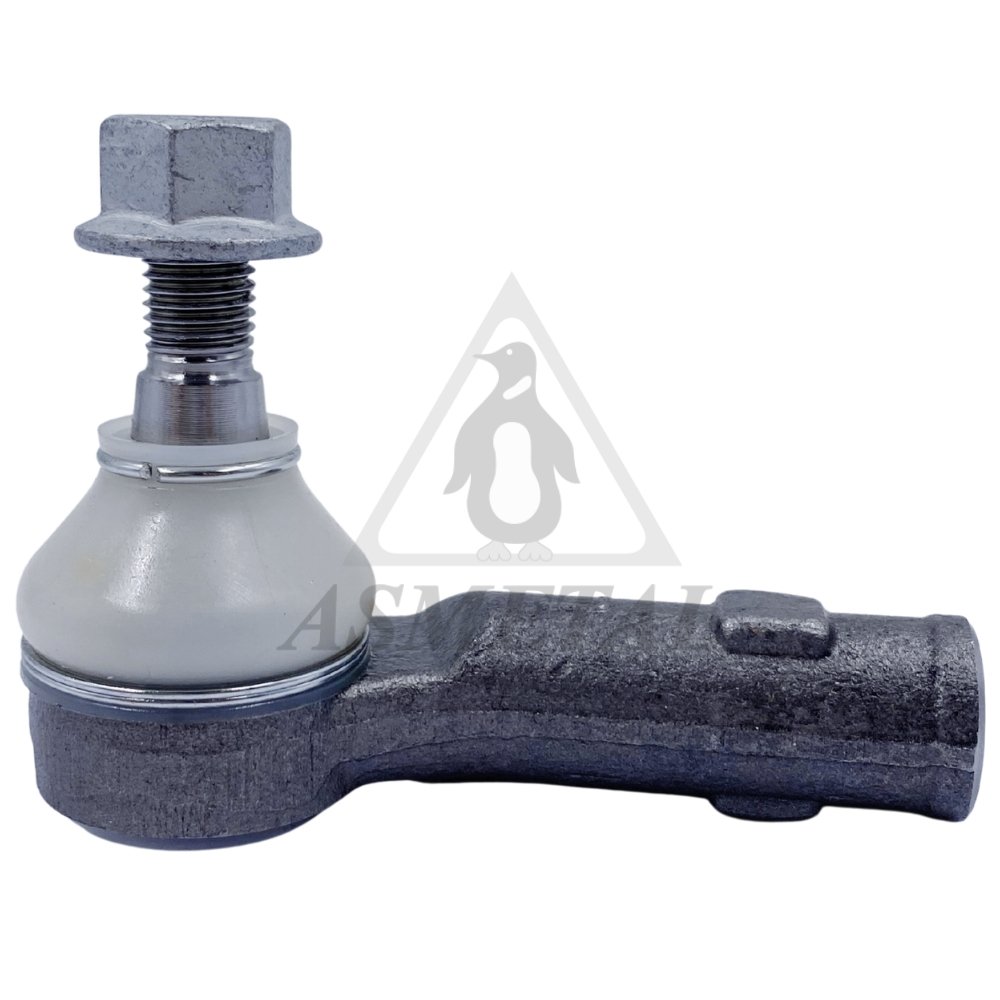

17AU3000
IN PREPARATION
|
Tie Rod End Left |
0 kg |
8N0 422 811, 8N0 422 811 A |
 |

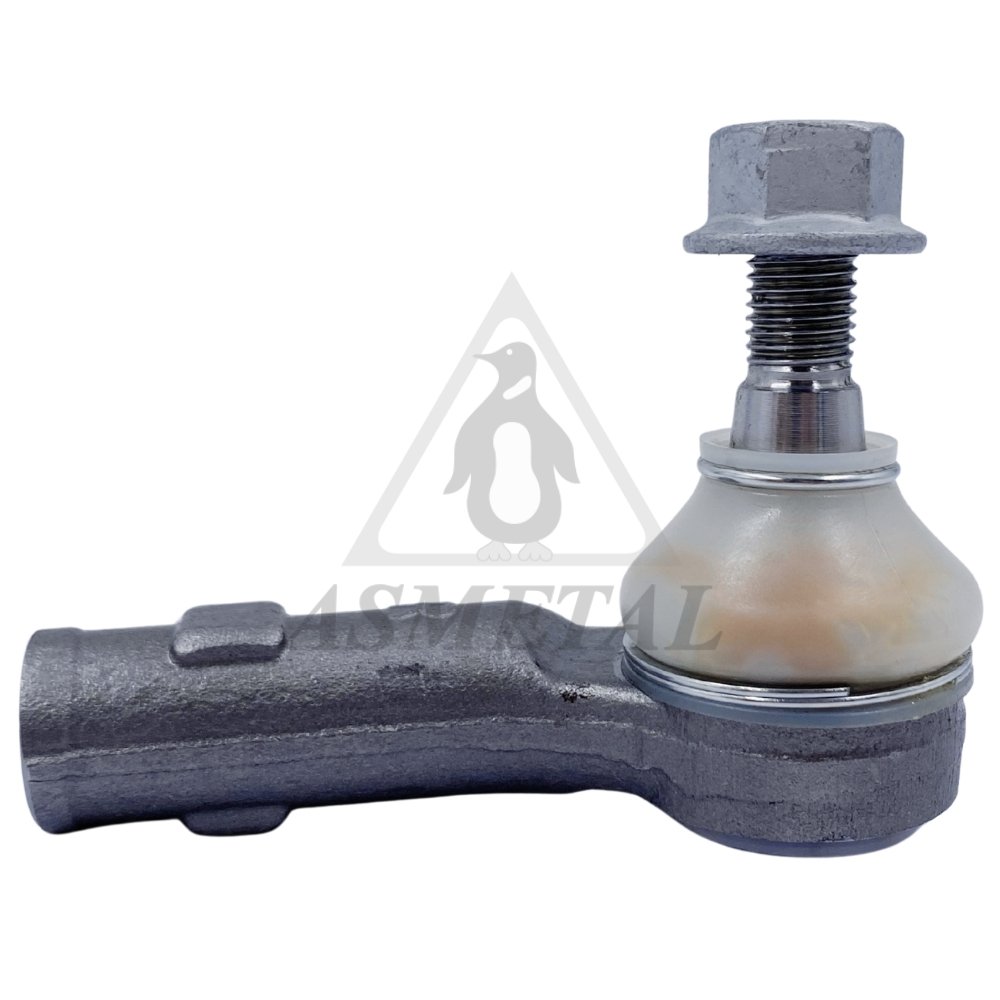

17AU3001
IN PREPARATION
|
Tie Rod End Right |
0 kg |
8N0 422 812 A, 8N0 422 812 |
 |
17VW1005
|
Tie Rod End |
c:Ø12,5 th:FM14x1,5 RHT / 0,35 kg |
477 419 811, 477 419 815 (7) OEM |
 |
17VW1230
|
Tie Rod End Right |
c:Ø12,4 th:FM14x1,5 RHT / 0,35 kg |
191 419 812, 6N0 419 812 (2) OEM |
 |
17VW1235
|
Tie Rod End Right |
c:Ø13,3 th:FM14x1,5 RHT / 0,35 kg |
1J0 422 812A, 1J0 422 812 (3) OEM |
 |
17VW1250
|
Tie Rod End Left |
c:Ø12,4 th:FM14x1,5 RHT / 0,35 kg |
3A0 422 811, 6N0 419 811 (2) OEM |
 |
17VW1255
|
Tie Rod End Left |
c:Ø13,3 th:FM14x1,5 RHT / 0,35 kg |
1J0 422 811, 1J0 422 811A (3) OEM |
 |
17VW1260
|
Tie Rod End Left |
c:Ø13,2 th:FM14x1,5 RHT / 0,38 kg |
1J0 422 811 D, 1J0 422 811 B (1) OEM |
 |
17VW1261
|
Tie Rod End Right |
c:Ø13,2 th:FM14x1,5 RHT / 0,38 kg |
1J0 422 812 D, 1J0 422 812 B (1) OEM |
 |
20AU1200
|
Axial Joint |
th:MM16x1,5 RHT L:312mm / 0,72 kg |
1K0 423 810 A, 1K1 423 070 AX (16) OEM |
 |
20AU3000
|
Axial Joint |
th1: M16X1.5R th2: M16X1.5R L: 333,5 / 0,74 kg |
8N0 422 803 D, 8N0 422 804 D (3) OEM |
 |
20VW0500
|
Axial Joint |
th:MM16x1,5 RHT L:318,5mm / 0,59 kg |
1J0 422 807 C, 1J0 422 810 (6) OEM |
 |
20VW0501
|
Axial Joint |
th:MM16x1,5 RHT L:335,5mm / 0,7 kg |
1J0 422 821 B, 1J0 422 803 B (8) OEM |
 |
20VW1010
|
Axial Joint |
th:FM22x1,5 RHT L:329,5mm / 0,76 kg |
171 419 810, 171 419 807 A (2) OEM |
 |
20VW1011
|
Axial Joint |
th:FM22x1.5 RHT L:370mm / 0,76 kg |
191 419 803 A, 191 419 804 (7) OEM |
 |
20VW1013
|
Axial Joint |
th:MM14x1,5 RHT L:343,5mm / 0,68 kg |
191 422 803 A, 191 422 804 A (4) OEM |
 |
20VW1015
|
Axial Joint |
th:MM14x1.5 RHT L:363mm / 0,76 kg |
1H0 422 810 A, 1H0 422 821 (8) OEM |
 |
20VW1210
IN PREPARATION
|
Axial Joint |
|
5WA 423 810 C |
 |
26AU1200
|
Stabiliser Link Rear |
L:175mm / 0,3 kg |
1J0 505 466 B |
 |
26AU1205
|
Stabiliser Link Rear |
L:194,5mm / 0,32 kg |
1J0 505 466 C |
 |
26VW0100
|
Stabiliser Link |
L:51,5mm / 0,17 kg |
1H0 411 316, 1H0 411 315 (1) OEM |
 |
26VW1210
|
Stabiliser Link |
L:77mm / 0,18 kg |
191 411 315 BS, 191 411 315 B (1) OEM |
 |
26VW1500
|
Stabiliser Link |
L: 105mm TP: MM8x1,25 / 0,26 kg |
8K0 411 317 C, 1J0 411 315 E (1) OEM |
 |
26VW1502
|
Stabiliser Link |
L:105mm Plastic / 0,16 kg |
1J0 411 315 H, 1J0 411 315 K |
 |
26VW1510
|
Stabiliser Link Left |
L:335,5mm / 0,47 kg |
1J0 411 315 D |
 |
26VW1511
|
Stabiliser Link Right |
L:335,5mm / 0,47 kg |
1J0 411 316 D |
 |
26VW1600
|
Stabiliser Link |
L:335mm / 0,5 kg |
5Q0 411 315, 1KD 411 315 A (14) OEM |
 |
26VW1605
|
Stabiliser Link Rear |
L:95,3mm / 0,38 kg |
1K0 505 465 K, 1K0 505 465 J (7) OEM |
 |
26VW1700
|
Stabiliser Link Rear |
L:70mm Plastic / 0,16 kg |
5Q0 505 465 C, 5Q0 505 465 A (4) OEM |
 |
29AU1200
IN PREPARATION
|
Tie Rod Right |
|
1K0 423 810 A, 1K0 423 812 A (1) OEM |
 |
29AU1201
IN PREPARATION
|
Tie Rod Left |
|
1K0 423 810 A, 1K0 423 811 A (1) OEM |
 |
29AU1202
IN PREPARATION
|
Tie Rod Left |
|
1K0 423 810 A, 1K0 423 811 J (1) OEM |
 |
29AU1203
IN PREPARATION
|
Tie Rod Right |
|
1K0 423 812 K, 1K0 423 810 A (1) OEM |
 |
29AU3000
IN PREPARATION
|
Tie Rod Left |
0 kg |
8N0 422 803 D |
 |
29AU3001
IN PREPARATION
|
Tie Rod Right |
0 kg |
8N0 422 804 D |
 |
29VW0535
|
Tie Rod Right |
TP1: M16x1,5 TP2: M12x1,5 / 0,96 kg |
1J0 422 804 A, 1J0 422 804 |
 |
29VW0555
|
Tie Rod Left |
TP1: M16x1,5 TP2: M12x1,5 / 0,9645 kg |
1J0 422 803 A, 1J0 422 803 |
 |
29VW0560
|
Tie Rod Right |
TP1: M16x1,5 TP2: M12x1,5 / 1,1045 kg |
1J0 422 803 B, 1J0 422 803 H (1) OEM |
 |
29VW0561
|
Tie Rod Left |
TP: M16x1,5 T2: M12x1,5 / 1,1045 kg |
1J0 422 804 B, 1J0 422 804 H (1) OEM |
 |
29VW1020
|
Tie Rod |
1,07 kg |
171 419 804, 171 419 804 A (1) OEM |
 |
29VW1220
|
Tie Rod Right |
1,07 kg |
191 419 804, 191 419 804 A |
 |
29VW1221
|
Tie Rod Left |
1,07 kg |
191 419 803 A, 191 419 803 |
 |
29VW1230
|
Tie Rod Right |
1 kg |
191 422 804 A, 191 422 804 |
 |
29VW1250
|
Tie Rod Left |
1 kg |
191 422 803, 191 422 803 A |
 |
29VW1260
|
Tie Rod Left |
0,97 kg |
1J0 422 803 H, 1J0 422 803 B (2) OEM |
 |
29VW1261
|
Tie Rod Right |
0,97 kg |
1J0 422 804 H, 1J0 422 804 B (2) OEM |
 |
30AU1220
IN PREPARATION
|
Track Control Arm Left |
|
1K0 501 529 F |
 |
30AU1221
IN PREPARATION
|
Track Control Arm Right |
|
1K0 501 530 C |
 |
30VW1501
|
Track Control Arm Right |
tp: M12x1,5 cr: 1:5 c: Ø15,02 / 3,5 kg |
1J0 407 151 C, 1J0 407 151 B (1) OEM |
 |
30VW1502
|
Track Control Arm Left |
tp: M12x1,5 cr: 1:5 c: Ø15,02 / 3,5 kg |
1J0 407 151 C, 1J0 407 151 B (1) OEM |
 |
30VW1600
|
Track Control Arm Left |
tp: M12x1,5 cr: 1:5 c: Ø15,4 / 4,3 kg |
1K0 407 151 AB, 1K0 407 151 AH (9) OEM |
 |
30VW1601
|
Track Control Arm Right |
tp: M12x1,5 cr: 1:5 c: Ø15,4 / 4,3 kg |
1K0 407 152 AH, 1K0 407 152 AB (9) OEM |
 |
30VW1602
|
Track Control Arm Left |
tp: M12x1,5 cr: 1:5 c: Ø15,4 / 3,8 kg |
5Q0 407 151 J, 5QM 407 151 A (3) OEM |
 |
30VW1603
|
Track Control Arm Right |
tp: M12x1,5 cr: 1:5 c: Ø15,4 / 3,8 kg |
5Q0 407 152 J, 5QM 407 152 A (3) OEM |
 |
30VW1610
IN PREPARATION
|
Track Control Arm Left |
0 kg |
1K0 407 151 R, 1K0 407 151 M (4) OEM |
 |
30VW1611
IN PREPARATION
|
Track Control Arm Right |
0 kg |
1K0 407 152 AC, 1K0 407 152 AD (3) OEM |
 |
30VW1612
|
Track Control Arm Left |
tp: M12x1,5 cr: 1:5 c: Ø15,2 / 3,75 kg |
5Q0 407 151 J, 5QM 407 151 A (3) OEM |
 |
30VW1613
|
Track Control Arm Right |
tp: M12x1,5 cr: 1:5 c: Ø15,2 / 3,75 kg |
5Q0 407 152 J, 5QM 407 152 A (3) OEM |
 |
30VW1670
|
Track Control Arm Rear Left |
c: Ø12,25 / 1,79 kg |
1K0 505 223 E, 1K0 505 223 H (2) OEM |
 |
30VW1671
|
Track Control Arm Rear Right |
c: Ø12,25 / 1,77 kg |
1K0 505 224 H, 1K0 505 224 K (2) OEM |
 |
30VW1672
|
Track Control Arm Rear Left |
c: Ø12,25 / 1,58 kg |
5Q0 505 223 D, 5Q0 505 223 (1) OEM |
 |
30VW1673
|
Track Control Arm Rear Right |
c: Ø12,25 / 1,59 kg |
5QM 505 224, 5Q0 505 224 D |
 |
30VW1700
NEW
|
Track Control Arm Rear |
2,22 kg |
5QM 505 311, 5Q0 505 311 C (3) OEM |
 |
30VW1702
IN PREPARATION
|
Track Rod Rear |
|
5Q0 505 323 C, 5Q0 505 323 D (1) OEM |
 |
30VW1704
IN PREPARATION
|
Track Rod Rear |
|
5Q0 501 529 F, 5Q0 501 529 D (2) OEM |
 |
38AU0100
|
Stabiliser Mounting |
di:Ø10,8 / 0,03 kg |
8A0 511 327 D, 8A0 511 327 B (3) OEM |
 |
38AU1200
|
Silentblock for TCA |
di:Ø12 do:Ø32,6 / 0,1 kg |
357 407 182, 191 407 182 (2) OEM |
 |
38AU1205
|
Silentblock for TCA |
di:Ø13 do:Ø60 / 0,12 kg |
1J0 407 181 A, 1J0 407 181 (1) OEM |
 |
38AU1210
|
Silentblock for TCA |
di:Ø13,5 do:Ø60,5 / 0,13 kg |
8N0 407 181 B, 6R0 407 181 B |
 |
38AU1220
|
Silentblock for TCA |
di:Ø14,2 do:Ø38,7 / 0,13 kg |
1K0 505 203 A, 1K0 505 323 N* (1) OEM |
 |
38AU1221
|
Silentblock for TCA |
di:Ø14.1 do:Ø40.5 L:45mm / 0,18 kg |
1K0 501 541 C, 1K0 501 530 C (5) OEM |
 |
38AU1222
|
Silentblock for TCA |
di: Ø13.4 / do: Ø64.8 / L: 50 / 0,25 kg |
5Q0 407 183 F, 81A 407 183 |
 |
38AU1230
|
Silentblock for TCA |
di:Ø12.1 do:Ø37.4 L:49.8 / 0,14 kg |
5Q0 505 553, 5Q0 505 553 A |
 |
38AU1231
|
Silentblock for TCA |
di:Ø12.1 do:Ø44.4 L:59.8 / 0,12 kg |
3Q0 505 311 D*, 3Q0 505 311 E* (5) OEM |
 |
38AU1235
|
Silentblock for TCA |
di:Ø12.25 do:Ø60.2 L:63.8mm / 0,19 kg |
1K0 505 541 B, 5Q0 505 541 A (4) OEM |
 |
38AU1290
NEW
|
Bellow Steering |
|
1K0 423 831 A, 1K0 423 831 B (1) OEM |
 |
38AU3000
|
Stabiliser Mounting |
di:Ø20,8 / 0,04 kg |
8N0 411 303 G, 8N0 411 303 H (2) OEM |
 |
38AU3001
|
Stabiliser Mounting |
di:Ø16,7 / 0,03 kg |
8N0 411 305 A, 1J0 411 305 L (4) OEM |
 |
38AU3002
|
Stabiliser Mounting |
di:Ø19,7 / 0,03 kg |
1J0 411 314 P |
 |
38AU3003
|
Stabiliser Mounting |
di:Ø20,8 / 0,03 kg |
8N0 411 314 B, 1J0 411 314 N (5) OEM |
 |
38AU3010
|
Stabiliser Mounting |
di:Ø14,5 do:Ø29 / 0,02 kg |
1J0 411 327 |
 |
38AU3020
|
Silentblock for TCA |
di:Ø12,2 do:Ø39,5 / 0,19 kg |
5Q0 407 182 A, 5Q0 407 182 (4) OEM |
 |
38AU3021
|
Silentblock for TCA |
di:Ø13,2 do:Ø65 / 0,35 kg |
5Q0 407 183 D, 5Q0 407 183 G (7) OEM |
 |
38AU3030
|
Silentblock for TCA |
di:Ø12,2 do:Ø39,5 / 0,19 kg |
1K0 407 182, 1K0 407 182 F (4) OEM |
 |
38AU5000
|
Silentblock for TCA |
di:Ø12,2 do:Ø45,2 / 0,15 kg |
8N0 407 182 A, 1ML 407 182 |
 |
38SK1605
IN PREPARATION
|
Mounting Axle Body |
|
5Q0 501 541 C, 5Q0 501 541 F |
 |
38VW1000
OUT OF SERVICE
|
Silentblock for TCA |
0 kg |
171 407 182 D, 171 407 182 E |
 |
38VW1005
OUT OF SERVICE
|
Silentblock for TCA |
di:Ø15 / 0 kg |
171 407 181 A, 171 407 181 |
 |
38VW1010
|
Silentblock for TCA |
di:Ø17 do:Ø60 / 0,12 kg |
191 407 181 D, 191 407 181 E (3) OEM |
 |
38VW1011
|
Silentblock for TCA |
di:Ø17,2 do:Ø60 L:41mm / 0,21 kg |
191 407 181 A, 191 407 181 B |
 |
38VW1020
|
Stabiliser Mounting |
di:Ø19 / 0,03 kg |
1H0 411 314, 1H0 411 309 (1) OEM |
 |
38VW1021
|
Stabiliser Mounting |
di:Ø17 L:35.5mm / 0,03 kg |
191 411 314 |
 |
38VW1025
|
Mounting Axle Body |
di:Ø12,1 / 0,6 kg |
1H0 501 541 A, 1H0 501 541 |
 |
38VW1027
|
Mounting Axle Body |
di:Ø12,1 / 0,4 kg |
1H9 501 541 |
 |
38VW1230
NEW
|
Silentblock for TCA |
0,11 kg |
5Q0 505 311 D*, 5Q0 505 171 |
 |
38VW1261
|
Silentblock for TCA Right |
0,7 kg |
1K0 199 232 P, 1K0 199 232 J (2) OEM |
 |
38VW1262
|
Silentblock for TCA Left |
0,7 kg |
1K0 199 231 J, 1K0 199 231 P (4) OEM |
 |
38VW1270
|
Strut Mount |
di:Ø32 do:Ø65,5 / 0,21 kg |
1J0 412 331, 1J0 412 331 C (1) OEM |
 |
38VW1271
|
Strut Mount Kit |
di:Ø32 do:Ø65,5 / 0,27 kg |
1J0 412 331 B, 1J0 412 331 C (4) OEM |
 |
38VW1273
|
Bearing |
di:Ø14.2 do:Ø45.5 L:13.8mm / 0,07 kg |
357 412 249 A, 1J0 412 249 (10) OEM |
 |
38VW1502
|
Mounting Axle Body |
di:Ø12,5 do:Ø69,2 / 0,64 kg |
1J0 501 541 D |
 |
38VW1503
|
Mounting Axle Body |
di:Ø18 do:Ø51 L:30.9mm / 0,13 kg |
1J0 199 429 |
 |
38VW1504
|
Silentblock for TCA |
0,2165 kg |
1J0 505 203, 1J0 505 365 N |
 |
38VW1607
|
Silentblock for TCA |
do: Ø64 / L:50.5 / 0,14 kg |
3C0 199 231 F SK, 1K0 199 232 K SK (5) OEM |
 |
38VW1608
|
Mounting Axle Body |
di: Ø18.1 / do: Ø70 / L: 92 / 0,52 kg |
1K0 505 145 K, 1K0 505 145 H |
 |
38VW1609
|
Silentblock for TCA |
di: Ø12.1 / do: Ø42.4 / L: 60 / 0,1 kg |
1K0 505 311 S, 1K0 505 311 AH (8) OEM |
 |
38VW1615
|
Stabiliser Mounting |
di:Ø16 L:43mm / 0,07 kg |
1K0 511 327 AE, 1K0 511 327 AP |
 |
38VW1700
NEW
|
Silentblock for TCA |
0,13 kg |
1K0 505 553, 1K0 505 553 A |
 |
38VW2090
|
Bellow Driveshaft |
di: Ø26 / do: Ø91 / L: 122 / 0,3 kg |
6C0 498 203, 1K0 498 203 (1) OEM |
 |
45VW1000
OUT OF SERVICE
|
Strut Mount |
di:Ø14.2 do: Ø125 L:49mm / 0 kg |
176 412 329, 191 412 331 (2) OEM |
 |
45VW1235
|
Strut Mount |
di:Ø26 do:Ø96 L:50mm / 0,33 kg |
7M0 412 331, 357 412 331 A (2) OEM |
 |
45VW1236
|
Strut Mount Kit |
di:Ø26 do: Ø96 L:50mm / 0,4 kg |
357 412 331 A, 7M0 412 331 (2) OEM |
 |
45VW1505
NEW
|
Strut Mount |
0,35 kg |
1J0 513 353 D, 1J0 513 353 C (6) OEM |
 |
45VW1520
|
Suspension Support Buffer Rear |
di:Ø13 do: Ø59 L:145.5mm / 0,1 kg |
1J0 512 131 |
 |
45VW1530
|
Suspension Support Buffer Rear |
di:Ø13 do: Ø57.5 L:126.5mm / 0,1 kg |
1J0 512 131 B, 1J0 513 025 Q |
 |
45VW1600
|
Engine Mounting |
di:Ø15.2 do: Ø91.5 L:35.5mm / 0,24 kg |
1K0 199 867 P, 1K0 199 867 Q (4) OEM |
 |
45VW1601
|
Strut Mount |
di: Ø11 L: 62 / 0,34 kg |
5Q0 513 353 H |
 |
45VW1602
NEW
|
Strut Mount |
0 kg |
5Q0 513 353 G, 5Q0 513 353 K (2) OEM |
 |
45VW1603
NEW
|
Strut Mount |
0,31 kg |
3C0 513 353, 3C0 513 353 C (1) OEM |
 |
45VW1605
|
Strut Mount |
di: Ø14.2 / L: 52 / 0,84 kg |
1K0 412 331 B, 1K0 412 331 C |
 |
45VW1606
|
Strut Mount With Bearing |
di: Ø14.2 / 1,112 kg |
1K0 412 331 B, 6N0 412 249 C (4) OEM |
 |
45VW1608
NEW
|
Strut Mount |
0,69 kg |
5Q0 412 331 E, 5Q0 412 331 F (2) OEM |
 |
45VW1621
|
Suspension Support Buffer Front |
di:Ø25 do: Ø49 L:87.5mm / 0,05 kg |
6K0 413 031 B, 357 412 303 F (4) OEM |
 |
45VW1622
|
Suspension Support Buffer Front |
di:Ø24.5 do: Ø55 L:56.5mm / 0,08 kg |
5Q0 412 303 B, 1K0 412 303 AE |
 |
45VW1625
|
Suspension Support Buffer Front |
di:Ø24 do: Ø55 L:86mm / 0,1 kg |
5Q0 412 303 |
 |
45VW1626
|
Suspension Support Buffer Front |
di:Ø27 do: Ø50 L:90.4mm / 0,1 kg |
1K0 412 303 H |
 |
45VW1635
|
Suspension Support Buffer Rear |
di:Ø15 L:134mm / 0,13 kg |
1K0 511 353 F |
 |
45VW1636
|
Suspension Support Buffer Rear |
di:Ø22.5 do: Ø59.6 L:113mm / 0,11 kg |
5Q0 511 357 J, 5Q0 511 357 N |
 |
45VW1637
|
Suspension Support Buffer Rear |
di:Ø22 do: Ø59 L:134mm / 0,13 kg |
5Q0 511 357 F |
 |
45VW1638
|
Suspension Support Buffer Rear |
di:Ø17 do: Ø53.5 L:134.5mm / 0,08 kg |
1K0 511 353 M |
 |
45VW1639
|
Suspension Support Buffer Rear |
di:Ø15 do: Ø52.5 L:132.5mm / 0,09 kg |
3C0 511 359 |
 |
526VW1500
|
Stabiliser Link |
L: 105 tp: MM8x1,25 / 0,18 kg |
1J0 411 315, 1J0 411 315 B (5) OEM |
