10AU1200
|
Ball Joint Left |
th:M12x1.5 RHT cp:1/5 cs:Ø14,8 / 0,54 kg |
6R0 407 365 B, 6R0 407 365 A (3) OEM |
 |
10AU1201
|
Ball Joint Right |
th:M12x1.5 RHT cp:1/5 cs:Ø14,8 / 0,54 kg |
6R0 407 366 B, 6R0 407 366 (3) OEM |
 |
10VW1100
|
Ball Joint |
c:Ø19 / 0,45 kg |
357 407 365 A, 357 407 365 |
 |
10VW1600
|
Ball Joint Lower Left |
th:M12x1.5 RHT cp:1/5 cs:Ø15,4 / 0,62 kg |
1K0 407 365 C, 5Q0 407 365 A (6) OEM |
 |
10VW1601
|
Ball Joint Lower Right |
th:M12x1.5 RHT cp:1/5 cs:Ø15,4 / 0,62 kg |
1KD 407 366, 1K0 407 366 E (6) OEM |
 |
10VW2005
|
Ball Joint Left |
th:M10x1.25 RHT cp:1/10 cs:Ø14,6 / 0,42 kg |
6N0 407 365 |
 |
10VW2006
|
Ball Joint Right |
th:M10x1.25 RHT cp:1/10 cs:Ø14,6 / 0,42 kg |
6N0 407 365 A |
 |
10VW2010
|
Ball Joint Left |
th:M12x1.5 RHT cp:1/5 cs:Ø14,9 / 0,45 kg |
6Q0 407 365 A, 8Z0 407 365 A (3) OEM |
 |
10VW2011
|
Ball Joint Right |
th:M12x1.5 RHT cp:1/5 cs:Ø14,9 / 0,45 kg |
6Q0 407 365 E, 5Z0 407 366 B (7) OEM |
 |
17AU1200
|
Tie Rod End Right |
c:Ø13,2 th:FM16x1,5 RHT / 0,42 kg |
1K0 423 812 F, 1K0 423 812 J (10) OEM |
 |
17AU1201
|
Tie Rod End Left |
c:Ø13,2 th:FM16x1,5 RHT / 0,42 kg |
3C0 423 811 B, 1K1 423 070 X (9) OEM |
 |
17SK2010
IN PREPARATION
|
Tie Rod End Left |
|
6C0 423 811 A |
 |
17SK2011
IN PREPARATION
|
Tie Rod End Right |
|
6C0 423 812 A |
 |
17VW1230
|
Tie Rod End Right |
c:Ø12,4 th:FM14x1,5 RHT / 0,35 kg |
191 419 812, 6N0 419 812 (2) OEM |
 |
17VW1250
|
Tie Rod End Left |
c:Ø12,4 th:FM14x1,5 RHT / 0,35 kg |
3A0 422 811, 6N0 419 811 (2) OEM |
 |
17VW2010
|
Tie Rod End Left |
c:Ø13,2 th:FM14x1,5 RHT / 0,4 kg |
6Q0 419 811 C, 6Q0 423 811 A (6) OEM |
 |
17VW2011
|
Tie Rod End Right |
c:Ø13,2 th:FM14x1,5 RHT / 0,4 kg |
6Q0 423 812 A, 6Q0 423 812 D (17) OEM |
 |
17VW2020
|
Tie Rod End Left |
c:Ø12,65 th:FM14x1,5 RHT / 0,4 kg |
6K0 422 811, 6X0 422 811 (1) OEM |
 |
17VW2021
|
Tie Rod End Right |
c:Ø12,65 th:FM14x1,5 RHT / 0,4 kg |
6X0 422 812, 6K0 422 812 (1) OEM |
 |
20AU1000
|
Axial Joint |
tp: MM14x1.5 tp: MM16x1.5 L: 315 / 0,7 kg |
2Q0 423 810 D |
 |
20AU1100
|
Axial Joint |
th:MM14x1.5 RHT L:315mm / 0,62 kg |
6R0 423 810, 8Z0 423 810 C (1) OEM |
 |
20SK2020
IN PREPARATION
|
Axial Joint |
|
6Q0 419 810 A |
 |
20SK2030
IN PREPARATION
|
Axial Joint |
|
6RD 423 810, 6RU 423 810 |
 |
20VW2010
|
Axial Joint |
th:MM16x1,5 RHT L:302,5mm / 0,55 kg |
6Q0 423 810 G, 6Q0 423 803 G (7) OEM |
 |
20VW2015
|
Axial Joint |
th:MM14x1.5 RHT L:296mm / 0,62 kg |
6Q0 423 803 E, 6Q0 423 804 E (5) OEM |
 |
20VW2020
|
Axial Joint |
th:MM14x1.5 RHT L:312,5mm / 0,62 kg |
6R0 423 803, 6R0 423 803 A (1) OEM |
 |
20VW2030
|
Axial Joint |
tp: MM14x1.5 / tp: MM14x1.5 / L: 312 / 0,66 kg |
6C0 423 810 C, 6C0 423 810 B (3) OEM |
 |
20VW2040
|
Axial Joint |
L: 310 mm TP: M14x1,5 mm TP: M14X1,5 mm / 0,64 kg |
6N0 422 803 A*, 6N0 422 807 A* (2) OEM |
 |
20VW2050
|
Axial Joint |
TP: M14x1,5 TP: M14X1,5 L: 293 / 0,62 kg |
6X0 422 803*, 6X0 422 804* (3) OEM |
 |
20VW2060
IN PREPARATION
|
Axial Joint |
0 kg |
6N0 419 821, 6N0 419 803* (1) OEM |
 |
26VW2010
|
Stabiliser Link |
L:269,5mm / 0,43 kg |
893 407 465 A, 8A0 407 465 B (26) OEM |
 |
29VW2010
|
Tie Rod Left |
0,95 kg |
6Q0 423 803 G, 6Q0 423 803 C |
 |
29VW2011
|
Tie Rod Right |
0,95 kg |
6Q0 423 804 G, 6Q0 423 804 C |
 |
29VW2015
|
Tie Rod Left |
1 kg |
6Q0 423 803 E, 6Q0 423 803 B (1) OEM |
 |
29VW2016
|
Tie Rod Right |
1 kg |
6Q0 423 804 P, 6Q0 423 804 E (1) OEM |
 |
29VW2040
|
Tie Rod Left |
TP: M14x1,5 mm TP: M12X1,5 mm / 0,96 kg |
6N0 422 803, 6N0 422 803 A (1) OEM |
 |
29VW2041
|
Tie Rod Right |
TP: M14x1,5 mm TP: M12X1,5 mm / 0,96 kg |
6N0 422 804 A, 6N0 422 804 |
 |
29VW2050
|
Tie Rod Left |
TP: M14x1,5 TP: M12X1,5 / 1 kg |
6K0 422 811, 6X0 422 811 (8) OEM |
 |
29VW2051
|
Tie Rod Right |
TP: M14x1,5 TP: M12X1,5 / 1 kg |
6N0 422 804 C, 6N0 422 803 C* (8) OEM |
 |
30AU1200
|
Track Control Arm Left |
tp: M12x1.5 cr: 1:5 c: Ø14.8 / 3,3 kg |
6R0 407 151 F, 6R0 407 151 A |
 |
30AU1201
|
Track Control Arm Right |
tp: M12x1.5 cr: 1:5 c: Ø14.8 / 3,3 kg |
6R0 407 152 F, 6R0 407 152 A |
 |
38AU1001
|
Silentblock for TCA |
di: Ø13.1 / do: Ø60 / L: 50 / 0,12 kg |
2Q0 407 183 B, 2Q0 407 183 |
 |
38AU1200
|
Silentblock for TCA |
di:Ø12 do:Ø32,6 / 0,1 kg |
357 407 182, 191 407 182 (2) OEM |
 |
38AU1205
|
Silentblock for TCA |
di:Ø13 do:Ø60 / 0,12 kg |
1J0 407 181 A, 1J0 407 181 (1) OEM |
 |
38AU1215
|
Stabiliser Mounting |
di:Ø17 / 0,03 kg |
6Q0 411 303 AD, 6Q0 411 314 Q (3) OEM |
 |
38AU1216
|
Stabiliser Mounting |
di:Ø18 do:Ø32.5 L:35 / 0,03 kg |
6Q0 411 314 R, 6Q0 411 314 N (3) OEM |
 |
38AU2000
|
Stabiliser Mounting |
di:Ø16 / 0,04 kg |
6Q0 411 303 H, 6Q0 411 305 F (5) OEM |
 |
38AU3021
|
Silentblock for TCA |
di:Ø13,2 do:Ø65 / 0,35 kg |
5Q0 407 183 D, 5Q0 407 183 G (7) OEM |
 |
38SK1605
IN PREPARATION
|
Mounting Axle Body |
|
5Q0 501 541 C, 5Q0 501 541 F |
 |
38VW1010
|
Silentblock for TCA |
di:Ø17 do:Ø60 / 0,12 kg |
191 407 181 D, 191 407 181 E (3) OEM |
 |
38VW1011
|
Silentblock for TCA |
di:Ø17,2 do:Ø60 L:41mm / 0,21 kg |
191 407 181 A, 191 407 181 B |
 |
38VW1020
|
Stabiliser Mounting |
di:Ø19 / 0,03 kg |
1H0 411 314, 1H0 411 309 (1) OEM |
 |
38VW1021
|
Stabiliser Mounting |
di:Ø17 L:35.5mm / 0,03 kg |
191 411 314 |
 |
38VW1200
|
Silentblock for TCA |
di:Ø12.5 do: Ø32.6 L:54mm / 0,13 kg |
6Q0 407 182 A |
 |
38VW1260
|
Silentblock for TCA |
do: Ø64 L:50.5mm / 0,16 kg |
6Q0 407 183 B, 6Q0 407 183 A (2) OEM |
 |
38VW1270
|
Strut Mount |
di:Ø32 do:Ø65,5 / 0,21 kg |
1J0 412 331, 1J0 412 331 C (1) OEM |
 |
38VW1271
|
Strut Mount Kit |
di:Ø32 do:Ø65,5 / 0,27 kg |
1J0 412 331 B, 1J0 412 331 C (4) OEM |
 |
38VW1273
|
Bearing |
di:Ø14.2 do:Ø45.5 L:13.8mm / 0,07 kg |
357 412 249 A, 1J0 412 249 (10) OEM |
 |
38VW1500
|
Mounting Axle Body |
di:Ø12,1 do:Ø71,5 / 0,36 kg |
6R0 501 541 A, 6R0 501 541 B |
 |
38VW1502
|
Mounting Axle Body |
di:Ø12,5 do:Ø69,2 / 0,64 kg |
1J0 501 541 D |
 |
38VW2000
|
Stabiliser Mounting |
di:Ø20,8 / 0,03 kg |
8Z0 411 314 B |
 |
38VW2001
|
Stabiliser Mounting |
di:Ø19 L:33mm / 0,03 kg |
6X0 411 313, 6N0 411 313 |
 |

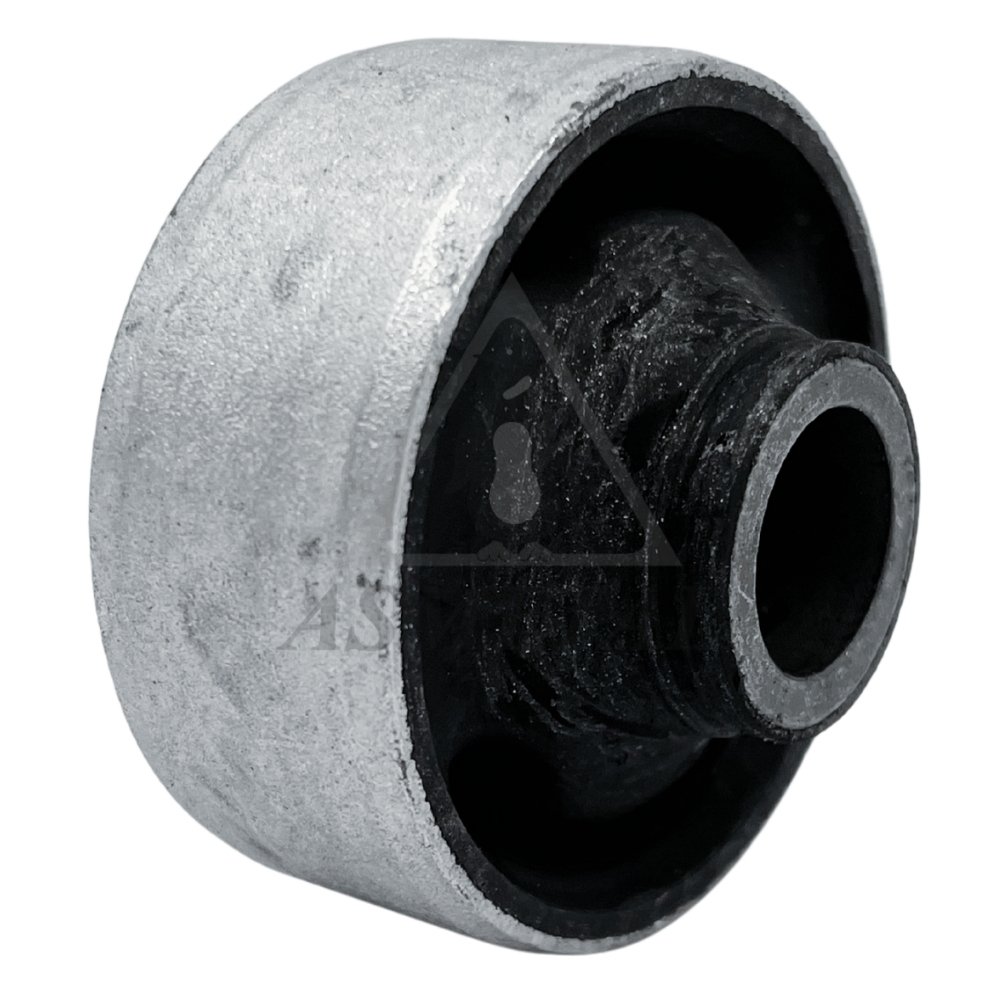

38VW2005
|
Silentblock for TCA |
di:Ø12 do:Ø32,6 / 0,16 kg |
6N0 407 181 |
 |
38VW2006
|
Silentblock for TCA |
di:Ø18.6 do:Ø60.3 L:50 / 0,09 kg |
6N0 407 182*, 6X0 407 151 A* (1) OEM |
 |
38VW2090
|
Bellow Driveshaft |
di: Ø26 / do: Ø91 / L: 122 / 0,3 kg |
6C0 498 203, 1K0 498 203 (2) OEM |
 |
45VW1230
|
Suspension Support Buffer Rear |
di:Ø16 do: Ø47 L:111.5mm / 0,08 kg |
6K0 512 131 A |
 |
45VW1235
|
Strut Mount |
di:Ø26 do:Ø96 L:50mm / 0,33 kg |
7M0 412 331, 357 412 331 A (2) OEM |
 |
45VW1236
|
Strut Mount Kit |
di:Ø26 do: Ø96 L:50mm / 0,4 kg |
357 412 331 A, 7M0 412 331 (2) OEM |
 |
45VW1505
NEW
|
Strut Mount |
0,35 kg |
1J0 513 353 D, 1J0 513 353 C (6) OEM |
 |
45VW1520
|
Suspension Support Buffer Rear |
di:Ø13 do: Ø59 L:145.5mm / 0,1 kg |
1J0 512 131 |
 |
45VW1530
|
Suspension Support Buffer Rear |
di:Ø13 do: Ø57.5 L:126.5mm / 0,1 kg |
1J0 512 131 B, 1J0 513 025 Q |
 |
45VW1601
|
Strut Mount |
di: Ø11 L: 62 / 0,34 kg |
5Q0 513 353 H |
 |
45VW1602
IN PREPARATION
|
Strut Mount |
0 kg |
5Q0 513 353 G, 5Q0 513 353 K (2) OEM |
 |
45VW1608
IN PREPARATION
|
Strut Mount |
|
5Q0 412 331 E, 5Q0 412 331 F (2) OEM |
 |
45VW1620
|
Suspension Support Buffer Front |
di:Ø21.5 L:70.6mm / 0,05 kg |
6Q0 412 301 A, 6N0 413 175 A |
 |
45VW1621
|
Suspension Support Buffer Front |
di:Ø25 do: Ø49 L:87.5mm / 0,05 kg |
6K0 413 031 B, 357 412 303 F (4) OEM |
 |
45VW1624
|
Suspension Support Buffer Front |
di:Ø23 do: Ø57 L:50mm / 0,04 kg |
1J0 412 303 |
 |
45VW1625
|
Suspension Support Buffer Front |
di:Ø24 do: Ø55 L:86mm / 0,1 kg |
5Q0 412 303 |
 |
45VW2020
|
Suspension Support Buffer Rear |
di:Ø10 do:Ø51 L:123mm / 0,08 kg |
6N0 512 131 A |
 |
45VW2021
|
Suspension Support Buffer Front |
di:Ø24 do: Ø57.5 L:66.5mm / 0,05 kg |
6N0 412 303 A |
 |
45VW2022
|
Suspension Support Buffer Front |
di:Ø24 do:Ø64 L:76,5mm / 0,07 kg |
6Q0 412 301 |
 |
45VW2023
|
Suspension Support Buffer Front |
di:Ø22 do: Ø64 L:56mm / 0,06 kg |
6Q0 412 301 A |
 |
45VW2030
|
Suspension Support Buffer Rear |
di:Ø11.5 do: Ø54.5 L:122mm / 0,07 kg |
6Q0 512 131 B |
