ASMETAL Catalogue

ASMETAL No	Product Description	Dimensions	Oem No
10FR2205	Ball Joint Lower	th:M14x1.5 RHT cp:1/6 cs:Ø18 / 0,8 kg	6G9N 3A053 DH, 6G9N 3A053 DG (41) OEM
10VL0502	Ball Joint Lower	th:M12x1.75 RHT do:Ø38,35 / 0,5 kg	9 492 639, 9 173 613 (7) OEM
10VL0510	Ball Joint	tp: M14x1.5 / do: Ø58 / cr: 1:6 / c: Ø14.8 / 0,54 kg	30 760 868, 274 573 (3) OEM
11VL6090 IN PREPARATION	Silentblock Bushing	0 kg	31 360 583
17FR2205	Tie Rod End Right	c:Ø16,7 th:FM18x1,5 RHT / 0,58 kg	6G91 3289 AA, 1 433 273 (4) OEM
17FR2206	Tie Rod End Left	c:Ø16,7 th:FM18x1,5 RHT / 0,58 kg	6G91 3290 AA, 1 433 274 (4) OEM
17VL0502	Tie Rod End Left	th:FM14x1,5 RHT / 0,96 kg	274 175, 274 496 (1) OEM
17VL0503	Tie Rod End Right	th:FM14x1,5 RHT / 0,96 kg	274 176, 274 497 (1) OEM
20FR2205	Axial Joint	th:MM16x1,5 RHT L:313mm / 0,83 kg	1 433 271, 1 596 574 (7) OEM
20VL0502	Axial Joint	th:MM16x1,5 RHT L:125mm / 0,35 kg	9 173 612, 9 173 611 (2) OEM
20VL0505	Axial Joint	tp: MM16x1.5 / tp: MM14x1.5 / L: 126 / 0,36 kg	274 353
20VL6090 IN PREPARATION	Axial Joint		32 268 668, 31 429 234 (1) OEM

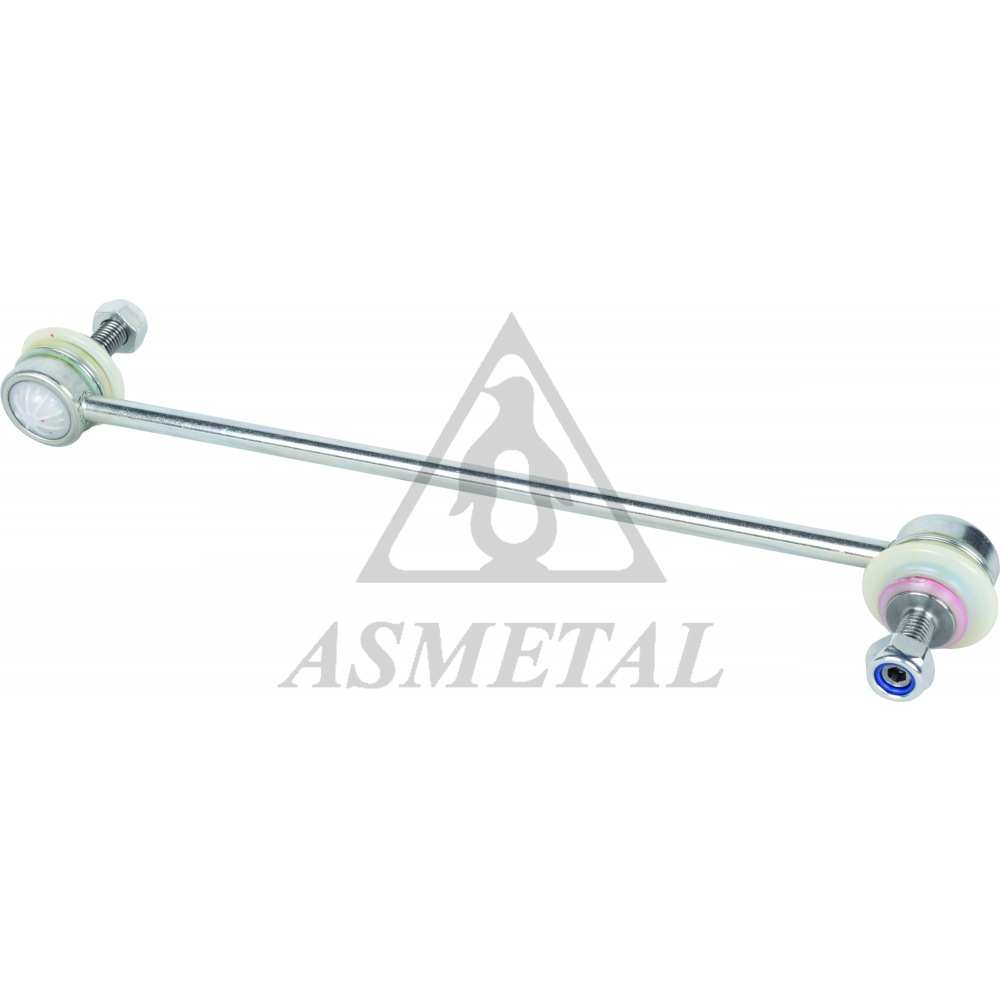

26FR2205	Stabiliser Link	L:300mm / 0,38 kg	1 377 849, 6G9N 3B438 BA (2) OEM

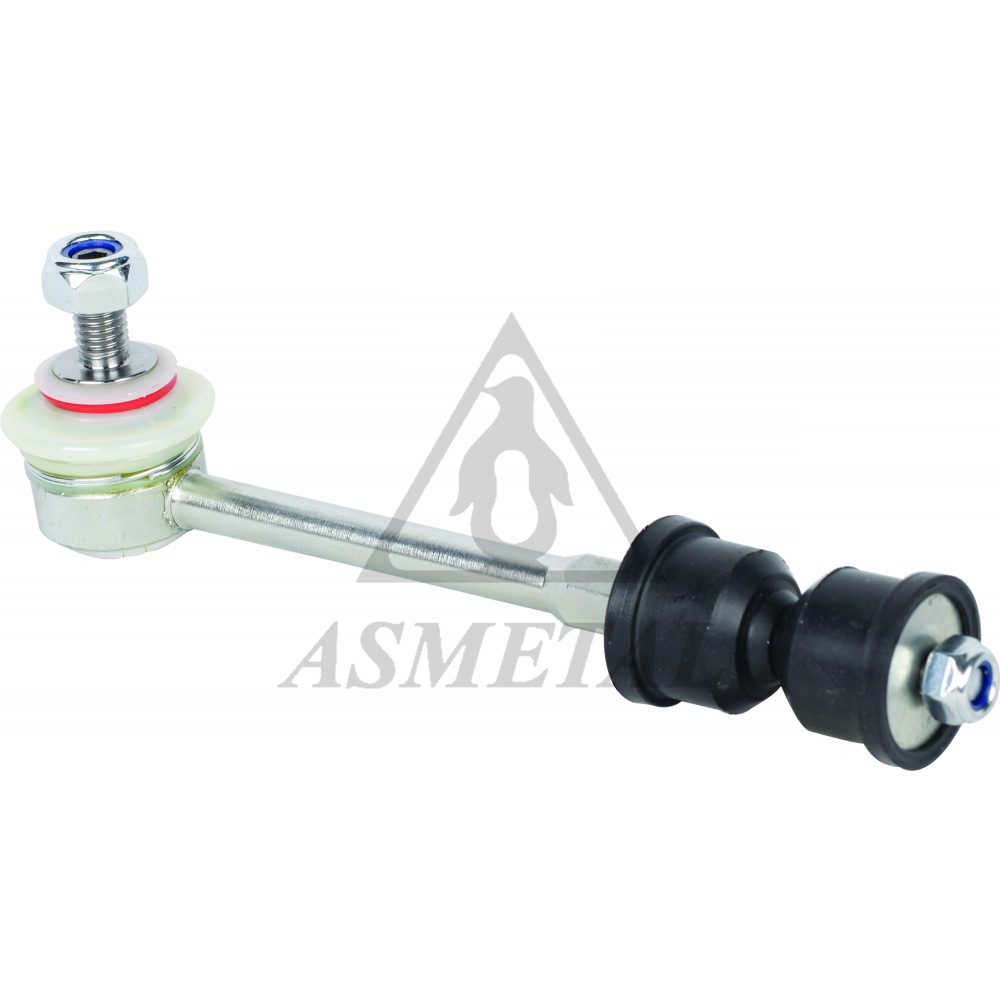

26FR2210	Stabiliser Link	L:179mm / 0,3 kg	1 425 853, 1 377 416 (4) OEM
26VL0502	Stabiliser Link Rear	L:140mm / 0,38 kg	30 647 920, 8 672 446 (4) OEM

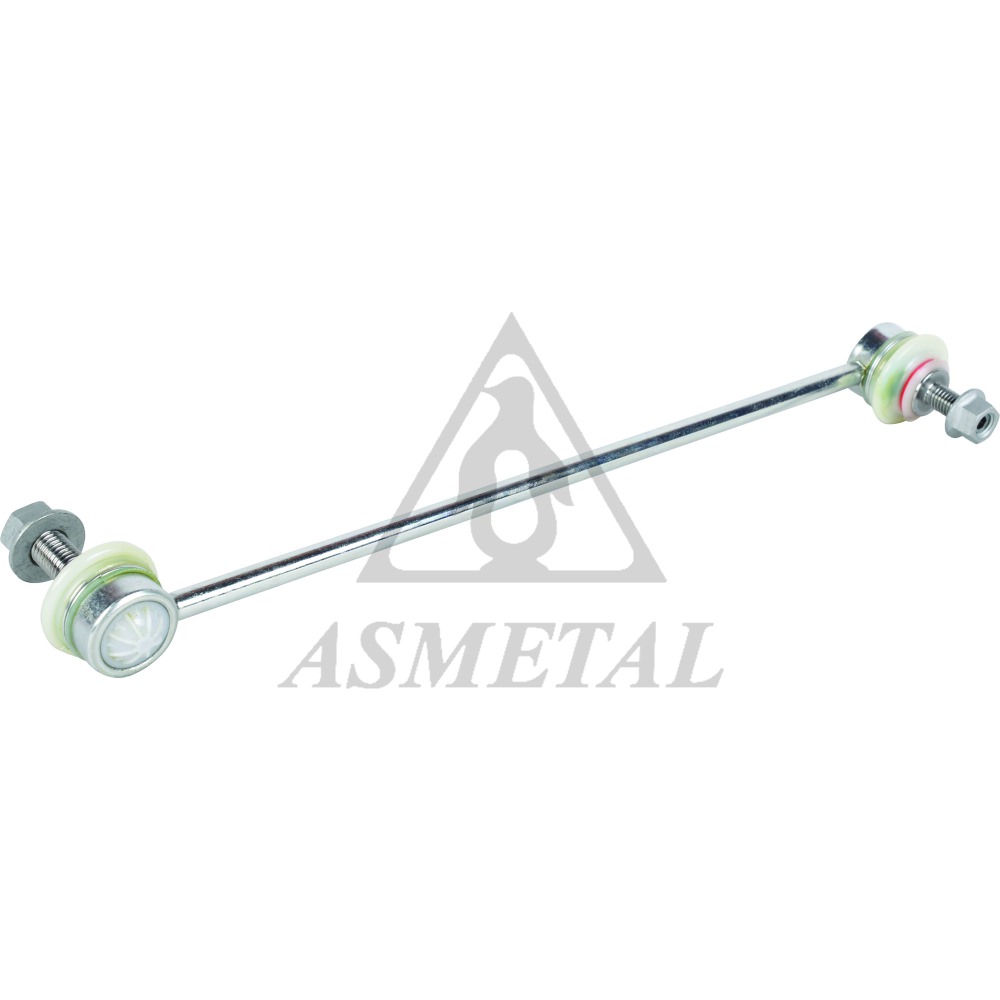

26VL0503	Stabiliser Link	L:332mm / 0,48 kg	274 303, 274 456 (6) OEM
26VL6090 NEW	Stabiliser Link Left	0,36 kg	31 387 674
26VL6091 NEW	Stabiliser Link Right	0,36 kg	31 387 675
30FR2204	Track Control Arm Left	tp: M14x1,5 cr: 1:6 c: Ø18 / 6,64 kg	1 507 182, 1 469 026 (4) OEM
30FR2205	Track Control Arm Right	tp: M14x1,5 cr: 1:6 c: Ø18 / 6,54 kg	1 507 181, 1 469 024 (4) OEM

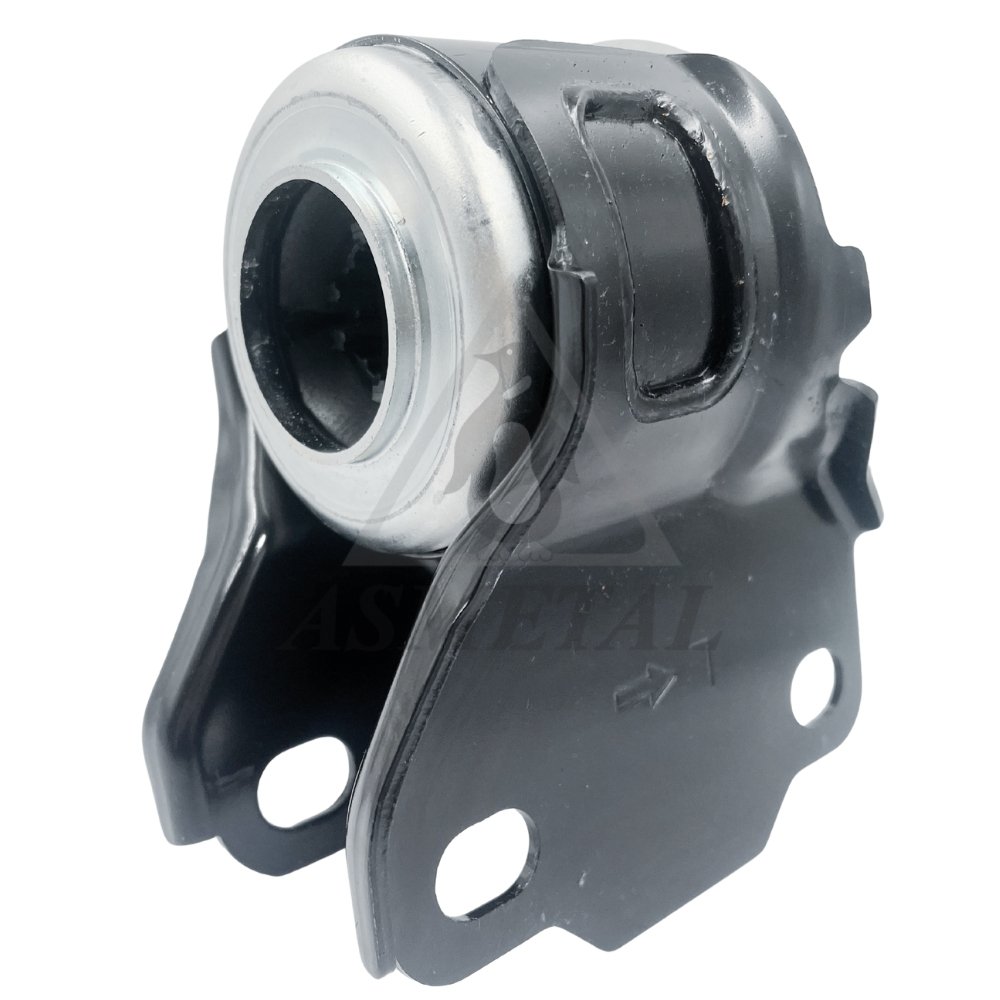

38FR2204	Silentblock for TCA Left	di:Ø24 L:78mm / 2 kg	1 460 693, 1 466 188 (17) OEM
38FR2205	Silentblock for TCA Right	di:Ø24 L:78mm / 2,03 kg	1 883 048, 1 469 024* (17) OEM
38FR2206	Mounting Axle Body Left	do:Ø90,2 L:40.5 / 0,85 kg	1 566 838, TKA 181351 (10) OEM

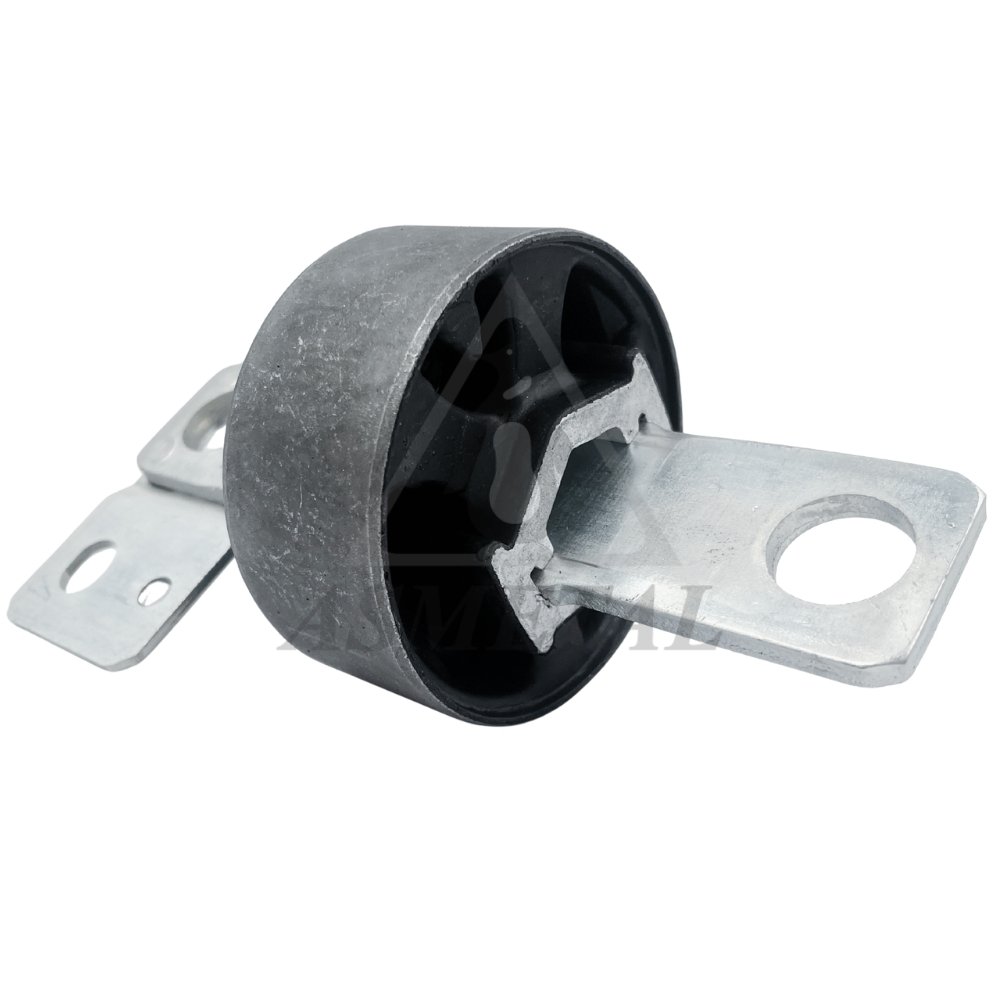

38FR2207	Mounting Axle Body Right	do:Ø90,2 L:40.5 / 0,84 kg	6G91 5A968 FCJ, 1 566 841 (12) OEM
38FR2232 NEW	Stabiliser Mounting	di: Ø22 / L: 48 / 0,1 kg	1 469 020, 1 453 257 (10) OEM
38FR4000	Silentblock for TCA	di:Ø14,2 do:Ø60,4 / 0,44 kg	1 460 693, 7G9N 3A053 BB (37) OEM
38FR4017 NEW	Stabiliser Mounting	di: Ø17 / L: 48 / 0,07 kg	1 377 334, 1 387 624 (4) OEM

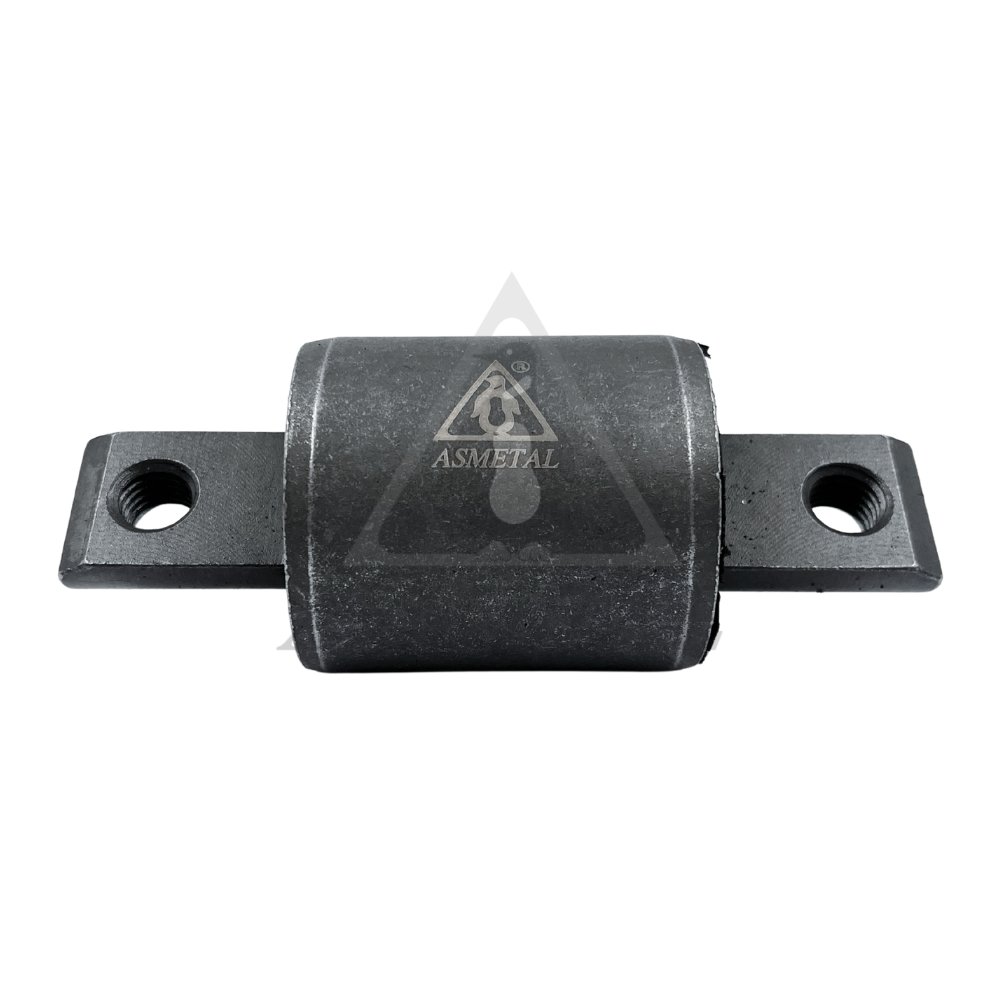

38VL0503	Silentblock for TCA	tp: MM12x1.75 / do: Ø48.3 / L: 98.5 / 0,49 kg	9 443 882, 9 173 618 (1) OEM
38VL0504	Silentblock for TCA	di: Ø12.1 / do: Ø34.1 / L: 34 / 0,1 kg	9 127 363
38VL0506	Silentblock for TCA	di: Ø14.2 / do: Ø53.3 / L: 50 / 0,15 kg	30 760 590, 8 630 604 (1) OEM
38VL0507	Silentblock for TCA	di: Ø14.2 / do: Ø53.3 / L: 50 / 0,2 kg	9 461 626, 8 630 604 (1) OEM
45VL0502	Strut Mount	di: Ø16,6 / 0,56 kg	30 683 637, 9 461 728 (5) OEM
45VL0520 IN PREPARATION	Suspension Support Buffer and Dust Cover	0 kg	8 672 087, 9 140 068
45VL0530	Suspension Support Buffer Rear	do: Ø47 L:71mm / 0,05 kg	9 157 115
